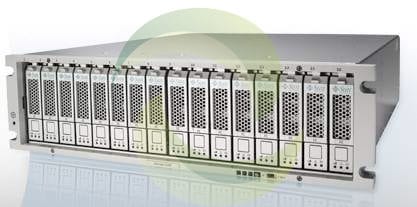

     Oracle Sun Storage 6180 Specifications and Dimensions

    Disks
    146GB 15K, FC
    300GB 15K, FC
    450GB 15K, FC
    500GB 7.2K, SATA
    600GB 15K, FC
    1TB 7.2K, SATA
    Characteristics for this array include:
    • Dual RAID controllers
      • 4GB of battery-backed cache
      • Four or Eight 8 Gb/s FC host connections per controller
    • Five to sixteen hard disk drives per tray
    • Supports RAID 0, 1, 3, 5, 6 (p + q) and 10
    • Rack mountable
    • Small 3 RU chassis
    Capacity
    Up to 16 Disk drives per array
    146.8GB Disk drives16 x 146.8 = 2.3488TB
    300GB Disk drives16 x 300 = 4.8TB
    450GB Disk drives16 x 450 = 7.2TB
    500GB Disk drives16 x 500 = 8.0TB
    1TB Disk drives16 x 1 = 16.0TB
    Total capacity depends on the following:
    • Number of expansion trays added to a controller tray
    • Up to three CSM200 expansion trays can be added to a controller tray (with 4GB cache and 4 Host Ports)
    • Up to six CSM200 expansion trays can be added to a controller tray (with 4GB cache and 8 Host Ports)
    • A controller tray and six expansion trays provide 112 disk drives (7 trays x 16 disk drives)
    • Example of available storage:
      • 300GB FC disk drives – total raw capacity = 33.6TB (112 x 300GB)
      • Sixteen 300GB FC drives in controller tray and ninety-six 500GB SATA drives in expansion trays – total raw capacity = 52.8TB (16 x 300GB + 96 x 500GB)

    Note 1: Total raw capacity decreases depending on RAID level and number of spares used within each array configuration.

    Note 2: The array configuration supports up to 15 global hot spare drives; each spare can be used for any disk in the array configuration.

    Environment
    AC input
    • 4.4 A Max Operating @ 100 VAC (90 – 136 VAC Range), 50/60 Hz
    • 1.9 A Max Operating @ 240 VAX (198 – 264 VAC Range), 50/60 Hz
    DC input17 A Max Operating (-36 to -72 V DC Range)
    Power and coolingDual hot-swappable redundant 620W power supplies and fan modules
    (power and fan modules are enclosed in one unit)
    Heat output1380 BTU/hr *
    Temperature
    • Operating:
      10° C to 40° C (50° F to 104° F) (without battery)
      10° C to 35° C (50° F to 95° F) (with battery)
    • Non-Operating (Storage):
      -10° C to 50° C (-14° F to 120° F) (without battery)
      -10° C to 45° C (-14° F to 113° F) (with battery – 3 month max.)
    • Non-Operating (Transit):
      -40° C to 60° C (-40° F to 140° F) (without battery)
      -40° C to 60° C (-40° F to 140° F) (with battery – 1 week max.)
    Humidity
    • Operating:
      20% to 80%, noncondensing
    • Nonoperating (Storage):
      10% to 90%, Max Dew Point 26° C (79° F), 10% per hour Gradient
    • Nonoperating (Transit):
      5% to 95%, Max Dew Point 26° C (79° F), 10% per hour Gradient
    Altitude
    • Operating: 30.5 m (100 ft) below sea level to 3000 m (9840 ft)
    • Nonoperating: 30.5 m (100 ft) below sea level to 12000 m (40000 ft)
    Vibration0.20 G, 5 to 500 Hz sinusoidal
    Shock
    • Operating:
      10 G, 3.75 ms half triangular
    • Nonoperating:
      30 G, 11 ms half sinewave in the side / side and up / down directions
      5 G, 11 ms half sinewave in the front / back direction
    * – Based on a configuration of two power supplies, two expansion trays, and 16 drives
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance LevelRoHS:YL
    ImmunityCISPR 24 (EN55024), IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
    Safety and EmissionsIEC 60950, EN 60950, UL/CSA 60950, FCC Part 15 (47CFR15B), CISPR 22 (EN55022 – RF Radiated and Conducted Emissions), IEC 61000-3-2, IEC 61000-3-3
    Dimensions and Weights
    Height12.95 cm (5.1 in)
    Width48.28 cm (19 in)
    Depth57.15 cm (22.5 in)
    Weight43 kg (95 lbs) Max.
    Array Controller
    Option #Manufacturing
    Part #    		Description
    n/a371-46766180 Battery Backup Unit, RoHS:Y
    n/a375-3336FC Expansion I/O Module, RoHS:YL
    n/a375-3630RAID Fibre Channel Controller, 2GB memory, 2 host ports, RoHS:YL
    n/a375-3631RAID Fibre Channel Controller, 2GB memory, 4 host ports, RoHS:YL
    Backplane/Centerplane
    Option #Manufacturing
    Part #    		Description
    n/a540-6545Drive Cage Midplane, RoHS:Y
    Cables
    Option #Manufacturing
    Part #    		Description
    X9730A-Z537-1080Fibre Channel Optical Cable LC/LC, 0.8M, RoHS:Y
    X9732A-Z537-1081Fibre Channel Optical Cable LC/LC, 2M, 2.0M, RoHS:Y
    X9733A-Z537-1082Fibre Channel Optical Cable LC/LC, 5M, RoHS:Y
    X9734A-Z537-1083Fibre Channel Optical Cable LC/LC, 15M, RoHS:Y
    X9736A-Z537-1084Fibre Channel Optical Cable LC/LC, 25M, RoHS:Y
    X9738A-Z537-1085Fibre Channel Optical Cable LC/LC, 50M, RoHS:Y
    X9722A-Z537-1088Fibre Channel Optical Cable LC/SC, 2M, RoHS:Y
    X9723A-Z537-1089Fibre Channel Optical Cable LC/SC, 5M, RoHS:Y
    X9724A-Z537-1090Fibre Channel Optical Cable LC/SC, 15M, RoHS:Y
    X9737A-Z537-1092Fibre Channel Optical Cable LC/SC, 50M, RoHS:Y
    X9740A-Z537-1093Fibre Channel Optical Cable LC/LC, 100M, RoHS:Y
    n/a530-3100RJ45F to DB9F Adapter, RoHS:Y
    n/a530-3544PS2 6-pin DIN to RJ-45 Cable (2M), RoHS:Y
    n/a530-3569CSM200 Cable (2m, HSSDC2), RoHS:Y
    n/a530-3880RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M, RoHS:Y
    Disks
    Option #Manufacturing
    Part #    		Description
    XTC-FC1CF-146G15KZ540-6550146GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0299
    • Seagate ST3146954FC [ST314695FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0313
    • Fujitsu MAX3147FD [MAX3147FDSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0328
    • Seagate ST3146855FC [ST314655FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0419
    • Seagate ST3146356FC [ST314656FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-FC1CF-300G15KZ540-7156300GB – 15000 RPM FC-AL Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0330
    • Seagate ST3300655FC [ST330055FSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0420
    • Seagate ST3300656FC [ST330056FSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0462
    • Seagate ST3300657FC [ST330057FSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0482
    • Hitachi HUS156030VLF400 [HUS1530FCSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-FC1CF-600G15K542-0163600GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks and brackets:, RoHS:Y
    • 390-0477
    • Seagate ST3600957FC [ST360957FSUN600GB]
      (600GB – 15000 RPM FC-AL), RoHS:Y
    • 390-0484
    • Hitachi HUS156060VLS401 [HUS1561FCSUN600G]
      (600GB – 15000 RPM FC-AL), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-ST1CF-1TB7KZ540-75901TB – 7200 RPM SATA, Disk Assembly with one of the following disks:
    • 390-0381
    • Hitachi HUA721010KLA330 [HUA7210SASUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0473
    • Seagate ST31000524NS [ST31001NSSUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    XTC-ST1CF-2TB7K542-01642TB – 7200 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0467
    • Hitachi H7220AA30 [H7220AA30SUN2.0T]
      (2TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0474
    • Seagate ST32000644NS [ST32000NSSUN2.0T]
      (2TB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    XTC-ST1CF-500G7KZ540-6635500GB – 7200 RPM SATA, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0247
    • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0355
    • Seagate ST3500630NS [ST35000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0383
    • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    XTC-FC1CF-450G15K540-7674450GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0421
    • Seagate ST3450856FC [ST345056FSUN450G]
      (450GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    Fibre Channel
    Option #Manufacturing
    Part #    		Description
    SG-XPCI1FC-EM4-Z375-33984Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QF4375-33544Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM4-Z375-33994Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF4375-32944Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-EM4375-33964Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-EM8-Z371-42958Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF4375-33554Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF8-Z371-43248Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM4375-33974Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM8-Z371-43068Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF4375-33564Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF8-Z371-43258Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FCGBE-E-Z371-40184Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex, RoHS:Y
    SG-XPCIE2FCGBE-Q-Z371-40174Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic, RoHS:Y
    SG-XPCI1FC-EM2375-33042Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QL2375-33832Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM2375-33052Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF2-Z375-33632Gb PCI Dual FC Host Adapter, RoHS:Y
    n/a371-45828Gbps Short Wave SFP, RoHS:Y
    Power
    Option #Manufacturing
    Part #    		Description
    n/a180-2194DC Power Cable, RoHS:Y
    n/a300-2012DC Input Power Supply, RoHS:YL
    n/a300-2055AC Input Power Supply (CSM200), RoHS:YL
    n/a300-2319AC Input Power Supply (CSM200), 2nd Edition, RoHS:YL
    Rack
    Option #Manufacturing
    Part #    		Description
    XTA6000-RK2-RAIL594-5885Rack Rail Kit for Sun Rack II, RoHS:Y
    • 540-7796
    • Mounting Rail Kit, RoHS:Y
    • 341-4881
    • Mounting Rail, RoHS:Y
    XTA6X80CTRL-RK2-RL542-0150Fixed Rail Mounting Kit, RoHS:Y
    • 341-4882
    • Mounting Rail, RoHS:Y
    • 341-4883
    • Mounting Rail, RoHS:Y
    XTCCSM2-RK-19UZ540-65983U Rack Rail Kit for Standard 19-inch System Cabinets, RoHS:Y
