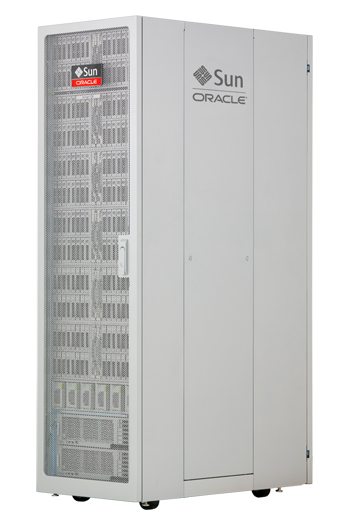

Oracle Sun ZFS Storage 7720 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-4860 [F]	2.26GHz 8-Core Xeon X7560 CPU Module	n/a

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	511-1048 [F]	Rack Controller Card Backplane	n/a
n/a	7012793	Disk Cage Assembly	541-3868
n/a	501-7938 [F]	32-Disk Backplane	n/a
n/a	F541-3868	Disk Cage Assembly	n/a
n/a	501-7938 [F]	32-Disk Backplane	n/a

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C]	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-4860 [F]	2.26GHz 8-Core Xeon X7560 CPU Module	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	180-2004 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M	n/a
n/a	180-2005 [C]	AC Input Power Cord, 20A, Americas, NEMA L6-20P to IEC320-C19, 4M	n/a
n/a	180-2421 [C]	IEC 320 C19 to IRAM 2073, 16A/250V, 4.0M, Black	n/a
n/a	530-3771 [C]	Ethernet Cable, Category 5/5E, RJ45 to RJ45, 1m, Grey	n/a
n/a	530-3882 [C]	4X Mini SAS Cable, SFF-8088 to SFF-8088, 1M	n/a
n/a	530-4106 [F]	Disk Backplane Power Cable	n/a
n/a	530-4107 [F]	Disk Backplane Power Cable	n/a
n/a	530-4109 [F]	PDB to RCC Backplane Cable	n/a
n/a	530-4112 [F]	Fan to RCC Cable	n/a
n/a	530-4304 [F]	4x Mini SAS Cable, SFF-8087 to SFF-8087, 1.75m	n/a
n/a	530-4341	Front Status Indicator Panel Cable	n/a
n/a	530-4342	Rear Status Indicator Panel Cable	n/a
n/a	560-2951 [F]	Cable Kit	n/a
	530-4118	4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm	n/a
	530-4287	Fan Board to System Board Signal Cable	n/a
	530-4288	Fan Board to System Board Power Cable	n/a
	530-4289	System Board to PDB Cable	n/a
	530-4290	System Board to Disk Backplane Signal Cable	n/a
	530-4291	System Board to Disk Backplane Power Cable	n/a
	530-4352	SFF-8087 to SFF-8087/SATA Splitter Cable, 780mm	n/a
n/a	7040702 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m	180-2004 [C]

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X4237A-N [S]	375-3606 [C]	Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express	n/a
n/a	542-0298 [C]	Cluster Heartbeat Assembly	n/a
	511-1496	Cluster Heartbeat Card	n/a
	541-4350	EMI Gasket	n/a
n/a	7056175 [C]	Cluster Heartbeat Assembly	542-0298 [C]
	511-1496	Cluster Heartbeat Card	n/a
	541-4350	EMI Gasket	n/a
n/a	7089470 [C]	Cluster Heartbeat Assembly	7056175 [C]
	541-4350	EMI Gasket	n/a
	7087050	Cluster Heartbeat Card	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	511-1246 [F]	6-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7101234 [S]	7010845 [C]	512GB Solid State SATA-2 Drive Assembly	n/a
	371-5052	Toshiba THNSNC512GBSJ [Inquiry Unknown] (512GB – 2.5″ Solid State – SATA-2 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
XTA7000-READZ512 [S]	542-0330 [C]	512GB Solid State SATA-2 Drive Assembly	n/a
	371-4769	Toshiba THNS512GG8BB [Inquiry Unknown] (512GB – 2.5″ Solid State – SATA-2 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
XTA7720-LOGZ [S]	7018446 [C]	3.5″ 18GB Solid State Drive Write Flash Accelerator	542-0357 [C] [S]
XTA7720-LOGZ [S]	350-1386	Coral 3.5″ Disk Drive Bracket	n/a
n/a	542-0247 [C]	2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0476	Seagate ST32000444SS [ST32000SSSUN2.0T] (2TB – 7200 RPM – SAS Disk)	n/a
	350-1386	Coral 3.5″ Disk Drive Bracket	n/a
n/a	542-0371 [C]	500GB – 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0468	Seagate ST9500530NS [ST95000NSSUN500G] (500GB – 7200 RPM – SATA Disk)	n/a
	390-0492	Seagate ST9500620NS [ST95001NSSUN500G] (500GB – 7200 RPM – SATA Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7040582 [C]	2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7025852	Hitachi HUS723020ALS640 [H7220AS60SUN2.0T] (2TB – 7200 RPM – SAS Disk)	n/a
	350-1386	Coral 3.5″ Disk Drive Bracket	n/a
n/a	7042768 ² [C]	500GB – 10000 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7042764	Western Digital WD5000BLHX [WD500BLHXSUN500G] (500GB – 10000 RPM – SATA Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	542-0357 [C] [S]	3.5″ 18GB Solid State Drive Write Flash Accelerator	n/a
n/a	350-1386	Coral 3.5″ Disk Drive Bracket	n/a

² The Western Digital 500GB 10000 RPM drive replaced the Seagate 500GB 7200 RPM drive due to shortages caused by flooding in Thailand in 2011. The bezel is labeled SATA 500GB 7200 RPM 3Gbps.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	375-3617 [C]
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X4446A-Z-N [S]	7054739 [C]	PCI Express Quad Gigabit Ethernet UTP	375-3481 [C]
n/a	375-3481 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
n/a	375-3617 [C]	Dual 10-Gigabit Ethernet SFP+ LP	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7946 [F]	Fan Backplane	n/a
n/a	541-3178 [C]	4-Fan Tray	n/a
n/a	310-0309	120x38mm 6400 RPM Fan	n/a
n/a	541-3535 [F]	Fan Cage Assembly	n/a
	511-1243	Fan Board with USB and VGA	n/a
	530-4349 [F]	LED Flex Circuit	n/a
n/a	541-3539 [C]	92mm Fan Module	n/a
n/a	7012798 [C]	4-Fan Tray	541-3178 [C]
n/a	310-0309	120x38mm 6400 RPM Fan	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2FC-QF8-Z	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X8504A [S]	8GB (2 × 4GB DDR3-1066) Memory Kit X-Option
	542-0245 [C]	2 × 4GB DDR3-1333 DIMMs	n/a
	371-4972	4GB DDR3-1333 DIMM	371-4775
X8505A [S]	16GB (2 × 8GB DDR3-1066) Memory Kit X-Option
	542-0246 [C]	2 × 8GB DIMMs	n/a
	371-4776	8GB DDR3/3L-1066/1333 DIMM	n/a
n/a	330-4839	Memory Slot Filler	n/a
n/a	371-4743 [C]	4GB USB 2.0 Flash Drive	n/a
n/a	541-3819 [F]	Memory Riser Assembly	n/a
	341-5773	Memory Riser Tray	n/a
	511-1241	Memory Riser Board	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3188 [C]	Front Status Indicator Panel	n/a
n/a	541-3740 [C]	Rear Status Indicator Panel	n/a
n/a	7012796 [C]	Front Status Indicator Panel	541-3188 [C]
n/a	7012797 [C]	Rear Status Indicator Panel	541-3740 [C]

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	130-6359	20A IEC320 C20 AC Input Line Filter	n/a
n/a	300-2133 [C]	Type A234 2900 Watt AC Input Power Supply	n/a
n/a	300-2228 [C]	Type A239A 2000 Watt AC Input Power Supply	n/a
n/a	541-3173	Vertical Busbar	n/a
n/a	541-3541 [F]	Power Distribution Board / Power Supply Backplane	n/a
	371-4446	Bus Bar	n/a
	511-1242	Power Distribution Board	n/a
n/a	7012789	Power Chassis Assembly	541-3171
	501-7945 [F]	Power Distribution Board	n/a
	530-4110 [F]	Line Filter to PDB Backplane AC Input Cable	n/a
	541-3172	Horizontal Busbar	n/a
	541-3174	Power Shelf	n/a
n/a	F541-3171	Power Chassis Assembly	n/a
	501-7945 [F]	Power Distribution Board	n/a
	530-4110 [F]	Line Filter to PDB Backplane AC Input Cable	n/a
	541-3172	Horizontal Busbar	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-4791 [C]	Tool-less Slide Rail Rack Mount Kit	n/a
n/a	540-7758	1U Filler Panel Assembly	n/a
n/a	330-4875	1U Filler Panel	n/a
n/a	541-3767	Front/Rear Door Assembly	n/a
n/a	n/a	Front/Rear Door Key	n/a
n/a	541-4364	Front/Rear Rack Door	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIESAS-GEN2-Z [S]	7056272 [C]	8-Port 6Gbps SAS-2 RAID HBA	375-3609 [C]
n/a	375-3609 [C]	8-Port 6Gbps SAS-2 RAID HBA	n/a
n/a	541-3193	Leaf Controller Module Filler Panel	n/a
n/a	541-8007 [C]	Leaf Controller Module	n/a
n/a	511-1084	Leaf Controller Card	n/a
n/a	541-8008 [F]	Rack Controller Module	n/a
n/a	501-7943	Rack Controller Card	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3540 [F]	System Board Assembly	n/a
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
	341-5567	System Board Tray	n/a
	511-1240	System Board	n/a
	511-1245	Rear I/O Board	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
