Oracle Sun ZFS Backup Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor

Number

Four 8-Core

Architecture

Type: Intel Xeon E7 Processor Series

CPUs

Intel 8-Core Xeon E7-4820 (18M Cache, 2.00 GHz, 5.86 GT/s Intel® QPI, 105W)

Cache memory

256KB unified (data and instruction) Level 2 cache
18MB shared inclusive Level 3 cache

Main Memory

Capacities

DIMM slots: 64 DIMM slots, 16 DIMMs per CPU
DIMM type: Registered DDR3-1333 ECC 1.35V DIMMs
DIMM size: 8GB
Maximum capacity: 512GB

Standard Integrated Interfaces

Network

Four Integrated 10/100/1000 Base-T Gigabit Ethernet

Network Management

One 10/100 Base-T Ethernet management port

Serial Management

One TIA/EIA-232-F asynchronous RJ45 serial port

USB

Front: 2 USB 2.0 Ports
Rear: 2 USB 2.0 Ports
Internal: 1 USB 2.0 Port

PCI Express

10 PCI Express 2.0 Slots

2 slots (3 and 5) are either x8 or x16 electrical interface (x16 connector)
6 slots are x8 PCI-E slots
2 slots are x4 PCI-E slots

Note: Slots 3 and 5 operate as x16 interfaces only when an x16 capable card is
installed and the adjacent slot (4 or 6) is unpopulated.

Video

One Rear and One Front HD15 VGA port

Internal Mass Storage

Disks

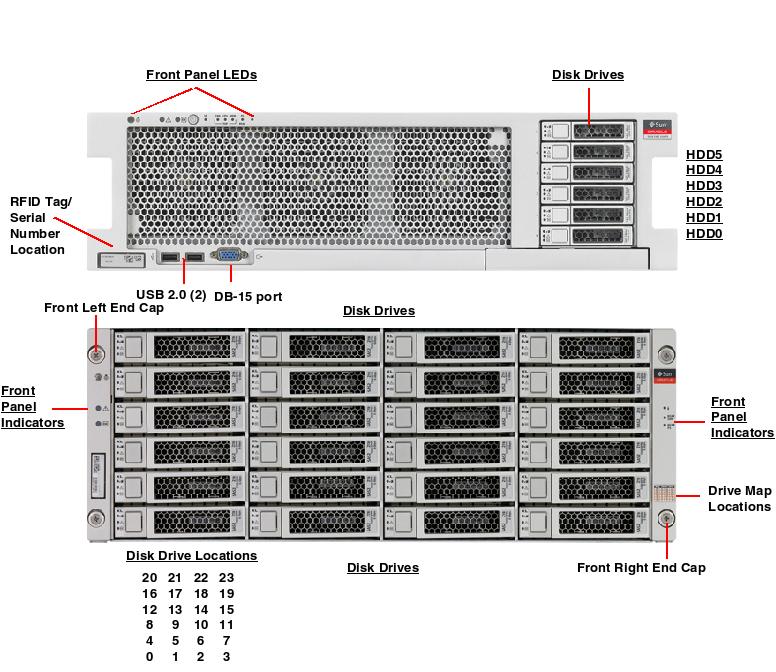

6 or 8 hot-swappable disks in the Sun Fire X4470 M2 & 24 hot-swappable disks in the Sun Disk Shelf 24×3.5″ SAS-2

Drive Type	Density	Speed	Form Factor	Supported In
SATA	500GB	7,200 RPM	2.5″	X4470 M2
SATA	500GB	10,000 RPM	2.5″	X4470 M2
SAS	600GB	15,000 RPM	3.5″	Disk Shelf
SAS	3TB	7,200 RPM	3.5″	Disk Shelf
SSD (Solid State Drives) SAS	73GB	NA	3.5″	Disk Shelf

Power Supplies

Dual redundant, hot swappable power supplies
Type A239C 2000W AC Input

Environment

AC power

100-127 VAC/200-240 VAC (50-60Hz)

Maximum Input Current

12A @ 100VAC / 12A @ 200VAC

Maximum Power Consumption

1800W

Maximum Heat Output

6143 BTU/hr

Temperature

Single, non-rack system:
Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 68° C (-40° F to 154° F)

Humidity

Single, non-rack system:
Operating: 10% to 90% relative humidity noncondensing
Nonoperating: up to 93% relative humidity noncondensing

Altitude

Single, non-rack system:
Operating: Up to 3048 m (10,000 ft.), maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
Nonoperating: Up to 12,000 m (39,370 ft.)

Acoustic Noise Emissions

LwAd (1B= 10dB) at max ambient: 8.9 B (idle and operating room temperature)
LpAm bystander at max ambient: 75 dBA

Regulations
Meets or exceeds the following requirements:

Safety

IEC 60950, UL/CSA60950, EN60950, CB scheme with all country differences

RFI/EMI

FCC CFR 47 Part 15 Class A, EN55022 Class A, EN300-386, EN 61000-3-2, EN 61000-3-3

Immunity

EN 55024 ,EN 300 386

Certifications

Safety: UL/cUL, UL DEMKO, CCC, CE, BSMI, GOST-R, S-Mark
EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, GOST-R, BSMI Class A
Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive (2002/96/EC) and RoHS Directive (2002/95/EC)

Dimensions and Weight

Height

129.85 mm (5.1 in.)

Width

436.5 mm (17.2 in.)

Depth

732 mm (28.8 in.)

Weight

Maximum: 38.5 kg (85 lb.)
Minimum: 29.5 kg (65 lb.)

Rack Mounting

Sun ZFS Backup Appliance Rack

The supported rack is as follows:

Sun Redwood II 42U-1200 Rack with redundant 15kVA PDU’s.

Array Controller
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7045305 [C]	6Gbps SAS-2 Interface Module (SIM FW 3527)	n/a
n/a	7053644 [C]	6Gbps SAS-2 Interface Module (SIM FW 3529)	7045305 [C]

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C]	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	310-0228 [F]	CPU Heatsink	n/a
n/a	371-5056 [F]	2.0GHz 8-Core Xeon E7-4820 CPU Module	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	530-3880 [C]	RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M	n/a
n/a	530-3883 [C]	4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M	n/a
n/a	530-4446	10Gbps QSFP to QSFP Cable, 5m	n/a
n/a	560-2951 [C]	Cable Kit	n/a
	530-4287	Fan Board to System Board Signal Cable	n/a
	530-4288	Fan Board to System Board Power Cable	n/a
	530-4289	System Board to PDB Cable	n/a
	530-4290	System Board to Disk Backplane Signal Cable	n/a
	530-4291	System Board to Disk Backplane Power Cable	n/a
	530-4352	SFF-8087 to SFF-8087/SATA Splitter Cable, 780mm	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X4242A	375-3696 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a
X4242A	7092767 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a
n/a	530-3771 [C]	RJ-45 Ethernet Cable (1m)	n/a
n/a	542-0298 [C]	Cluster Heartbeat Assembly	n/a
	511-1496	Cluster Heartbeat Card	n/a
	541-4350	EMI Gasket	n/a
n/a	7056175 [C]	Cluster Heartbeat Assembly	542-0298 [C]
	511-1496	Cluster Heartbeat Card	n/a
	541-4350	EMI Gasket	n/a
n/a	7089470 [C]	Cluster Heartbeat Assembly	7056175 [C]
	541-4350	EMI Gasket	n/a
	7087050	Cluster Heartbeat Card	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	511-1246 [F]	6-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7101234 [S]	7010845 [C]	512GB Solid State SATA-2 Drive Assembly	n/a
	371-5052	Toshiba THNSNC512GBSJ [Inquiry Unknown] (512GB – 2.5″ Solid State – SATA-2 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	350-1574	Disk Shelf SSD Filler Panel	n/a
n/a	390-0468	Seagate ST9500530NS [ST95000NSSUN500G] (500GB – 7200 RPM – SATA Disk)	n/a
n/a	390-0492	Seagate ST9500620NS [ST95001NSSUN500G] (500GB – 7200 RPM – SATA Disk)	n/a
n/a	541-4242	Disk Shelf HDD Filler Panel	n/a
n/a	7010135 [C]	3TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7010033	Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB – 7200 RPM – SAS Disk)	n/a
	7021037	Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB – 7200 RPM – SAS Disk)	n/a
	350-1508	Stingray 3.5″ Mounting Bracket	n/a
n/a	7011094 [C]	73GB SAS Solid State Drive Assembly with 1 bracket and 1 of the following disks:	n/a
	371-5049	Stec Z16IZF2D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)	n/a
	7047682	Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)	n/a
	350-1508	Stingray 3.5″ Mounting Bracket	n/a
n/a	7042768 ³ [C]	500GB – 10000 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7042764	Western Digital WD5000BLHX [WD500BLHXSUN500G] (500GB – 10000 RPM – SATA Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7047035 [C]	600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0483	Hitachi HUS156060VLS600 [HUS1560SCSUN600G] (600GB – 15000 RPM – SAS Disk)	n/a
	350-1508	Stingray 3.5″ Mounting Bracket	n/a
n/a	7048042 [C]	73GB SAS-2 Solid State Drive Assembly	7011094 [C]
	7047682	Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)	n/a
	350-1508	Stingray 3.5″ Mounting Bracket	n/a
n/a	7309938 [C] [A]	200GB SAS-3 Solid State Drive Assembly with 1 bracket and 1 of the following disks:	n/a
	7093646	HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)	n/a
	7042920	2.5″ Adapter	n/a
	7042923	Left Bracket	n/a
	7042926	Stingray 3.5″ Mounting Bracket	n/a

³ The Western Digital 500GB 10000 RPM drive replaced the Seagate 500GB 7200 RPM drive due to shortages caused by flooding in Thailand in 2011. The bezel is labeled SATA 500GB 7200 RPM 3Gbps.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	375-3617 [C]
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
n/a	375-3617 [C]	Dual 10-Gigabit Ethernet SFP+ LP	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3535 [F]	Fan Cage Assembly	n/a
	511-1243	Fan Board with USB and VGA	n/a
	530-4349	LED Flex Circuit	n/a
n/a	541-3539 [C]	92mm Fan Module	n/a
n/a	7051522 [F]	Fan Cage Assembly	541-3535 [F]
	530-4349	LED Flex Circuit	n/a
	7051521	Fan Board with USB and VGA	511-1243

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2FC-QF8-N	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	330-4839	Memory Slot Filler	n/a
n/a	371-5002 [C]	4GB USB 2.0 Flash Drive	n/a
n/a	541-4438 [C]	Memory Riser Assembly	n/a
	341-5773	Memory Riser Tray	n/a
	511-1672	Memory Riser Board	n/a
n/a	7011550 [C]	16GB Memory Assembly (2 × 8GB DDR3-1333 DIMMs)	n/a
n/a	7011456	8GB 1.35V DDR3L-1333 DIMM (2-rank)	n/a
n/a	7051516 [C]	Memory Riser Assembly	541-4438 [C]
	350-1830	Memory Riser Tray Assembly	n/a
	341-5773	Memory Riser Tray	n/a
	7051515	Memory Riser Board	511-1672

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-2276 [C]	764 Watt AC Input Power/Cooling Module	n/a
n/a	300-2344 [C]	Type A239C 1030/2060 Watt AC Input Power Supply	n/a
n/a	7022322 [F]	Power Distribution Board / Power Supply Backplane	n/a
	371-4446	Bus Bar	n/a
	7022323	Power Distribution Board	n/a
n/a	7048278 [C]	Type A239C 1030/2060 Watt AC Input Power Supply	300-2344 [C]
n/a	7052431 [F]	Power Distribution Board / Power Supply Backplane	7022322 [F]
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	7022323
n/a	7060596 [C]	Type A239E 2000 Watt AC Input Power Supply	7048278 [C]
n/a	7081064 [C]	Type A239A 2000 Watt AC Input Power Supply	7060596 [C]

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	180-2379 [C]	13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a
n/a	180-2380	13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	n/a
n/a	330-5319	1U Filler Panel	n/a
n/a	350-1531	Rackmount Kit	n/a
	n/a	Left Mounting Rail	n/a
	n/a	Right Mounting Rail	n/a
n/a	371-3995 [F]	15KVA Three-Phase PDU, North America	n/a
n/a	371-4199 [F]	15KVA Single-Phase PDU, North America	n/a
n/a	371-4201 [F]	15KVA Single-Phase PDU, International	n/a
n/a	371-4791 [C]	Tool-less Slide Rail Rack Mount Kit	n/a
n/a	371-4812 [C]	Cable Management Arm	n/a
n/a	371-4976 [F]	15KVA Three-Phase PDU, International	n/a
n/a	7015399 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	180-2379 [C]
n/a	7015400	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	180-2380
n/a	7051805 [F]	15KVA Single-Phase PDU, North America	371-4199 [F]
n/a	7051908 [F]	15KVA Three-Phase Power Distribution Unit (PDU), North America	371-3995 [F]
n/a	7051914 [F]	15KVA Three-Phase Power Distribution Unit (PDU), International	371-4976 [F]

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
n/a	375-3609 [C]	8-Port 6Gbps SAS-2 RAID HBA	n/a
n/a	7056272 [C]	8-Port 6Gbps SAS-2 RAID HBA	375-3609 [C]

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7025254 [F]	System Board Assembly	n/a
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
	511-1245	Rear I/O Board	n/a
	511-1740	System Board	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
	7012921	System Board Tray	n/a
n/a	7044431 [F]	System Board Assembly	7025254 [F]
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
	7023622	System Board Tray	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
	7044422	System Board	n/a
	530-3510	Interlock Switch Cable	n/a
	7051520	Rear I/O Board	n/a

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
