Oracle Sun X5-2L Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor
Number	1 or 2 Processors
Architecture	Type: Intel Xeon E5-2600 v3 Processor Series
CPUs	Intel 2.4GHz 8-Core Xeon E5-2630 v3, 85W Intel 2.6GHz 10-Core Xeon E5-2660 v3, 105W Intel 2.6GHz 12-Core Xeon E5-2690 v3, 135W Intel 2.3GHz 18-Core Xeon E5-2699 v3, 145W
Cache	Level 1: 32 KB instruction and 32 KB data L1 cache per core Level 2: 256 KB shared data and instruction L2 cache per core Level 3: Up to 45 MB shared inclusive L3 cache per processor
Main Memory
Capacities	24 DIMM Slots DIMM Size and Type: 8GB: DDR4-2133 Registered DIMM, 16GB: DDR4-2133 Registered DIMM or 32GB: DDR4-2133 GHz load-reduced DIMMs (LRDIMM) Minimum Memory Capacity: 96GB using 8GB DIMMs in a 1 CPU configuration Maximum Memory Capacity: 768 GB using 32GB DIMMs in a 2 CPU configuration
Standard I/O
Network	Four onboard auto-sensing 100/1000/10,000BASE-T gigabit Ethernet (GbE) ports (RJ-45 connector) Ethernet ports NET 2 and NET 3 are nonfunctional in single-processor systems
Network Management	One 10/100/1000Base-T Network Management (NET MGT/RJ-45 connector) port
Serial Management	One serial console (SER MGT/RJ-45 connector) port
USB	Rear: 2 USB 2.0 Ports Front: 2 USB 2.0 Ports Internal: 2 USB 2.0 Ports
Graphics	One VGA 2D embedded graphics controller with DB-15 connector Resolution: 1,600 x1,200×16 MB @ 60 Hz. 1,024 x 768 when viewed remotely via Oracle ILOM.
I/O Expansion	Six PCIe 3.0 slots: PCIe slots 1, 2 and 3 are nonfunctional in single-processor systems PCI-E slot 1: x8 PCI-E slot 2: x8 PCI-E slot 3: x16 PCI-E slot 4: x16 PCI-E slot 5: x8 PCI-E slot 6: x8
Internal Mass Storage

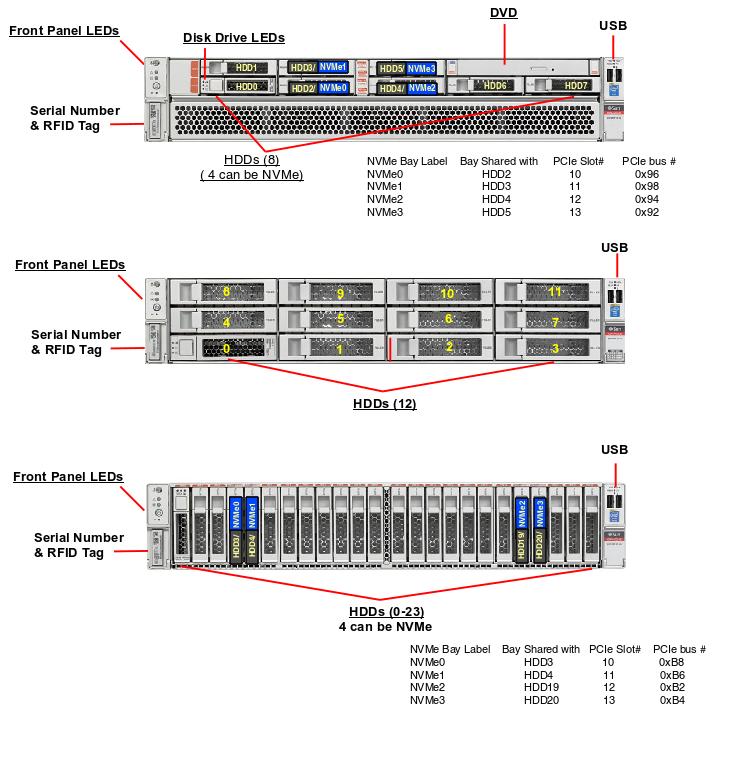

Disks, Flash and DVD	Four Disk Backplanes configurations Eight-disk chassis: eight 2.5-inch front hot-swappable disk bays and optional DVD-RW drive Twelve-disk chassis: twelve 3.5-inch front hot-swappable disk bays and an additional two 2.5-inch rear hot-swappable disk bays Twelve-disk chassis: twelve 2.5-inch front hot-swappable NVMe disk bays and an additional two 2.5-inch rear hot-swappable disk bays Twenty-four-disk chassis: twenty-four 2.5-inch front hot-swappable disk bays and an additional two 2.5-inch rear hot-swappable disk bays Up to four small form factor NVM Express (NVMe) drives (6.4 TB total capacity) are available in eight-disk and twenty-four-disk chassis only (slots 2 – 5 in 8-disk cage of slots 3 -4 and slots 19 – 20 in 24-disk cage) Internal 8GB USB 2.0 Flash Drive The 2.5-inch disk bays can be populated with either HDDs, SSDs, or NVMe The 3.5-inch disk bays can be populated only with HDDs 12 Gbps RAID HBA supporting levels: 0, 1, 5, 6, 10, 50, 60, and JBOD with 1 GB of DDR3 onboard memory with flash memory backup via embedded internal SAS3 HBA PCIe Card in Slot 6 2.5-inch drives support 600GB/10KRPM, 1.2TB/10KRPM, and 1.6TB NVMe configurations 3.5-inch drives support 4TB/7200RPM configuration 3.5-inch drives support 8TB/7200RPM configuration
Power Supplies
Two hot-swappable and redundant power supplies, rated 91% efficiency.
Environment
Power Consumption	Online power calculator
AC power	Rated line voltage: 100 to 240 VAC Rated input current 100 to 127 VAC 8.5 A and 200 to 240 VAC 5.7 A
Temperature	Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -40° C to 70° C (-40° F to 158°F)
Humidity	Operating: 10% to 90% relative humidity noncondensing. Nonoperating: Up to 93% relative humidity noncondensing
Altitude	Single, non-rack system: Operating: Up to 3,000 m (9,840 ft) maximum ambient temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft) Nonoperating: Up to 12,000 m (39,370 ft)
Acoustic Noise Emissions	8.1 Bels A-weighted operating, 5.8 Bels A-weighted idling
Regulations Meets or exceeds the following requirements:
Safety	UL/CSA-60950-1, EN60950-1-2006, IEC60950-1 CB scheme with all country differences
EMC	Emissions: FCC CFR 47 Part 15, ICES-003, EN55022, EN61000-3-2 and EN61000-3-3
Immunity	EM55024
Other	Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU, Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU, Low Voltage Directive 2006/95/EC, and EMC Directive 2004/108/EC
Certifications	North America Safety (NRTL) European Union (EU) International CB Scheme BIS (India) BSMI (Taiwan) RCM (Australia) CCC (PRC) MSIP (Korea) VCCI (Japan)
European Union Directives	2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive 2011/65/EU RoHS Directive 2012/19/EU WEEE Directive
Dimensions and Weight
Height	87.6 mm (3.5 in.).
Width	445.5 mm (17.5 in.).
Depth	737 mm (29.0 in.).
Weight	8-disk configuration maximum: 24.5 kg (54 lbs.) fully populated 12-disk configuration maximum: 29.6 kg (66 lbs.) fully populated 24-disk configuration maximum: 29.0 kg (64 lbs.) fully populated
Rack Mounting
Oracle Server X5-2L Racks	Tooless rackmounting slide rail kit Cable management arm

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7064884 [F]	Pre-Greased 2U CPU Heatsink	n/a
n/a	7080240	CPU Installation/Removal Tool	n/a
n/a	7082521	CPU Installation/Removal Tool	n/a
n/a	7095102 [F]	8-Core 2.4GHz Intel E5-2630 v3, 85W	n/a
n/a	7095104 [F]	10-Core 2.6GHz Intel E5-2660 v3, 105W	n/a
n/a	7095105 [F]	12-Core 2.6GHz Intel E5-2690 v3, 135W	n/a
n/a	7095106 [F]	18-Core 2.3GHz Intel E5-2699 v3, 145W	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
7105199	7063849 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M	n/a
7105206	7063852 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M	n/a
X2121A-1M-N	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-3M-N	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
X333V-20-15-C14-N	7040692 [C]	IEC 320 C13 to IEC 320 Sheet E – 10A/250V 2.0M	n/a
X333V-30-15-C14-N	7040693 [C]	IEC 320 C13 to IEC 320 Sheet E, 10A, 3M	n/a
X9237-1-A-N	180-2082 [C]	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M	n/a
X9238-1-A-N	180-2085 [C]	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M	n/a
n/a	530-4037	2-Slot 10-Pin Disk Backplane Power Cable	n/a
n/a	7086654	8-Pin DC Power Cable, 372mm	n/a
n/a	7089783 [C]	Two Cable Bundle, PCI Express, 2xHD8i to 2x68P	n/a
	n/a	MiniSAS HD 8i to 90° MiniSAS, 2 and 3 to A, 465mm	n/a
	n/a	MiniSAS HD 8i to 90° MiniSAS, 0 and 1 to B, 500mm	n/a
n/a	7089784 [C]	Two Cable Bundle,PCI Express,2xHD8i to 2x68P	n/a
	n/a	MiniSAS HD 8i to MiniSAS, 2 and 3 to A, 655mm	n/a
	n/a	MiniSAS HD 8i to MiniSAS, 0 and 1 to B, 655mm	n/a
n/a	7094265 [F]	8-Slot Backplane Cable Kit	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064127	26-Pin Ribbon Data Cable, 280mm	n/a
	7064128	DVD Data and Power Cable, 600mm/75mm	n/a
	7076125	SFF-8643 to SFF-8087 to 90° SFF-8087 Cable, 550mm/770mm	n/a
n/a	7094266 [F]	12-Slot Backplane Cable Kit	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7064129	SFF-8087 to SATA to SATA Cable, 600mm/700mm	n/a
	7079291	26-Pin Ribbon Data Cable, 127mm	n/a
	7091185	SFF-8643 to SFF-8087 to SFF-8087 Cable, 520mm/520mm	n/a
	7098662	8-Pin DC Power Cable, 322mm	n/a
n/a	7094267 ² ³ [F]	24-Slot Backplane Cable Kit	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064129	SFF-8087 to SATA to SATA Cable, 600mm/700mm	n/a
	7079291	26-Pin Ribbon Data Cable, 127mm	n/a
	7098662	8-Pin DC Power Cable, 322mm	n/a
	7301456	SFF-8643 to SFF-8087 to SFF-8087 Cable, 550mm/550mm	n/a
n/a	7095801 [C]	Six Cable Bundle, NVMe, HD4i to Right Angle HD4i	n/a
	n/a	MiniSAS HD to 90° MiniSAS HD, 1 to B, 485mm	n/a
	n/a	MiniSAS HD to 90° MiniSAS HD, 0 to A, 485mm	n/a
	n/a	MiniSAS HD to 90° MiniSAS HD, 0 to D, 600mm	n/a
	n/a	MiniSAS HD to 90° MiniSAS HD, 1 to E, 640mm	n/a
	n/a	MiniSAS HD to 90° MiniSAS HD, 2 to F, 640mm	n/a
	n/a	MiniSAS HD to 90° MiniSAS HD, 2 to C, 560mm	n/a

² Use the 24-SlotCable Kit to repair 12-Slot NVMe Backplane cables.
³ Cable 7098662 is not used in the 24-Slot configuration.

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7073297	2U Air Baffle	n/a
n/a	7073525	Chassis Assembly	n/a
	7061427	Midwall Subassembly	n/a
	7082078	Chassis Subassembly	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7104074	7092757 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7023515 ⁴ [F]	2-Slot Backplane	n/a
n/a	7052899 [F]	Right Ear Kit	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
n/a	7061283	24-Slot 2.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7069338 [F]	24-Slot Backplane and SAS Expander Assembly	n/a
	7063607	SAS Expander Assembly	n/a
	7064883	Heatsink	n/a
	7086648	SAS Expander	n/a
	7096411	24-Slot Backplane	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
n/a	7061430	8-Slot 2.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7077320	Fan Door Cover	n/a
	7077622	8-Slot Disk Cage	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
	7097205 [F]	8-Slot Backplane	n/a
n/a	7077819	12-Slot 3.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7069337 ⁵ [F]	12-Slot Backplane and SAS Expander Assembly	n/a
	7063607	SAS Expander Assembly	n/a
	7064883	Heatsink	n/a
	7086648	SAS Expander	n/a
	7095754	12-Slot Backplane	n/a
	7077824	12-Slot 3.5″ Door Extender Assembly	n/a
	7084912	12-Slot 3.5″ Disk Cage	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
n/a	7093482	12-Slot 2.5″ NVMe Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7093483 ⁶ [F]	12-Slot NVMe Backplane Assembly	n/a
	7089038	12-Slot NVMe Backplane	n/a
	7098138	1.57 x 4 x 10mm Insulator	n/a
	7094720	NVMe Cage	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
n/a	7302808	12-Slot 2.5″ NVMe Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7093483 ⁷ [F]	12-Slot NVMe Backplane Assembly	n/a
	7089038	12-Slot NVMe Backplane	n/a
	7098138	1.57 x 4 x 10mm Insulator	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
	7302807	NVMe Cage	n/a
	7097361	Filler Panel	n/a
	7307304 ⁸ [F]	12-Slot NVMe Backplane Assembly	n/a
	7308574	12-Slot NVMe Backplane	n/a
n/a	7310384 ¹⁰	12-Slot 3.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7077824	12-Slot 3.5″ Door Extender Assembly	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
	7310385	12-Slot 3.5″ Disk Cage	n/a
	7311541 ⁹ [F]	12-Slot Backplane and SAS Expander Assembly	n/a
	7063607	SAS Expander Assembly	n/a
	7064883	Heatsink	n/a
	7086648	SAS Expander	n/a
	7311542	12-Slot Backplane	n/a
	7318167	12-Slot 3.5″ Disk Cage	n/a

⁴ Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
⁵ Backplane Assemblies 7069337 and 7311541 are not interchangeable.
⁶ Backplane Assemblies 7093483 and 7307304 are not interchangeable.
⁷ Backplane Assemblies 7093483 and 7307304 are not interchangeable.
⁸ Backplane Assemblies 7093483 and 7307304 are not interchangeable.
⁹ Backplane Assemblies 7069337 and 7311541 are not interchangeable.
¹⁰ Part # 7310384, 12-Slot 3.5″ Disk Cage Assembly is required for support of 8TB disk drives.

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7105214	7064135 [C]	600GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	7066795	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7106638	7066824 [C]	4TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7065489	Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB – 7200 RPM – SAS Disk)	n/a
	350-1386	Coral 3.5″ Disk Drive Bracket	n/a
7110927	7302552 [C]	1.6TB Solid State NVMe Drive Assembly	7093931 [C]
	7093848	1.6TB 2.5″ eMLC NVMe Solid State Drive	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7110933	7094132 [C]	400GB Solid State SAS Drive Assembly	n/a
	7093645	400GB SAS Solid State Drive [HSCAC2DA4SUN400G]	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7111103	7093015 [C]	600GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7093013	Hitachi HUC101860CSS200 (600.0GB – 10000 RPM SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7111108	7093037 [C]	1.2TB – 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:	n/a
	7093035	Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB – 10000 RPM – SAS DISK)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7112258	7301588 [C]	8TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7301585	Hitachi HUH728080AL5200 [H7280A520SUN8.0T] (8TB – 7200 RPM – SAS-3 Disk	n/a
	7308501	Coral 3.5″ Disk Drive Bracket	n/a
7106617 [S]	7045850 [C]	1.2TB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045846	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)	n/a
	7082883	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7093931 [C]	1.6TB Solid State NVMe Drive Assembly	n/a
	7093848	1.6TB 2.5″ eMLC NVMe Solid State Drive	n/a
	541-2123	Marlin 2.5″ Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
7100488	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2124A	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
7111185 [S]	7096437 [C]	Quad 10-Gigabit Ethernet QSFP+	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7045042 [C]	Dual Counter Rotating Fan Module	n/a
n/a	7045041	80×80mm Counter Rotating Fan	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101676	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101678	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
7101680	7023064	16Gb/Sec Long Wave SFP+ Transceiver, QLogic	n/a
7101684	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101686	7023053	16Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
7101688	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101688	7023046	10Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7064634 [C]	8-Port PCI Express Switch	n/a
n/a	7096186	PCI Express Switch w/o Bracket or Heatsink	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7110354	7078070 [C]	8GB DDR4-2133 Registered DIMM	n/a
7110356	7078072 [C]	32GB DDR4-2133 Load Reduced DIMM	n/a
7110361	7078071 [C]	16GB DDR4-2133 Registered DIMM	n/a
n/a	7090170 [C]	8GB USB Stick	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7044130 [C]	A258 1000 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
XSR-JUMP-1MC13-N	7015399 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a
XSR-JUMP-2MC13-N	7015400 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	n/a
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	n/a
n/a	7098533	Shipping Bracket	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7096422	DVD Filler Panel	n/a
n/a	7096965 [F]	Tray-Load DVD Assembly	n/a
	7082449	DVD Bezel	n/a
	7089202	Bezel Liner	n/a
	7089963	8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5)	n/a
	7096434	Mounting Tray	n/a
n/a	7319315 [F]	Tray-Load DVD Assembly	n/a
	7096434	Mounting Tray	n/a
	7309891	8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7110119	7085208 [C]	8-Port 12Gbps SAS PCI Express HBA	n/a
n/a	7085207 [C]	8-Port 12Gbps SAS-3 HBA	n/a
n/a	7085211	Internal RAID HBA Assembly	n/a
	7070402	Double Sided Fastener, 1″x5″	n/a
	7085209 [F]	8-Port 12Gbps SAS3 Internal RAID HBA	n/a
	7086345 [F]	13.5V 6.4F Super Capacitor	n/a
	7086346 [F]	Super Capacitor Cable	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7014226 [C]	Interlock Cable, 125mm	n/a
n/a	7098504 [F]	System Board Assembly	n/a
	7058900	Rear I/O Board	n/a
	7061401	System Board Tray	n/a
	7086753	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a
	7308368	System Board	7086753
	370-5621	3V Coin Cell Battery	n/a

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
