Used Oracle Sun X4470 Server

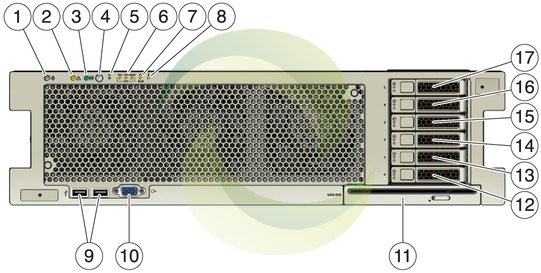

Oracle Sun X4470 Server

REQUEST A PRICE QUOTE:

Processor

Number

2 or 4 6-Core or 8-Core

Architecture

Type: Intel Xeon 7500 Processor Series

CPUs

Intel 1.86GHz 6-Core Xeon E7530, 105W
Intel 2.00GHz 8-Core Xeon X7550, 130W
Intel 2.26GHz 8-Core Xeon X7560, 130W

Cache memory

256KB unified (data and instruction) Level 2 cache
12MB, 18MB or 24MB shared inclusive Level 3 cache

Main Memory

Capacities

DIMM slots: 64 DIMM slots, 16 DIMMs per CPU
DIMM type: Registered DDR3-1066/PC3-10600 ECC DIMMs
Registered DDR3-1066/PC3-8500 ECC DIMMs
DIMM size: 2GB, 4GB, 8GB
Maximum capacity: 512GB

Standard Integrated Interfaces

Network

Four Integrated 10/100/1000 Base-T Gigabit Ethernet

Network Management

One 10/100 Base-T Ethernet management port

Serial Management

One TIA/EIA-232-F asynchronous RJ45 serial port

USB

Front: 2 USB 2.0 Ports
Rear: 2 USB 2.0 Ports
Internal: 1 USB 2.0 Port

PCI Express

10 PCI Express 2.0 Slots

2 slots (3 and 5) are either x8 or x16 electrical interface (x16 connector)
6 slots are x8 PCI-E slots
2 slots are x4 PCI-E slots

Note: Slots 3 and 5 operate as x16 interfaces only when an x16 capable card is
installed and the adjacent slot (4 or 6) is unpopulated.

Video

One Rear and One Front HD15 VGA port

Graphics controller

VGA 2D graphics controller embedded in Optional Service Processor
Support remote console at a resolution up to 1600x1200x16bits@60Hz
(1024×678 when viewed remotely via ILOM RKVMS)
Note: The rear VGA port supports VESA Device Data Channel for monitor identification.

Internal Mass Storage

Disks

Up to 6 hot-swappable disks

Drive Type	Density	Speed	Form Factor
SAS	146GB, 300GB	10,000 RPM	2.5″

Solid State Drive

Up to six 32GB SATA solid state drive

Power Supplies

Dual redundant, hot swappable power supplies
2000W Capacity (From 200 Volts to 240 Volts)

Environment

AC power

100-127 VAC/200-240 VAC (50-60Hz)

Maximum Input Current

12A @ 100VAC / 12A @ 200VAC

Maximum Power Consumption

1800W

Maximum Heat Output

6143 BTU/hr

Temperature

Single, non-rack system:
Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 68° C (-40° F to 154° F)

Humidity

Single, non-rack system:
Operating: 10% to 90% relative humidity noncondensing
Nonoperating: up to 93% relative humidity noncondensing

Altitude

Single, non-rack system:
Operating: Up to 3048 m (10,000 ft.), maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
Nonoperating: Up to 12,000 m (39,370 ft.)

Acoustic Noise Emissions

LwAd (1B= 10dB) at max ambient: 8.9 B (idle and operating room temperature)
LpAm bystander at max ambient: 75 dBA

Regulations
Meets or exceeds the following requirements:

Safety

IEC 60950, UL/CSA60950, EN60950, CB scheme with all country differences

RFI/EMI

FCC CFR 47 Part 15 Class A, EN55022 Class A, EN300-386, EN 61000-3-2, EN 61000-3-3

Immunity

EN 55024 ,EN 300 386

Certifications

Safety: UL/cUL, UL DEMKO, CCC, CE, BSMI, GOST-R, S-Mark
EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, GOST-R, BSMI Class A
Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive (2002/96/EC) and RoHS Directive (2002/95/EC)

RoHS Compliance Level

RoHS:Y

Dimensions and Weight

Height

129.85 mm (5.1 in.)

Width

436.5 mm (17.2 in.)

Depth

732 mm (28.8 in.)

Weight

Maximum: 38.5 kg (85 lb.)
Minimum: 29.5 kg (65 lb.)

CPU Module
Option #	Manufacturing Part #	Description
X2341A	2 × 1.86 GHz 6-Core Xeon E7530 CPU Modules X-Option, RoHS:Y
	310-0228	CPU Heatsink, RoHS:Y
	371-4721	1.86 GHz 6-Core Xeon E7530 CPU Module, RoHS:Y
X2342A	2 × 2.0 GHz 8-Core Xeon X7550 CPU Modules X-Option, RoHS:Y
	310-0228	CPU Heatsink, RoHS:Y
	371-4692	2.00GHz 8-Core Xeon X7550 CPU Module, RoHS:Y
X2343A	2 × 2.26GHz 8-Core Xeon X7560 CPU Modules X-Option, RoHS:Y
	310-0228	CPU Heatsink, RoHS:Y
	371-4860	2.26GHz 8-Core Xeon X7560 CPU Module, RoHS:Y

Communication
Option #	Manufacturing Part #	Description
X4237A-N	375-3606	Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express, RoHS:Y

Disk Backplane
Option #	Manufacturing Part #	Description
n/a	511-1246	6-Slot Disk Backplane

Disks
Option #	Manufacturing Part #	Description
XRA-SS2CF300G10K-N	540-7869	300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0449	Seagate ST93000SSUNG [ST930003SSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRA-ST2CF32G2SSD-N	540-7841	32GB Solid State Drive Assembly, SATA Interface, RoHS:Y
	371-4196	32GB Solid State Drive, SATA Interface, RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRB-SS2CF146G10K-N	540-7868	146GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X1109A-Z	375-3617	Dual 10-Gigabit Ethernet SFP+ LP, RoHS:Y
X2129A-N	530-4449	10Gbps Short Wave Pluggable (SFP+) Transceiver, RoHS:Y
X2130A-10M-N	530-4454	Sun 10Gbps SFP+ TwinX Cable, 10m, RoHS:Y
X2130A-1M-N	530-4441	Sun 10Gbps SFP+ TwinX Cable, 1m, RoHS:Y
X2130A-3M-N	530-4442	Sun 10Gbps SFP+ TwinX Cable, 3m, RoHS:Y
X2130A-5M-N	530-4443	Sun 10Gbps SFP+ TwinX Cable, 5m, RoHS:Y
X4446A-Z-N	375-3481	PCI Express Quad Gigabit Ethernet UTP, RoHS:Y

Fan
Option #	Manufacturing Part #	Description
n/a	541-3535	Fan Cage Assembly, RoHS:Y
	511-1243	Fan Board with USB and VGA, RoHS:Y
	530-4349	Flex Circuit, RoHS:Y
n/a	541-3539	92mm Fan Module, RoHS:Y

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCIE1FC-EM8-N	371-4295	8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
SG-XPCIE1FC-QF8-N	371-4324	8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
SG-XPCIE2FC-EM8-N	371-4306	8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
SG-XPCIE2FC-QF8-N	371-4325	8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y

Memory
Option #	Manufacturing Part #	Description
X2350A	2 × Memory Riser X-Option, RoHS:Y
	541-3819	Memory Riser, RoHS:Y
	341-5773	Memory Riser Tray, RoHS:Y
	511-1241	Memory Riser Board, RoHS:Y
X8503A	4GB (2 × 2GB DDR3-1066) Memory Kit X-Option, RoHS:Y
	542-0244	2 × 2GB DDR3-1066 DIMMs, RoHS:Y
	371-4774	2GB DDR3-1066 DIMM, RoHS:Y
X8504A	8GB (2 × 4GB DDR3-1066) Memory Kit X-Option, RoHS:Y
	542-0245	2 × 4GB DDR3-1066 DIMMs, RoHS:Y
	371-4775	4GB DDR3-1066 DIMM, RoHS:Y
X8505A	16GB (2 × 8GB DDR3-1066) Memory Kit X-Option, RoHS:Y
	542-0246	2 × 8GB DDR3-1066 DIMMs, RoHS:Y
	371-4776	8GB DDR3-1066 DIMM, RoHS:Y
n/a	330-4839	Memory Slot Filler, RoHS:Y
n/a	330-5269	Memory Riser Filler, RoHS:Y

Miscellaneous
Option #	Manufacturing Part #	Description
X2361A	798-6250	Sun Fire X4470 Media and Documentation Kit
X2364A	371-4812	Cable Management Arm, RoHS:Y

Power
Option #	Manufacturing Part #	Description
n/a	300-2228	A239A 2000W AC Input Power Supply, RoHS:Y
n/a	541-3541	Power Distribution Board Assembly, RoHS:Y
	371-4446	Bus Bar, RoHS:Y
	511-1242	Power Distribution Board, RoHS:Y

Rack
Option #	Manufacturing Part #	Description
X2365A	371-4791	Tool-less Slide Rail Rack Mount Kit, RoHS:Y

Removable Media
Option #	Manufacturing Part #	Description
X8370A	541-4272	DVD Assembly, RoHS:Y
	341-5807	Mounting Tray, RoHS:Y
	341-6168	Bezel. RoHS:Y
	390-0443	8x SATA DVD-Writer/24x CD-Writer, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
SGX-SAS6-INT-Z	375-3640	8-Port 6Gbps SAS-2 HBA, RoHS:Y
SGX-SAS6-R-INT-Z	371-4746	6Gigabit SAS RAID PCI Battery Module, BBU07, RoHS:Y
SGX-SAS6-R-INT-Z	375-3644	6Gigabit SAS RAID PCI Express HBA, B2 ASIC, RoHS:Y

System Board
Option #	Manufacturing Part #	Description
n/a	541-3540	System Board Assembly, RoHS:Y
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	341-5567	System Board Tray, RoHS:Y
	511-1240	System Board, RoHS:Y
	511-1245	Rear I/O Board, RoHS:Y
	530-3510	Magnetic Interlock Switch, RoHS:Y
	530-4348	System Board to Rear I/O Board Signal Cable, RoHS:Y
