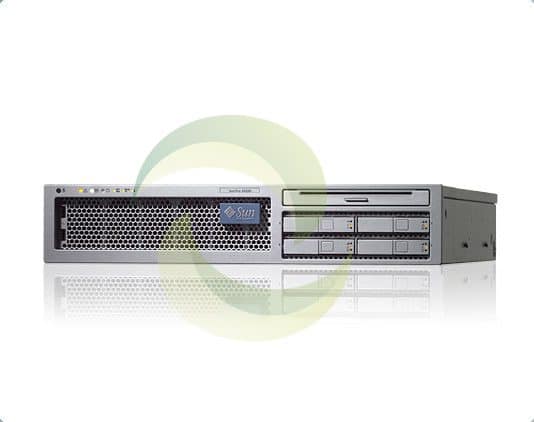

Oracle Sun X4200 M2 Server

Oracle Sun X4200 M2 Server Oracle Sun X4200 M2 Server Sun Servers SUN FIRE X4200 M2 copy

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Processor
    Number1 or 2 Dual-core
    Architecture Type:AMD Opteron Processor 2000 Series
    • Model 2210, 1.8 GHz, Dual-Core, 95W, F2 Stepping
    • Model 2216, 2.4 GHz, Dual-Core, 95W, F3 Stepping
    • Model 2218, 2.6 GHz, Dual-Core, 95W, F3 Stepping
    • Model 2220SE, 2.8 GHz, Dual-Core, 120W, F2 Stepping
    • Model 2222SE, 3.0 GHz, Dual-Core, 120W, F3 Stepping
    • Model 2220, 2.8 GHz, Dual-Core, 95W, F3 Stepping
    • Model 2222, 3.0 GHz, Dual-Core, 95W, F3 Stepping
    • Model 2218HE, 2.6 GHz, Dual-Core, 68W, F3 Stepping
    • Model 2224SE, 3.2 GHz, Dual-Core, 120W, F3 Stepping
    • Model 2356, 2.3 GHz, Quad-Core, 75W, B3 Stepping
    Cache memory1 MB Level 2 cache per processor core
    Main Memory
    Capacities DIMM slots per processor: 4
    DIMM slots per System Board: 8 (using 2 processors)
    DIMM type: DDR2 667MHz Registered DIMMs (128 bit plus ECC databus)
    DIMM size: 1-GB, 2-GB or 4-GB
    Maximum capacity: 32 (when configured with 4-GB DIMMs and 2 processors)
    NOTE: For optimal performance, install DIMMs in pairs. Pairs of DIMMs must be matched.
    Standard Integrated Interfaces
    NetworkFour 10/100/1000 Base-T Ethernet Ports
    Network ManagementOne dedicated 10/100Base-T Ethernet port
    Serial ManagementOne dedicated TIA/EIA-232-F asynchronous RJ45 port
    SASFour channel SAS interface, internal access only.
    ATI Rage XL Video Chip, VGA Video 15-pin Port
    USB Front: Two USB 2.0 port
    Rear: Two USB 2.0 ports
    PCI Expansion SlotsFour internal low profile 8-lane PCI Express slots
    One internal MD2 Low Profile 64-bit PCI-X slot (133 MHz)
    Internal Mass Storage
    DisksUp to four 2.5″ SAS internal hot-swap Disks:
    • 146GB – 10000 RPM SAS
    • 73GB – 10000 RPM SAS
    • 73GB – 15000 RPM SAS

    With or Without DVD/CD-RW: 4 disks are supported.

    DVD-ROMOne EIDE DVD-ROM or CD-RW Writer (optional)
    Power Supplies
    Dual redundant, hot swappable power supplies
    (Power supply rating DC output = 550W)
    (UL Maximum AC input = 550W x 1.33 efficiency = 733W)
    (Typical power consumption: 450W)
    Environment
    AC power90-264 V AC (47-63 Hz)
    DC Power-48 V DC or -60 V DC (10.4 A at -48 V DC, 8.3 A at -60 V DC)
    TemperatureSingle, non-rack system:
    Operating: 10° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 65° C (-40° F to 149° F)
    HumiditySingle, non-rack system:
    Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) max wet bulb
    Nonoperating: up to 93% relative humidity noncondensing, 38° C (100.4° F) max wet bulb
    AltitudeSingle, non-rack system:
    Operating: up to 3048 m (10,000 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m
    Nonoperating: up to 12,000 m (40,000 ft.)
    Acoustic noiseSingle, non-rack system:
    LwAd (1B=10dB)
    8.0 B at or below 25° C
    8.4 B at max ambient
    LpAm bystander
    64dB at or below 25° C
    69dB at max ambient
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance LevelRoHS:YL
    SafetyIEC60950, UL/CSA60950-1, EN60950, CB Scheme with all country differences
    RFI/EMIFCC Class A, Part 15 47 CFR, EN55022, CISPR 22, EN300-386:v1.32, ICES-003
    ImmunityEN55024, EN300-386:v1.31
    Certifications Safety: cULus Mark, UL Demco GS Mark, CE Mark, CCC, GOST R, S-Mark
    EMC: CE Mark (93/68/EEC), Emissions and Immunity Class A Emissions Levels: FCC, VCCI, BSMI, C-tick, MIC, CCC, GOST R
    Dimensions and Weight
    Height87.6 mm (3.44 in.)
    Width445 mm (17.5 in.)
    Depth632 mm (24.8 in.)
    Weight25.5 kg (56.2 lb.)
    CPU Module
    Option #Manufacturing
    Part #    		Description
    X4224A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-19142.8GHz AMD Dual Core Opteron 2220SE, F2 Stepping, 120W, RoHS:YL
    X4057A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-25012.8 GHz CPU, Opteron 2220 Dual Core, F3 Stepping, 95W, RoHS:YL
    X4081A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-25033.0GHz AMD Dual Core Opteron 2222SE, F3 Stepping, 120W, RoHS:Y
    X4082A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-26842.6GHz AMD Dual Core Opteron 2218HE, F3 Stepping, 68W, RoHS:YL
    X4085A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-25023.0 GHz CPU, Opteron 2222 Dual Core, F3 Stepping, 95W, RoHS:Y
    X4086A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-34873.2 GHz CPU, Opteron 2224SE Dual Core, F3 Stepping, 120W, RoHS:Y
    X4221A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-24951.8GHz AMD Dual Core Opteron 2210, F3 Stepping, 95W, RoHS:Y
    X4222A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-24992.4GHz AMD Dual Core Opteron 2216, F3 Stepping, 95W, RoHS:Y
    X4223A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-25002.6 GHz CPU, Opteron 2218 Dual Core, F3 Stepping, 95W, RoHS:Y
    X4629A-Z240-498725mm Heatsink Shoulder Screw, RoHS:Y
    240-498810mm Heatsink Spring, RoHS:Y
    310-0049G751 Thermal Grease Syringe, RoHS:Y
    310-0102Heatsink, RoHS:Y
    371-40422.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W, RoHS:Y
    n/a371-2481HyperTransport Termination Adapter, RoHS:Y
    Cables
    Option #Manufacturing
    Part #    		Description
    X311LLocalized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312ELocalized Power Code Kit – China, RoHS:Y
    180-1982IEC 320 C13 to GB 2099/GB 1002 – 10A/250V 2.5M, RoHS:Y
    X312FLocalized Power Cord Kit – Argentina, RoHS:Y
    180-1999IEC 320 C13 to IRAM 2073 – 10A/250V 2.5M Black, RoHS:Y
    X312GLocalized Power Cord Kit – Korea, RoHS:Y
    180-1662IEC 320 C13 to KSC 8305 – 15A/250V 2.5M Black, RoHS:Y
    X312LLocalized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314LLocalized Power Cord Kit – Swiss, RoHS:Y
    180-1994IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317LLocalized Power Cord Kit – U.K., RoHS:Y
    180-1997IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X332ALocalized Power Cord Kit – Taiwan, RoHS:Y
    180-2121IEC 320 C13 to NEMA 5-15P – 10A/125V 2.5M Black, RoHS:Y
    X383LLocalized Power Cord Kit – Danish, RoHS:Y
    180-1995IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384LLocalized Power Cord Kit – Italian, RoHS:Y
    180-1996IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    X386LLocalized Power Cord Kit – Australian, RoHS:Y
    180-1998IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
    n/a530-1819Localized Power Cord Kit – Danish
    n/a530-3100RJ45F to DB9F Adapter, RoHS:Y
    n/a530-3338Front I/O Board to System Board Cable, RoHS:Y
    n/a541-0648Flex Circuit Assembly, RoHS:YL
    n/a541-0745Blower Cable, RoHS:Y
    565-1963Xilinx CPLD Programming Cable Kit
    Communication
    Option #Manufacturing
    Part #    		Description
    X6000A375-3424PCI Express Sun Crypto Accelerator 6000, RoHS:Y
    X1236A-Z375-3382Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
    X1333A-4375-3418Infiniband PCI-X Card, RoHS:YL
    X4217A-Z375-3549Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
    Disk Backplane
    Option #Manufacturing
    Part #    		Description
    n/a501-72164-Slot SCSI Disk Backplane, RoHS:YL
    Disks
    Option #Manufacturing
    Part #    		Description
    XRA-SS2CD-146G10KZ540-7151146GB – 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets, RoHS:Y
    • 390-0324
    • Seagate ST9146802SS [ST914602SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0375
    • Fujitsu MBB2147RC [MBB2147RCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    XRA-SS2CD-73G10KZ540-661173GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets, RoHS:Y
    • 390-0213
    • Seagate ST973401SS [ST973401SSUN72G]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0285
    • Fujitsu MAY2073RC [MAY2073RCSUN72]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0323
    • Seagate ST973402SS [ST973402SSUN72G]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0374
    • Fujitsu MBB2073RC [MBB2073RCSUN72G]
      (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0376
    • Hitachi HUC101473CSS300 [H101473SCSUN72G]
      (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    XRA-SS2CD-73G15K540-736073GB – 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0382
    • Seagate ST973451SS [ST973451SSUN72G]
      (73GB – 15000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    Ethernet
    Option #Manufacturing
    Part #    		Description
    X1027A-Z501-7283PCI Express Dual 10-Gigabit Ethernet Fiber, RoHS:Y
    X4446A-Z375-3481PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    X5544A-410Gb PCI-X Ethernet Adapter, no transceiver, RoHS:Y
    501-741310Gb PCI-X Ethernet Adapter, RoHS:Y
    • 370-7665
    • Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    X5558A375-330110Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    X5560A-Z375-349510Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
    X7280A-2371-0905PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
    X7281A-2371-0904PCI Express Dual Gigabit Ethernet MMF, RoHS:Y
    X7285A371-0911Low Profile PCI-X Dual Gigabit Ethernet UTP, RoHS:Y
    X7286A371-0912Low Profile PCI-X Single Gigabit Ethernet MMF, RoHS:Y
    4455A-4375-330110Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    501-741410Gb/sec PCI-X Ethernet Adapter, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    4466A375-3361XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL
    501-741410Gb/sec PCI-X Ethernet Adapter, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    X5559A375-3361XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL
    Fan
    Option #Manufacturing
    Part #    		Description
    n/a501-6917Server Fan Board (A65/A87), RoHS:Y
    n/a541-0269Fan Module (Single Fan), RoHS:Y
    n/a541-0645Rear Fan Tray, RoHS:Y
    Fibre Channel
    Option #Manufacturing
    Part #    		Description
    SG-XPCI1FC-EM4-Z375-33984Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QF4375-33544Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM4-Z375-33994Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF4375-32944Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-EM4375-33964Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-EM8-Z371-42958Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF4375-33554Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF8-Z371-43248Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM4375-33974Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM8-Z371-43068Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF4375-33564Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF8-Z371-43258Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCI1FC-EM2375-33042Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QL2375-33832Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QLC-Z375-3364Entry-Level 2Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM2375-33052Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF2-Z375-33632Gb PCI Dual FC Host Adapter, RoHS:Y
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    I/O
    Option #Manufacturing
    Part #    		Description
    n/a501-7256Front I/O Board w/Cover Interlock Switch, RoHS:YL
    Memory
    Option #Manufacturing
    Part #    		Description
    X4226A-C4GB (2 × 2GB DDR2-667 DIMM), Memory Kit, RoHS:YL
    371-41582GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM, RoHS:Y
    X4233A8GB (2 × 4GB DDR2-667 DIMM) Option for Dual-Core and Quad-Core CPUs, RoHS:YL
    371-43224GB DDR2-667 DIMM, RoHS:Y
    X4225A-Z2GB (2 × 1GB DDR2-667 DIMM) Option, RoHS:YL
    371-19191GB DDR2-667 DIMM, RoHS:Y
    X4226A-Z4GB (2 × 2GB DDR2-667 DIMM) Option, RoHS:YL
    371-19202GB DDR2-667 DIMM, RoHS:Y
    X4227A-Z8GB (2 × 4GB DDR2-667 DIMM) Option, RoHS:YL
    371-22054GB DDR2-667 DIMM, RoHS:Y
    n/aF540-71162GB (2 × 1GB DDR2-667 DIMM), RoHS:Y
    • 371-1919
    • 1GB DDR2-667 DIMM, RoHS:Y
    n/aF540-71174GB (2 × 2GB DDR2-667 DIMM), RoHS:Y
    • 371-1920
    • 2GB DDR2-667 DIMM, RoHS:Y
    n/aF540-71188GB (2 × 4GB DDR2-667 DIMM), RoHS:Y
    • 371-2205
    • 4GB DDR2-667 DIMM, RoHS:Y
    n/aF540-77958GB (2 × 4GB DDR2-667 DIMM) for Quad-Core CPUs, RoHS:Y
    • 371-4322
    • 4GB DDR2-667 DIMM, RoHS:Y
    n/aF540-78494GB (2 × 2GB DDR2-667 DIMM), RoHS:Y
    • 371-4158
    • 2GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM, RoHS:Y
    Miscellaneous
    Option #Manufacturing
    Part #    		Description
    X949A-4594-2682Wago DC Connector Set (10 pack), RoHS:Y
    • 130-6352
    • Wago DC Connector, RoHS:Y
    • 230-4652
    • Wago DC Connector Strain Relief, RoHS:Y
    • 230-4653
    • Wago DC Connector Opening Lever, RoHS:Y
    n/a501-6916LED/Switch Board (A65/A87), RoHS:Y
    Power
    Option #Manufacturing
    Part #    		Description
    X8026A-Z300-1945550 Watt, Type A203, AC Input Power Supply, RoHS:YL
    X8051A-Z300-2006DC -48VDC 550W Power Supply (Type D193), RoHS:YL
    X8052A-Z300-1848550 Watt, Type A214 Power Supply, RoHS:YL
    n/a501-6920Power Distribution Board, RoHS:YL
    Rack
    Option #Manufacturing
    Part #    		Description
    X8028A-Z370-7668Cable Management Arm, RoHS:Y
    X8029A-EZ371-2374Quick Rails Kit, RoHS:Y
    X8029A-Z370-7669Slide Rail Kit, RoHS:Y
    Removable Media
    Option #Manufacturing
    Part #    		Description
    X8030A-Z390-03208x DVD-ROM / 24x CD-Writer Assembly, RoHS:YL
    X4352A-Z8× Slimline DVD-RW Drive Assembly, RoHS:YL
    390-03378x PATA DVD-Writer/24x CD-Writer, RoHS:Y
    X8049A-Z390-03208x DVD-ROM / 24x CD-Writer Assembly, RoHS:YL
    SCSI
    Option #Manufacturing
    Part #    		Description
    SG-XPCIE2SCSIU320Z375-3357Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
    SG-XPCIE8SAS-E-Z375-3487PCI Express 8-Port Host Adapter, RoHS:Y
    SGXPCI1SCSILM320-Z375-3366PCI Single Ultra320 SCSI Adapter
    SGXPCIESAS-R-EXT-Z371-3253Lithium Ion Battery Module
    375-35378-Port SAS RAID External HBA, RoHS:Y
    System Board
    Option #Manufacturing
    Part #    		Description
    n/a501-7590System Board, RoHS:YL
    • 150-3993
    • Panasonic BR2032 Battery, RoHS:Y
    n/a501-7989System Board, RoHS:YL
    • 150-3993
    • Panasonic BR2032 Battery, RoHS:Y
    System Service Processor
    Option #Manufacturing
    Part #    		Description
    n/a501-7499Graphics Redirect and Service Processor (GRASP) Board, RoHS:YL

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
