Oracle Sun X4-8 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor

Number

4 or 8 CMODs (Compute Modules), providing 4 or 8 CPU configurations

Architecture

Type: Intel Xeon E7-8895 Processor Series

CPUs

Intel 2.80GHz 15-Core Xeon E7-8895 v2, 155W

Main Memory

Capacities

DIMM Slots per CMOD: 24.
Total DIMM Slots in 4 CMOD Configuration: 96

Total DIMM Slots in 8 CMOD Configuration: 192
DIMM Size and Type: 16GB: DDR3-1600 GHz ECC registered or 32GB: DDR3-1600 GHz load-reduced ECC DIMMs (LRDIMM)
Minimum Populated DIMM Slots per CMOD : 4 DIMMs per CMOD
Minimum Memory Capacity in 4 CMOD Configuration: 256GB using 16GB DIMMs or 512GB using 32GB DIMMs
Minimum Memory Capacity in 8 CMOD Configuration: 512GB using 16GB DIMMs or 1TB using 32GB DIMMs
Maximum Memory Capacity in 4 CMOD Configuration: 1.5TB using 32GB DIMMs or 3TB using 32GB DIMMs
Maximum Memory Capacity in 8 CMOD Configuration: 3TB using 16GB DIMMs or 6TB using 32GB DIMMs

Standard I/O

Network

Two 1 GbE network ports (RJ-45 connector)

Network Management

One 10/100/1000Base-T Ethernet Service Processor (SP) (RJ-45 connector) port

Serial Management

One RS-232 RJ45 serial console port

USB

Rear: 2 USB 2.0 Ports
Internal: 2 USB 2.0 Ports

Video

One VGA 1,280 x1,024×8 MB @ 60 Hz graphics controller port with DB-15 connector

I/O Expansion

2 PCI Express 3.0 Slots per CMOD for maximum of 16 Slots. Hot swappable via Dual PCIe Card Carrier (DPCC).

1 x8 PCI-E slot
1 x16 PCI-E slot

Internal Mass Storage

Disks

Eight rear-accessible and hot-swappable 2.5″ SAS-2 HDDs or eight 2.5″ SATA-3 SSDs for up to 9.6TB of internal storage.

Drive Type	Density	Speed	Form Factor
SAS-2	600GB	10,000 RPM	2.5″
SAS-2	1.2TB	10,000 RPM	2.5″
SATA-3	400GB	Solid State	2.5″

Power Supplies and Fans

Four dual redundant, hot swap power supplies and 8 Hot-swap Redundant Dual Fans.
Cooling is front to back.

Environment

Power Consumption

Online power calculator

AC power

Nominal input frequencies 50/60 Hz
Operating input voltage range 200-240 VAC
Rated input current 23A@200 to 230 VAC 12A max per cord
Maximum power consumption 3400W

Temperature

Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 70° C (-40° F to 158°F)

Humidity

Operating: 10% to 90% relative humidity noncondensing

Altitude

Single, non-rack system:
Operating: Up to 3048 m (10,000 ft.), maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
Nonoperating: Up to 12,000 m (39,370 ft.)

Acoustic Noise Emissions

LwAd (1B= 10dB) at max ambient: 8.9 B (idle and operating room temperature)
LpAm bystander at max ambient: 75 dBA

Regulations
Meets or exceeds the following requirements:

Safety

UL/CSA 60950-1, EN 60950-1, IEC 60950-1 (CB Scheme with all country differences), North America (NRTL), European Union (EU), International CB Scheme, 2006/95/EC (73/23/EEC) Low Voltage Directive

EMC

EN 55022, CNS-13438 Class A (Taiwan), FCC CFR 47 CFR 15B Class A (Code of Federal Regulations, Title 47, Part 15, Subpart B Class A (United States), ICES-003 (A) NMB-3 (A) Class A (Canada), ETSI EN300386 (V1.6.1), VCCI: 2008 Class A (Japan), KN 22 RRL Public Notice 2009-9 (Dec 21, 2009)

Immunity

EN55024 (Immunity), EN61000-3-2, EN61000-3-3

Other

Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU, Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC, Low Voltage Directive 2006/95/EC, and EMC Directive 2004/108/EC

Certifications

Safety Marks

Regulatory Marks

CE, FCC, EAC, C-Tick, VCCI, BSMI, KCC, ICES-003 (A), NMB-3 (A), WEEE symbol, China RoHS symbol

Operating Altitude

m to 3,000 m (0 ft to 9,840 ft) maximum ambient temperature is derated by one degree C per 300 m above 900 m, except in China where regulations may limit installations to a maximum altitude of 2,000 m.

Nonoperating Altitude

0 m to 12,000 m (0 ft to 40,000 ft)

Dimensions and Weight

Height

219.25 mm (8.63 in.)

Width

445 mm (17.5 in.)

Depth

834 mm (32.8 in.)

Weight

Maximum: 114 kg (250 lbs.)

Rack Mounting

Sun Server X4-8 Racks

Tooless Slide Rail Rackmount Kit
Sun Rack 1242
Sun Rack 1042

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7054513 [F]	Busbar/Midplane Assembly	n/a
	7064783	Busbar Subassembly	n/a
	7064025	Busbar	n/a
	7077135	Midplane Subassembly	n/a
	7073864	Midplane	n/a

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C]	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7080100 [F]	CPU Heatsink	n/a
n/a	7080240	CPU Installation/Removal Tool	n/a
n/a	7083528 [F]	2.8GHz 15-Core Intel Xeon E7-8895 v2, 155W	n/a
n/a	7084469 [F]	CPU/Memory Compute Module Assembly (CMOD)	n/a
	7084467	CMOD Chassis	n/a
	7084468	CPU/Memory Board Assembly	n/a
	7084601	CPU/Memory Board	n/a
n/a	7094599 [F]	CPU/Memory Compute Module Assembly (CMOD)	7084469 [F]
	7084467	CMOD Chassis	n/a
	7094598	CPU/Memory Board Assembly	n/a
	7092009	CPU/Memory Board	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
X2121A-1M-N	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-3M-N	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
n/a	530-3100 [C]	RJ45F to DB9F Adapter	n/a
n/a	7064767 ² [C]	4x Mini SAS Cable, SFF-8087 to 90 SFF-8087, 280mm	n/a
n/a	7084503 [C]	Cable Kit	n/a
	7064165	AC LED to Midplane Cable	n/a
	7075257	AC LED Board	n/a
	7073884	AC OK LED Board	n/a

² Cable 7064767 is used in the standard configuration of the SMOD. It connects the RAID HBA to the SMOD Controller.

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7076547	Chassis Assembly	n/a
	7054505	Chassis Subassembly	n/a
	7025969	20A AC Input Line Filter	n/a
	7060153	AC Ground Cable	n/a
	7063266	Chassis	n/a
	7075019	Power Supply Cable Assembly	n/a
	7059728	Power Supply Cable	n/a
	7076663	Bracket	n/a
	7075285	Top Cover	n/a
	7064165	AC LED to Midplane Cable	n/a
	7075257	AC LED Board	n/a
	7073884	AC OK LED Board	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7104074	7092757 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7105214	7064135 [C]	600GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	7066795	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7107550	7077233 [C]	400GB Solid State SATA Drive Assembly	n/a
	7076379	Intel SSDSC2BA400G3S [ITVSC2BA3SUN400] (400GB – 2.5″ Solid State – SATA-3 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7106617 [S]	7045850 [C]	1.2TB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045846	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)	n/a
	7082883	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	542-0287 [C]	600GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
7100488	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2124A	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7083755	Fan Module, 80x76mm, 13000 RPM	n/a
n/a	7084119	Fan Frame	n/a
n/a	7091709	Fan Frame	7084119
n/a	7091860 [C]	Fan Module, 80x76mm, 13000 RPM	7083755

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101676	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101678	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
7101684	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101688	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101688	7023046	10Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
SG-XPCIE2FC-EM8-N	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-N	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	351-0009	PCI Express Filler Panel, Low Profile	n/a

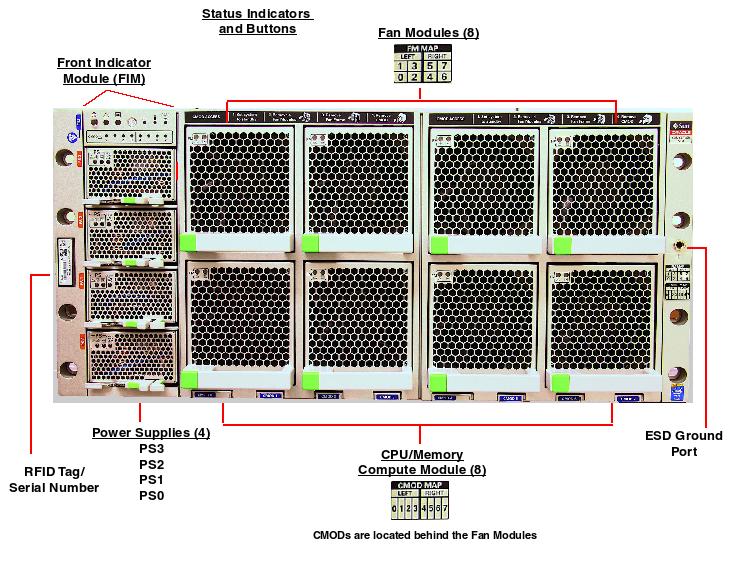

n/a	7084488 [C]	Front Indicator Module (FIM)	n/a
	7057505	Front Circuit Board	n/a
	7074700	Ribbon Cable, 460mm	n/a
	7084487	Rear Circuit Board	n/a
	7082596	Front Circuit Board, FIM1	n/a
	7084756	FIM Chassis Assembly	n/a
	7098638	Rear Circuit Board	n/a
	7082596	Front Circuit Board, FIM1	n/a
n/a	7094766 [C]	Dual PCI Express Card Carriers (DPCC)	n/a
	7073880	Dual PCI Express Board	n/a
	7094765	DPCC Chassis	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7106840	7076173 [C]	16GB 1.35V DDR3L-1600 DIMM	n/a
7106841	7073781 [C]	32GB 1.35V DDR3L-1600 Load Reduced DIMM	n/a
n/a	7038488 [C]	4GB USB 2.0 Flash Drive	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7081596 [C]	A261 3000 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7090552 [C]	Rackmount Kit	n/a
	7090551	Spacer Kit	n/a
	7090644	Rail Kit	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7107092	7069200 [C]	800GB PCI Express Flash Accelerator F80 SAS HBA	n/a
n/a	7047503 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	n/a
n/a	7050794 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	n/a

NOTE: RAID HBA and BBU part numbers 7047503 and 7050794 support internal disks within the SMOD.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7084582 [C]	System Module Assembly (SMOD)	n/a
	7078321	4-Slot Disk Cage Assembly	n/a
	7064572	4-Slot Disk Cage	n/a
	7073882	4-Slot Disk Backplane	n/a
	7082586	System Module Controller Subassembly	n/a
	7057962	System Module PCI Express Riser	n/a
	7083566	System Module Controller	n/a
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
	7084581	SMOD Chassis Assembly	n/a
