Oracle Sun X4-2L Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor
Number	One or Two: (See Single CPU Configuration Restrictions below)
Architecture	Type: Intel Xeon E5-2600 v2 family
CPUs	Intel 2.5GHz Quad-Core Xeon E5-2609 v2 (80W) Intel 2.6GHz 6-Core Xeon E5-2630 v2 (80W) Intel 2.6GHz 8-Core Xeon E5-2650 v2(95W) Intel 3.0GHz 10-Core Xeon E5-2690 v2 (130W) Intel 2.7GHz 12-Core Xeon E5-2697 v2 (130W)
Cache	L1: 32KB Instruction and 32KB data L1 cache per core L2: 256KB shred data and instruction L2 cache per core L3: Up to 30MB shared inclusive L3 cache per processor
Single CPU Configuration Restrictions	only two out of four onboard Ethernet ports are supported up to 8 DIMMs are supported up to 3 out of 6 PCIe slots are supported
Main Memory
Capacities	Total DIMM slots: 16 (8 DIMMs/CPU) DIMM type: DDR3 1600MHz Registered DIMMs DIMM size: 8GB 1600MHz, 16GB 1600MHz, or 32GB 1600MHz Maximum capacity: 512GB (when configured with 32GB DIMMs)
Standard Integrated Interfaces
Network	Supports Four 100/1000/10000 Base-T Ethernet Ports (100 at full-duplex only)
Network Management	One dedicated 10/100Base-T Ethernet port
Serial Management	One dedicated RJ45 port
USB	Front: Two USB 2.0 ports Rear: Two USB 2.0 ports Internal: Two USB 2.0 ports
PCI Expansion Slots	Six low profile PCI Express 3.0 slots; Slot 1: x16 electrical / x16 mechanical Slots 2-6: x8 electrical
Internal Mass Storage

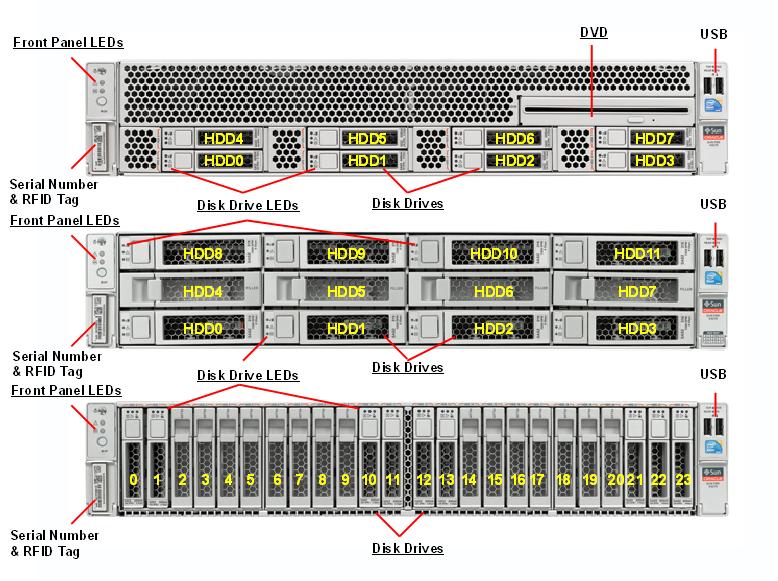

Disks and Flash	Three Disk Backplanes configurations 8-Disk configuration with DVD: 2.5in 300GB / 600GB SAS-2 SSD 12-Disk configuration: 3.5in 1.2TB SAS-2 or 4TB SAS(2 additional 2.5″ disk slots in the rear) 24-Disk configuration: 2.5in 300GB / 600GB SAS-2 (2 additional 2.5″ disk slots in the rear) Internal 4GB USB 2.0 Flash Drive
Uses one of two supported internal HBAs for internal storage. The HBA is to be installed in PCI Express Slot 6.
Power Supplies
Dual redundant, hot swappable power supplies (Maximum output power = 1000W)
Environment
Power Consumption	Online power calculator
Voltage	100 to 127 / 200 to 240 VAC
Input Current	12.0 A-8.5 A @ 100-127 V 5.7 A @ 200-240 V
AC power	50-60 Hz (47 to 63 Hz range)
Temperature	Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -40° C to 70° C (-40° F to 158° F)
Humidity	Operating: 10% to 90% relative humidity noncondensing, Nonoperating: up to 93% relative humidity noncondensing
Altitude	Operating:Up to 9,840 feet (3,000 m) maximum ambient temperature is derated by 1° C per 300 m above 900 m (except in China where regulations may limit installations to a maximum altitude of 6,560 feet or 2,000 m) Nonoperating: Maximum 12,000 m (39,370 ft)
Acoustic	7.61 Bels A weighted operating; 5.65 Bels A weighted idling
Regulations Meets or exceeds the following requirements:
Safety	UL/CSA-60950-1, 2nd Edition, EN60950-1-2006 + A11:2009 + A1:2010 + A12:2011, IEC60950-1:2005 + A1:2009 CB scheme with all country deviations, CNSI4336-1, GB4943.1-2012
EMI	EN55022:2010 , CISPR22:2008 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22:2009/A1:2010 Class A, CNS 13438 Class A, GB9254 Class A, EN61000-3-2, GB17625.1, EN61000-3-3
Immunity	EN 55024:2010
Certifications	Safety: UL/cUL Listing, CE, BSMI, GOST R, CCC EMC: CCC, CE, FCC, VCCI, ICES, C-Tick, KCC, GOST R, BSMI, Class A Other: Complies with WEEE Directive (2012/19/EC), RoHS Directive (2011/65/EC)
Dimensions and Weight
Height	87.6 mm (3.5 in)
Width	445.0 mm (17.5 in)
Depth	737 mm (29 in)
Weight	28.5 kg (63 lbs) fully populated
Clearance and Service Access
Front Rear Top	123.2 cm (48.5 in) 91.4 cm (36 in) 91.4 cm (36 in)

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C]	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7020776 [F]	CPU Heatsink	n/a
n/a	7069232 [F]	2.7GHz 12-Core Intel Xeon E5-2697 v2, 130W	n/a
n/a	7069239 [F]	3.0GHz 10-Core Intel Xeon E5-2690 v2, 130W	n/a
n/a	7069240 [F]	2.6GHz 8-Core Intel Xeon E5-2650 v2, 95W	n/a
n/a	7069242 [F]	2.6GHz 6-Core Intel Xeon E5-2630 v2, 80W	n/a
n/a	7069243 [F]	2.5GHz 4-Core Intel Xeon E5-2609 v2, 80W	n/a
n/a	7082521	CPU Installation/Removal Tool	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
7105199	7063849 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M	n/a
7105206	7063852 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M	n/a
X2121A-1M-N	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-3M-N	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
X333V-20-15-C14-N	7040692 [C]	IEC 320 C13 to IEC 320 Sheet E – 10A/250V 2.0M	n/a
X333V-30-15-C14-N	7040693 [C]	IEC 320 C13 to IEC 320 Sheet E, 10A, 3M	180-2443 [C]
X9237-1-A-N	180-2082 [C]	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M	n/a
X9238-1-A-N	180-2085 [C]	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M	n/a
n/a	180-2443 [C]	IEC 320 C13 to IEC 320 Sheet E – 15A/250V 3.0M	n/a
n/a	530-4037	2-Slot 10-Pin Disk Backplane Power Cable	n/a
n/a	7014930	Rear Disk Data Cable, SATA to 90° SATA, 400mm	n/a
n/a	7014931	Rear Disk Data Cable, SATA to 90° SATA, 320mm	n/a
n/a	7015654 ¹	Disk Data Cable, SFF-8087 to iPass+ HD, 203mm	n/a
n/a	7047255 [F]	8-Slot Backplane Cable Kit	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7041996	Disk Data Cable, SFF-8087 to SFF-8643, 650mm	n/a
	7068329	Dual Backplane Power Cable	n/a
	7309766	Disk Drive Flex Cable	n/a
n/a	7047257 [F]	12-Slot Backplane Cable Kit	n/a
	530-4536	Disk Drive Flex Cable	n/a
	7014921	4-Slot Disk Backplane Power Cable	n/a
	7015651	Disk Data Cable, iPass+ HD to iPass+ HD, 600mm	n/a
	7068329	Dual Backplane Power Cable	n/a
	7309765	Disk Drive Flex Cable	n/a
n/a	7047258 [F]	24-Slot Backplane Cable Kit	n/a
	530-4534	Disk Drive Power Cable	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7020903	Disk Data Cable, SFF-8087 to SFF-8643, 620mm	n/a
	7020904	Disk Data Cable, SFF-8087 to iPass+ HD, 740 mm	n/a
	7020905	Disk Data Cable, SFF-8087 to iPass+ HD, 711mm	n/a
	7309766	Disk Drive Flex Cable	n/a

¹ FRU|CRU part 7014391 “SAS Expander Assembly” includes quantity 1 7015654 “Disk Data Cable”.

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7104074	7092757 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7038971 [F]	24-Slot 2.5″ Disk Cage Assembly	n/a
	530-4037	2-Slot 10-Pin Disk Backplane Power Cable	n/a
	541-4674	2-Slot Rear Disk Cage Assembly	n/a
	7012767	Rear Disk Cage	n/a
	7023515 ² [F]	2-Slot Backplane	n/a
	7014930	Rear Disk Data Cable, SATA to 90° SATA, 400mm	n/a
	7014931	Rear Disk Data Cable, SATA to 90° SATA, 320mm	n/a
	7015654 ³	Disk Data Cable, SFF-8087 to iPass+ HD, 203mm	n/a
	7020903	Disk Data Cable, SFF-8087 to SFF-8643, 620mm	n/a
	7012293	Fan Door for 24-Slot 2.5″ Disk Configuration	n/a
	350-1812	Fan Door	n/a
	7020904	Disk Data Cable, SFF-8087 to iPass+ HD, 740 mm	n/a
	7020905	Disk Data Cable, SFF-8087 to iPass+ HD, 711mm	n/a
	7039836	24-Slot Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	530-4534	Disk Drive Power Cable	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7012294	24-Slot 2.5″ Disk Cage	n/a
	7014391 ⁴ [C]	SAS Expander Assembly	n/a
	7010672	SAS Expander Subassembly	n/a
	7023751	SAS Expander w/o Heatsink	n/a
	7015388	Plunger	n/a
	7015394	Grommet	n/a
	7014929	LED Cable	n/a
	7015229 [F]	24-Slot 2.5″ Disk Backplane Assembly	n/a
	341-6231	Mounting Bracket	n/a
	7020908	24-Slot 2.5″ Disk Backplane	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7027303	Front LED Indicator Module Cable	n/a
	7048864	Disk Backplane Left LED Indicator Module	n/a
	7309765	Disk Drive Flex Cable	n/a
n/a	7038979	12-Slot 3.5″ Disk Cage Assembly	n/a
	530-4037	2-Slot 10-Pin Disk Backplane Power Cable	n/a
	541-4674	2-Slot Rear Disk Cage Assembly	n/a
	7012767	Rear Disk Cage	n/a
	7023515 ⁵ [F]	2-Slot Backplane	n/a
	7014930	Rear Disk Data Cable, SATA to 90° SATA, 400mm	n/a
	7014931	Rear Disk Data Cable, SATA to 90° SATA, 320mm	n/a
	7015651	Disk Data Cable, iPass+ HD to iPass+ HD, 600mm	n/a
	7015654 ⁶	Disk Data Cable, SFF-8087 to iPass+ HD, 203mm	n/a
	7045664	12-Slot 3.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	530-4536	Disk Drive Flex Cable	n/a
	7014391 ⁷ [C]	SAS Expander Assembly	n/a
	7010672	SAS Expander Subassembly	n/a
	7023751	SAS Expander w/o Heatsink	n/a
	7015388	Plunger	n/a
	7015394	Grommet	n/a
	7014921	4-Slot Disk Backplane Power Cable	n/a
	7014929	LED Cable	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7027479 [F]	4-Slot 3.5″ Disk Backplane Assembly	n/a
	7024658	4-Slot 3.5″ Disk Backplane	n/a
	7049434	3.5″ Lightpipe Assembly	n/a
	7048864	Disk Backplane Left LED Indicator Module	n/a
	7051157	12-Slot 3.5″ Disk Cage	n/a
	541-4671	Left Ear Assembly	n/a
	7051565	Right Ear Assembly	n/a
	7310026	Left Ear Assembly	n/a
	350-1812	Fan Door	n/a
	7068329	Dual Backplane Power Cable	n/a
	7309765	Disk Drive Flex Cable	n/a
n/a	7045661	8-Slot 2.5″ Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	530-4537	Disk Drive Flex Cable	n/a
	7014929	LED Cable	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7027303	Front LED Indicator Module Cable	n/a
	7027478 [F]	4-Slot 2.5″ Disk Backplane Assembly	n/a
	7024658	4-Slot 3.5″ Disk Backplane	n/a
	7049472	2.5″ Lightpipe Assembly	n/a
	7048864	Disk Backplane Left LED Indicator Module	n/a
	7068329	Dual Backplane Power Cable	n/a
	7309765	Disk Drive Flex Cable	n/a
n/a	7052898 [C]	Left Ear Kit	n/a
	7014929	LED Cable	n/a
	7048864	Disk Backplane Left LED Indicator Module	n/a
n/a	7052899 [F]	Right Ear Kit	n/a
	7017231	Disk Backplane Right LED Indicator Module	n/a
	7027303	Front LED Indicator Module Cable	n/a

² Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
³ FRU|CRU part 7014391 “SAS Expander Assembly” includes quantity 1 7015654 “Disk Data Cable”.
⁴ FRU|CRU part 7014391 includes a quantity of 1 7015654 “Disk Data Cable”.
⁵ Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
⁶ FRU|CRU part 7014391 “SAS Expander Assembly” includes quantity 1 7015654 “Disk Data Cable”.
⁷ FRU|CRU part 7014391 includes a quantity of 1 7015654 “Disk Data Cable”.

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7106638	7066824 [C]	4TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7065489	Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB – 7200 RPM – SAS Disk)	n/a
	350-1386	Coral 3.5″ Disk Drive Bracket	n/a
7107550	7077233 [C]	400GB Solid State SATA Drive Assembly	n/a
	7076379	Intel SSDSC2BA400G3S [ITVSC2BA3SUN400] (400GB – 2.5″ Solid State – SATA-3 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7111108	7093037 [C]	1.2TB – 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:	n/a
	7093035	Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB – 10000 RPM – SAS DISK)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
XRA-SS2CF-600G10K2	542-0287 [C]	600GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
XRB-SS2CF-300G10K2	542-0388 [C]	300GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7106617 [S]	7045850 [C]	1.2TB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045846	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)	n/a
	7082883	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
7100481	7070202 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	7014747 [C]
7100488	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2124A	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
n/a	7014747 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7045042 [C]	Dual Counter Rotating Fan Module	n/a
n/a	7045041	80×80mm Counter Rotating Fan	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101676	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101678	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
7101680	7023064	16Gb/Sec Long Wave SFP+ Transceiver, QLogic	n/a
7101684	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101686	7023053	16Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
7101688	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101688	7023046	10Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
SG-XPCIE2FC-EM8-N	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-N	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7100790 [S]	7020486 [C]	8GB DDR3-1600 DIMM, 1.35V	n/a
7100794 [S]	7018701 [C]	16GB DDR3-1600 DIMM, 1.35V	n/a
7106548 [S]	7071891 [C]	32GB DDR3L-1600 1.35V Load Reduced DIMM	n/a
n/a	7038488 [C]	4GB USB 2.0 Flash Drive	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7044130 [C]	A258 1000 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
XSR-JUMP-1MC13-N	7015399 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	180-2379 [C]
XSR-JUMP-2MC13-N	7015400 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	180-2380 [C]
n/a	180-2379 [C]	13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a
n/a	180-2380 [C]	13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	n/a
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4688 ⁸ [C]	Slot-Load DVD Assembly	n/a
	7014928	DVD Data/Power Cable	n/a
	7020884	DVD Mounting Tray	n/a
	7045772	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
n/a	7081551 ⁹ [C]	Tray-Load DVD Assembly	n/a
	7014928	DVD Data/Power Cable	n/a
	7071296	8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer	n/a
	7081553	DVD Tray	n/a

⁸ 541-4688 is available in the 8-Slot 2.5″ Disk Cage Assembly
⁹ 708155 is available in the 8-Slot 2.5″ Disk Cage Assembly

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7105387	8-Port 6Gbps SAS-2 PCI Express HBA
7105387	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
7107092	7069200 [C]	800GB PCI Express Flash Accelerator F80 SAS HBA	n/a
SGX-SAS6-R-INT-Z	7047503 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	n/a
SGX-SAS6-R-INT-Z	7050794 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	n/a
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
SGX-SAS6-INT-Z [S]	7047852 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	7014391 ¹⁰ [C]	SAS Expander Assembly	n/a
	7010672	SAS Expander Subassembly	n/a
	7023751	SAS Expander w/o Heatsink	n/a
	7015388	Plunger	n/a
	7015394	Grommet	n/a

¹⁰ FRU|CRU part 7014391 includes a quantity of 1 7015654 “Disk Data Cable”.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7014226 [C]	Interlock Cable, 125mm	n/a
n/a	7058152 [F]	X4-2L System Board Assembly	n/a
	350-1730	System Board Tray	n/a
	7023964	Pass Thru Mezzanine	n/a
	7046334	System Board	n/a
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
	7055748	Rear I/O Board	n/a

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
