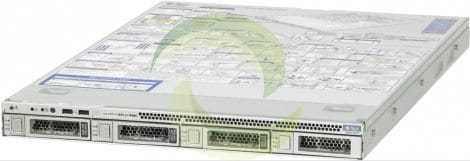

Oracle Sun X2270 M2 Server
REQUEST A PRICE QUOTE:
| Processor | |
| Number | 1 or 2 Quad-Core or 6-Core |
| Architecture | Type: Intel Xeon 5600 Processor Series |
| CPUs | Intel 2.40GHz Quad-Core Xeon E5620, 80W Intel 2.80GHz 6-Core Xeon X5660, 95W Intel 2.93GHz 6-Core Xeon X5670, 95W |
| Cache memory | 256KB unified (data and instruction) Level 2 cache 12MB shared inclusive Level 3 cache |
| Main Memory | |
| Capacities |
DIMM slots: 12 DIMM slots, 6 slots per CPU DIMM type: Registered DDR3-1066/PC3-8500 ECC DIMMs DIMM size: 4GB, 8GB Maximum capacity: 96GB |
| Standard Integrated Interfaces | |
| Network | Two Integrated 10/100/1000 Base-T Gigabit Ethernet |
| Network Management | One 10/100 Base-T Ethernet port for remote management |
| Serial Management | One TIA/EIA-232-F asynchronous RJ45 Port (rear of chassis) |
| USB |
Front: 2 USB 2.0 Ports Rear: 2 USB 2.0 Ports Internal: 1 USB 2.0 Port |
| PCI Express | Riser card assembly with one x16 electrical/x16 mechanical, low-profile, half length slot (PCIe 2.0) |
| Video | One Rear HD15 VGA port – 1600×1200 @ 60Hz (1024×768 when viewed remotely via ILOM Service Processor) |
| Graphics controller | ASPEED AST2000 – 2D graphics controller embedded in Optional Service Processor Support remote console at a resolution up to 1600x1200x16bits@60Hz |
| Internal Mass Storage | |
| Disks | Up to 4 Hot-pluggable – 2TB SATA 3.5″ (7,200RPM) disk drives Up to 2 Hot-pluggable – 32GB Solid State Drives |
| Power Supplies | |
| One 600 Watt (Non-redundant 80% efficiency) Power Supply | |
| Environment | |
| AC power | 100-200 V/200-240 V AC (47-63Hz) Auto-sensed |
| Maximum Input Current | 8.6Amax @ 100Vac; 4.3Amax @ 200V, full load |
| Temperature | Single, non-rack system: Operating: 5° C to 35° C (41° F to 100° F) Nonoperating: -40° C to 70° C (-40° F to 158° F) |
| Humidity | Single, non-rack system: Operating: 10% to 93% relative humidity noncondensing, 38° C (80.6° F) max wet bulb Nonoperating: up to 93% relative humidity noncondensing, 43° C (100.4° F) max wet bulb |
| Altitude |
Operating: Up to 3048 m (10,000 ft.), maximum operating temperature is derated by 1° C for every 300 m (985 ft) in altitude. Nonoperating: Up to 12,000 m (39,370 ft.) |
| Acoustic Noise Emissions |
LwAd (1B= 10dB) at max ambient: 7.6 B LpAm bystander at max ambient: 63.1 dB |
|
Regulations Meets or exceeds the following requirements: | |
| Safety | IEC 60950-1, UL/CSA60950-1, EN60950-1, CB scheme with all country differences |
| RFI/EMI | FCC Class A, Part 15 47 CFR, EN55022 Class A, EN300-386, EN 61000-3-2, EN 61000-3-3, EN 300 386 |
| Immunity | EN 55024 ,EN 300 386 |
| Certifications |
Safety: UL/cUL, CE, BSMI, GOST-R, S-Mark, CSA C22.2 No. 60950-03 EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, GOSTR, BSMI Class A Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive and RoHS Directive (2002/95/EC) |
| RoHS Compliance Level | RoHS:YL |
| Dimensions and Weight | |
| Height | 43 mm (1.7 in.) |
| Width | 436 mm (17.2 in.) |
| Depth | 650 mm (25.6 in.) |
| Weight | 12.4 kg (27.28 lb.) minimum configuration without rack mounting slide rail kit 13.2 kg (29.04 lb.) maximum assuming PCIe card weighs 0.12 kg (0.25 lb) each and without rack mounting slide rail kit |
| Batteries | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 371-2210 Buy | CR2032 3V Battery, RoHS:Y | ||
| CPU Module | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X8381A Buy | 310-0239 | Heatsink, RoHS:Y | ||
| 371-4885 | 2.4GHz Intel Quad-Core Xeon E5620, 12MB, 80W, RoHS:Y | |||
| X8382A Buy | 310-0239 | Heatsink, RoHS:Y | ||
| 371-4888 | 2.8GHz Intel 6-Core Xeon X5660, 12MB, 95W, RoHS:Y | |||
| X8383A Buy | 310-0239 | Heatsink, RoHS:Y | ||
| 371-4889 | 2.93GHz Intel 6-Core Xeon X5670, 12MB, 95W, RoHS:Y | |||
| Communication | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X4237A-N Buy | 375-3606 | Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express, RoHS:Y | ||
| Disk Backplane | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 371-4508 Buy | Disk Backplane, RoHS:Y | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| XRC-ST1CR-1T7K Buy | 542-0351 | Seagate ST31000524NS (1TB – 7200 RPM SATA), RoHS: | ||
|
| |||
|
| |||
|
| |||
| XRC-ST1CR-2T7K Buy | 542-0352 | Seagate ST32000644NS (2TB – 7200 RPM SATA), RoHS:Y | ||
|
| |||
|
| |||
|
| |||
| n/a | 541-3890 | 32GB Solid State Drive, SATA Interface | ||
|
| |||
|
| |||
| Ethernet | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X1109A-Z Buy | 375-3617 | Dual 10-Gigabit Ethernet SFP+ LP, RoHS:Y | ||
| X4446A-Z-N Buy | 375-3481 | PCI Express Quad Gigabit Ethernet UTP, RoHS:Y | ||
| Fan | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 310-0240 Buy | Blower Assembly, RoHS:Y | ||
| I/O | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 350-1346 Buy | Front I/O Cable Kit, RoHS:Y | ||
| n/a | 371-4463 Buy | Front I/O Board, RoHS:Y | ||
| n/a | 371-4464 Buy | 1-Slot x16 PCI Express Riser, RoHS:Y | ||
| Memory | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X8359A | 371-4902 | 8GB Registered DDR3-1066 DIMM, RoHS:Y | ||
| X8361A Buy | 371-4917 | 8GB Registered DDR3-1333 Low Voltage DIMM, RoHS:Y | ||
| X8362A Buy | 371-4916 | 4GB Registered DDR3-1333 Low Voltage DIMM, RoHS:Y | ||
| X8360A | 371-4901 | 4GB Registered DDR3-1066 DIMM, RoHS:Y | ||
| XRA-ST3C-24G2FMD | 371-4531 | 24GB SATA-based Sun Flash Module, RoHS:Y | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 300-2245 Buy | 600 Watt Power Supply, RoHS:Y | ||
| Rack | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X8346A-N Buy | 350-1287 | Cable Management Arm, RoHS:Y | ||
| X8347A-N Buy | 350-1309 | Tool-less Slide Rail Kit | ||
| X8348A-N Buy | 350-1308 | Slide Rail Kit | ||
| X8346A | 350-1287 Buy | Cable Management Arm, RoHS:Y | ||
| X8347A | 350-1309 | Tool-less Slide Rail Kit | ||
| X8348A | 350-1308 | Slide Rail Kit | ||
| System Board | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 375-3614 | System Board, RoHS:Y | ||
|
| |||
| System Service Processor | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 373-0496 | Service Processor, RoHS:Y | ||
