Used Oracle Sun Workstation Ultra 80

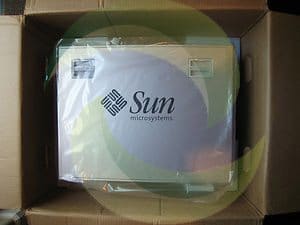

Oracle Sun Workstation Ultra 80

REQUEST A PRICE QUOTE:

Processor
Number	From one to four processor modules
Architecture	450-MHz UltraSPARC[tm]-II module
Cache memory	16-KB data and 16-KB instruction on chip, Secondary: 4-MB external
Main Memory
Capacities	Install DIMMs in sets of four. 64- and 256-MB DIMM expansion 1 GB maximum (with 64-MB DIMMs, in pairs) 4 GB maximum (with 256-MB DIMMs, in pairs)
Memory type	144-pin 5V 60-ns memory modules
Datapath	576 bits wide; 512 bits data, 64 bits ECCUp to 1.78-GB/sec throughput
Standard Interfaces
Audio	Four audio ports: headphone(out), line-in, line-out and microphone(in) using EIA standard 0.125-inch (3.5-mm) jacks
Ethernet	One ethernet/fast ethernet (10BASE-T/100BASE-T) twisted-pair standard connector (RJ-45) or one MII for external transceiver connection
Keyboard and mouse	One standard keyboard/mouse port (mini DIN-8)
Parallel	One Centronics compatible parallel port (DB25); ECP mode capable
PCI	Four full-size slots compliant with PCI specification version 2.1: One slot operating at 33- or 66-MHz, 32- or 64-bit data bus width, 3.3 volt Two slots operating at 33 MHz, 32- or 64-bit data bus width, 5 volt One slot operating at 33 MHz, 32-bit data bus width, 5 volt.
SCSI	One 40MB/sec, 68-pin ,Ultra SCSI (SCSI-3), 2 channels (synchronous)
Serial	Two RS-232C/RS423 serial ports (DB25)
UPA graphics slot	Two UPA graphics slots supporting up to two Elite3D[tm] m3 and/or Elite3D m6 graphics options
Internal Mass Storage
Disks	Up to two disk drives (3.5 in. X 1 in.), 18.2-GB or 36.4-GB
Floppy disk	Optional 3.5-in. MS-DOS/IBM compatible (720 KB, 1.2 MB, 1.44 MB formatted)
CD-ROM/DVD-ROM	Optional 644 MB SunCD[tm]; 32X-speed, Photo CD compatible Optional 10X DVD-ROM
Tape	Optional 12- to 24-GB DDS3 4-mm
Environment
AC input	100-240VAC, 47-63Hz, 4A, 400VA
Input power	380W max
Heat output	1,300 BTU/hr
Temperature	Operating: 5° C to 45° C (41° F to 113° F) without tape drive; 5° C to 40° C (41° F to 104° F) with tape drive Nonoperating: -40° C to 65° C (-40° F to 149° F)
Humidity	Operating: 20% to 80% relative humidity, noncondensing Nonoperating: 5% to 95% relative humidity, noncondensing
Altitude	Operating: 3000 m (10,000 ft) Nonoperating: 12,000 m (40,000 ft)
Acoustic noise	Operating: 5.9 bels Idling: 5.3 bels
Numbe of cords	1
Regulations Meets or exceeds the following requirements:
Safety	UL 1950, CSA C22.2 No.950, TUV EN 60950, CB Scheme with Nordic deviations, EMKO-TSE (74-SEC) 203, ZH1/618
RFI/EMI	FCC Class B, DOC Class B, VCCI Class 2, EN 55022 Class B, EN 61000-3-2
Immunity	EN 50082-1
X-ray	DHHS 21 Subchapter J; PTB German X-ray Decree
Power management	Energy Star compliant
Dimensions and Weights
Height	44.5 cm (17.5 in.)
Width	25.5 cm (10.0 in.)
Depth	60.2 cm (23.7 in.)
Weight	29.5 kg (65.0 lb.)

Boot PROM
Socket	Manufacturing Part #	Patch
U3007	525-1780	109082

CPU Module
Option #	Manufacturing Part #	Description
X1195A	501-6071	450MHz UltraSPARC II Module
n/a	501-5344	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black
n/a	501-5539	450MHz UltraSPARC II Module
n/a	501-5687	450MHz UltraSPARC II Module
n/a	501-5999	450MHz UltraSPARC II Module
n/a	501-6865	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black

Communication
Option #	Manufacturing Part #	Description
X1035A	370-2811	FDDI/P SAS 1.0
X1036A	370-2812	FDDI/P DAS 1.0
X1066A	501-3028	SunATM-155/MFiber PCI 3.0
X1067A	501-3027	SunATM-155/UTP PCI 3.0
X1068A	501-3029	SunATM-622/MFiber PCI 3.0
X1133A	375-0130	Crypto Accelerator I
X1152A	370-2811	FDDI/P SAS 2.0
X1153A	370-2812	FDDI/P DAS 2.0
X1155A	370-2728	High Speed Serial Interface PCI (HSI/P) 2.0
X1157A	501-3028	SunATM-155/MFiber PCI 4.0
X1158A	501-3027	SunATM-155/UTP PCI 4.0
X1159A	501-3029	SunATM-622/MFiber PCI 4.0
X2154A	375-0073	Token Ring Interface (TRI/P) 5.0
X2156A	375-0100	Serial Asynchronous Interface PCI (SAI/P) 3.0
X6762A	375-3089	Crypto Accelerator 1000

Disks
Option #	Manufacturing Part #	Description
X5237A	540-4177	18.2GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	390-0002	Seagate ST318203LC [ST318203LSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0006	Fujitsu MAG3182LC [MAG3182L SUN18G] (18.2GB – 10000 RPM – SCSI-Disk)
	390-0038	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0066	Fujitsu MAN3184MC [MAN3184M SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5242A	540-4521	36.4GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	390-0050	Seagate ST336704LC [ST336704LSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0051	Fujitsu MAJ3364MC [MAJ3364M SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0065	Fujitsu MAN3367MC [MAN3367M SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0069	Seagate ST336605LC [ST336605LSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0109	Seagate ST336607LC [ST336607LSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0110	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0111	Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0156	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
n/a	540-6611	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X1033A	501-5019	Sun FastEthernet PCI Adapter (FE/P) 2.0
X1034A	501-5406	Quad FastEthernet PCI (QFE/P)
X1141A	501-4373	Gigabit Ethernet PCI (GBE/P) 2.0
X1150A	501-5902	Sun GigaSwift Ethernet UTP (Copper)
X1151A	501-5524	Sun GigaSwift Ethernet MMF (Fiber)
X2069A	501-5426	Gigabit Ethernet FC-AL/P
X3150A	501-5902	Sun GigaSwift Ethernet UTP (Copper)
X3151A	501-5524	Sun GigaSwift Ethernet MMF (Fiber)

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCI1FC-QF2	375-3102	2Gb PCI Single FC Host Adapter
SG-XPCI1FC-QL2	375-3383	2Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI2FC-QF2	375-3108	2Gb PCI Dual FC Host Adapter
SG-XPCI2FC-QF2	240-4839	Low Profile Bracket, RoHS:Y
X6727A	375-3030	PCI Dual FC Host Adapter+, RoHS:YL
X6729A	375-0040	Single Loop PCI FC-AL Host Adapter (FC100/P)
X6767A	375-3102	2Gb PCI Single FC Host Adapter
X6768A	375-3108	2Gb PCI Dual FC Host Adapter
X6768A	240-4839	Low Profile Bracket, RoHS:Y
X6799A	375-3019	PCI Single FC Host Adapter

Graphics
Option #	Manufacturing Part #	Description
X1089A	370-4072	SunVideo Plus
X3256A	540-5476	XVR-1000 Graphics Accelerator (FFB3)
X3664A	501-5484	Elite3D-m3
X3665A	540-3902	Elite3D-m6
X3668A	370-3753	PGX32 8/24-Bit Color Frame Buffer
X3677A	501-5574	Elite3D-m3 Series 2 Accelerator
X3678A	370-3987	Expert3D 24-Bit Color Frame Buffer
X3679A	540-4313	Elite3D-m6 Series 2 Accelerator
X3684A	375-3052	Expert3D Lite PCI Frame Buffer
X3768A	370-4362	PGX64 8/24-Bit Color Frame Buffer

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
U3008	525-1785	48T59 NVRAM	80xxxxxx

Input Device
Option #	Manufacturing Part #	Description
X180A	595-1865	SunButtons 32-key function I/O device
X190A	595-1737	SunDials 8-dial interactive graphics I/O for 3-D
X499A	595-5343	PCI Multimedia Kit
	370-1678	Sun Microphone II
	595-3723	CCD Camera II

Memory
Option #	Manufacturing Part #	Description
X6739A	375-0086	64MB PCI Fast Write Cache
X7005A	501-6005	256 MB DIMM
X7043A	501-5691	64MB DIMM
n/a	501-5218	Ultra 80 Memory Riser Board
n/a	501-6056	256MB DIMM w/ GAL

Miscellaneous
Option #	Manufacturing Part #	Description
X1131A-64.1	375-0075	SunPCi 300MHz
X1131A-64.2	375-0095	SunPCi 400MHz
X2131A	375-0131	SunPCi II 600MHz, 64MB memory
X2132A	375-3051	SunPCi IIpro 733MHz coprocessor card
X7035A	370-3801	SunPCi 128MB memory expansion
X7041A	370-3800	SunPCi 64MB memory expansion
X7042A	370-4294	SunPCi II 128MB memory expansion
X7044A	370-4295	SunPCi II 256MB memory expansion
X7045A	370-4430	SunPCi IIpro 512MB memory expansion
n/a	501-4155	Audio Module

Power
Option #	Manufacturing Part #	Description
n/a	300-1357	Sony 670 Watt (12A) Power Supply
n/a	300-1407	125 Watt DC-DC Converter with Fan
n/a	300-1411	Sony 670 Watt (6A) Danish Power Supply

Rack
Option #	Manufacturing Part #	Description
X9627A	560-2548	72″ Cabinet Rack Mount Kit

Removable Media
Option #	Manufacturing Part #	Description
X6004A	370-2729	Triple Density Floppy
X6106A	370-3279	4-8GB 1/4″ SLR Tape Drive
X6166A	370-3415	SunCD 32 CD-ROM
X6168A	390-0025	10X DVD-ROM Drive
X6208A	370-2881	7-14GB 8 mm Tape Drive
X6212A	370-2881	7-14GB 8 mm Tape Drive
X6213A	370-2882	7-14GB 8 mm Tape Drive (Medium Grey Bezel)
X6256A	370-2176	4-8GB 4 mm DDS-2 Tape Drive
X6282A	370-2377	12-24GB 4 mm DDS-3 Tape Drive
X6295A	390-0028	20-40GB 4 mm DDS-4 Tape Drive (Medium Grey Bezel)

SCSI
Option #	Manufacturing Part #	Description
X1032A	501-5656	Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
X2222A	501-5727	Dual FastEthernet / Dual SCSI PCI Adapter
X4422A	501-6635	Dual GigabitEthernet / Dual SCSI PCI Adapter
X6540A	375-0005	Dual Single-Ended Ultra/Wide SCSI (PCI)
X6541A	375-0006	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)
X6758A	375-3057	PCI Dual Ultra3 SCSI Host Adapter (LVD)
SG-XPCI2SCSI-LM320	375-3191	PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a	540-3874	Floppy and SCSI Adapter (Drive Bay Assembly)
n/a	530-2691	SCSI Cable Assembly

System Board
Option #	Manufacturing Part #
