Used Oracle Sun Workstation Ultra 60

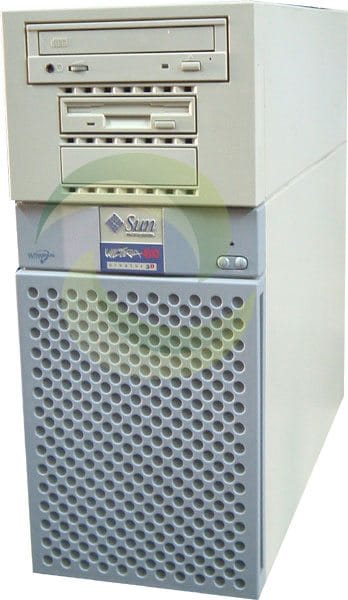

Oracle Sun Workstation Ultra 60

REQUEST A PRICE QUOTE:

Processor
Number	Up to two
Architecture	300-, 360-, or 450-MHz UltraSPARC[tm]-II
Memory management	MMU with 64 I-TLB entries and 64 D-TLB entries, 8192 hardware-supported contexts
Cache memory	16-KB data and 16-KB instruction on chip 4-MB external (2-MB for 300-MHz)
UPA Speed	112.5 MHz
Main Memory
Capacities	16 DIMM module slots Install SIMMs in sets of four. 16-, 32-, 64-, and 128-MB DIMM expansion 2 GB total memory capacity
Memory type	60-ns memory modules
Datapath	576 bits wide
Standard Interfaces
Audio	Four audio ports: headphone(out), line-in, line-out and microphone(in) using EIA standard 0.125-inch (3.5-mm) jacks
Ethernet	One ethernet/fast ethernet (10BASE-T/100BASE-T) twisted-pair standard connector (RJ-45) or one MII for external transceiver connection
Keyboard and mouse	One standard keyboard/mouse port (mini DIN-8)
Parallel	One Centronics-compatible parallel port (DB25); ECP mode capable
PCI	Four full-size PCI slots compliant with PCI specification version 2.1: Three slots operating at 33-MHz, 32- or 64-bit data bus width, 5 volt One slot operating at 33- or 66-MHz, 32- or 64-bit data bus width, 3.3 volt
SCSI	One 40-MB/sec, 68-pin, UltraSCSI (SCSI-3) (synchronous), 2 channels
Serial	Two RS-232C/RS-423 serial ports (DB25)
UPA graphics slot	Two UPA graphics slots supporting up to two Sun[tm] Creator3D or Sun Elite3D m3, or one Elite3D m6 and one Creator3D or Elite3D m3 or Sun Expert3D
Internal Mass Storage
Disks	Up to two 3.5-x 1-in or x 1.6-in. disks; 4.2-GB, 9.1-GB, 18.2-GB, or 36.4-GB
Floppy	Optional 3.5-in. MS-DOS/IBM compatible (720 KB, 1.2 MB, 1.44 MB formatted)
CD-ROM/DVD-ROM	SunCD[tm] 4x, 12x, or 32x 644-MB SCSI CD-ROM 10X DVD-ROM
Tape	Optional: 20-to 40-GB 4 mm DDS-4 12-to 24-GB 4mm DDS-3 7-to 14-GB 8-mm 4-to 8-GB 1/4″ SLR 4-to 8-GB 4 mm DDS-2
Environment
AC input	100 – 240 VAC, 47 – 63 Hz, 4 A (max), 0.4 K VA
Input power	350 W
Heat output	1194 BTU/hr
Temperature	Operating: 10° C to 40° C (50° F to 104° F) without tape drive; 10° C to 35° C (50° F to 95° F) with tape drive Nonoperating: -20 °C to 60 °C ( -4 °F to 140 °F)
Humidity	Operating: 20% to 80% relative humidity, noncondensing Nonoperating: 5% to 93% relative humidity, noncondensing
Altitude	Operating: 3000 m (10,000 ft) Nonoperating: 12,000 m (40,000 ft)
Acoustic noise	Operating: 6.1 bels Nonoperating: 5.9 bels
Vibration	Operating: 0.2G, 5 to 500 to 5 Hz (5 sweeps), 3 perpendicular axes Nonoperating: 1.0G, 5 to 500 to 5 Hz (5 sweeps), 3 perpendicular axes
Shock	Operating: 5.0G, 11 milliseconds, half sine pulse Nonoperating: 30G peak, 11 milliseconds, half sine pulse
Number of cords	1
Regulations Meets or exceeds the following requirements:
Safety	UL 1950, CSA C22.2 No. 950, TUV EN 60950, CB Scheme Sun Elite3D Graphics with Nordic deviations, EMKO-TSE (74-SEC) 203, ZH1/618
RFI/EMI	FCC Class B, DOC Class B, VCCI Class 2, EN 55022 Class B, EN 61000-3-2
Immunity	EN 50082-1
X-ray	DHHS 21 Subchapter J; PTB German X-ray Decree
Power management	Energy Star compliant
Dimensions and Weights
Height	45.0 cm (17.7 in.)
Width	19.0 cm (7.5 in.)
Depth	49.8 cm (19.6 in.)
Weight	22.65 kg (50 lb.)

Boot PROM
Socket	Manufacturing Part #	Patch
U2703	525-1701	106455

CPU Module
Option #	Manufacturing Part #	Description
X1191A	501-4849	300MHz UltraSPARC II Module
X1192A	501-5552	360MHz UltraSPARC II Module 4MB Cache Sapphire-Black
X1195A	501-6071	450MHz UltraSPARC II Module
n/a	501-5344	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black
n/a	501-5539	450MHz UltraSPARC II Module
n/a	501-5687	450MHz UltraSPARC II Module
n/a	501-5999	450MHz UltraSPARC II Module
n/a	501-6058	450MHz UltraSPARC II Module 4MB Cache Blaze
n/a	501-6865	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black

Communication
Option #	Manufacturing Part #	Description
X1035A	370-2811	FDDI/P SAS 1.0
X1036A	370-2812	FDDI/P DAS 1.0
X1039A	375-0001	Token Ring Interface PCI (TRI/P) 1.0
X1040A	370-2728	High Speed Serial Interface PCI (HSI/P) 1.0
X1041A	370-2810	Serial Asynchronous Interface PCI (SAI/P) 1.0
X1066A	501-3028	SunATM-155/MFiber PCI 3.0
X1067A	501-3027	SunATM-155/UTP PCI 3.0
X1068A	501-3029	SunATM-622/MFiber PCI 3.0
X1133A	375-0130	Crypto Accelerator I
X1152A	370-2811	FDDI/P SAS 2.0
X1153A	370-2812	FDDI/P DAS 2.0
X1154A	375-0001	Token Ring Interface PCI (TRI/P) 4.0
X1155A	370-2728	High Speed Serial Interface PCI (HSI/P) 2.0
X1156A	370-2810	Serial Asynchronous Interface PCI (SAI/P) 2.0
X1157A	501-3028	SunATM-155/MFiber PCI 4.0
X1158A	501-3027	SunATM-155/UTP PCI 4.0
X1159A	501-3029	SunATM-622/MFiber PCI 4.0
X2154A	375-0073	Token Ring Interface (TRI/P) 5.0
X2156A	375-0100	Serial Asynchronous Interface PCI (SAI/P) 3.0
X6762A	375-3089	Crypto Accelerator 1000

Disks
Option #	Manufacturing Part #	Description
X5214A	540-2938	4.2GB – 7200 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	370-2367	Seagate ST34371WC (4.2GB – 7200 RPM – SCSI Disk)
	370-2809	Quantum VK45J05 (4.2GB – 7200 RPM – SCSI Disk)
	370-3403	IBM DDRS-34560 (4.2GB – 7200 RPM – SCSI Disk)
	370-3412	Fujitsu MAB3045SC [MAB3045S SUN4.2G] (4.2GB – 7200 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5229A	540-3704	9.1GB – 7200 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	370-3404	IBM DDRS-39130 (9.1GB – 7200 RPM – SCSI Disk)
	370-3413	Fujitsu MAB3091SC [MAB3091S SUN9.0G] (9.1GB – 7200 RPM – SCSI Disk)
	370-3595	Seagate ST39173WC (9.1GB – 7200 RPM – SCSI Disk)
	390-0004	Fujitsu MAE3091LC [MAE3091L SUN9.1GB] (9.1GB – 7200 RPM – SCSI Disk)
	390-0007	IBM DNES-309170 [DNES30917SUN9.0G] (9.1GB – 7200 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5232A	540-3719	18.2GB – 7200 RPM, Disk Assembly with 1 bracket and 1 of the following disks:
	370-3414	Fujitsu MAA3182SC (18.2GB – 7200 RPM – SCSI Disk)
	540-3025	1.6″ SPUD bracket
X5234A	540-3881	9.1GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	370-3649	Seagate ST39102LC [ST39102LCSUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	390-0005	Fujitsu MAG3091LC [MAG3091L SUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	390-0009	Seagate ST39103LC [ST39103LCSUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	390-0037	Seagate ST39204LC [ST39204LCSUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5237A	540-4177	18.2GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	390-0002	Seagate ST318203LC [ST318203LSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0006	Fujitsu MAG3182LC [MAG3182L SUN18G] (18.2GB – 10000 RPM – SCSI-Disk)
	390-0038	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0066	Fujitsu MAN3184MC [MAN3184M SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5242A	540-4521	36.4GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	390-0050	Seagate ST336704LC [ST336704LSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0051	Fujitsu MAJ3364MC [MAJ3364M SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0065	Fujitsu MAN3367MC [MAN3367M SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0069	Seagate ST336605LC [ST336605LSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0109	Seagate ST336607LC [ST336607LSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0110	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0111	Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	390-0156	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5251A	540-2951	9.1GB – 7200 RPM, Disk Assembly with 1 bracket and 1 of the following disks:
	370-2369	Seagate ST19171WC (9.1GB – 7200 RPM – SCSI Disk)
	540-3025	1.6″ SPUD bracket
X6520A	540-2936	2.1GB – 7200 RPM, Disk Assembly with 1 bracket and 1 of the following disks:
	370-2365	Seagate ST32171WC (2.1GB – 7200 RPM – SCSI Disk)
	370-2808	Quantum VK22J05 (2.1GB – 7200 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X1033A	501-5019	Sun FastEthernet PCI Adapter (FE/P) 2.0
X1034A	501-5406	Quad FastEthernet PCI (QFE/P)
X1141A	501-4373	Gigabit Ethernet PCI (GBE/P) 2.0
X1150A	501-5902	Sun GigaSwift Ethernet UTP (Copper)
X1151A	501-5524	Sun GigaSwift Ethernet MMF (Fiber)
X2069A	501-5426	Gigabit Ethernet FC-AL/P
X3150A	501-5902	Sun GigaSwift Ethernet UTP (Copper)
X3151A	501-5524	Sun GigaSwift Ethernet MMF (Fiber)
X467A	595-3780	MII to AUI Converter

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCI1FC-QF2	375-3102	2Gb PCI Single FC Host Adapter
SG-XPCI1FC-QL2	375-3383	2Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI2FC-QF2	375-3108	2Gb PCI Dual FC Host Adapter
SG-XPCI2FC-QF2	240-4839	Low Profile Bracket, RoHS:Y
X6727A	375-3030	PCI Dual FC Host Adapter+, RoHS:YL
X6729A	375-0040	Single Loop PCI FC-AL Host Adapter (FC100/P)
X6767A	375-3102	2Gb PCI Single FC Host Adapter
X6768A	375-3108	2Gb PCI Dual FC Host Adapter
X6768A	240-4839	Low Profile Bracket, RoHS:Y
X6799A	375-3019	PCI Single FC Host Adapter

Graphics
Option #	Manufacturing Part #	Description
X1089A	370-4072	SunVideo Plus
X3256A	540-5476	XVR-1000 Graphics Accelerator (FFB3)
X3658A	501-4174	Creator Series 2 (FFB2)
X3659A	501-4172	Creator3D Series 2 (FFB2)
X3660A	370-2256	PGX 8-Bit Color Frame Buffer
X3662A	501-4789	Creator Series 3 (FFB2+)
X3663A	501-5690	Creator3D Series 3 (FFB2+)
X3664A	501-5484	Elite3D-m3
X3665A	540-3902	Elite3D-m6
X3668A	370-3753	PGX32 8/24-Bit Color Frame Buffer
X3670A	501-5690	Creator3D Series 3 (FFB2+)
X3672A	501-4789	Creator Series 3 (FFB2+)
X3677A	501-5574	Elite3D-m3 Series 2 Accelerator
X3678A	370-3987	Expert3D 24-Bit Color Frame Buffer
X3679A	540-4313	Elite3D-m6 Series 2 Accelerator
X3684A	375-3052	Expert3D Lite PCI Frame Buffer
X3768A	370-4362	PGX64 8/24-Bit Color Frame Buffer

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
U2706	525-1430	48T59 NVRAM	80xxxxxx

Input Device
Option #	Manufacturing Part #	Description
X180A	595-1865	SunButtons 32-key function I/O device
X190A	595-1737	SunDials 8-dial interactive graphics I/O for 3-D
X499A	595-5343	PCI Multimedia Kit
	370-1678	Sun Microphone II
	595-3723	CCD Camera II

Memory
Option #	Manufacturing Part #	Description
X6739A	375-0086	64MB PCI Fast Write Cache
X7001A	501-2479	16MB DIMM
X7002A	501-2622	32MB DIMM
X7003A	501-2480	64MB DIMM
X7004A	501-3136	128MB DIMM
X7043A	501-5691	64MB DIMM

Miscellaneous
Option #	Manufacturing Part #	Description
X1131A-64.1	375-0075	SunPCi 300MHz
X1131A-64.2	375-0095	SunPCi 400MHz
X2087A	595-5364	Noise Reduction Kit
X2087A	530-2867	Voltage Regulated Fan Power Cable
X2131A	375-0131	SunPCi II 600MHz, 64MB memory
X2132A	375-3051	SunPCi IIpro 733MHz coprocessor card
X7035A	370-3801	SunPCi 128MB memory expansion
X7041A	370-3800	SunPCi 64MB memory expansion
X7042A	370-4294	SunPCi II 128MB memory expansion
X7044A	370-4295	SunPCi II 256MB memory expansion
X7045A	370-4430	SunPCi IIpro 512MB memory expansion
n/a	501-4155	Audio Module

Power
Option #	Manufacturing Part #	Description
n/a	300-1343	Zytec EP071295-C 350 Watt Power Supply

Rack
Option #	Manufacturing Part #	Description
X9627A	560-2548	72″ Cabinet Rack Mount Kit

Removable Media
Option #	Manufacturing Part #	Description
X6004A	370-2729	Triple Density Floppy
X6106A	370-3279	4-8GB 1/4″ SLR Tape Drive
X6153A	370-2102	SunCD 4 CDROM
X6161A	370-2816	SunCD 12 CD-ROM
X6166A	370-3415	SunCD 32 CD-ROM
X6168A	390-0025	10X DVD-ROM Drive
X6203A	370-1922	7-14GB 8 mm Tape Drive
X6212A	370-2881	7-14GB 8 mm Tape Drive
X6256A	370-2176	4-8GB 4 mm DDS-2 Tape Drive
X6282A	370-2377	12-24GB 4 mm DDS-3 Tape Drive
X6295A	390-0028	20-40GB 4 mm DDS-4 Tape Drive (Medium Grey Bezel)

SCSI
Option #	Manufacturing Part #	Description
SG-XPCI2SCSI-LM320	375-3191	PCI/PCI-X Dual Ultra320 SCSI Adapter
X1032A	501-5656	Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
X2222A	501-5727	Dual FastEthernet / Dual SCSI PCI Adapter
X4422A	501-6635	Dual GigabitEthernet / Dual SCSI PCI Adapter
X6540A	375-0005	Dual Single-Ended Ultra/Wide SCSI (PCI)
X6541A	375-0006	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)
X6758A	375-3057	PCI Dual Ultra3 SCSI Host Adapter (LVD)
n/a	540-3016	Floppy and SCSI Adapter (Drive Bay FRU)
	330-2148	Disk Drive Bay
	530-2322	Cable and Backplane Assembly

System Board
Option #	Manufacturing Part #	Description
n/a	501-4450	0MB FRU
n/a	501-5606	0MB FRU
n/a	501-5343	(not released)
n/a	501-5355	(not released)

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
