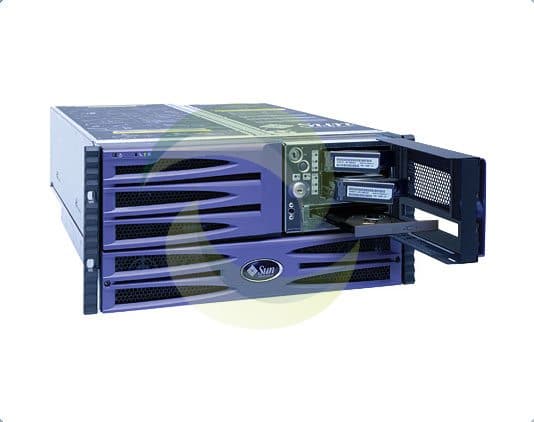

Oracle Sun V490 server specs pricing (refurbished new)

REQUEST A PRICE QUOTE:

Sun V490 Top feature highlights

• 64-bit Chip Multithreading (CMT) UltraSPARC® IV technology, with over 2x the throughput of previous generations • Scales up to 4 x 1.35-GHz UltraSPARC IV CPUs with 16 MB L2 cache per processor
• Up to 8 simultaneous compute threads with up to 32 GB memory • SolarisTM 8, Solaris 9, and Solaris 10 Operating System
• Robust capabilities in the Solaris 10 OS such as Predictive Self-Healing to increase reliability, Solaris Containers for increased utilization, and dTrace to optimize application performance • Industry leading price/performance and benchmarks
• 2 FC-AL disk drives, multipathing-ready • 9.6-GB/second SunTM Fireplane interconnect
• N+1 hot-swap power supplies/ hot-pluggable disks • Sun Systems Controller for remote system administration • Automatic System Recovery to maximize uptime • 6 PCI slots help ensure a highly expandable system
• 5-RU, rack-optimized enclosure

Processor
Number	Up to two dual-processor CPU/Memory Boards (2 or 4 CPUs)
Architecture	1.35GHz UltraSPARC[tm] IV, 1.5GHz, or 1.8GHZ UltraSPARC IV+
Cache memory	Cache (L1): 64-KB data and 32-KB instruction per pipeline Secondary (L2): 16 MB external (8 MB per pipeline), 2 MB on chip L2 cache Cache (L3): 32 MB external off-chip (UltraSPARC IV+ processor)
Main Memory
Capacities	8 memory slots (DIMMs) per processor, 16 total slots per CPU/Memory Board512MB, 1GB, or 2GB expansion (32GB maximum per CPU/Memory board, 64GB maximum when configured with 4 processors) All memory DIMM slots must be fully populated.
Standard Interfaces
Ethernet	Two 10/100/1000-Mbps Ethernet
Keyboard and mouse	USB
PCI	Six PCI slots compliant with PCI specification Revision 2.1: Two slots (slots 0 & 1) operating at 66-MHz, 64 bits wide, 3.3 volts Four slots operating at 33-MHz, 64 bits wide, 5 volts Note: PCI slots 0, 1, and 2 are full length card slots (12 inch); PCI slots 3, 4, and 5 are short length card slots (7 inch).
Remote System Controller	One ALOM Plus card plugs into a dedicated slot on the system I/O board
Serial	One RJ45 serial port
USB	Two (compliant with USB Revision 1.1)
Internal Mass Storage
Disks	Two front-accessible, hot-pluggable, FC-AL disks, 73GB or 146GB, 3.5-in. x 1.0-in. 10,000 RPM, or 146GB 15,000 RPM, maximum total capacity of 292 GB
DVD-ROM	8X Slimline DVD-ROM / 24X CD-ROM drive
Power Supplies
Type	One required, two for redundancy fitted as standard, each with independent power cord
Output	1448 W per power supply
Environment
AC Power	Auto Ranging 200-240 VAC, 50 or 60 Hz, 8A @ 200-240 VAC
Input power	1052 W (max measured), 1600 W (mfg rating)
Heat output	3590 BTU/hr (max measured), 5460 BTU/hr (mfg rating)
Temperature	Operating: 5° C to 35°C (41°F to 95°F) Nonoperating: -20°C to 60°C (-4°F to 140°F)
Humidity	Operating: 20% to 80% RH noncondensing; 27°C (81°F) wet bulb Nonoperating: 95% RH noncondensing
Altitude	Operating: 0 to 3000 meters (0 to 10,000 feet) Nonoperating: 0 to 12,000 meters (0 to 40,000 feet)
Acoustic noise	Operating: 74.5 dBA Idling: 74.5 dBA
Vibration	Operating: .0001 (z-axis only) G2/Hz, 5-150 Hz, -12db/octave slope, 150-500 Hz Nonoperating: .001 (z-axis only) G2/Hz, 5-150 Hz, -12db/octave slope, 150-500 Hz
Shock	Operating: 3g peak, 11 milliseconds half-sine pulse Nonoperating: 10g peak, 11 milliseconds half-sine pulse
Handling Drops	25 mm (10 in)
Threshold Impact	1 meter/second
Number of cords	2
Regulations Meets or exceeds the following requirements:
RoHS Compliance Level	RoHS:YL
Safety	UL/CSA-60950-1, EN60950-1, IEC60950-1 CB Scheme with all country deviations, IEC825-1, 2, CFR21 part1040, CNS14336
Ergonomics	EK1-ITB-2000
RFI/EMI	EN55022 Class A, 47 CFR 15B Class A, ICES Class A, VCCI Class A, AS/NZ 3548 Class A, CNS 13438 Class A, KSC 5858 Class A, GB 9254 Class A, EN61000-3-2, GB 17625.1, EN61000-3-3
Immunity	EN55024/CISPR24
Regulatory Markings	CE, FCC, ICES-003, C-tick, VCCI, GOST-R, BSMI, MIC, UL/cUL, UL/S-mark
Telecommunications	EN300-386
X-ray	DHHS 21 Subchapter J; PTB German X-ray Decree
Dimensions and Weights
Height	222 mm (8.75 in)
Width	446 mm (17.5 in)
Depth	610 mm (24 in)
Weight	Min 35.83 kg (79 lbs) Max 44 kg (97 lbs)
Power Cord	2.5 m (8.2 ft)

Backplane/Centerplane
Option #	Manufacturing Part #	Description
n/a	501-7224	Centerplane, RoHS:YL
n/a	501-7322	FC-AL Backplane Assembly, RoHS:YL
n/a	341-1891	Mounting Bracket, RoHS:Y

Batteries
Option #	Manufacturing Part #	Description
n/a	150-2850	3V Lithium Battery BR1632 / CR1632, RoHS:Y

Cables
Option #	Manufacturing Part #	Description
X312L	Localized Power Cord Kit – Continental Europe, RoHS:Y
X312L	180-1993	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
X314L	Localized Power Cord Kit – Swiss, RoHS:Y
X314L	180-1994	IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
X317L	Localized Power Cord Kit – U.K., RoHS:Y
X317L	180-1997	IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
X320A	Localized Power Cord Kit – North America/Asia, RoHS:Y
X320A	180-2164	IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black, RoHS:Y
X332T	International Power Cord Kit, RoHS:Y
X332T	180-2071	Blue 16A IEC 309 to IEC 320 C13 International 4.0M, RoHS:Y
X333A-25-10-IL	Localized Power Cord Kit Israel, RoHS:Y
X333A-25-10-IL	180-2130	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black, RoHS:Y
X340L	Power Kit for North America, L6-20 20A Twist Lock Plug, RoHS:Y
X340L	180-2070	NEMA L6-20P to IEC 320 C13 – 4.0M, RoHS:Y
X383L	Localized Power Cord Kit – Danish, RoHS:Y
X383L	180-1995	IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
X384L	Localized Power Cord Kit – Italian, RoHS:Y
X384L	180-1996	IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
X386L	Localized Power Cord Kit – Australian, RoHS:Y
X386L	180-1998	IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
X336L	U.S. Power Cords 4-Pack, RoHS:Y
X336L	180-2070	NEMA L6-20P to IEC 320 C13 – 4.0M, RoHS:Y
X337L	International Power Cords 4-Pack, RoHS:Y
X337L	180-2071	Blue 16A IEC 309 to IEC 320 C13 International 4.0M, RoHS:Y
X338L	U.S. Watertight Power Cords 4-Pack, RoHS:Y
X338L	180-2072	Blue 20A Watertight IEC 309 to IEC 320 C13, 4.0M, RoHS:Y
X339L	International Watertight Power Cords 4-Pack, RoHS:Y
X339L	180-2073	Blue 16A Watertight IEC 309 to IEC 320 C13 4.0M, RoHS:Y
X9713A-Z	530-4253	Loop-B FC-AL Cable, RoHS:Y
n/a	530-1351	IEC 320 C13 to NEMA 6-15 – 10A/250V 2.0M Black, RoHS:Y
n/a	530-3710	FC-AL Backplane Data Cable, RoHS:Y
n/a	530-3719	FC-AL Backplane Power Cable, RoHS:Y
n/a	530-3765	Loop-B FC-AL Cable, RoHS:Y

Communication
Option #	Manufacturing Part #	Description
X1355A-2	371-0982	2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable,RoHS:Y
X1355A-2	375-3296	Quad Port High Speed Serial Interface PCI-X (HSI/U), RoHS:Y
X1333A-4	375-3418	Infiniband PCI-X Card, RoHS:YL
n/a	501-7314	Advanced Lights Out Management (ALOM) Plus Card, RoHS:YL

Disks
Option #	Manufacturing Part #	Description
X6805A	540-6604	73.4GB – 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks, RoHS:Y
	341-1986	Plate, RoHS:Y
	390-0256	Fujitsu MAW3073FC [MAW3073FCSUN73G] (73.4GB – 10000 RPM – FC-AL Disk), RoHS:Y
	390-0269	Hitachi HUS1073FA [HUS1073FASUN72G] (73.4GB – 10000 RPM – FC-AL Disk), RoHS:Y
	390-0279	Seagate ST373207FC [ST373207FSUN72G] (73.4GB – 10000 RPM – FC-AL Disk), RoHS:Y
	540-3024	1″ SPUD Bracket, RoHS:Y
XRA-FC1CB-146G10K	540-6605	146GB – 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks, RoHS:Y
	341-1986	Plate, RoHS:Y
	390-0257	Fujitsu MAW3147FC [MAW3147FCSUN146G] (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
	390-0270	Hitachi HUS1014FA [HUS1014FASUN146G] (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
	390-0280	Seagate ST3146707FC [ST314670FSUN146G] (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
	540-3024	1″ SPUD Bracket, RoHS:Y
XRA-FC1CB-146G15KZ	540-6487	146GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:YL
	341-1986	Plate, RoHS:Y
	390-0196	Seagate ST3146854FC [ST314685FSUN146G] (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0264	Fujitsu MAX3147FC [MAX3147FCSUN146G] (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0328	Seagate ST3146855FC [ST314655FSUN146G] (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0365	Hitachi HUS153014VLF400 [HUS1514FBSUN146G] (146.8GB – 15000 RPM – FC-AL Disk), RoHS:Y
	540-3024	1″ SPUD Bracket, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X4150A-2	501-7415	GigaSwift Ethernet UTP (GCS), RoHS:Y
X4445A	501-6738	Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y
X5544A-4	10Gb PCI-X Ethernet Adapter, no transceiver, RoHS:Y
	501-7413	10Gb PCI-X Ethernet Adapter, RoHS:Y
	370-7665	Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
X5558A	375-3301	10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
X5560A-Z	375-3495	10Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
X7285A	371-0911	Low Profile PCI-X Dual Gigabit Ethernet UTP, RoHS:Y
X7286A	371-0912	Low Profile PCI-X Single Gigabit Ethernet MMF, RoHS:Y
4455A-4	375-3301	10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
	501-7414	10Gb/sec PCI-X Ethernet Adapter, RoHS:Y
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
4466A	375-3361	XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL
	501-7414	10Gb/sec PCI-X Ethernet Adapter, RoHS:Y
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
5544A-4	375-3301	10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
	501-7413	10Gb PCI-X Ethernet Adapter, RoHS:Y
	370-7665	Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
6644A	375-3361	XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL
	501-7413	10Gb PCI-X Ethernet Adapter, RoHS:Y
	370-7665	Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
X5559A	375-3361	XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL

Fan
Option #	Manufacturing Part #	Description
n/a	541-1120	PCI Fan Tray, RoHS:Y
n/a	541-1256	CPU Fan Tray, RoHS:YL

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCI1FC-EM4-Z	375-3398	4Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI1FC-QF4	375-3354	4Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI2FC-EM4-Z	375-3399	4Gb PCI-X Dual FC Host Adapter, RoHS:Y
SG-XPCI2FC-QF4	375-3294	4Gb PCI-X Dual FC Host Adapter, RoHS:Y
SG-XPCI1FC-EM2	375-3304	2Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI1FC-QL2	375-3383	2Gb PCI-X Single FC Host Adapter, RoHS:Y
SG-XPCI2FC-EM2	375-3305	2Gb PCI-X Dual FC Host Adapter, RoHS:Y
SG-XPCI2FC-QF2-Z	375-3363	2Gb PCI Dual FC Host Adapter, RoHS:Y
SG-XPCI2FC-QF2-Z	240-4839	Low Profile Bracket, RoHS:Y
X6727A	375-3030	PCI Dual FC Host Adapter+, RoHS:YL

Graphics
Option #	Manufacturing Part #	Description
X7296A	375-3290	XVR-100 Graphics Accelerator (64MB), RoHS:Y

I/O
Option #	Manufacturing Part #	Description
n/a	501-7315	PCI I/O Riser Board, RoHS:YL
n/a	100-5311	IDPROM, RoHS:YL

Memory
Option #	Manufacturing Part #	Description
X7051A-Z	2 GB (4 × 512MB SDRAM DIMMs), RoHS:YL
X7051A-Z	501-7385	512MB SDRAM DIMM, RoHS:YL
X7056A-Z	4 GB (4 × 1GB SDRAM DIMMs), RoHS:YL
X7056A-Z	501-7386	1GB SDRAM DIMM, RoHS:YL
X7058A-Z	8 GB (4 × 2GB SDRAM DIMMs), RoHS:YL
	540-6489	2GB SDRAM DIMM Assembly, RoHS:YL
	501-6242	2GB SDRAM DIMM, RoHS:YL
F511-1030	Package of 25 × 512MB SDRAM DIMMs
501-7385	512MB SDRAM DIMM, RoHS:YL
F511-1031	Package of 25 × 1GB SDRAM DIMMs
501-7386	1GB SDRAM DIMM, RoHS:YL

Power
Option #	Manufacturing Part #	Description
n/a	300-1987	1448W Power Supply, RoHS:YL
n/a	375-3168	Power Distribution Board, RoHS:YL

Rack
Option #	Manufacturing Part #	Description
n/a	370-4427	4-Post Rack Kit (370-4427-02 = 27″) – discontinued June 2002 (370-4427-03 = 25″) – obsolete (370-4427-04 = 25″) – add slide kit, RoHS:YL

Removable Media
Option #	Manufacturing Part #	Description
n/a	371-1789	Slimline 8X DVD-ROM / 24X CD-ROM, RoHS:Y
n/a	390-0289	Slimline 8X DVD-Writer / 24X CD-Writer, RoHS:YL
n/a	390-0345	Slimline 8X DVD-Writer / 24X CD-Writer, RoHS:Y
n/a	390-0349	Slimline 8X DVD-ROM / 24X CD-ROM, RoHS:Y
n/a	F390-0429	Slimline 8X DVD-Writer / 24X CD-Writer, RoHS:Y
	390-0406	Slimline 8X DVD-Writer / 24X CD-Writer, RoHS:Y
	390-0429	Slimline 8X DVD-Writer / 24X CD-Writer, RoHS:Y
n/a	390-0336	Slimline 8X DVD-ROM / 24X CD-ROM, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
SGXPCI2SCSILM320-Z	375-3365	PCI Dual Ultra320 SCSI Adapter, RoHS:YL

System Board
Option #	Manufacturing Part #	Description
X7270A-Z	CPU/Memory Board w/2 × USIV 1.35GHz, 8GB (16 × 512MB DIMMs) Memory, RoHS:YL
X7270A-Z	501-7305	CPU/Memory Board w/2 × USIV 1.35GHz, 0MB (Jaguar, 1.35GHz Lite 527-1164, Cinch socket), RoHS:YL
X7273A-Z	CPU/Memory Board w/2 × USIV+ 1.5GHz, 8GB (16 × 512MB DIMMs) Memory, RoHS:YL
X7273A-Z	501-7481	CPU/Memory Board w/2 × USIV+ 1.5GHz, 0MB, RoHS:YL
X7274A-Z	CPU/Memory Board w/2 × USIV+ 1.5GHz, 16GB (16 × 1GB DIMMs) Memory, RoHS:YL
X7274A-Z	501-7481	CPU/Memory Board w/2 × USIV+ 1.5GHz, 0MB, RoHS:YL
X7275A-Z	CPU/Memory Board w/2 × USIV 1.35GHz, 16GB (16 × 1GB DIMMs) Memory, RoHS:YL
X7275A-Z	501-7305	CPU/Memory Board w/2 × USIV 1.35GHz, 0MB (Jaguar, 1.35GHz Lite 527-1164, Cinch socket), RoHS:YL
X7300A-Z	CPU/Memory Board w/2 × USIV+ 1.8GHz, 8GB (16 × 512MB DIMMs) Memory, RoHS:YL
	501-7506	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
	501-7691	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
	501-7881	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
X7301A-Z	CPU/Memory Board w/2 × USIV+ 1.8GHz, 16GB (16 × 1GB DIMMs) Memory, RoHS:YL
	501-7506	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
	501-7691	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
	501-7881	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
X7302A-Z	CPU/Memory Board w/2 × USIV+ 1.5GHz, 32GB (16 × 2GB DIMMs) Memory, RoHS:YL
X7302A-Z	501-7481	CPU/Memory Board w/2 × USIV+ 1.5GHz, 0MB, RoHS:YL
X7303A-Z	CPU/Memory Board w/2 × USIV+ 1.8GHz, 32GB (16 × 2GB DIMMs) Memory, RoHS:YL
	501-7506	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
	501-7691	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL
	501-7881	CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB, RoHS:YL

Sun Fire V490 Server Links & Documentation

Sun Fire V490 Server Documentation

SunFire V490 Server Setup and Rackmounting Guide	HTML	PDF
SunFire V490 Server Administration Guide	HTML	PDF
SunFire V490 Server Product Notes		PDF
SunFire V490 Parts Installation and Removal Guide		PDF
SunFire V490/V890 CPU/Memory Module Configuration Guide		PDF
SunFire V490/V890 Servers with 2100MHz CPU/Memory Modules Supplement		PDF
Sun Remote System Control (RSC) 2.2.3 Release Notes	HTML	PDF
Sun Flash PROM Guide for Workstations and Workgroup Servers – Standalone Version	HTML	PDF
OpenBoot PROM Enhancements for Diagnostic Operation	HTML	PDF
2-Gbyte Memory Module Guide for Sun Fire High-End and Midrange Systems		PDF

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
