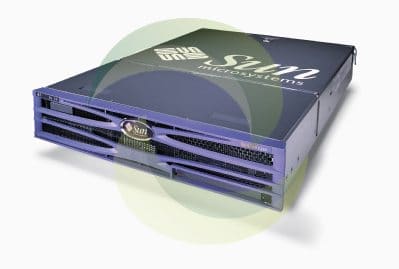

Oracle Sun V240, RoHS:YL Server

Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server Sun Servers SUN FIRE V240 RoHS copy

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Processor
    NumberOne or two
    Architecture1.33GHz, or 1.5GHz UltraSPARC® IIIi, 64 bit, 4-way Superscalar SPARC® V9
    Cache memory64 KB data, 32 KB instruction and 1 MB integrated L2
    Main Memory
    Capacities Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bullet4 DIMM slots per processor, registered DDR-1 SDRAM
    Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bullet(PC2100/PC2700) 128 bit + ECC databus
    Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bulletSystem configurations from 512 MB to 16 GB
    Standard Interfaces
    Ethernet Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bulletFour 10/100/1000 BaseT Ethernet
    Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bulletOne 10 BaseT Ethernet (Network Management)
    PCIThree internal PCI 2.2 compliant expansion slots:
    Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bulletOne 64 bit 33/66 MHz 3.3V full-length
    Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bulletTwo 64 bit 33 MHz 5V full-lengthNote:Nominal power = maximum 25W per slot, maximum 45W across 3 slots
    SCSIOne Ultra160 SCSI multimode (SE/LVD)
    Serial Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bullet One TIA/EIA-232-F asynchronous (DB9) Port
    Oracle Sun V240, RoHS:YL Server Oracle Sun V240, RoHS:YL Server bullet One TIA/EIA-232-F (RJ45) Port (Serial Management)
    System Configuration Reader and CardFront accessible for transfer of system configuration information, including host ID
    USBTwo OHCI-1.0 Compliant Interfaces, supporting dual speeds of 12 and 1.5 Mbits/sec each
    Internal Mass Storage
    DisksUp to four hot-swap Ultra160 SCSI 73GB, or 146GB Disks
    DVD-ROMOne Slim-line ATAPI DVD-ROM (Optional)
    Environment
    AC input90 – 264 VAC (47 – 63 Hz)
    Input power546 W
    Nominal power
    (calculated at 240V/50Hz)    		 Minimum configuration: 215 Watts
    (1 × 1.34GHz processor, 2 × 256MB DIMMs, 1 × 73GB HDD)
    Maximum configuration: 442 Watts
    (2 × 1.5GHz processors, 8 × 1GB DIMMs, 2 × 73GB HDDs, Crypto 500, 1 × DVD-ROM, 3 × PCI cards [max power spec 45W for three cards])
    Typical Minimum configuration: 200 Watts
    (1 × 1.34GHz processor, 2 × 256MB DIMMs, 1 × 73GB HDD)
    Typical Maximum configuration: 329 Watts
    (2 × 1.5GHz processors, 8 × 1GB DIMMs, 2 × 73GB HDDs, Crypto 500, 1 × DVD-ROM, 3 × PCI cards [max power spec 45W for three cards])
    Heat dissipation Minimum configuration: 798 BTU/hr
    Maximum configuration: 1639 BTU/hr
    Temperature Operating: 5° C to 40° C (41° F to 104° F)
    Nonoperating: -40° C to 65° C (-40° F to 149° F)
    Humidity Operating: 10% to 90% relative humidity noncondensing, 27° C max wet bulb
    Nonoperating: Up to 93% relative humidity, noncondensing, 38° C max wet bulb
    Altitude Operating: Up to 3000 m, maximum ambient temperature is derated by 1° C per 500 m above 500 m
    Nonoperating: Up to 12000 m
    Acoustic noise Operating: Less than 7.3 B sound power in ambient temperature of up to 24° C
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance LevelRoHS:YL
    SafetyIEC60950, UL/CSA60950, EN60950
    EmissionsFCC Class A, Part 15 47 CFR, EN55022, CISPR 22
    ImmunityEN55024
    Certification Safety: cULus Mark, TUV GS Mark, CE Mark
    EMC: CE Mark (93/68/EEC), FCC authorized Class A, VCCI, BSMI, CTICK
    Dimensions and Weights
    Height87.66 mm (3.4 in.) (2 RU)
    Width425 mm (16.73 in.)
    Depth635 mm (25 in.)
    Weight19 kg (41.8 lb.) fully configured; 22.4 kg (49.31 lb.) with rack-mount rails and cable management arm
    Batteries
    Option #Manufacturing
    Part #    		Description
    n/a371-14043V Lithium Battery,N31/N32, RoHS:Y
    Cables
    Option #Manufacturing
    Part #    		Description
    X311LLocalized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312LLocalized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314LLocalized Power Cord Kit – Swiss, RoHS:Y
    180-1994IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317LLocalized Power Cord Kit – U.K., RoHS:Y
    180-1997IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X320ALocalized Power Cord Kit – North America/Asia, RoHS:Y
    180-2164IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black, RoHS:Y
    X383LLocalized Power Cord Kit – Danish, RoHS:Y
    180-1995IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384LLocalized Power Cord Kit – Italian, RoHS:Y
    180-1996IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    X386LLocalized Power Cord Kit – Australian, RoHS:Y
    180-1998IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
    n/a371-1134Cable Kit Set, RoHS:YL
    n/a530-1351IEC 320 C13 to NEMA 6-15 – 10A/250V 2.0M Black, RoHS:Y
    n/a530-2961RJ45 Cat5 Ethernet Cable, RoHS:Y
    n/a530-3100RJ45F to DB9F Adapter, RoHS:Y
    n/a530-3566RME KEY SWITCH Cable, RoHS:Y
    Card/Reader
    Option #Manufacturing
    Part #    		Description
    n/a370-5127System Configuration Card Reader
    n/a370-5155System Configuration Card, RoHS:Y
    n/a371-0795System Configuration Card with 10 MAC Addresses, RoHS:Y
    n/a371-0838System Configuration Card Reader, RoHS:YL
    n/a371-3551System Configuration Card with 10 MAC Addresses, Polycarbonate, RoHS:Y
    Communication
    Option #Manufacturing
    Part #    		Description
    X1355A-2371-09822M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable,RoHS:Y
    375-3296Quad Port High Speed Serial Interface PCI-X (HSI/U), RoHS:Y
    X2156A-2375-3420Serial Asynchronous Interface PCI (SAI/P) 3.0, RoHS:Y
    X7405A-4371-0991Hardware Cryptographic Module (Crypto Accelerator 500), RoHS:YL
    Disks
    Option #Manufacturing
    Part #    		Description
    X5268A540-6602146.8GB – 10000 RPM, Disk Assembly with 1 bracket, 1 plate and 1 of the following disks, RoHS:Y
    • 341-1986
    • Plate, RoHS:Y
    • 390-0253
    • Fujitsu MAW3147NC [MAW3147NCSUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0266
    • Hitachi HUS103014FL3800 [HUS10143ASUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0276
    • Seagate ST3146707LC [ST314670LSUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    XRA-SC1CB-73G10K540-660073.4GB – 10000 RPM, Disk Assembly with 1 bracket, 1 plate and 1 of the following disks, RoHS:Y
    • 341-1986
    • Plate, RoHS:Y
    • 390-0252
    • Fujitsu MAW3073NC [MAW3073NCSUN73G]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0265
    • Hitachi HUS103073FL3800 [HUS10733ASUN72]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0275
    • Seagate ST373207LC [ST373207LSUN72G]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    Ethernet
    Option #Manufacturing
    Part #    		Description
    X4150A-2501-7415GigaSwift Ethernet UTP (GCS), RoHS:Y
    X4151A-2501-7430GigaSwift Ethernet MMF (GFS), RoHS:Y
    X4445A501-6738Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y
    Fan
    Option #Manufacturing
    Part #    		Description
    n/a371-0837CPU Fan/Heatsink, RoHS:Y
    n/a371-0992Fan Tray Assembly/FRU, RoHS:Y
    • 371-0800
    • 60mm Fan (x3), RoHS:Y
    • n/a
    • Fan Tray
    Fibre Channel
    Option #Manufacturing
    Part #    		Description
    SG-XPCI1FC-EM4-Z375-33984Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QF4375-33544Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM4-Z375-33994Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF4375-32944Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI1FC-EM2375-33042Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QL2375-33832Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM2375-33052Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF2-Z375-33632Gb PCI Dual FC Host Adapter, RoHS:Y
    X6727A375-3030PCI Dual FC Host Adapter+, RoHS:YL
    Graphics
    Option #Manufacturing
    Part #    		Description
    X7296A375-3290XVR-100 Graphics Accelerator (64MB), RoHS:Y
    I/O
    Option #Manufacturing
    Part #    		Description
    n/a371-07992-Slot PCI Riser, RoHS:YL
    n/aF371-0796Interface Boards FRU, RoHS:YL
    • 371-0793
    • Upper Interface Board, RoHS:YL
    • 371-0796
    • Lower Interface Board, RoHS:YL
    Memory
    Option #Manufacturing
    Part #    		Description
    X7702A-4512MB DDR1 Memory Option, (2 × 256MB DIMMs), RoHS:YL
    371-1115256MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    X7703A-41GB DDR Memory Option, (2 × 512MB DIMMs), RoHS:YL
    370-7972512MB PC2700 DIMM, RoHS:Y
    371-1116512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    X7704A-42GB DDR1 Memory Option, (2 × 1GB DIMMs), RoHS:YL
    370-79731GB PC2700 DIMM, RoHS:Y
    371-11171GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    X7711A-44GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 2GB DIMMs), RoHS:YL
    370-76722GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    370-79742GB PC2700 DIMM, RoHS:Y
    n/a540-64024GB Memory FRU (2 × 2GB DIMMs), RoHS:YL
    • 370-7672
    • 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    • 370-7974
    • 2GB PC2700 DIMM, RoHS:Y
    n/a540-6775512MB Memory FRU (2 × 256MB DIMMS), RoHS:YL
    • 371-1115
    • 256MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    n/a540-67761GB Memory FRU (2 × 512MB DIMMS), RoHS:YL
    • 370-7972
    • 512MB PC2700 DIMM, RoHS:Y
    • 371-1116
    • 512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    n/a540-67772GB Memory FRU (2 × 1GB DIMMS), RoHS:YL
    • 370-7973
    • 1GB PC2700 DIMM, RoHS:Y
    • 371-1117
    • 1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    Miscellaneous
    Option #Manufacturing
    Part #    		Description
    n/a371-2356PCI Card Rail and Clip
    Power
    Option #Manufacturing
    Part #    		Description
    X7428A-4300-1846400W AC Power Supply Type A192, RoHS:YL
    n/a371-0821Power Distribution Board, RoHS:YL
    Rack
    Option #Manufacturing
    Part #    		Description
    n/a371-0066Rack Mount/Cable Management Kit, RoHS:Y
    • 370-7668
    • Cable Management Arm, RoHS:Y
    • 370-7669
    • Slide Rail Kit, RoHS:Y
    Removable Media
    Option #Manufacturing
    Part #    		Description
    X7410A-4371-1108Internal 8X Slimline DVD-ROM/CD-ROM, RoHS:YL
    • 371-0721
    • 8X Slimline DVD-ROM/CD-ROM, RoHS:YL
    • 390-0400
    • 8X Slimline DVD-ROM/CD-ROM, RoHS:Y
    SCSI
    Option #Manufacturing
    Part #    		Description
    SGXPCI2SCSILM320-Z375-3365PCI Dual Ultra320 SCSI Adapter, RoHS:YL
    X4422A-2501-7490Dual GigabitEthernet / Dual SCSI PCI Adapter, RoHS:Y
    System Board
    Option #Manufacturing
    Part #    		Description
    n/a375-3344Motherboard w/ 1 × US IIIi 1.336GHz, 0MB, RoHS:YL
    • 371-0837
    • CPU Fan/Heatsink, RoHS:Y
    • 375-3325
    • 0MB Motherboard, Tomatillo 2.3, RoHS:YL
    • 527-1169
    • 1.336GHz US IIIi, RoHS:Y
    n/a375-3346Motherboard w/ 2 × US IIIi 1.503GHz, 0MB, RoHS:YL
    • 371-0837
    • CPU Fan/Heatsink, RoHS:Y
    • 375-3325
    • 0MB Motherboard, Tomatillo 2.3, RoHS:YL
    • 527-1170
    • 1.503GHz USIIIi, RoHS:Y
    n/a375-3465Motherboard w/ 1 × US IIIi 1.336GHz, 0MB, RoHS:YL
    • 371-0837
    • CPU Fan/Heatsink, RoHS:Y
    • 375-3459
    • 0MB Motherboard, Tomatillo 2.3, RoHS:YL
    n/a375-3467Motherboard w/ 2 × US IIIi 1.503GHz, 0MB, RoHS:YL
    • 371-0837
    • CPU Fan/Heatsink, RoHS:Y
    • 375-3459
    • 0MB Motherboard, Tomatillo 2.3, RoHS:YL
    • 527-1279
    • 1.503GHz USIIIi, RoHS:Y
