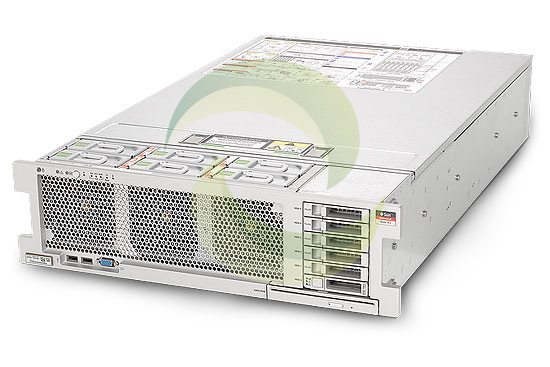

    Oracle T5-2 Server: Hardware Information & Specifications

    • Uses the fastest microprocessor in the world, delivering the best performance for JD Edwards and Siebel
    • 28 percent lower operational costs than an IBM Power 750 Express server, and 3.4x faster file system encryption than equivalent x86 systems
    • Built-in, no-cost virtualization technology simplifies application consolidation, lowers costs, and improves utilization
    • Full-function server management at no extra charge, including local and remote management, power management, monitoring, fault detection, and notification
    • Engineered to run Oracle Database, business applications, and middleware software
    • Available from Greentec Systems now, use the quote form on the right for a formal quote.

    Features & Benefits

    • Extreme performance and price/performance with the world’s fastest microprocessor

      • Improves end-user productivity by delivering faster application response times and service availability

    • Efficient Oracle virtualization allows applications to meet response time SLAs

      • SPARC T5-2 server using Oracle VM Server for SPARC dramatically lowers network latency under virtualization

    • Built-in encryption security with no performance overhead

      • Integrated, on-chip crypto acceleration provides high levels of security without sacrificing application performance

    • The most comprehensive lifecycle management with Oracle Enterprise Manager Ops Center

      • Lowers TCO with a unified portfolio of tools for managing systems and cloud environments, including no-cost tools that work across all of Oracle’s hardware and operating systems

    • Runs Oracle Solaris 11 (recommended by Oracle for enhanced performance and functionality) and can also run Oracle Solaris 10, 9, and 8

      • Protects application software investments by moving existing Solaris applications unchanged to a faster system with the latest operating system version

    • Improved deployment efficiency with Oracle Optimized Solutions for SPARC.

      • Dramatically reduces time, effort, and risk when deploying Oracle and third-party applications

    • Improved efficiency and agility

      • When compared to x86-based Linux systems, SPARC systems running Oracle Solaris can lower costs over a three-year period

    • Hardware and software engineered together

      • Superior value and business agility, improved performance and availability, and faster time to deployment
    Processor
    Number One or Two SPARC T5 16-Core 3.6GHz processors
    CPUs
    • Up to 128 threads per processor for a maximum of 256 threads per system
    • Sixteen floating-point units per SPARC T5 processor
    • Dual PCIe Gen3 interfaces
    Cache memory 16-KB instruction cache, 16-KB data cache, 1280-KB L2 cache, 8-MB L3 cache (8 banks, 16-way, set associative)
    Main Memory
    Capacities
    • Total DIMM slots Dual Socket CPU Configuration: 32 – 4 slots per memory riser, 4 memory risers per CPU, 8 total memory risers
    • Total DIMM slots Single Socket CPU Configuration: 16 – 4 slots per memory riser, 4 memory risers per CPU, 4 total memory risers
    • DIMM type: DDR3
    • DIMM size: 8GB, 16GB or 32GB
    • Minimum Configuation Dual Socket CPU: 256GB. (32× 8GB)
    • Minimum Configuation Single Socket CPU: 128GB. (16× 8GB)
    • Maximum capacity Dual Socket CPU: 1TB (32 × 32GB)
    • Maximum capacity Single Socket CPU: 512GB (16 × 32GB)
    Standard Integrated Interfaces
    Network 4 × 10 GbE Ethernet ports (100 Mbps/1 Gbps/10 Gbps)
    Network Management One dedicated 10/100Base-T RJ-45 port Ethernet port
    Serial Management One dedicated RJ-45 port
    Remote Management Onboard service processor, running Integrated Lights Out Manager (ILOM)
    Graphics One DB-15 VGA port
    USB Front: 2 USB 2.0 Ports
    Rear: 2 USB 3.0 Ports
    Internal: 1 USB 3.0 Port
    PCI Expansion Slots
    • 8 low-profile PCI-Express 3.0 slots.
    Slot # Physical Electrical
    1 x8 x8
    2 x8 x8
    3 x8 x8
    4 x16 x8
    5 x16 x8
    6 x8 x8
    7 x8 x8
    8 x8 x8
    Internal Mass Storage
    Disks
    • Up to six 2.5-inch SAS drives or SSD drives
    • 300GB or 600GB 2.5-inch SAS disk drives
    • 100GB or 300GB SSD drives
    • RAID 0, RAID 1, and RAID 1E support
    DVD-ROM 1 slimline SATA DVD +/-RW
    Power Supplies
    2 × 2060 Watt, hot-swappable, 1+1 redundant power supply units (PSU)
    Environment
    Power Consumption
    Input Voltage 200 – 240 VAC, 50-60Hz
    Input Current 10.1A @ 200 VAC (max)
    Input Power 1927.7W @ 200 VAC (max)
    Maximum Heat Dissipation 4,953 BTU/hr, 5225.69 KJ/hr
    Power Consumption
    Temperature Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 65° C (-40° F to 149° F)
    Humidity Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) maximum wet bulb
    Nonoperating: Up to 93% relative humidity noncondensing, 38° C (100.4° F) maximum wet bulb
    Altitude Operating: Up to 3000m (9840 ft), maximum ambient temperature is derated by 1° C for every 300m above 900m (1.8° F for every 1000ft)
    Nonoperating: Up to 12000m (39370 ft.)
    Acoustic Noise Operating/Idling: 77 dB / 76 dB (LwAd, 1B = 10dB)
    Operating/Idling: 61.5 B / 61.2 B (LpAm, bystander positions)
