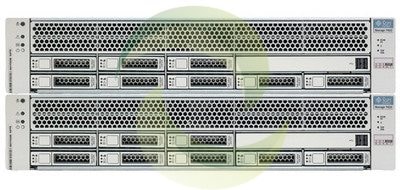

Oracle Sun Storage 7410

Oracle Sun Storage 7410 Oracle Sun Storage 7410 7410

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

    Processor
    Number2 or 4 Quad-Core
    Architecture Type: AMD Opteron
    • Quad-Core AMD Opteron 2356 (2.3 GHz, 75W)
    • Quad-Core AMD Opteron 8356 (2.3 GHz, 75W)
    • Six-Core AMD Opteron 8435 (2.6 GHz, 75W)
    Cache memory512 KB Level 2 cache per processor core (Quad Core)
    Main Memory
    Capacities DIMM slots per System: 32
    DIMM type: DDR2 667MHz Registered DIMMs
    DIMM size: 2-GB or 4-GB
    Maximum capacity: 128GB (when configured with 4-GB DIMMs)
    NOTE: For optimal performance, install DIMMs in matched pairs. DIMM fillers should be installed in all unoccupied DIMM slots.
    Standard Integrated Interfaces
    NetworkFour 10/100/1000 Base-T Ethernet Ports
    Network ManagementOne dedicated 10/100Base-T Ethernet port
    Serial ManagementOne dedicated TIA/EIA-232-F asynchronous RJ45 port
    USB Front: Two USB 2.0 ports
    Rear: Two USB 2.0 ports
    Internal: One USB 2.0 port
    PCI Expansion SlotsSix internal MD2 low profile PCI Express slots
    • One PCIe x16 slot
    • Four PCIe x8 slot
    • One PCIe x4 slot (x8 mechanical)
    Internal Mass Storage
    7410 DisksUp to eight 2.5″ 1TB 7200 RPM SATA internal hot-swap Disks
    J4400 Expansion Array DisksUp to twenty-four 3.5″ 1TB 7200 RPM SATA Disks
    Power Supplies
    Dual redundant, hot swappable power supplies
    (Power supply rating DC output = 1050W)
    (UL Maximum AC input = 12 Amps RMS at 100 VAC)
    Environment
    AC power90-264 V AC (47-63 Hz)
    TemperatureSingle, non-rack system:
    Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 70° C (-40° F to 158° F)
    HumiditySingle, non-rack system:
    Operating: 10% to 90% relative humidity noncondensing
    Nonoperating: up to 93% relative humidity noncondensing
    AltitudeSingle, non-rack system:
    Operating: up to 3048 m (10,000 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m
    Nonoperating: up to 12,000 m (40,000 ft.)
    Acoustic noiseSingle, non-rack system:
    LwAd (1B=10dB)
    7.7 B (idle and operating)
    LpAm bystander
    65.8 dB at max ambient
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance LevelRoHS:YL
    SafetyIEC 60950, UL/CSA 60950-1, EN 60950, CB Scheme with all country differences
    RFI/EMIFCC CFR 47 Part 15 Class A, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN300-386
    ImmunityEN55024, EN300-386
    Certifications Safety: UL/cUL, UL DEMKO, CE, BSMI, CCC, GOST-R, S-Mark
    EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, GOST-R, BSMI Class A
    Dimensions and Weight
    Height87.85 mm (3.46 in.)
    Width425.46 mm (16.75 in.)
    Depth711.25 mm (28 in.)
    Weight28.6 kg (63 lb.) maximum without rack kit
    Array Controller
    Option #Manufacturing
    Part #    		Description
    n/a594-5329SAS Expansion Tray I/O Module (IOM), RoHS:YL
    • 375-3584 Buy
    • SAS Interface Module (SIM), RoHS:Y
    • 530-3886
    • 4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M, RoHS:YL
    Batteries
    Option #Manufacturing
    Part #    		Description
    n/a150-4277 Buy3V Lithium coin battery, RoHS:Y
    CPU Module
    Option #Manufacturing
    Part #    		Description
    n/a310-0128Opteron Heatsink, RoHS:Y
    n/a371-4042 Buy2.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W, RoHS:Y
    n/a371-40442.3 GHz CPU, Opteron 8356 Quad Core, B3 Stepping, 75W, RoHS:Y
    n/a371-4681 Buy2.6 GHz CPU, Opteron 2435 6-Core, D0 Stepping, 75W, RoHS:Y
    n/a371-46842.6 GHz CPU, Opteron 8435 6-Core, D0 Stepping; 75W, RoHS:Y
    n/a540-7597 BuyCPU/Memory Mezzanine Assembly, RoHS:YL
    • 330-4622
    • Air Duct, RoHS:Y
    • 501-7723
    • Mezzanine Card, RoHS:YL
    • 541-2769
    • Tray, RoHS:Y
    n/a540-7602 BuyHyperTransport Bridge Card & Risers for Quad Core CPU, RoHS:Y
    • 270-7916
    • Hyper-Transport Bridge Risers (×2)
    • 501-7915
    • Hyper-Transport Bridge Card, RoHS:Y
    n/a540-7953 BuyCPU/Memory Mezzanine Assembly, RoHS:YL
    • 330-4622
    • Air Duct, RoHS:Y
    • 511-1395
    • Mezzanine Card, RoHS:YL
    • 541-2769
    • Tray, RoHS:Y
    n/a541-2906 BuyHyperTransport Riser, RoHS:Y
    Cables
    Option #Manufacturing
    Part #    		Description
    X311L BuyLocalized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312ELocalized Power Code Kit – China, RoHS:Y
    180-1982 BuyIEC 320 C13 to GB 2099/GB 1002 – 10A/250V 2.5M, RoHS:Y
    X312FLocalized Power Cord Kit – Argentina, RoHS:Y
    180-1999IEC 320 C13 to IRAM 2073 – 10A/250V 2.5M Black, RoHS:Y
    X312GLocalized Power Cord Kit – Korea, RoHS:Y
    180-1662IEC 320 C13 to KSC 8305 – 15A/250V 2.5M Black, RoHS:Y
    X312LLocalized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993 BuyIEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314LLocalized Power Cord Kit – Swiss, RoHS:Y
    180-1994IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317LLocalized Power Cord Kit – U.K., RoHS:Y
    180-1997 BuyIEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X332ALocalized Power Cord Kit – Taiwan, RoHS:Y
    180-2121IEC 320 C13 to NEMA 5-15P – 10A/125V 2.5M Black, RoHS:Y
    X383LLocalized Power Cord Kit – Danish, RoHS:Y
    180-1995IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384LLocalized Power Cord Kit – Italian, RoHS:Y
    180-1996IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    X386LLocalized Power Cord Kit – Australian, RoHS:Y
    180-1998IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
    n/a530-3771RJ-45 Ethernet Cable (1m), RoHS:Y
    n/a530-38864X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M, RoHS:YL
    Communication
    Option #Manufacturing
    Part #    		Description
    X4237A Buy375-3606Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express, RoHS:Y
    n/a371-3024 BuyCluster Heartbeat Card, RoHS:Y
    Disk Backplane
    Option #Manufacturing
    Part #    		Description
    n/a501-7730 Buy8-Slot Disk Backplane, PATA DVD, RoHS:Y
    n/a542-0355 BuyBackplane Retainer Clip Kit
    • 330-5301
    • Grey 2U Backplane Retainer Clip
    Disks
    Option #Manufacturing
    Part #    		Description
    XTA7410-LOGZ18GB540-775418GB Solid State Drive Assembly, SATA Interface, RoHS:Y
    • 371-4192
    • 18GB Solid State Drive, SATA Interface, RoHS:Y
    • 570-1182
    • Disk Drive Mounting Bracket, RoHS:Y
    XTA7410-READZ100G Buy540-7793100GB Solid State Drive Assembly, SATA Interface, RoHS:Y
    • 371-4193
    • 100GB Solid State Drive, SATA Interface, RoHS:Y
    • 541-2123
    • Marlin Bracket 2.5″, RoHS:Y
    n/a540-75941TB – 7.2K RPM SATA Disk Assembly with brackets and 1 of the following disks, RoHS:Y
    • 390-0381
    • Hitachi HUA721010KLA330 [HUA7210SASUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0414
    • Seagate ST31000340NS [ST31000NSSUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 570-1181
    • SATA Interposer Card, RoHS:Y
    • 570-1182
    • Disk Drive Mounting Bracket, RoHS:Y
    n/a540-7711 Buy500GB – 5400 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0433
    • Hitachi HTE545050KTA300 [HTE5450SASSUN500G]
      (500GB – 5400 RPM – SATA Disk), RoHS:Y
    • 541-2123
    • Marlin Bracket 2.5″, RoHS:Y
    n/a540-7910 Buy1TB – 7.2K RPM SATA Disk Assembly with brackets and 1 of the following disks, RoHS:Y
    • 390-0414
    • Seagate ST31000340NS [ST31000NSSUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 570-1181
    • SATA Interposer Card, RoHS:Y
    • 570-1182
    • Disk Drive Mounting Bracket, RoHS:Y
    n/a542-0184 Buy500GB – 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0468
    • Seagate ST9500530NS [ST95000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-4199
    • Marlin Bracket 15mm, RoHS:Y
    Ethernet
    Option #Manufacturing
    Part #    		Description
    X1027A-Z Buy501-7283PCI Express Dual 10-Gigabit Ethernet Fiber, RoHS:Y
    X4446A-Z Buy375-3481PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    X5558A Buy375-330110Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    X5560A-Z Buy375-349510Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
    X7280A-2 Buy371-0905PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
    X7281A-2 Buy371-0904PCI Express Dual Gigabit Ethernet MMF, RoHS:Y
    Fan
    Option #Manufacturing
    Part #    		Description
    n/a541-2211 BuyFan Power Board, RoHS:Y
    • 330-4463
    • Top Bracket, RoHS:Y
    • 330-4464
    • Bottom Bracket, RoHS:Y
    • 501-7695
    • Fan Board, RoHS:Y
    n/a541-2940 BuyCPU Dual Fan Assembly w/ Metal Fingerguards, RoHS:Y
    • 310-0119
    • Delta Fan, 60×38mm, 2U, RoHS:Y
    Fibre Channel
    Option #Manufacturing
    Part #    		Description
    SG-XPCIE2FC-QF4 Buy375-33564Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF8-Z Buy371-43258Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    I/O
    Option #Manufacturing
    Part #    		Description
    n/a541-2109 Buyx8/x8 XAUI Riser Card Assembly, RoHS:Y
    • 341-4139
    • PCI Filler Panel, RoHS:Y
    • 501-7719
    • x8/x8 XAUI Riser Card, RoHS:Y
    • 541-2736
    • Riser Bracket, RoHS:Y
    n/a541-2299 Buyx16/x4 Riser, RoHS:Y
    Memory
    Option #Manufacturing
    Part #    		Description
    X6322A Buy540-76008GB (2 × 4GB) Memory FRU, RoHS:Y
    • 371-3847
    • 4GB Registered ECC DDR2-667 DIMM, RoHS:Y
    X6321A540-7599 Buy4GB (2 × 2GB) Memory FRU, RoHS:Y
    • 371-3846
    • 2GB Registered ECC DDR2-667 DIMM, RoHS:Y
    X6321A-C540-78294GB (2 × 2GB) Memory FRU
    • 371-4160
    • 2GB Registered ECC Single Rank DDR2-667 DIMM, RoHS:Y
    n/a541-3419 Buy16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs)
    • 371-4387
    • 8GB DDR2-667 dual-rank Memory DIMM, RoHS:Y
    Power
    Option #Manufacturing
    Part #    		Description
    n/a300-1897 Buy1050 Watt Power Supply, Type A217, RoHS:Y
    n/a300-2169 Buy764W AC Input Power Supply and Fan Assembly, RoHS:Y
    n/a541-2073 BuyPower Distribution Board/Bus Bar Assembly, RoHS:Y
    • 341-3166
    • Bus Bar Left, RoHS:Y
    • 341-3167
    • Bus Bar Right, RoHS:Y
    • 501-7697
    • Horizontal Power Distribution Board, RoHS:Y
    • 501-7951
    • Vertical Power Distribution Board, RoHS:Y
    Rack
    Option #Manufacturing
    Part #    		Description
    n/a371-2740 BuySnap-In Slide Rail Rackmount Kit, 730mm, RoHS:Y
    n/a371-2741 BuyScrew-Mount Slide Rail Rackmount Kit, 730mm, RoHS:Y
    n/a371-2742 BuyCable Management Arm, RoHS:Y
    Removable Media
    Option #Manufacturing
    Part #    		Description
    n/a541-2732 BuyUSB Assembly, RoHS:Y
    • 330-4418
    • DVD Interconnect Holder, RoHS:Y
    • 341-4072
    • DVD Filler Panel, RoHS:Y
    • 501-7698
    • USB Board, RoHS:Y
    SCSI
    Option #Manufacturing
    Part #    		Description
    SG-XPCIE2SCSIU320Z Buy375-3357Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
    SG-XPCIESAS-S7-Z375-3487PCI Express 8-Port Host Adapter, RoHS:Y
    System Board
    Option #Manufacturing
    Part #    		Description
    n/a341-4139PCI Filler Panel, RoHS:Y
    n/a540-7952 BuyMotherboard, RoHS:YL
    • 3V Lithium coin battery, RoHS:Y
    n/a541-2297Motherboard, RoHS:YL
    • 3V Lithium coin battery, RoHS:Y
