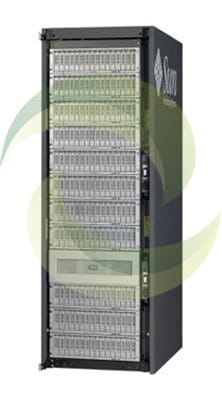

    Oracle Sun Storage 6540 16 Bay Disk Array

    Specs / Technical Details / 6540 Part Numbers / Price Quote Information

    oracle sun storage 6540 Oracle Sun Storage 6540 Specs Technical Price Sun StorageTek 6140

    Disks
    73GB 15K, FC
    146GB 10K, FC
    400GB 10K, FC
    146GB 15K, FC
    300GB 10K, FC
    300GB 15K, FC
    450GB 15K, FC
    500GB 7.2K, SATA
    600GB 15K, FC
    750GB 7.2K, SATA
    1TB 7.2K, SATA
    Characteristics for this array include:
    • Controller tray: Dual RAID controllers in a 4RU chassis
      Note: There are no disk drives installed within this tray.
    • Expansion tray: Five to sixteen hard disk drives per tray (3RU chassis)
    • Supports RAID 0, 1, 3, 5, and 1+0
    • Rack mountable
    Capacity
    Up to 16 Disk drives per array
    73.4GB Disk drives16 x 73.4 = 1.1744TB
    146.8GB Disk drives16 x 146.8 = 2.3488TB
    300GB Disk drives16 x 300 = 4.8TB
    450GB Disk drives16 x 450 = 7.2TB
    500GB Disk drives16 x 500 = 8.0TB
    750GB Disk drives16 x 750 = 12.0TB
    Total capacity depends on the following:
    • Number of expansion trays attached to a controller tray
    • Up to fourteen expansion trays can be attached to a controller tray
      • Mount a controller tray and 11 expansion trays in one rack
      • Mount 3 additional expansion trays in a second rack
    • A controller tray has no (0, zero) disk drives installed within its chassis
    • Example of available storage using a controller tray and:
      • 300GB FC drives in 11 expansion trays – total raw capacity = 52.8TB (16 x 300GB = 4.8TB x 11 = 52.8TB)
      • 500GB SATA drives in 14 expansion trays – total raw capacity = 112.0TB (16 x 500GB = 8.0TB x 14 = 112.0TB)

    Note 1: Total raw capacity decreases depending on RAID level and number of spares used within each array configuration.

    Note 2: The array configuration supports up to 15 global hot spare drives; each spare can be used for any disk in the array configuration.

    Environment



    AC inputController Tray
    • 2.65A Max Operating @ 240 VAC (180 – 264 VAC Range), 50/60 Hz

    Expansion Tray

    • 1.97A Max Operating @ 240 VAC (180 – 264 VAC Range), 50/60 Hz
    Power and coolingDual hot-swappable redundant 400W power supplies and fan modules
    (power and fan modules are enclosed in one unit)
    Heat outputController Tray – 235W (804 BTU/hr)
    Expansion Tray – 444W (1517 BTU/hr)
    TemperatureController Tray
    • Operating: 10° C to 40° C (50° F to 104° F)
    • Storage: -10° C to 50° C (-14° F to 120° F)
    • Transit: -40° C to 60° C (-40° F to 140° F)

    Expansion Tray

    • Operating: 10° C to 40° C (50° F to 104° F)
    • Storage: -10° C to 50° C (-14° F to 120° F)
    • Transit: -40° C to 60° C (-40° F to 140° F)
    HumidityController tray and expansion tray specifications are the same:
    • Operating: 10% to 90%, noncondensing
    • Nonoperating: 10% to 90%, 10% per hour Gradient
    AltitudeController tray and expansion tray specifications are the same:
    • Operating: 30.5 m to 3000 m (100 ft to 9840 ft)
    • Nonoperating: 30.5 m to 12000 m (100 ft to 40000 ft)
    VibrationController tray and expansion tray specifications are the same:
    • Operating: 0.20 G, 5 to 500 Hz sinusoidal
    • Nonoperating: 1.0 G, 5 to 500 Hz sinusoidal
    ShockController tray and expansion tray specifications are the same:
    • Operating: 5.0 g, 11 ms half sinewave
    • Nonoperating:
      • 5 G, 11 msec half sinewave in the front/back directions
      • 30 G, 11 msec half sinewave in the side/side and up/down directions
    Regulations
    Meets or exceeds the following requirements:



    RoHS Compliance LevelRoHS:YL
    ImmunityCISPR 24 (EN55024), IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
    Safety and EmissionsIEC 60950, EN 60950, UL 60950, UL 1950, FCC Part 15 (47CFR15B), CISPR 22 (EN55022 – RF Radiated and Conducted Emissions), IEC 61000-3-2, IEC 61000-3-3
    Dimensions and Weights



    Height
    • Controller Tray: 17.5 cm (6.9 in)
    • Expansion Tray: 12.95 cm (5.1 in)
    Width
    • Controller Tray: 48.3 cm (19.0 in)
    • Expansion Tray: 44.70 cm (17.6 in)
    Depth
    • Controller Tray: 63.0 cm (24.8 in)
    • Expansion Tray: 57.15 cm (22.5 in)
    Weight
    • Controller Tray: 36.5 kg (80.5 lbs)
    • Expansion Tray: 38.5 kg (85.0 lbs)
    Array Controller
    Option #Manufacturing
    Part #    		Description
    n/a371-1806RAID Fibre Channel Controller, 2GB memory, 4 host ports, RoHS:YL
    n/a371-1810RAID Fibre Channel Controller, 4GB memory, 4 host ports, RoHS:YL
    n/a371-1814RAID Fibre Channel Controller, 8GB memory, 4 host ports, RoHS:YL
    n/a375-3336FC Expansion I/O Module, RoHS:YL
    Backplane/Centerplane
    Option #Manufacturing
    Part #    		Description
    n/a540-6545Drive Cage Midplane, RoHS:Y
    Cables
    Option #Manufacturing
    Part #    		Description
    X9730A-Z537-1080Fibre Channel Optical Cable LC/LC, 0.8M, RoHS:Y
    X9732A-Z537-1081Fibre Channel Optical Cable LC/LC, 2M, 2.0M, RoHS:Y
    X9733A-Z537-1082Fibre Channel Optical Cable LC/LC, 5M, RoHS:Y
    X9734A-Z537-1083Fibre Channel Optical Cable LC/LC, 15M, RoHS:Y
    X9722A-Z537-1088Fibre Channel Optical Cable LC/SC, 2M, RoHS:Y
    X9723A-Z537-1089Fibre Channel Optical Cable LC/SC, 5M, RoHS:Y
    X9724A-Z537-1090Fibre Channel Optical Cable LC/SC, 15M, RoHS:Y
    n/a180-2082IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M, RoHS:Y
    n/a530-3100RJ45F to DB9F Adapter, RoHS:Y
    n/a530-3544PS2 6-pin DIN to RJ-45 Cable (2M), RoHS:Y
    n/a530-3569CSM200 Cable (2m, HSSDC2), RoHS:Y
    n/a530-3635RJ45 to RJ45 Shielded Ethernet Cable, 1M, RoHS:Y
    n/a530-3879RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 2M, RoHS:Y530-3633
    n/a530-3880RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M, RoHS:Y530-3794
    n/a537-1094LC to LC Cable Assembly (1m), RoHS:Y
    Disks
    Option #Manufacturing
    Part #    		Description
    XTC-FC1CF-300G15KZ540-7156300GB – 15000 RPM FC-AL Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0330
    • Seagate ST3300655FC [ST330055FSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0420
    • Seagate ST3300656FC [ST330056FSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0462
    • Seagate ST3300657FC [ST330057FSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0482
    • Hitachi HUS156030VLF400 [HUS1530FCSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-FC1CF-600G15K542-0163600GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks and brackets:, RoHS:Y
    • 390-0477
    • Seagate ST3600957FC [ST360957FSUN600GB]
      (600GB – 15000 RPM FC-AL), RoHS:Y
    • 390-0484
    • Hitachi HUS156060VLS401 [HUS1561FCSUN600G]
      (600GB – 15000 RPM FC-AL), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-ST1CF-1TB7KZ540-75901TB – 7200 RPM SATA, Disk Assembly with one of the following disks:
    • 390-0381
    • Hitachi HUA721010KLA330 [HUA7210SASUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0473
    • Seagate ST31000524NS [ST31001NSSUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    XTC-ST1CF-2TB7K542-01642TB – 7200 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0467
    • Hitachi H7220AA30 [H7220AA30SUN2.0T]
      (2TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0474
    • Seagate ST32000644NS [ST32000NSSUN2.0T]
      (2TB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    XTA-FC1CF-146G10K540-6549146GB – 10000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0257
    • Fujitsu MAW3147FC [MAW3147FCSUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0270
    • Hitachi HUS1014FA [HUS1014FASUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0280
    • Seagate ST3146707FC [ST314670FSUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTA-FC1CF-146G15K540-6550146GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0299
    • Seagate ST3146954FC [ST314695FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0313
    • Fujitsu MAX3147FD [MAX3147FDSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0328
    • Seagate ST3146855FC [ST314655FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0419
    • Seagate ST3146356FC [ST314656FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTA-FC1CF-300G10K540-6551300GB – 10000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0271
    • Hitachi HUS1030FA [HUS1030FASUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0281
    • Seagate ST3300007FC [ST330000FSUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTA-FC1CF-73G15K540-654873GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0300
    • Seagate ST373554FC [ST373554FSUN72G]
      (73GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0312
    • Fujitsu MAX3073FD [MAX3073FDSUN72G]
      (73GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0326
    • Seagate ST373455FC [ST373455FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTA-ST1CF-500G7K540-6635500GB – 7200 RPM SATA, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0247
    • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0355
    • Seagate ST3500630NS [ST35000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0383
    • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    XTC-FC1CF-146G15KZ540-6550146GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0299
    • Seagate ST3146954FC [ST314695FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0313
    • Fujitsu MAX3147FD [MAX3147FDSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0328
    • Seagate ST3146855FC [ST314655FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0419
    • Seagate ST3146356FC [ST314656FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-FC1CF-300G10KZ540-6551300GB – 10000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0271
    • Hitachi HUS1030FA [HUS1030FASUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0281
    • Seagate ST3300007FC [ST330000FSUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-FC1CF-400G10KZ540-7379400GB – 10000 RPM FC-AL Disk Assembly, RoHS:Y
    • 390-0396
    • Seagate ST3400755FC [ST340008FSUN0.4T]
      (400GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-FC1CF-450G15K540-7674450GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0421
    • Seagate ST3450856FC [ST345056FSUN450G]
      (450GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-FC1CF-73G15KZ540-654873GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0300
    • Seagate ST373554FC [ST373554FSUN72G]
      (73GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0312
    • Fujitsu MAX3073FD [MAX3073FDSUN72G]
      (73GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0326
    • Seagate ST373455FC [ST373455FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 541-0882
    • Drive Mounting Bracket (HDD Carrier), RoHS:Y
    XTC-ST1CF-500G7KZ540-6635500GB – 7200 RPM SATA, Disk Assembly with one of the following disks:, RoHS:Y
    • 390-0247
    • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0355
    • Seagate ST3500630NS [ST35000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0383
    • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    XTC-ST1CF-750G7KZ540-7245750GB – 7200 RPM SATA Disk Assembly with one of the following disks, RoHS:Y
    • 390-0356
    • Seagate ST3750640NS [ST37500NSSUN750G]
      (750GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0379
    • Hitachi HUA721075KLA330 [HUA7275SASUN750G]
      (750GB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-1406
    • Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
    Fibre Channel
    Option #Manufacturing
    Part #    		Description
    SG-XPCIE2FCGBE-E-Z371-40184Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex, RoHS:Y
    SG-XPCIE2FCGBE-Q-Z371-40174Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic, RoHS:Y
    SG-XPCIEFCGBE-E8-Z371-46668Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex, RoHS:Y
    SG-XPCIEFCGBE-Q8-Z371-45228Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic, RoHS:Y
    n/a371-02944Gbps Short Wave SFP, RoHS:Y
    n/a371-17994Gbps Short Wave SFP, RoHS:Y
    Miscellaneous
    Option #Manufacturing
    Part #    		Description
    n/a371-1807Interconnect Module, RoHS:YL
    n/a371-2093MT5634ZBA-V.92 Modem, RoHS:Y
    n/a541-1827Patch Panel Assembly, RoHS:Y
    Power
    Option #Manufacturing
    Part #    		Description
    n/a300-1826AC Input Power Supply (CSM200), RoHS:YL
    n/a300-2055AC Input Power Supply (CSM200), RoHS:YL
    n/a300-2319AC Input Power Supply (CSM200), 2nd Edition, RoHS:YL
    n/a371-1808Battery Backup Unit, RoHS:YL
    n/a371-1809400 Watt Power Supply (Controller Tray), RoHS:YL
    Rack
    Option #Manufacturing
    Part #    		Description
    XTA6000-RK2-RAIL594-5885Rack Rail Kit for Sun Rack II, RoHS:Y
    • 540-7796
    • Mounting Rail Kit, RoHS:Y
    • 341-4881
    • Mounting Rail, RoHS:Y
    XTA6000KRM-RK-RL350-1532Rack Rail Kit for Sun Rack II, RoHS:Y
    XTA6X80CTRL-RK2-RL542-0150Fixed Rail Mounting Kit, RoHS:Y
    • 341-4882
    • Mounting Rail, RoHS:Y
    • 341-4883
    • Mounting Rail, RoHS:Y
    XTA6540-BCAB-38-0Z594-3615STK 6540 Base Cabinet, RoHS:Y
    XTA6540-ECAB-38-0Z594-3614STK 6540 Expansion Cabinet, RoHS:YL
    XTACSM2-RK-3RU-19U540-65983U Rack Rail Kit for Standard 19-inch System Cabinets, RoHS:Y

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
