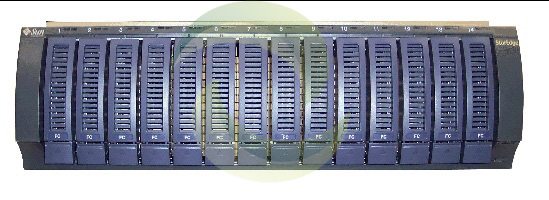

Oracle Sun Storage 5320

REQUEST A PRICE QUOTE:

Disks
*Unit*	*Disk Configuration*
Sun StorageTek 5320 NAS Appliance (Internal)	No disks installed within this unit.
Sun StorageTek 5320 RAID Expansion Unit (External)	Up to sixteen disk drives as follows: 300GB FC 500GB SATA
Sun StorageTek 5320 Expansion Unit (External)	Up to sixteen disk drives as follows: 300GB FC 500GB SATA
Capacity
*Unit*	*Total Storage Capacity Per Unit*
Sun StorageTek 5320 NAS Appliance (Internal)	No disks installed within this unit.
Sun StorageTek 5320 RAID Expansion Unit (External)	4.800TB (16 × 300GB) 8.000TB (16 × 500GB)
Sun StorageTek 5320 Expansion Unit (External)	4.800TB (16 × 300GB) 8.000TB (16 × 500GB)
Mass Storage	Is as follows: Maximum StorageTek 5320 RAID Expansion Units (EUs): 4 Maximum StorageTek 5320 Expansion Units: 24 EUs (maximum) 6 attached to each RAID EU
Note 1: Maximum capacity depends on the number of external arrays you attach to the 5320 NAS Appliance. Note 2: A Sun StorageTek 5320 NAS Appliance, with a Sun StorageTek 5320 RAID Expansion Unit, and a Sun StorageTek 5320 Expansion Unit can provide up to: 9.600 TB of storage using the 300GB disks (32 × 300GB) 16.000 TB of storage using the 500GB disks (32 × 500GB)
Processor
Number	1
Architecture	2.6GHz CPU, AMD Opteron 252, Single Core
Cache memory	1-MB Level 2 cache
Memory
PC3200 DDR400 ECC registered DIMM, system supports 4 × 1 GB DIMMs
Standard Interfaces
Network	Four 10/100/1000BaseT Ethernet ports
SCSI	Optional: One Ultra 320 SCSI multimode (SE/LVD)
USB	Two USB 1.1 ports
Expansion Bus	Five internal PCI-X 64-bit/100 MHz
Fibre Channel (FC)	1 or 2 dual-port 2-Gb FC HBAs
Power Supplies
Sun StorageTek 5320 NAS Appliance	Equipped with two 550W power supplies Note: Second power supply is for redundancy.
Sun StorageTek 5320 RAID Expansion Unit	Equipped with two 400W power supplies Note: Second power supply is for redundancy.
Sun StorageTek 5320 Expansion Unit	Equipped with two 400W power supplies Note: Second power supply is for redundancy.
Environment
AC Power	NAS Appliance: 100 – 240VAC, 50/60Hz RAID Expansion Unit: 2.9 amps maximum operating @ 100VAC, 50/60Hz 1.5 amps maximum operating @ 240VAC, 50/60Hz Expansion Unit: 5.8 amps maximum operating @ 115VAC, 47-63Hz 2.9 amps maximum operating @ 230VAC, 47-63Hz
Heat Output	NAS Appliance: n/a RAID Expansion Unit: 1331 BTU/hr Expansion Unit: 1331 BTU/hr
Operating Temperature	NAS Appliance: 10° C to 35° C (50° F to 95° F) RAID Expansion Unit: 10° C to 35° C (50° F to 95° F) Expansion Unit: 10° C to 35° C (50° F to 95° F)
Nonoperating Temperature	NAS Appliance: -40° C to 65° C (-40° F to 149° F) RAID Expansion Unit: -10° C to 45° C (14° F to 113° F) Expansion Unit: -10° C to 45° C (14° F to 113° F)
Operating Humidity	NAS Appliance: 10% to 90% (noncondensing) RAID Expansion Unit: 20% to 80% (noncondensing) Expansion Unit: 20% to 80% (noncondensing)
Nonoperating Humidity	NAS Appliance: Up to 93% (noncondensing) RAID Expansion Unit: 10% to 90% (noncondensing) Expansion Unit: 10% to 90% (noncondensing)
Operating Altitude	NAS Appliance (non-rack): Up to 3048 m (10000 ft)¹ RAID Expansion Unit: 30.5 m (100 ft) below sea level to 12000 m (40000 ft) Expansion Unit: 30.5 m (100 ft) below sea level to 12000 m (40000 ft) ¹Maximum ambient temperature is derated by 1 degree C per 300 m (984.252 ft) above 900m (2952.76 ft).
Nonoperating Altitude	Up to 12000 m (39370.1 ft)
Dimensions and Weights
Height	NAS Appliance: 8.76 cm (3.45 in) RAID Expansion Unit: 12.95 cm (5.1 in) Expansion Unit: 12.95 cm (5.1 in)
Width	NAS Appliance: 44.5 cm (17.52 in) RAID Expansion Unit: 48.26 cm (19 in) Expansion Unit: 48.26 cm (19 in)
Depth	NAS Appliance: 64.0 cm (25.2 in) RAID Expansion Unit: 57.15 cm (22.5 in) Expansion Unit: 57.15 cm (22.5 in)
Maximum Weight	NAS Appliance: 23.6 kg (52.1 lb) RAID Expansion Unit: 40 kg (88 lb) Expansion Unit: 40 kg (88 lb)

Array Controller
Option #	Manufacturing Part #	Description
n/a	371-0717	Battery Backup Unit, RoHS:YL
n/a	375-3336	FC Expansion I/O Module, RoHS:YL
n/a	375-3377	RAID Fibre Channel Controller, 1GB memory, 2 host ports, 133 MHz PCI, RoHS:YL
n/a	375-3583	RAID Fibre Channel Controller with SOC422 EEPROM, 1GB memory, 2 host ports, 133 MHz PCI, RoHS:YL

Backplane/Centerplane
Option #	Manufacturing Part #	Description
n/a	540-6545	Drive Cage Midplane, RoHS:Y

CPU Module
Option #	Manufacturing Part #	Description
n/a	240-4987	25mm Heatsink Shoulder Screw, RoHS:Y
n/a	240-4988	10mm Heatsink Spring, RoHS:Y
n/a	310-0014	CPU Heatsink Assembly, RoHS:Y
n/a	310-0049	G751 Thermal Grease Syringe, RoHS:Y
n/a	370-7937	2.6GHz CPU, AMD Opteron 252, E4 Stepping, RoHS:Y

Cables
Option #	Manufacturing Part #	Description
X311L	Localized Power Cord Kit – North America/Asia, RoHS:Y
X311L	180-1097	IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
X320A	Localized Power Cord Kit – North America/Asia, RoHS:Y
X320A	180-2164	IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black, RoHS:Y
X9732A-Z	537-1081	Fibre Channel Optical Cable LC/LC, 2M, 2.0M, RoHS:Y
X9734A-Z	537-1083	Fibre Channel Optical Cable LC/LC, 15M, RoHS:Y
X9736A-Z	537-1084	Fibre Channel Optical Cable LC/LC, 25M, RoHS:Y
X9738A-Z	537-1085	Fibre Channel Optical Cable LC/LC, 50M, RoHS:Y
n/a	530-1351	IEC 320 C13 to NEMA 6-15 – 10A/250V 2.0M Black, RoHS:Y
n/a	530-3522	UPS Adapter Cable, USB to DB9, RoHS:Y

Disk Backplane
Option #	Manufacturing Part #	Description
n/a	501-7216	4-Slot SCSI Disk Backplane, RoHS:YL

Disks
Option #	Manufacturing Part #	Description
XTA5320F8-300G10KZ	540-6551	300GB – 10000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
	390-0271	Hitachi HUS1030FA [HUS1030FASUN300G] (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
	390-0281	Seagate ST3300007FC [ST330000FSUN300G] (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
	541-0882	Drive Mounting Bracket (HDD Carrier), RoHS:Y
XTA5320S8-500G7K-Z	540-6635	500GB – 7200 RPM SATA, Disk Assembly with one of the following disks:, RoHS:Y
	390-0247	Hitachi HDS725050KLA360 [HDS7250SASUN500G] (500GB – 7200 RPM – SATA Disk), RoHS:Y
	390-0355	Seagate ST3500630NS [ST35000NSSUN500G] (500GB – 7200 RPM – SATA Disk), RoHS:Y
	390-0383	Hitachi HUA721050KLA330 [HUA7250SBSUN500G] (500GB – 7200 RPM – SATA Disk), RoHS:Y
	541-1406	Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y
n/a	540-6550	146GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:, RoHS:Y
	390-0299	Seagate ST3146954FC [ST314695FSUN146G] (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0313	Fujitsu MAX3147FD [MAX3147FDSUN146G] (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0328	Seagate ST3146855FC [ST314655FSUN146G] (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0419	Seagate ST3146356FC [ST314656FSUN146G] (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
	541-0882	Drive Mounting Bracket (HDD Carrier), RoHS:Y
n/a	540-7156	300GB – 15000 RPM FC-AL Disk Assembly with one of the following disks:, RoHS:Y
	390-0330	Seagate ST3300655FC [ST330055FSUN300G] (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0420	Seagate ST3300656FC [ST330056FSUN300G] (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0462	Seagate ST3300657FC [ST330057FSUN300G] (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
	390-0482	Hitachi HUS156030VLF400 [HUS1530FCSUN300G] (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
	541-0882	Drive Mounting Bracket (HDD Carrier), RoHS:Y
n/a	540-7245	750GB – 7200 RPM SATA Disk Assembly with one of the following disks, RoHS:Y
	390-0356	Seagate ST3750640NS [ST37500NSSUN750G] (750GB – 7200 RPM – SATA Disk), RoHS:Y
	390-0379	Hitachi HUA721075KLA330 [HUA7275SASUN750G] (750GB – 7200 RPM – SATA Disk), RoHS:Y
	541-1406	Drive Mounting Bracket (SATA HDD Carrier), RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
XTA5000-NC2-1G-Z	371-2289	PCI-X Dual Gigabit Ethernet, RoHS:YL
XTA5000-NF2-1G-Z	594-3422	Dual-port Gigabit MMF NIC, RoHS:Y
	375-3250	Intel PRO/1000MF Dual Gigabit Ethernet
	537-1081	Fibre Channel Optical Cable LC/LC, 2M, 2.0M, RoHS:Y
n/a	370-6687	PCI-X Dual Gigabit Ethernet, RoHS:YL

Fan
Option #	Manufacturing Part #	Description
n/a	501-6917	Server Fan Board (A65/A87), RoHS:Y
n/a	541-0269	Fan Module (Single Fan), RoHS:Y
n/a	541-0645	Rear Fan Tray, RoHS:Y

Fibre Channel
Option #	Manufacturing Part #	Description
XTA5000-HF2-2G-Z	375-3421	2Gb/sec 2-port FC HBA, RoHS:Y
n/a	371-0294	4Gbps Short Wave SFP, RoHS:Y
n/a	371-1799	4Gbps Short Wave SFP, RoHS:Y

I/O
Option #	Manufacturing Part #	Description
n/a	501-6978	Front I/O Board w/Cover Interlock Switch, RoHS:YL

Memory
Option #	Manufacturing Part #	Description
n/a	540-6854	Programmed Compact Flash (256MB) Card, RoHS:Y
n/a	371-1968	256MB Compact Flash (Unprogrammed), RoHS:Y
n/a	541-1111	Compact Flash Module, RoHS:Y
n/a	F541-1430	2 GB (2 × 1GB) DDR1 Memory DIMM, RoHS:Y
n/a	371-1096	1 GB DDR1 Memory DIMM, RoHS:Y

Miscellaneous
Option #	Manufacturing Part #	Description
n/a	380-1382	LCD Module Assembly, RoHS:Y
n/a	501-6916	LED/Switch Board (A65/A87), RoHS:Y

Power
Option #	Manufacturing Part #	Description
n/a	300-1826	AC Input Power Supply (CSM200), RoHS:YL
n/a	300-1848	550 Watt, Type A214 Power Supply, RoHS:YL
n/a	300-1945	550 Watt, Type A203, AC Input Power Supply, RoHS:YL
n/a	300-2055	AC Input Power Supply (CSM200), RoHS:YL
n/a	300-2319	AC Input Power Supply (CSM200), 2nd Edition, RoHS:YL
n/a	501-6920	Power Distribution Board, RoHS:YL

Rack
Option #	Manufacturing Part #	Description
n/a	370-7668	Cable Management Arm, RoHS:Y
n/a	370-7669	Slide Rail Kit, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
SGXPCI1SCSILM320-Z	375-3366	PCI Single Ultra320 SCSI Adapter

System Board
Option #	Manufacturing Part #	Description
n/a	501-7514	System Board, RoHS:YL
n/a	150-3993	Panasonic BR2032 Battery, RoHS:Y

System Service Processor
Option #	Manufacturing Part #	Description
n/a	501-6979	Service Processor Board, RoHS:YL
