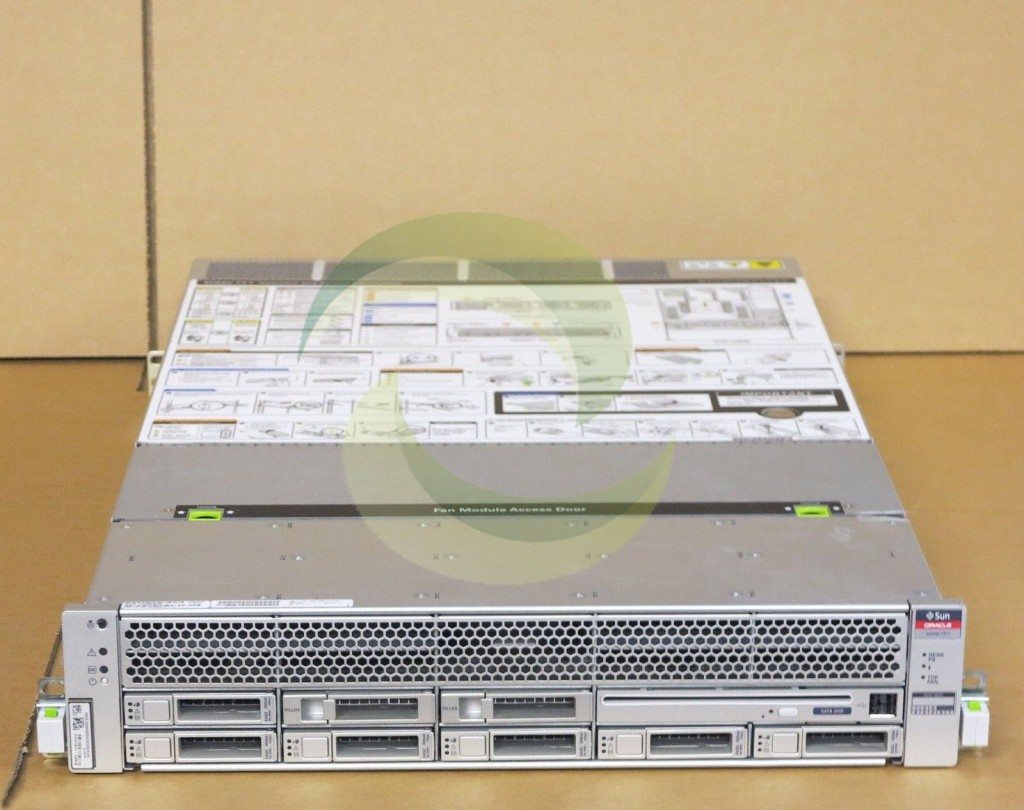

Sun Oracle T3-1 1x SIXTEEN-CORE 1.65GHz,64Gb RAM

1 x SIXTEEN-CORE SPARC T3 1.65Ghz Processor

64Gb MEMORY

6 x 2.5″ 300Gb 10k 6Gbps SAS Drives

2 x ATLS1QGE 4-Port Gigabit PCI-e Network Adapters

2 x QLE2560 8Gb Host Bus Adapters

DVD-ROM Optical Drive

2 x 1200w Power Supplies

Specifications

Key Applications

• Web Infrastructure
• Middleware
• Application Development
• Multithreade
• Applications
• Java Applications
• Virtualization and consolidation

Architecture

• Processor: One 16-core 1.65 GHz SPARC T3 processor, SPARC V9 architecture, ECC protected
• 6 MB integrated Level 2 (L2) cache
• Dual multithreaded 10 Gigabit Ethernet PCI integrated on the chip
• Onboard cryptography supporting embedded security industry – standard cryptographic algorithms: AES, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA-1, SHA-256, SHA-384, SHA-512, plus random number generation

Main Memory

• 16 DIMM slots
• System maximum of 128 GB
• Support for 2 GB, 4 GB, and 8 GB DDR3 DIMMs

Interfaces

• Four 10/100/1000 Mb/sec Ethernet ports
• Up to 2x optional 10 GbE XAUI connections
• Six PCI Express 2.0 slots
• One RJ45 serial management port and one RJ45 network port for remote management
• Four USB 2.0 ports
• One HD15 VGA port
• One optional front accessible slim line SATA DVD+/- RW drive

Mass Storage

• Internal disk: Up to eight or sixteen 2.5” SAS – 2/SATA – 2 front accessible hot pluggable disk drive bays, depending on selected backplane. All bays can be populated with 300 GB or 600 GB SAS – 2 hard disk drives. 32 GB SATA – 2 Solid state drives are supported in the 8 disk backplane only. Optional Sun Flash Accelerator F20 PCIe adapter card

Power

• Two hot-swappable AC 1200W redundant (N+1) power supplies
• Maximum operating input current at 100 VAC: 9.4 A
• Maximum operating input current at 200 VAC: 4.7 A
• Maximum operating input power at 100 VAC: 896W
• Maximum operating input power at 200 V AC: 888W

Key RAS Features

• Hot pluggable disk drives
• Redundant, hot swappable power supplies and fans
• Environmental monitoring
• Error correction and parity checking
• Easy component replacement
• Electronic Prognostics
• Internal
• hardware drive mirroring (RAID 1)
• RAID 0 and RAID 1 support

Environment

• Operating temperature – Sea level to 900 m (3,000 ft.): 5°C to 35°C (41°F to 95°F); above 900 m (2,953 ft.): decrease the maximum allowable temperature by 1°C/300 m (1.6°F/1,000 ft.); IEC 60068-2-1 Test Ad and 60068-2-2 Test Bd
• Nonoperating temperature: -40°C to 65°C (-40°F to 149°F); IEC 60068-2-1 Test Ab and 60068-2-2 Test Bb
• Operating relative humidity: 10% to 90% RH, 27°C maximum wet bulb (noncondensing); IEC 60068-2-56 Test Cb
• Nonoperating relative humidity: 93% RH, 35°C maximum wet bulb (noncondensing); IEC 60068-2-56 Test Cb
• Operating altitude: 3,000 m (10,000 ft.); IEC 60068-2-13 Test M, and 60068-2-41 Test Z/BM
• Nonoperating altitude: 12,000 m (40,000 ft.); IEC 60068-2-13 Test M
• Operating/idling acoustic noise 7.1 B (LwAd, 1 B = 10 dB), operating/idling acoustic noise 63 dB (LpAm, bystander positions)
• Maximum heat dissipation at 100 VAC: 3057 BTU/hr
• Maximum heat dissipation at 200 VAC: 3030 BTU/hr?

Dimensions and Weight

• Height: 88 mm (3.49 in); 2 RU
• Width: 425 mm (16.75 in)
• Depth: 714 mm (28.13 in)
• Weight: Approximate 27.2 kg (60 lb)
