Oracle Sun Netra X5-2 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor
Number	2 Processors
Architecture	Type: Intel Xeon E5-2600 v3 Processor Series
CPUs	Intel Xeon 2.3GHz 18-Core E5-2699 v3, 145W (capped at 120W)
Cache	Level 1: 64 KB cache per core including 32 KB L1 data + 32 KB L1 instruction Level 2: 256 KB shared data and instruction L2 cache per core Level 3: Up to 8 MB shared inclusive L3 cache per processor
Main Memory
Capacities	DIMM Slots: 24 DIMM Size and Type: 32 GB LR DDR4-2133 or 16 GB DDR4-2133 Minimum Memory Capacity: 64GB using 32GB DIMMs or 32GB using 16GB DIMMs Maximum Memory Capacity: 768 GB using 32GB DIMMs or 384 GB using 16GB DIMMs DIMMs per memory channel: 3 Advanced ECC: Yes
Standard I/O
Network	Four onboard auto-sensing 100/1000/10,000 BASE-T Ethernet (GbE) ports (RJ-45 connector)
Network Management	One 10/100/1000 Base-T Network Management (NET MGT/RJ-45 connector) port
Serial Management	One serial console (SER MGT/RJ-45 connector) port
USB	Rear: 2 USB 2.0 (capable of 3.0) Ports Front: 2 USB 2.0 Ports Internal: 2 USB 2.0 Ports
Graphics	One VGA 2D embedded graphics controller with DB-15 connector Resolution: 1,600 x1,200×16 MB @ 60 Hz. 1,024 x 768 when viewed remotely via Oracle ILOM.
I/O Expansion	Six low profile PCIe 3.0 slots: PCI-E slot 1: x16 PCI-E slot 2: x8 PCI-E slot 3: x8 PCI-E slot 4: x8 PCI-E slot 5: x16 PCI-E slot 6: x8 (optional full RAID support HBA occupies slot 6)
Internal Mass Storage

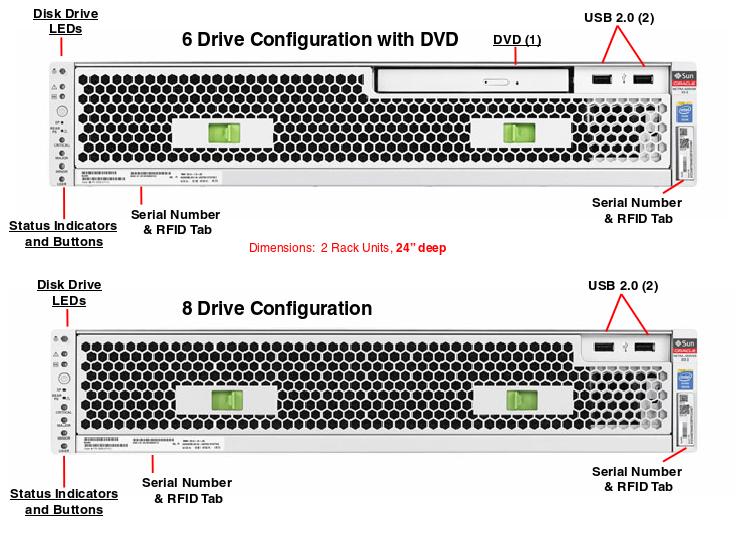

Disks and DVD	Two Disk Backplanes configurations Eight-disk chassis: eight 2.5-inch SAS-3 front accessible, hot-swappable disk bays with no DVD-RW Six-disk chassis: six 2.5-inch SAS-3 front accessible, hot-swappable disk bays and DVD-RW Internal 8GB USB 2.0 Flash Drive Supported Disks: 1.2TB – 10000 RPM, 600GB – 10000 RPM, and 400GB Solid State SAS Drive Front Bays: Support 10,000 RPM RAID: The motherboard LSI3008 SAS3 controller supports IT (Initiator/Target) mode The motherboard LSI3008 SAS3 controller does not support IR (Integrated RAID) or RAID 0/1 Optional full RAID support requires RAID Disk Controller installed in PCIe slot 6 The RAID Disk Controller includes a SuperCap module that acts as a battery backup for cache
Power Supplies
Two 1,200W (1+1 Redundancy) AC and DC
Environment
Power Consumption	Online power calculator
AC power	Operating voltage: 100 to 240 VAC
DC power	Operating voltage: -40 to -72 VDC
Temperature	Operating: 5° C to 45° C (41° F to 113° F); short term: -5° C to 55° C (23° F to 131° F) Nonoperating: -40° C to 70° C (-40° F to 158° F)
Humidity	Operating: 5% to 85% relative humidity noncondensing, but not to exceed 0.024 Kg water/Kg dry air (0.053 lb. water/2.205 lb. dry air) Nonoperating: 93% noncondensing, 40° C (104° F) Short-term: 5% – 90% relative humidity noncondensing, but not to exceed 0.024 Kg water/Kg dry air (0.053 lb. water/2.205 lb. dry air)
Altitude	Operating: meets NEBS 4,000 m (13,123 ft.) requirement Nonoperating: up to 12,000 m (39,370 ft)
Acoustic Noise	Operating/idling less than 7.2 dB @ 23° C (LwAd: 1 B=10 dB)
Regulations Meets or exceeds the following requirements:
ETSI	EN 300019-2-1,2,3, Class 1.2, 2.3, 3.1E (except condensing humidity and rain)
NEBS	NEBS Level 3 certified by Telecordia
Seismic	GR-63-CORE requirements for earthquake Zone 4
Safety	UL/CSA-60950-1, EN60950-1-2006, IEC60950-1 CB scheme with all country differences
Emissions	FCC CFR 47 Part 15, ICES-003, EN55024, EN61000-3-2 and EN61000-3-3, EN300-386
Immunity	EM55024
Certifications	North America Safety (NRTL) European Union (EU) International CB Scheme BIS (India) BSMI (Taiwan) RCM (Australia) CCC (PRC) MSIP (Korea) VCCI (Japan) EAC (Russia)
European Union Directives	2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive 2011/65/EU RoHS Directive 2012/19/EU WEEE Directive
Dimensions and Weights
Height	87.1mm (3.43 in).
Width	(including bezel): 445mm (17.52 in) and without bezel 425.4 mm (16.75 in.).
Depth	640.0 mm (25.2 in.) with power supplies, or 609.45 mm (24 in.) without power supplies.
Weight	17.5 kg (38.5 lbs) fully populated.
Rack Mounting
Netra Server X5-2 Racks	Rack Units: 2 19″ 4-Post Rackmount Brackets New Netra Chassis is 24″ deep, 2U high Sun Rack 1242 support Sun Rack 1042 support

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7026486 [F]	CPU Heatsink	n/a
n/a	7095106 ¹ [F]	18-Core 2.3GHz Intel E5-2699 v3, 145W	n/a

¹ In the Netra Server X5-2, CPU power is capped at 120W to meet NEBS standards.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
7105199	7063849 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M	n/a
7105206	7063852 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M	n/a
7111045	7097692	SAS Cable Kit	n/a
	7087616 [F]	SFF-8087 to SFF-8643 Mini SAS HD Cable 0-3, 460mm	n/a
	7087617 [F]	SFF-8087 to SFF-8643 Mini SAS HD Cable 4-7, 615mm	n/a
X2121A-1M-N	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-3M-N	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
X333V-30-15-C14-N	7040693 [C]	IEC 320 C13 to IEC 320 Sheet E, 10A, 3M	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	530-3623	Shielded RJ45 to RJ45 Cable, 4M	n/a
n/a	7040692 [C]	IEC 320 C13 to IEC 320 Sheet E – 10A/250V 2.0M	n/a
n/a	7082455	10-Pin USB to System Board Cable, 385mm	n/a
n/a	7087613	34-Pin PDB to System Board Cable, 80mm	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7082761 [F]	LED Alarm Assembly	n/a
n/a	7082454	14-Pin LED Alarm to System Board Cable, 280mm	n/a
n/a	7097723	Power Supply Air Duct	n/a
n/a	7301504	System Air Duct	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7082063	6-Slot Disk Backplane Assembly	n/a
	7082650 [F]	6-Slot Disk Backplane	n/a
	7082748 [C]	6-Disk Backplane Air Filter Assembly	n/a
	7017276	6-Disk Backplane Air Filter Frame	n/a
	7082749	6-Disk Backplane Air Filter	n/a
n/a	7082453 [F]	26-Pin System Board to Disk Backplane Signal Cable, 286mm	n/a
n/a	7082456 [F]	System Board to Disk Backplane SAS 0-3 Cable, 320mm	n/a
n/a	7082457 [F]	System Board to Disk Backplane SAS 4-7 Cable, 500mm	n/a
n/a	7082793	8-Slot Disk Backplane Assembly	n/a
	7082652 [F]	8-Slot Disk Backplane	n/a
	7097474 [C]	8-Disk Backplane Air Filter Assembly	n/a
	7017278	8-Disk Backplane Air Filter Frame	n/a
	7097488	8-Disk Backplane Air Filter	n/a
n/a	7087610 [F]	8-Pin System Board to Disk Backplane Power Cable, 230mm	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7110933	7094132 [C]	400GB Solid State SAS Drive Assembly	n/a
	7093645	400GB SAS Solid State Drive [HSCAC2DA4SUN400G]	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7111103	7093015 [C]	600GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7093013	Hitachi HUC101860CSS200 (600.0GB – 10000 RPM SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7111108	7093037 [C]	1.2TB – 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:	n/a
	7093035	Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB – 10000 RPM – SAS DISK)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7045850 [C]	1.2TB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7082883	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7064135 [C]	600GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	7066795	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
7100481	7070202 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	n/a
7100488	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2124A	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7019706 [C]	Single Fan Module	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101676	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101678	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
7101684	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101686	7023053	16Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
7101688	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7082759 [F]	USB Assembly	n/a
n/a	7082455	10-Pin USB to System Board Cable, 385mm	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7111037	7097801 [C]	16GB DDR4-2133 Registered DIMM	n/a
7111039	7097802 [C]	32GB DDR4-2133 Registered DIMM	n/a
n/a	7090170 [C]	8GB USB Stick	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	565-1962 [F]	Wago DC Connector Set	n/a
	130-6940	Wago DC Connector	n/a
	230-4851	Wago DC Connector Clamp Tool	n/a
n/a	7081590 [C]	Type A249A 1100/1200 Watt AC Input Power Supply	n/a
n/a	7082760 [F]	Power Distribution Assembly	n/a
	7085225 [F]	Power Distribution Board	n/a
	7087613	34-Pin PDB to System Board Cable, 80mm	n/a
n/a	7087767 [C]	Type D204A 1200 Watt DC Input Power Supply	n/a
n/a	7093598 [C]	Type A249B 1200 Watt AC Input Power Supply	n/a
n/a	7307199 [C]	D204A 1200 Watt DC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X7901A-4-N	371-1478	19″ 2-post Rackmount Kit	n/a
XSR-JUMP-1MC13-N	7015399 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a
XSR-JUMP-2MC13-N	7015400 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7082458 [F]	DVD Cable	n/a
n/a	7309375 [C]	Tray-Load DVD Assembly	n/a
	7081170	DVD Tray	n/a
	7082449	DVD Bezel	n/a
	7089963	8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5)	n/a
	7309891	8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)	n/a
	7318291	DVD Bezel	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7110117	7085209 [F]	8-Port 12Gbps SAS3 Internal RAID HBA	n/a
	7086345 [F]	13.5V 6.4F Super Capacitor	n/a
	7086346 [F]	Super Capacitor Cable	n/a
7110119	7085208 [C]	8-Port 12Gbps SAS PCI Express HBA	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7316666 [F]	Motherboard Assembly	n/a
	7082762	Motherboard Tray	n/a
	7082763	Motherboard	n/a
n/a	7082502 [F] [S]	Motherboard Assembly	n/a
	7082762	Motherboard Tray	n/a
	7082763	Motherboard	n/a
