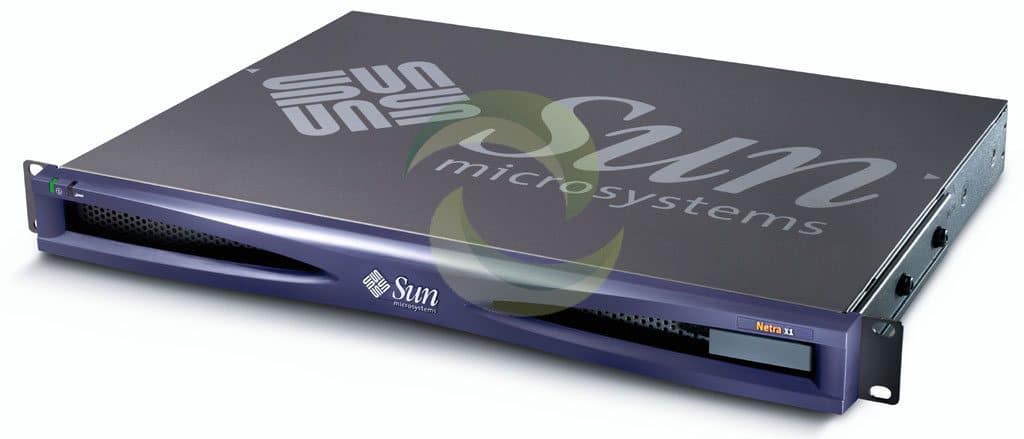

Oracle Sun Netra X1 SERVER
REQUEST A PRICE QUOTE:
| Racking | |
| Standard telco racks: 19 in. | |
| Processor | |
| Number | One |
| Architecture | 400 MHz or 500 MHz UltraSPARC IIe |
| Cache | 16 KB data and 16 KB instruction on-chip; Secondary: 256 on-chip |
| Main Memory | |
| Capacities | 128- or 256-MB DIMMs 512-MB DIMMs (500 MHz models)1 GB maximum (400 MHz models) 2 GB maximum (500 MHz models) |
| Standard Interfaces | |
| Ethernet | Two ethernet/fast ethernet (10BASE-T/100BASE-T) shielded twisted-pair (STP) connector (RJ-45) |
| Serial | Two RS-232C/RS-423 serial ports (RJ45); port A is used for LOM |
| System Configuration Reader and Card | Rear-accessible for transfer of system configuration information, including hostid |
| USB | Two standard Universal Serial Bus (USB) Type A ports |
| Internal Mass Storage | |
| Disk | Up to two 5400 RPM, 20-GB IDE disks (400 MHz models) Up to two 7200 RPM, 40.8-GB ATA disks (500 MHz models) |
| Environment | |
| AC input | 90 – 264 VAC, 47 – 63 Hz, 1.3 A(max) |
| Input power | 81 W(max) |
| Heat output | 148 BTU/hr (nominal) to 280 BTU/hr (max) |
| Temperature |
Operating: 5° C to 40° C (41° F to 104° F) Nonoperating: -40° C to 70° C (-40° F to 158° F) |
| Humidity |
Operating: 5% to 85% relative humidity, noncondensing Nonoperating: 10% to 95% relative humidity, noncondensing |
| Altitude |
Operating: -300 m to 3000 m (-1000 to 10,000 ft.) Nonoperating: -300 m to 12,000 m (-1000 to 40,000 ft.) |
| Acoustic noise |
Operating: 6.3 bels Idling: 6.0 bels |
| Number of cords | 1 |
|
Regulations Meets or exceeds the following requirements: | |
| Safety | UL 1950, EN 60950 |
| Emissions | EN 55022 Class A, FCC Class A |
| Immunity | EN 55025 |
| Dimensions and Weights | |
| Height | 43.6 mm (1.7 in) |
| Width | 436.7 mm (17.2 in) |
| Depth | 330.0mm (13.0 in) |
| Weight | 6.0 kg (13.2 lb) |
| Shipping Weight | 10.0 kg (22.0 lb) |
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X311L | Localized Power Cord Kit – North America/Asia, RoHS:Y | |||
| 180-1097 | IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y | |||
| X312L | Localized Power Cord Kit – Continental Europe, RoHS:Y | |||
| 180-1993 | IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y | |||
| X314L | Localized Power Cord Kit – Swiss, RoHS:Y | |||
| 180-1994 | IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y | |||
| X317L | Localized Power Cord Kit – U.K., RoHS:Y | |||
| 180-1997 | IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y | |||
| X383L | Localized Power Cord Kit – Danish, RoHS:Y | |||
| 180-1995 | IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y | |||
| X384L | Localized Power Cord Kit – Italian, RoHS:Y | |||
| 180-1996 | IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y | |||
| X386L | Localized Power Cord Kit – Australian, RoHS:Y | |||
| 180-1998 | IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y | |||
| n/a | 530-1819 | Localized Power Cord Kit – Danish | ||
| n/a | 530-2961 | RJ45 Cat5 Ethernet Cable, RoHS:Y | ||
| Card/Reader | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-4285 | System Configuration Card | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X7095A | 370-4365 | Seagate ST320413A (20GB – 5400 RPM – IDE Disk) | ||
| X7096A | 40.0GB – 7200 RPM disk option, with brackets and 1 of the following disks: | |||
| 370-4419 | Seagate ST340824A (40.0GB – 7200 RPM – IDE Disk) | |||
| 370-4419 | IBM IC35L040AVER07 (41.1GB – 7200 RPM – IDE Disk) | |||
| 370-4419 | Seagate ST340016A (40.0GB – 7200 RPM – IDE Disk) | |||
| n/a | 370-7631 | IBM IC35L040AVER07 (41.1GB – 7200 RPM – IDE Disk) | ||
| Memory | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X7090A | 370-4289 | 128MB REG/BUFF DIMM | ||
| X7091A | 370-4237 | 256 MB SDRAM DIMM | ||
| X7092A | 370-4281 | 512MB SDRAM DIMM | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-4363 | 80W AC Input Power Supply | ||
| System Board | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 375-3015 | 0MB 400MHz UltraSPARC IIe | ||
| n/a | 375-3058 | 0MB 500MHz UltraSPARC IIe | ||
