Used Oracle Sun Netra t1 Model 100 SERVER

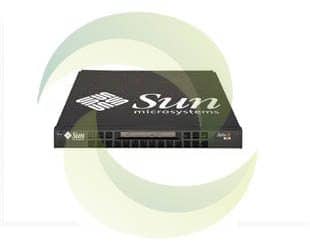

Oracle Sun Netra t1 Model 100 SERVER

REQUEST A PRICE QUOTE:

Racking
Fits into 19-, 23-, 24-in., 600 mm racks (includes mounting kit for 19-in. racks)
Processor
Number	One
Architecture	360- or 440- MHz UltraSPARC-IIi, single processor, Superscalar SPARC Version 9
Cache memory	16-KB data and 16-KB instruction on chipSecondary: 1-MB external with 360-MHz CPU, 2-MB external with 440-MHz CPU
Main Memory
Capacities	64-, 256-, and 512-MB memory cardsTotal of two Sun Mezzanine memory cards supported 1.0 GB maximum (Total of four 256 MB memory cards can be installed in select units only)
Standard Interfaces
Ethernet	Two ethernet/fast ethernet (10BASE-T/100BASE-T) shielded twisted-pair port (RJ-45)
PCI	Single 2/3-length, 32-bit, 33-MHz PCI 2.1 compliant slot.
SCSI	One 40-MB/sec, 68-pin, UltraSCSI (SCSI-3) port
Serial	Two RS-232C/RS-423 serial ports (RJ-45)
Internal Mass Storage
Disks	Up to two 3.5- x 1-in. disks (9 GB or 18 GB); front accessible; support for hot plug
CD-ROM	Optional 644-MB Slimline CD, 24X speed
Environment
AC input (Model 105)	100 – 240 VAC, 47 – 63 Hz, 2 A (max)
DC input (Model 100)	-40 to -75 VDC, dual input, 4 A (max)
Input power	108 W
Heat output	368 BTU/hr
Temperature ₁	Operating: 0° C to 40° C (32° F to 104° F) Operating (short term): -5° C to 55° C (23° F to 131° F) Nonoperating: -40° C to 70° C (-40° F to 158° F)
Humidity	Operating: 5% to 85% relative humidity, noncondensing Nonoperating: 10% to 95% relative humidity, noncondensing
Altitude	Operating: -300 m to 3000 m (-1000 ft. to 10,000 ft.) Nonoperating: -300 m to 12,000 m (-1000 ft. to 40,000 ft.)
ETSI	ETS 300-19-2-3, Table 3.1, Climatic
Acoustic noise	Operating: <60dBA Idling: <60dBA
Seismic	GR-63-Core requirements for earthquake risk zone 4 ETSI ETS 300-19-2-3, A1 operating requirements
Number of cords	1
1 – Short term is defined as no more than 96 hours duration at extremes and at elevations less than 1800m.
Regulations Meets or exceeds the following requirements:
Safety	UL 1950/CSA C22.2 No. 950, EN 60950 (73/23/EEC), IEC 950
Emissions	CFR Title 47 FCC Part 15, EN 55022 (89/336/EEC)
Immunity	EN 50082-1 (89/336/EEC)
Telco environment	Telcordia: GR-63-CORE, GR-1089-CORE, TR-NWT-000295, SR 3580 NEBS Level 3
Certification	Safety:cULus Mark, TUV GS Mark, CE MarkEMC: CE Mark (93/68/EEC), FCC authorized Class A
Dimensions and Weights
Height	44.0 mm (1.73 in.)
Width	437.2 mm (17.21 in.)
Depth	487.4 mm (19.19 in.)
Weight	9 kg (20 lbs.)
Shipping Weight (product and packing)	11.5 kg (25 lbs.)

Communication
Option #	Manufacturing Part #	Description
X1157A	501-3028	SunATM-155/MFiber PCI 4.0

Disks
Option #	Manufacturing Part #	Description
X5229A	540-3704	9.1GB – 7200 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	370-3404	IBM DDRS-39130 (9.1GB – 7200 RPM – SCSI Disk)
	370-3413	Fujitsu MAB3091SC [MAB3091S SUN9.0G] (9.1GB – 7200 RPM – SCSI Disk)
	370-3595	Seagate ST39173WC (9.1GB – 7200 RPM – SCSI Disk)
	390-0004	Fujitsu MAE3091LC [MAE3091L SUN9.1GB] (9.1GB – 7200 RPM – SCSI Disk)
	390-0007	IBM DNES-309170 [DNES30917SUN9.0G] (9.1GB – 7200 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5234A	540-3881	9.1GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	370-3649	Seagate ST39102LC [ST39102LCSUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	390-0005	Fujitsu MAG3091LC [MAG3091L SUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	390-0009	Seagate ST39103LC [ST39103LCSUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	390-0037	Seagate ST39204LC [ST39204LCSUN9.0G] (9.1GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5237A	540-4177	18.2GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	390-0002	Seagate ST318203LC [ST318203LSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0006	Fujitsu MAG3182LC [MAG3182L SUN18G] (18.2GB – 10000 RPM – SCSI-Disk)
	390-0038	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0066	Fujitsu MAN3184MC [MAN3184M SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y
X5247A	540-4921	18.2GB – 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:
	390-0038	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB – 10000 RPM – SCSI Disk)
	540-3024	1″ SPUD Bracket, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X1034A	501-5406	Quad FastEthernet PCI (QFE/P)
X1141A	501-4373	Gigabit Ethernet PCI (GBE/P) 2.0

Fibre Channel
Option #	Manufacturing Part #	Description
X6729A	375-0040	Single Loop PCI FC-AL Host Adapter (FC100/P)

Memory
Option #	Manufacturing Part #	Description
X6983A	595-5314	64 MB Mezzanine Memory
X6985A	370-4155	cPCI 256MB Mezzanine Memory
X6986A	595-5316	cPCI 512MB Mezzanine Memory
n/a	501-5389	512MB Memory Board FRU
n/a	540-4348	64MB Memory Board Assembly/FRU
n/a	501-5210	64MB Memory Board FRU
n/a	540-4349	256MB Memory Board Assembly/FRU
	370-4096	256MB Memory Board
	370-4155	cPCI 256MB Mezzanine Memory
	501-5388	256MB Memory Board FRU
n/a	540-4350	cPCI 512MB Memory Board Assembly/FRU
n/a	540-4547	cPCI 256MB Memory Board Assembly/FRU
n/a	370-4155	cPCI 256MB Mezzanine Memory

Miscellaneous
Option #	Manufacturing Part #	Description
X949A	595-5302	Wago DC Connector Set, RoHS:Y
	130-4361	DC Connector, RoHS:Y
	230-1708	DC Connector Strain Relief
	230-1711	DC Connector Opening Lever
n/a	501-5488	Rear I/O Board

Power
Option #	Manufacturing Part #	Description
n/a	300-1447	130W DC Input Power Supply

Rack
Option #	Manufacturing Part #	Description
X6919A	595-6231	19-inch Rack Mount Kit
X6966A	595-5322	23-inch Rack Mount Kit
X6967A	595-5323	24-inch Rack Mount Kit
X6968A	595-5324	600 mm Rack Mount Kit

Removable Media
Option #	Manufacturing Part #	Description
X6971A	540-4179	CD-ROM Drive Assembly (08/99 – 03/03). This assembly contains 1 CD-ROM drive.
	370-3983	24X Slimline CD-ROM Drive (08/99 – 12/01)
	370-4278	24X Slimline CD-ROM Drive
	540-4229	CD-ROM Cable/Board Assembly
	501-5491	CD-ROM Paddle Board Assembly
	530-2808	CD-ROM Data Cable Assembly
n/a	371-0980	24X Slimline CD-ROM Drive, RoHS:Y
n/a	540-4358	Internal CD-ROM Drive Kit
	540-4179	CD-ROM Drive Assembly (12/01 – 03/03)
	370-4278	24X Slimline CD-ROM Drive
	540-4229	CD-ROM Cable/Board Assembly
	501-5491	CD-ROM Paddle Board Assembly
	530-2808	CD-ROM Data Cable Assembly

SCSI
Option #	Manufacturing Part #	Description
SG-XPCI2SCSI-LM320	375-3191	PCI/PCI-X Dual Ultra320 SCSI Adapter
X1032A	501-5656	Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
X6541A	375-0006	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)

System Board
Option #	Manufacturing Part #	Description
n/a	540-4258	440MHz CPU and I/O Interface Assembly
	501-5478	I/O Interface Board
	501-5578	0MB 440MHz System Board w/o Front Panel
n/a	540-4260	360MHz CPU and I/O Interface Assembly
	501-5478	I/O Interface Board
	501-5577	0MB 360MHz System Board w/o Front Panel

System Controller
Option #	Manufacturing Part #	Description
n/a	501-5388	256MB Memory Board FRU

Whole System FRU
Option #	Manufacturing Part #	Description
n/a	540-4528	Netra t1 Model 100 440MHz DC Assembly w/o Memory or Disk
n/a	540-4432	440MHz DC Assembly w/ 512MB Memory, no Disk
n/a	540-4433	440MHz DC Assembly w/ 256MB Memory, no Disk
n/a	540-4503	440MHz DC Assembly w/ 1GB Memory, no Disk
