Used Oracle Sun Blade W1100z Workstation

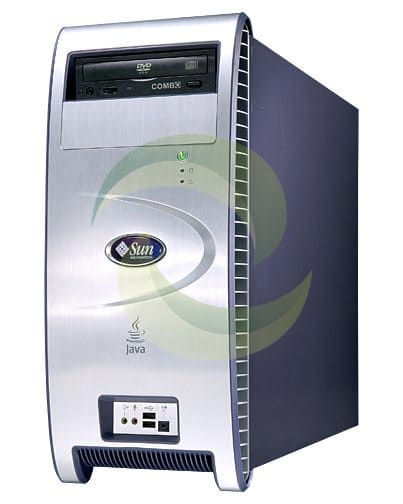

Oracle Sun Blade W1100z Workstation

REQUEST A PRICE QUOTE:

Processor
Number	W1100z: One W2100z: Two
Architecture	W1100z: AMD-64 100 Series (144,146,148,150) W2100z: AMD-64 200 Series (244,246,248,250,252)
Cache memory	1 MB Level 2
Main Memory
Capacities	W1100z: Four DIMM slots – 512MB, 1GB, and 2GB DIMMS (Must be installed in pairs) 8 GB Maximum W2100z: Eight DIMM slots – 512MB, 1GB, and 2GB DIMMS (Must be installed in pairs) 16 GB Maximum
Standard Interfaces
Audio	One line-in, Two line-out, Two microphone-in
Ethernet	One 10/100/1000 BaseT Ethernet
Expansion Slots	PCI-X slots – One 64-bit/133MHz and Four 64-bit/100MHz AGP slot – One AGP8x
Fire Wire	Two IEEE 1394A ports
Parallel	One D-Sub 25-pin connector, IEEE 1284 (Bidirectional)
Serial	Two RS-232C/RS-423 (DB9-M)
USB	Five Universal Serial Bus 2.0 ports
Internal Mass Storage
Disks	W1100z: Up to 2× 80GB 7200 RPM UltraATA-100 disks W2100z: Up to 4× 73GB or 146GB 10000 RPM Ultra320 SCSI disks
DVD-ROM	52X CD-R/RW DVD-ROM (standard configuration) 40X CD-R/RW DVD-R/RW DVD+R/RW
Environment
AC Power	100 to 240 VAC (47- 63 Hz)
Power consumption	550 W (Max)
Heat output	1876 BTU/hr
Temperature	Operating: 5°C to 35°C (41°F to 95°F) Nonoperating: -40°C to 65°C (-40°F to 158°F)
Humidity	Operating: 20% to 93% relative humidity, noncondensing, 27°C max wet bulb Nonoperating: Up to 93% relative humidity, noncondensing, 38°C max wet bulb
Altitude	Operating: Up to 3000m, maximum ambient temperature is derated by -1°C for every 300m in altitude Nonoperating: Up to 12000m
Acoustic noise	Operating: 5.1 Bels Idling: 5.0 Bels
Vibration	Operating: 0.20 G in all axes, 5 to 500 Hz sine Nonoperating: 1.0 G in all axes, 5 to 500 Hz sine
Shock	Operating: 5.0 G, 11 milliseconds half-sine
Regulations Meets or exceeds the following requirements:
Safety	UL/CSA-60950, EN 60950, IEC 60950 CB
RFI/EMI	EN 55022/CISPR22 Class B, FCC CFR47 Part 15 Class B; EN 61000-3-2, EN 61000-3-3, EN300-386 v1.3.1
Immunity	EN 55024, EN 300-386 v1.3.1
Regulatory Markings	UL/cUL, TUV-GS, CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, MIC, CCC, S-Mark
Ergonomics	EK1-1TB-2000
Dimensions and Weights
Height	462 mm (18.2 in.)
Width	200 mm (7.9 in.)
Depth	557 mm (21.9 in.)
Weight	25 kg (52.9 lb.) fully configured

Batteries
Option #	Manufacturing Part #	Description
n/a	370-6814	Maxell CR2032 Battery

CPU Module
Option #	Manufacturing Part #	Description
9200A	370-6778	AMD Opteron 144, 1.8GHz, CG Stepping
9201A	370-6779	AMD Opteron 146, 2.0GHz, CG Stepping
9202A	370-6780	AMD Opteron 148, 2.2GHz, CG Stepping
9203A	370-6781	AMD Opteron 150, 2.4GHz, CG Stepping
n/a	240-4589	CPU Heatsink, Mezzanine
n/a	F240-4612	CPU Heatsink, Motherboard

Cables
Option #	Manufacturing Part #	Description
n/a	530-3319	Motherboard to I/O Extender Power Cable, 170mm
n/a	530-3321	IDE Disk Drive Cable, 530mm
n/a	530-3328	ATAPI IDE Ribbon Cable for DVD, 490mm
n/a	530-3334	Ethernet Cable
n/a	n/a	4-Pin CD to Motherboard Audio Cable

Communication
Option #	Manufacturing Part #	Description
n/a	370-6796	Audio/IEEE1394/USB Combo Card w/ Cables

Disks
Option #	Manufacturing Part #	Description
9222A	80GB 7200 RPM IDE Disk Drive w/ Pre-installed image of Java Desktop System Release 2 (Solaris)
	540-6212	80GB – 7200 RPM, Disk Assembly with 1 of the following disks:
	370-6787	Hitachi HDS722580VLAT20 (80.0GB – 7200 RPM – IDE Disk)
	370-7367	Western Digital WD800BB (80.0GB – 7200 RPM – IDE Disk)
9224A	80GB 7200 RPM IDE Disk Drive w/ Pre-installed image of Java Desktop System Release 2
	540-6212	80GB – 7200 RPM, Disk Assembly with 1 of the following disks:
	370-6787	Hitachi HDS722580VLAT20 (80.0GB – 7200 RPM – IDE Disk)
	370-7367	Western Digital WD800BB (80.0GB – 7200 RPM – IDE Disk)
X9217A	540-6212	80GB – 7200 RPM, Disk Assembly with 1 of the following disks:
	370-6787	Hitachi HDS722580VLAT20 (80.0GB – 7200 RPM – IDE Disk)
	370-7367	Western Digital WD800BB (80.0GB – 7200 RPM – IDE Disk)

Ethernet
Option #	Manufacturing Part #	Description
X4445A	501-6738	Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y
X7291A	371-0759	PCI-X Single Gigabit Ethernet w/ PXE
X9271A	370-6685	PCI-X Single Gigabit Ethernet

Fan
Option #	Manufacturing Part #	Description
n/a	370-6811	Chassis Fan
n/a	370-7716	Chassis Fan

Graphics
Option #	Manufacturing Part #	Description
X9211A	370-6800	nVIDIA Quadro NVS280 Graphics Accelerator
	530-3320	DMS-59 to Dual DVI-I Cable, 215mm
	530-3325	DVI-A(M) to HD15F Adapter, 49mm
X9212A	370-6801	nVIDIA Quadro FX500 Graphics Accelerator
X9212A	530-3325	DVI-A(M) to HD15F Adapter, 49mm
X9213A	370-6802	nVIDIA Quadro FX1100 Graphics Accelerator
	530-3325	DVI-A(M) to HD15F Adapter, 49mm
	530-3348	Dual DC Power Input Cable
X9214A	370-6803	nVIDIA Quadro FX3000 Graphics Accelerator
	530-3325	DVI-A(M) to HD15F Adapter, 49mm
	530-3348	Dual DC Power Input Cable
X9215A	370-7571	nVIDIA Quadro FX4000 Graphics Accelerator
	530-3325	DVI-A(M) to HD15F Adapter, 49mm
	530-3348	Dual DC Power Input Cable

I/O
Option #	Manufacturing Part #	Description
n/a	370-6794	I/O Extender, K85AE

Memory
Option #	Manufacturing Part #	Description
X9208A	1GB (2 × 512MB DDR DIMM)
	540-6236	1GB (2 × 512MB) Memory FRU
	370-6791	512MB PC3200 DDR DIMM
X9210A	4GB (2 × 2GB DDR DIMM)
	540-6238	4GB (2 × 2GB) Memory FRU
	370-6793	2GB PC3200 DDR DIMM
X9209A	2GB (2 × 1GB DDR DIMM)
	540-6237	2GB (2 × 1GB) Memory FRU
	370-6792	1GB PC3200 DDR DIMM

Power
Option #	Manufacturing Part #	Description
n/a	370-6807	Acbel API4FS06 550 Watt Power Supply

Removable Media
Option #	Manufacturing Part #	Description
X9221A	370-7630	16X DVD-Writer / 48X CD-Writer
X9216A	370-6790	12X DVD-Writer / 40X CD-Writer
n/a	370-6789	16X DVD-ROM / 52X CD-Writer (standard configuration)

SCSI
Option #	Manufacturing Part #	Description
SGXPCI1SCSILM320-Z	375-3366	PCI Single Ultra320 SCSI Adapter
SG-XPCI1SCSI-LM320	375-3255	PCI/PCI-X Single Ultra320 SCSI Adapter
SG-XPCI2SCSI-LM320	375-3191	PCI/PCI-X Dual Ultra320 SCSI Adapter
X9265A	370-6682	Dual Ultra-320 SCSI/RAID

System Board
Option #	Manufacturing Part #	Description
n/a	501-6851	Motherboard, K85AE
n/a	370-6814	Maxell CR2032 Battery
n/a	501-7136	Motherboard, K85AE E4 Stepping
n/a	370-6814	Maxell CR2032 Battery
