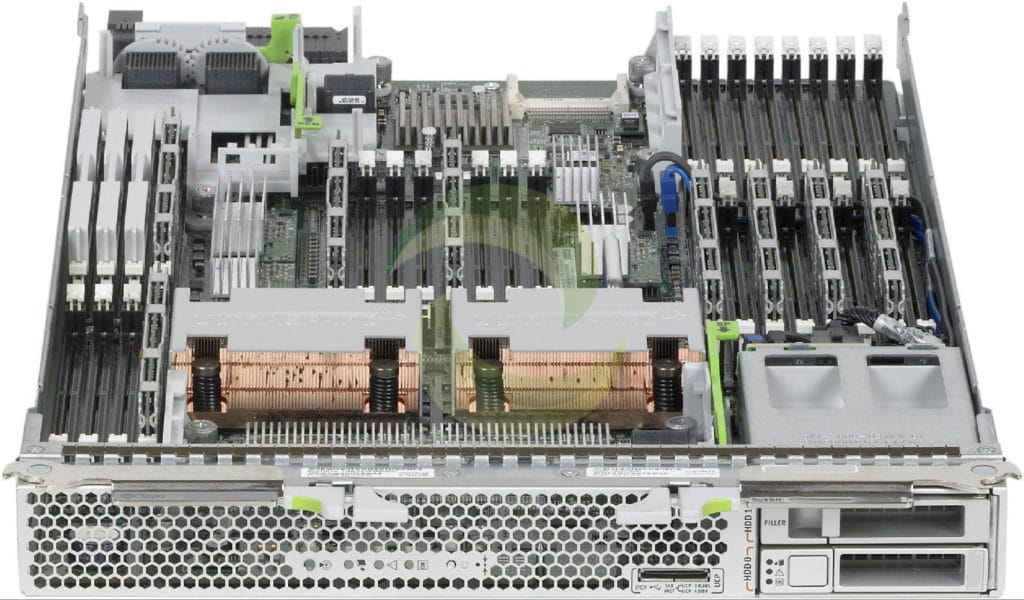

Used Oracle Sun BLADE T6340 SERVER MODULE

Oracle Sun BLADE T6340 SERVER MODULE

REQUEST A PRICE QUOTE:

Processor

Number

Two.

Architecture

Type:UltraSPARC T2 Plus processor.

Model/Speed:8-Core, 1.2 GHz, 103W
Model/Speed:8-Core, 1.4 GHz, 132W
Model/Speed:6-Core, 1.2 GHz, 103W

Cache Memory

4 MB L2 Cache.

Main Memory

Memory Type

1.5V DDR22-667/PC2-5300 DIMMs.

Capacities

Maximum memory: 256GB.
Total DIMM slots:32.
DIMM sizes: 1GB, 2GB, 4GB and 8GB.

Optional Storage

Internal Disk

Up to two optional, hot swappable, hot pluggable, small form factor (SFF) drive bays per blade.

Drive Type	Density	Speed	Form Factor	RAID
SAS	300 GB	10,000 RPM	SFF 2.5″	RAID 0 or 1
SAS	73 GB	10,000 RPM	SFF 2.5″	RAID 0 or 1
SAS	146 GB	10,000 RPM	SFF 2.5″	RAID 0 or 1
SAS	73 GB	15,000 RPM	SFF 2.5″	RAID 0 or 1
SATA	200 GB	5,400 RPM	SFF 2.5″	RAID 0 or 1

Solid State Drives

Up to 2 32GB solid state drives

Management Environment

Sun Blade Server Module Service Processor (SP)

The SP card is installed with Integrated Lights-Out Manager (ILOM) software.
ILOM can be accessed via a Dongle cable assembly connection to the Universal Connector Port (UCP) on the front of the Sun Blade T6340.
There are 2 different Dongle cables. A three connector and a four connector.
To connect to ILOM using the four connector dongle cable, use the DB-9 serial connector.
To connect to ILOM using the three connector dongle cable, use the RJ-45 serial connector.
The Dongle cable assembly is provided with the Sun Blade 6000 and Sun Blade 6048 chassis.
For compatibility with legacy environments, an ALOM CLI emulation mode is available.

Standard Integrated Interfaces

Universal Connector Port (UCP)

Front accessible UCP provides Serial Management connection to ILOM via Dongle cable. Also provides dual USB 2.0 ports for keyboard, mouse or storage.

Network management

Two 10/100Base-T Ethernet port connections via midplane to the Chassis Monitoring Module (CMM). Only one connection (NET 0) is used.

Ethernet

Two 10/100/1000Base-T Ethernet ports routed through midplane to 2 NEM slots.

PCI Interfaces with the Sun Blade Modular System (chassis)

I/O is offered in two form factors:
- PCI Express ExpressModules (EM)
  and
- PCI Express Network Express Modules (NEM).
Each Sun Blade T6340 has four, x8 lane PCI Express links allocated to:
- Two EMs
  and
- Two NEMs.
Each NEM has one link assigned to each server module. All server modules share the NEM. For example, Blade 0 has access to NEM 0/slot 0, and NEM 1/slot 0. Blade 1 to NEM 0/slot 1 and NEM 1/slot 1, etc.
EM slots are not shared between server modules. Each EM slot is specific to one server module.

Regulations
Meets or exceeds the following requirements:

RoHS Compliance Level

RoHS:YL

Dimensions and Weights

Height

44.5mm (1.75 in).

Width

327.15mm (12.88 in).

Depth

496.82 (19.56 in).

Weight (fully configured)

9.1 kg (20.0 lbs).

Batteries
Option #	Manufacturing Part #	Description
n/a	150-1204	3V Lithium battery, RoHS:Y

Blade
Option #	Manufacturing Part #	Description
T6340-261200-82	594-6191	Sun Blade T6340 Server Module with 16GB Memory (8 × 2GB), and 2 CPUs (1.2GHz, 6-core UltraSPARC T2+), RoHS:Y
	501-7998	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	525-2588	IDPROM, RoHS:Y
	511-1098	RAID 0/1 Expansion Module, RoHS:Y
	511-1151	2GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
	541-3299	Sun Blade T6340 Motherboard/CPU (1.2GHz, 6-core, UltraSPARC T2+, 103W) Assembly
	501-7984	System Board
T6340-261200-81	594-5222	Sun Blade T6340 Server Module with 8GB Memory (8 × 1GB), and 2 CPUs (1.2GHz, 6-core UltraSPARC T2+), RoHS:Y
	501-7998	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	525-2588	IDPROM, RoHS:Y
	511-1098	RAID 0/1 Expansion Module, RoHS:Y
	511-1150	1 GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
	541-3299	Sun Blade T6340 Motherboard/CPU (1.2GHz, 6-core, UltraSPARC T2+, 103W) Assembly
	501-7984	System Board
T6340-261200B-82	594-6395	Sun Blade T6340 Server Module with 16GB Memory (8 × 2GB), and 2 CPUs (1.2GHz, 6-core UltraSPARC T2+), RoHS:Y
	511-1098	RAID 0/1 Expansion Module, RoHS:Y
	511-1151	2GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
	511-1493	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	541-3299	Sun Blade T6340 Motherboard/CPU (1.2GHz, 6-core, UltraSPARC T2+, 103W) Assembly
	501-7984	System Board
T6340-281200-B2	594-5223	Sun Blade T6340 Server Module with 32GB Memory (16 × 2GB), and 2 CPUs (1.2GHz, 8-core UltraSPARC T2+), RoHS:Y
	501-7998	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	525-2588	IDPROM, RoHS:Y
	511-1098	RAID 0/1 Expansion Module, RoHS:Y
	511-1151	2GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
	541-3007	Sun Blade T6340 Motherboard/CPU (1.2GHz, 8-core, UltraSPARC T2+, 103W) Assembly, RoHS:Y
	501-7984	System Board
T6340-281200B-B2	594-6396	Sun Blade T6340 Server Module with 32GB Memory (16 × 2GB), and 2 CPUs (1.2GHz, 8-core UltraSPARC T2+), RoHS:Y
	511-1098	RAID 0/1 Expansion Module, RoHS:Y
	511-1151	2GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
	511-1493	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	541-3007	Sun Blade T6340 Motherboard/CPU (1.2GHz, 8-core, UltraSPARC T2+, 103W) Assembly, RoHS:Y
	501-7984	System Board
T6340-281400-B4	594-5224	Sun Blade T6340 Server Module with 64 GB Memory (16 × 4GB), and 2 CPUs (1.4GHz, 8-core UltraSPARC T2+), RoHS:Y
	501-7998	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	525-2588	IDPROM, RoHS:Y
	511-1098	RAID 0/1 Expansion Module, RoHS:Y
	511-1152	4GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
	541-3008	Sun Blade T6340 Motherboard/CPU (1.4GHz, 8-core, UltraSPARC T2+, 132W) Assembly, RoHS:Y
	501-7984	System Board
T6340-281400B-B4	594-6397	Sun Blade T6340 Server Module with 64GB Memory (16 × 4GB), and 2 CPUs (1.4GHz, 8-core UltraSPARC T2+), RoHS:Y
	511-1098	RAID 0/1 Expansion Module, RoHS:Y
	511-1152	4GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
	511-1493	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	541-3008	Sun Blade T6340 Motherboard/CPU (1.4GHz, 8-core, UltraSPARC T2+, 132W) Assembly, RoHS:Y
	501-7984	System Board
n/a	501-7843	2-Slot Disk Backplane, RoHS:Y

CPU Module
Option #	Manufacturing Part #	Description
n/a	541-3007	Sun Blade T6340 Motherboard/CPU (1.2GHz, 8-core, UltraSPARC T2+, 103W) Assembly, RoHS:Y
n/a	501-7984	System Board
n/a	541-3008	Sun Blade T6340 Motherboard/CPU (1.4GHz, 8-core, UltraSPARC T2+, 132W) Assembly, RoHS:Y
n/a	501-7984	System Board
n/a	541-3299	Sun Blade T6340 Motherboard/CPU (1.2GHz, 6-core, UltraSPARC T2+, 103W) Assembly
n/a	501-7984	System Board

Disks
Option #	Manufacturing Part #	Description
XRA-SS2CF-300G10K	540-7869	300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0449	Seagate ST93000SSUNG [ST930003SSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRA-ST2CF-32G2SSD	540-7841	32GB Solid State Drive Assembly, SATA Interface, RoHS:Y
	371-4196	32GB Solid State Drive, SATA Interface, RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRA-ST2CF-500G7K	542-0184	500GB – 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0468	Seagate ST9500530NS [ST95000NSSUN500G] (500GB – 7200 RPM – SATA Disk), RoHS:Y
	541-4199	Marlin Bracket 15mm, RoHS:Y
XRB-SS2CF-146G10K	540-7868	146GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
n/a	540-7354	73GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72] (73GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
n/a	540-7355	146GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
n/a	540-7361	73GB – 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
	390-0382	Seagate ST973451SS [ST973451SSUN72G] (73GB – 15000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
n/a	540-7555	200GB – 5400 RPL SATA Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0407	Fujitsu MHY2200BS [MHY2200BSSUN200G] (200GB – 5400 RPM – SATA Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
X1029A-Z	501-7961	Dual 10-Gigabit Ethernet Fabric Expansion Module (FEM), RoHS:Y
X4835A	511-1495	Pass-Through Fabric Expansion Module (FEM), RoHS:Y
X4871A-Z	375-3648	Dual 10-Gigabit Ethernet Fabric Expansion Module (FEM), RoHS:Y
n/a	511-1171	Pass-Through Fabric Expansion Module (FEM), RoHS:Y

Memory
Option #	Manufacturing Part #	Description
T6340-X-22	4GB (2 × 2GB 1.55V FBDIMM) Memory Kit, RoHS:YL
T6340-X-22	511-1151	2GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
T6340-X-24	8 GB (2 × 4GB 1.55V FBDIMM) Memory Kit, RoHS:YL
T6340-X-24	511-1152	4GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
T6340-X-28	16GB (2 × 8GB 1.55V FBDIMM) Memory Kit, RoHS:YL
T6340-X-28	511-1228	8GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
X4680A	375-3590	16GB Compact Flash, RoHS:Y
T6340-X-21	2 GB (2 × 1GB 1.55 FBDIMM) Memory Kit, RoHS:YL
T6340-X-21	511-1150	1 GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
n/a	330-4839	Memory Slot Filler, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
X4607A	511-1098	RAID 0/1 Expansion Module, RoHS:Y

System Service Processor
Option #	Manufacturing Part #	Description
n/a	501-7998	Service Processor Assembly, RoHS:Y
	150-1204	3V Lithium battery, RoHS:Y
	525-2588	IDPROM, RoHS:Y
