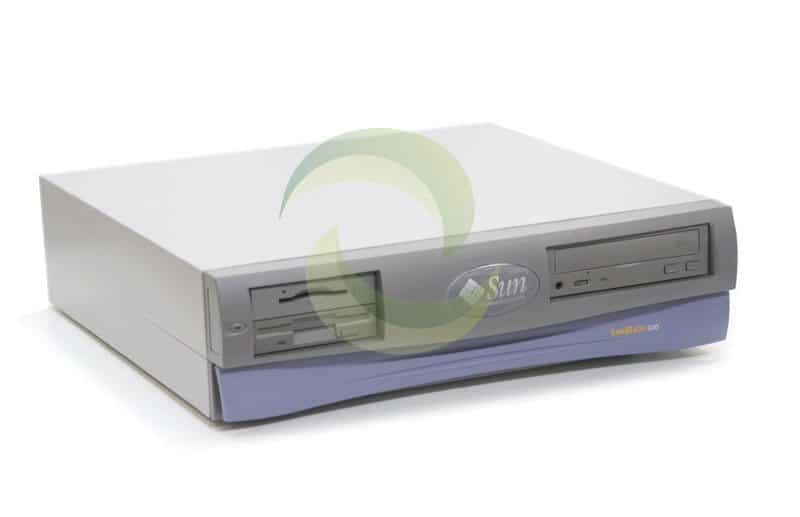

Oracle Sun Blade 100
REQUEST A PRICE QUOTE:
| Processor | |
| Number | One |
| Architecture | 500-MHz UltraSPARC[tm]-IIe, 64-bit |
| Cache memory | 256-KB L2 external cache |
| Main Memory | |
| Capacities | Four DIMM slots, PC133 168-pin JEDEC DIMMs128-, 256-, and 512-MB DIMMs; DIMMs can be mixed and matched2-GB maximum (with four 512-MB DIMMs), error correction SDRAM |
| Standard Interfaces | |
| Audio | Four audio ports: headphone(out), line-in, line-out and microphone(in) using EIA standard 0.125-inch (3.5-mm) jacks |
| Ethernet | One ethernet/fast ethernet (10BASE-T/100BASE-T) twisted-pair standard connector (RJ-45), self-sensing |
| Graphics | One graphics port (HD15), onboard 24-bit frame buffer |
| IEEE 1394 | Two IEEE 1394 (6-pin) connectors |
| Keyboard and mouse | USB (uses one of the four standard USB (Type A) ports) |
| Parallel | One IEEE 1284 (bidirectional) parallel port (DB25) |
| PCI | Three full-size PCI slots, 33 MHz, 5/3.3 volt |
| Serial | One asynchronous serial port (DB9) |
| Smart Card Reader | The smart card interface (10-pin) connector conforms to ISO 7816.3 |
| USB | Four standard Universal Serial Bus (USB) Type A connectors |
| Internal Mass Storage | |
| Disks | Up to two 80GB, 20GB or 15GB, 7200-rpm enhance IDE disk drives |
| Floppy disk | One, 3.5-in. 1.44-MB floppy |
| CD-ROM/DVD-ROM | 48X-speed CD-ROM or 12X speed DVD-ROM or 16X speed DVD-ROM |
| Environment | |
| AC input | 100 – 240 VAC, 50 – 60 Hz, 2 A(max), 0.3 KVA |
| Input power | 200 W |
| Heat output | 686 BTU/hr |
| Temperature |
Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -20° C to 60° C (-4° F to 140° F) |
| Humidity |
Operating: 40% to 80% relative humidity, noncondensing Nonoperating: 30% to 90% relative humidity, noncondensing |
| Altitude |
Operating: 3000 m (10,000 ft) Nonoperating: 12,000 m (40,000 ft) |
| Acoustic noise |
Operating: 5.0 bels Idling: 4.5 bels |
| Number of cords | 1 |
|
Regulations Meets or exceeds the following requirements: | |
| Safety | UL 1950, CSA C22.2 No. 950, TUV EN 60950, CB Scheme with all Country Deviations including Nordic EMKO-TSE (74-SEC), IEC825-1, 2, and CFR21 part 1040 |
| Ergonomics | EN 29241 3, 7, 8, ISO 9296, EKI 59 98, EKI 60 98, BildscharbV, A15 and A17, ISO 9241 4 and DIN2137 |
| RFI/EMI | FCC Class B, ICES-003 Class B, VCCI Class B, EN55022 Class B, BSMI Class B, EN61000-3-2, EN61000-3-3 |
| Immunity | EN 55024 |
| X-ray | DHHS 21 Subchapter J; PTB German X-ray Decree |
| Power management | “Small” and “Medium” configurations with the on-board graphics are Energy Star compliant. Systems configured with IFB-lite are not Energy Star compliant. If PCI card X-options are added, systems may or may not be Energy Star compliant depending on the power consumption of the PCI card. |
| Dimensions and Weights | |
| Height | 11.8 cm (4.6 in.) |
| Width | 44.5 cm (17.5 in.) |
| Depth | 46.4 cm (18.3 in.) |
| Weight | 15.4 kg (34 lb.) |
| Boot PROM | ||
|---|---|---|
| Socket | Manufacturing Part # | Patch |
| U40 | 370-4116 | 111179 |
| CPU Module | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 100-6471 | 500MHz UltraSPARC IIe Module | ||
| n/a | 100-7270 | 500MHz UltraSPARC IIe Module | ||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X3857A | 180-1179 | Power Cord, RoHS:Y | ||
| 530-3832 | External SCSI Cable, HD50 to HD68, 1.2M, RoHS:Y | |||
| X3856A | 180-1179 | Power Cord, RoHS:Y | ||
| 530-2383 | External SCSI Cable, HD68 to HD68, 0.8M | |||
| X901A | 530-1884 | External SCSI Cable, HD68 to HD68, 80cm | ||
| X902A | 530-1885 | External SCSI Cable, HD68 to HD68, 2M | ||
| X903A | 530-2115 | External SCSI Cable, HD50 to HD68, 1.2M | ||
| X904A | 530-2228 | External SCSI Cable, HD50 to HD68, 2M | ||
| n/a | 370-5268 | Extension Connector Kit/FRU | ||
|
| |||
|
| |||
| Card/Reader | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-3933 | Smart Card Reader (single-sided) | ||
| Communication | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X1152A | 370-2811 | FDDI/P SAS 2.0 | ||
| X1153A | 370-2812 | FDDI/P DAS 2.0 | ||
| X1155A | 370-2728 | High Speed Serial Interface PCI (HSI/P) 2.0 | ||
| X1157A | 501-3028 | SunATM-155/MFiber PCI 4.0 | ||
| X1158A | 501-3027 | SunATM-155/UTP PCI 4.0 | ||
| X2154A | 375-0073 | Token Ring Interface (TRI/P) 5.0 | ||
| X2156A | 375-0100 | Serial Asynchronous Interface PCI (SAI/P) 3.0 | ||
| X4011A | 501-6039 | Crypto Accelerator 4000 UTP (copper) | ||
| X4012A | 501-6040 | Crypto Accelerator 4000 MMF (fiber) | ||
| X4111A | 501-6039 | Crypto Accelerator 4000 UTP (copper) | ||
| X4112A | 501-6040 | Crypto Accelerator 4000 MMF (fiber) | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X6172A | 15GB 7200RPM Ultra ATA Disk Drive | |||
| 370-4154 | Seagate ST315320A (15.3GB – 7200 RPM – IDE Disk) | |||
| 370-4154 | Seagate ST315310A (15.3GB – 7200 RPM – IDE Disk) | |||
| X6174A | 20GB 7200RPM Ultra ATA Disk Drive | |||
| 370-4327 | Seagate ST320414A (20.1GB – 7200 RPM – IDE Disk) | |||
| 370-4327 | Seagate ST320011A (20.1GB – 7200 RPM – IDE Disk) | |||
| 370-4327 | Seagate ST320420A (20.4GB – 7200 RPM – IDE Disk) | |||
| X6185A | 80GB 7200RPM Ultra ATA Disk Drive | |||
| 370-6164 | Seagate ST380011A (80.0GB – 7200 RPM – IDE Disk) | |||
| 370-6164 | Hitachi HDS722580VLAT20 (80.0GB – 7200 RPM – IDE Disk) | |||
| n/a | 370-5520 | Upgraded Seagate ST315310A (20.1GB – 7200 RPM – IDE Disk) | ||
| n/a | 370-5560 | Seagate ST320011A (20.4GB – 7200 RPM – IDE Disk) | ||
| Ethernet | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X4445A | 501-6738 | Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y | ||
| X1033A | 501-5019 | Sun FastEthernet PCI Adapter (FE/P) 2.0 | ||
| X1034A | 501-5406 | Quad FastEthernet PCI (QFE/P) | ||
| X1141A | 501-4373 | Gigabit Ethernet PCI (GBE/P) 2.0 | ||
| X1150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X1151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X2069A | 501-5426 | Gigabit Ethernet FC-AL/P | ||
| X3150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X3151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X4150A | 501-6719 | GigaSwift Ethernet UTP (GCS) | ||
| X4151A | 501-6762 | GigaSwift Ethernet MMF (GFS) | ||
| X4444A | 501-6522 | Quad GigaSwift Ethernet UTP (QGE) | ||
| Graphics | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X3668A | 370-3753 | PGX32 8/24-Bit Color Frame Buffer | ||
| X3684A | 375-3052 | Expert3D Lite PCI Frame Buffer | ||
| X3768A | 370-4362 | PGX64 8/24-Bit Color Frame Buffer | ||
| n/a | 375-0116 | Expert3D Lite PCI Frame Buffer (6760B FAB) | ||
| IDPROM | |||
|---|---|---|---|
| Socket | Manufacturing Part # | Component Type | Host ID |
| U48 | 100-6889 | 12C IDPROM | 8xxxxxxx |
| Input Device | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X3682A | 370-4161 | Sun 1394 Visual Collaboration Kit | ||
| n/a | 370-1678 | Sun Microphone II | ||
| Memory | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X6991A | 370-4149 | 128MB SDRAM DIMM | ||
| X6992A | 370-4150 | 256MB SDRAM DIMM | ||
| X6993A | 370-4151 | 512MB SDRAM DIMM | ||
| Miscellaneous | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X1131A-64.1 | 375-0075 | SunPCi 300MHz | ||
| X1131A-64.2 | 375-0095 | SunPCi 400MHz | ||
| X2131A | 375-0131 | SunPCi II 600MHz, 64MB memory | ||
| X2132A | 375-3051 | SunPCi IIpro 733MHz coprocessor card | ||
| X2134A | 375-3116 | SunPCi III 1.4GHz Co-Processor Card, 256MB memory | ||
| X7035A | 370-3801 | SunPCi 128MB memory expansion | ||
| X7041A | 370-3800 | SunPCi 64MB memory expansion | ||
| X7042A | 370-4294 | SunPCi II 128MB memory expansion | ||
| X7044A | 370-4295 | SunPCi II 256MB memory expansion | ||
| X7045A | 370-4430 | SunPCi IIpro 512MB memory expansion | ||
| X7066A | 370-5463 | SunPCi III 256MB SODIMM memory expansion | ||
| X7067A | 370-5967 | SunPCi III 512MB SODIMM memory expansion | ||
| n/a | 370-4208 | PCI Riser Board | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| n/a | 370-4206 | Mitac 200 Watt Power Supply | ||
| Removable Media | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X6173A | 370-4153 | 12X DVD-ROM / 40X CD-ROM | ||
| X6175A | 370-4439 | 16X DVD-ROM / 48X CD-ROM | ||
| n/a | 370-4152 | 48X EIDE CD-ROM | ||
| n/a | 370-4211 | Triple Density Floppy | ||
| SCSI | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # | Description | ||
| X1032A | 501-5656 | Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI) | ||
| X2222A | 501-5727 | Dual FastEthernet / Dual SCSI PCI Adapter | ||
| X4422A | 501-6635 | Dual GigabitEthernet / Dual SCSI PCI Adapter | ||
| X5010A | 375-0097 | Single-Channel Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6540A | 375-0005 | Dual Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6541A | 375-0006 | Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD) | ||
