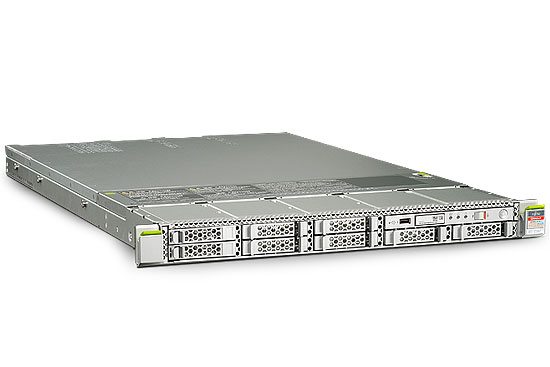

Oracle Fujitsu M10-1 Server
REQUEST A PRICE QUOTE:
Oracle Fujitsu M10-1 Enterprise Server Specs
Greentec Systems is proud to offer the Fujitsu M10-1 server is a space-saving, power saving entry-level server with high performance and reliability that is ideal for data center integration and virtualization. It supports as many as 16 cores, large-capacity memory, and a large disk in a space-saving one-rack-unit (1U) chassis. It can handle low-end and midrange enterprise applications. Its SPARC64 X (“ten”) processor was developed to deliver dramatic high-speed performance by implementing instructions in hardware that accelerate key software-on-chip functions. The Fujitsu M10-1 server enables highly flexible system configuration with two no-cost virtualization technologies: Oracle VM Server for SPARC and the Oracle Solaris Zones feature of Oracle Solaris.
- Scales up to 16 cores and 512 GB of DDR3 memory
- New 2.8 GHz SPARC64 X processor, with supercomputer technology, provides superior performance on enterprise workloads such as OLTP, ERP, BIDW, SCM, CRM, and more
- Software-on-Chip instructions on the SPARC64 X processor accelerates important software functions
- CPU activation economically and rapidly meets capacity requirements
- Flexible resource configuration using Oracle VM Server for SPARC and Oracle Solaris Zones virtualization technologies
Oracle Fujitsu M10-1 Server FAQ’s, click HERE, for the pdf.
| Feature | Benefit |
|---|---|
| Mainframe-class RAS features including automatic recovery with instruction retry, up to 2 TB of system memory with error-correcting code (ECC) protection and extended ECC support, guaranteed data-path integrity, and configurable memory mirroring | Fujitsu M10-1 systems designed for mission-critical applications |
| Supports Oracle Solaris 11 and Oracle Solaris 10 | Assures investment protection with the Oracle Solaris 100% binary compatibility guarantee |
| Software-on-Chip instructions in SPARC64 X processor hardware | Accelerates key software functions |
| 1-rack unit size | Space-saving form factor |
| SPARC64 X 2.8 Ghz 16-core processor with 22 MB of level 2 cache | High compute capability |
| Oracle Solaris Zones and Oracle VM Server for SPARC | No-cost virtualization to improve resource utilization |
| Small | Medium | Large | |
|---|---|---|---|
| System List Price | US$24,737.00 | US$29,137.00 | US$72,897.00 |
| Greentec Discounted Price | US$ Contact | US$ Contact | US$ Contact |
| Processor | One SPARC64 X, 16-core, 2.8 GHz | One SPARC64 X, 16-core, 2.8 GHz | One SPARC64 X, 16-core, 2.8 GHz |
| Built-In Security | ISA based Crypto-Accelaration | ISA based Crypto-Accelaration | ISA based Crypto-Accelaration |
| Memory | 32 GB (4 x 8 GB DIMMs) | 128 GB (8 x 16 GB DIMMs) | 512 GB (16 x 32 GB DIMMs) |
| Reliability, Availability & Serviceability (RAS) | Redundant components, ECC and Extended ECC protection, predictive self-healing, instruction-level retry, memory mirroring, fault isolated partitions, and hot-plug of fans, power supplies, disks, PCIe cards | Redundant components, ECC and Extended ECC protection, predictive self-healing, instruction-level retry, memory mirroring, fault isolated partitions, and hot-plug of fans, power supplies, disks, PCIe cards | Redundant components, ECC and Extended ECC protection, predictive self-healing, instruction-level retry, memory mirroring, fault isolated partitions, and hot-plug of fans, power supplies, disks, PCIe cards |
| Mass Storage | 1200 GB (2 x 600 GB) 10,000 RPM 2.5-inch SAS disks | 1200 GB (2 x 600 GB) 10,000 RPM 2.5-inch SAS disks | 1200 GB (2 x 600 GB) 10,000 RPM 2.5-inch SAS disks |
| Network & I/O Options | Four GbE ports, Three PCI Express 3.0 short, low-profile slots, As many as 23 PCI Express slots with optional PCI expansion unit, 1 SAS port, 2 USB ports | Four GbE ports, Three PCI Express 3.0 short, low-profile slots, As many as 23 PCI Express slots with optional PCI expansion unit, 1 SAS port, 2 USB ports | Four GbE ports, Three PCI Express 3.0 short, low-profile slots, As many as 23 PCI Express slots with optional PCI expansion unit, 1 SAS port, 2 USB ports |
| Read & Write Performance | Yes | Yes | Yes |
| Virtualization | 32 | 32 | 32 |
| Power/Cooling | 100 V to 120 V ± 10% (50/60 Hz), 200 V to 240 V ± 10% (50/60 Hz) | 100 V to 120 V ± 10% (50/60 Hz), 200 V to 240 V ± 10% (50/60 Hz) | 100 V to 120 V ± 10% (50/60 Hz), 200 V to 240 V ± 10% (50/60 Hz) |
| Regulations | Yes | Yes | Yes |
| Operating System/Software | Oracle Solaris 11 pre-install | Oracle Solaris 11 pre-install | Oracle Solaris 11 pre-install |
Fujitsu M10-1 Server: Hardware Specifications
