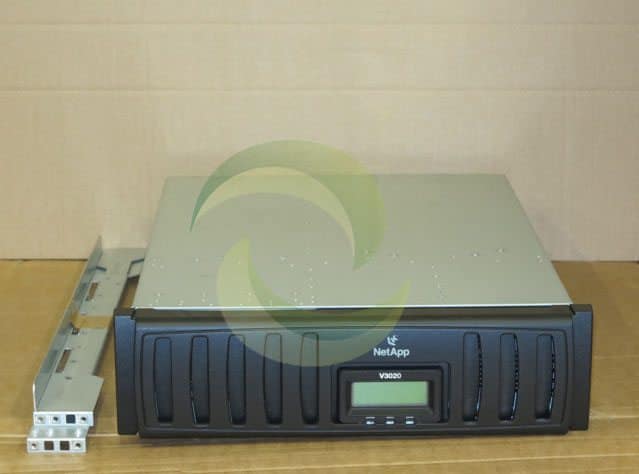

NetApp V3020 Network Storage Visualization Filer Head

Included

• 1 x NetApp V3020 Network Appliance Storage Visualization Filer Head  110-00081
• 4 x Finisar FTLF8519P2BNL-(N1) 2.125Gbps Shortwave SPF Transceiver Modules
• 1 x Pair of Rackmount Rails


The V3000 series is the midrange NetApp heterogeneous storage  virtualization solution for enterprise applications. V3000 systems  deliver exceptional capabilities for both business and technical  applications, across both SAN and NAS environments.

Features

High Scalability



• V3000 systems scale to over 500TB of capacity, providing a single  architecture and management interface for heterogeneous storage arrays.  The V3070 scales to a maximum of 504 LUNs.



Effective Consolidation



• The V3000 systems are ideally suited for storage consolidation  supporting hundreds of applications because they are not only highly  scalable but also very flexible. Data can be stored in either file or  block format. Supported protocols include FC, NFS, CIFS, HTTP, and iSCSI for the greatest flexibility.
• The Data ONTAP® 7G operating system includes two standard features,  FlexVol® and FlexShare™, which improve the effectiveness of  consolidation. FlexVol creates volumes that can be readily expanded or  contracted while reducing the need for spare capacity. FlexShare enables the consolidation of disparate workloads by ensuring that critical  workloads get fast response.



Unique Versatility



• V3000 systems can be used for SAN-based and/or NAS-based applications and for primary or secondary storage.



High Availability



• A full range of high-availability and disaster recovery options are  offered with the V3000 series. However, NetApp goes beyond the data  center baseline for availability. Active-active controller  configurations enable continuous access to data by automatically failing over to an additional V-Series controller without data loss. Similarly, the NetApp implementation of Snapshot™ copies has no performance impact and requires very little incremental storage, so Snapshot copies can be created frequently. The result is unparalleled application-level  availability with recovery in minutes, not hours, after a failure or  human error.



Robust SAN

• NetApp supports a complete Fibre Channel SAN infrastructure with a  full range of certified hosts, adapters, switches, and directors. The  V3000 systems are also capable of 4Gb FC SAN



Specifications

Maximum RAID Group Sizes

• RAID-6 (RAID-DP)
• FC-28 (26 data disks plus 2 parity disks)
• SATA-16 (14 data disks plus 2 parity disks)
• RAID-4
• FC-14 (13 data disks plus 1 parity disk)
• SATA-7 (6 data disks plus 1 parity disk)
• RAID-6+RAID1 or RAID4+RAID1 (SyncMirror)



SAN Protocol Support

• Fibre Channel Protocol (FCP) for SCSI (2Gb and 4Gb); fabric-attached and direct-attached; iSCSI



File Service Protocol Support

• NFS V2/V3/V4 over UDP or TCP, PCNFSD V1/V2 for (PC) NFS client authentication, Microsoft CIFS



Other Protocol Support

• HTTP 1.0, HTTP 1.1 virtual hosts



LUNs

• Up to 1,024



FlexVol Volumes

• Up to 500 per controller



Volume/Aggregate Size

• 16TB



Snapshot Copies

• Up to 127,000



Number of Supported Hosts

• Up to 4 ports per controller configured as front-end (host) connectivity ports
• Up to 4 directly connected servers (per controller and per active/active configuration)
• Up to 256 SAN connected servers (per controller and per active/active configuration)



Highly Available Back-End (Disk) Configurations

• Dual-path, Multipath HA Storage



Reliability

• Redundant hot-swappable controllers, cooling fans, power supplies, optics, and RJ-45 ports



Management

• Full-duplex 10/100/1000Base-T Ethernet onboard console, diagnostic LED/LCD, Remote LAN Management (RLM) Card, SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, e-mail alerts



Security

• Virus Protection
• Authentication: Kerberos (MIT/Active Directory)
• Authorization: LDAP, NIS
• Auditing: File access logging
• Encryption: IPSec, SSL, SSH, SMB signing
• Role Based Access Control (RBAC)



Scalability

• Configuration: Single Controller
• Max. Raw Capacity: 84TB
• Max. Number of Disk Drives: 168
• Max. Drives per Back-End (Disk) FC Loop: 84
• ECC Memory: 2GB
• Nonvolatile Memory: 512MB



I/O

• Configuration: Single Controller
• Onboard (fixed) Fibre Channel Ports (target or initiator): 4 ports of 2Gb
• Onboard (fixed) GbE Ports: 4
• Modular I/O Slots: 3



I/O Card Support

• Configuration: Single Controller
• Dual FC Disk Adapters (max.): 3
• Dual 4Gb FC Target Adapters (max.): 2
• Quad 4Gb FC Disk/Tape Adapters (max.): 3
• Dual FC -Tape Adapters (max.): 3
• Dual-port SCSI HBA: 3
• Quad GbE TOE (copper) cards: 2
• Single 10GbE TOE (fiber) cards: 2
• Dual GbE (copper or fiber) cards: 3
• Dual iSCSI (copper or fiber) host adapter: 3
