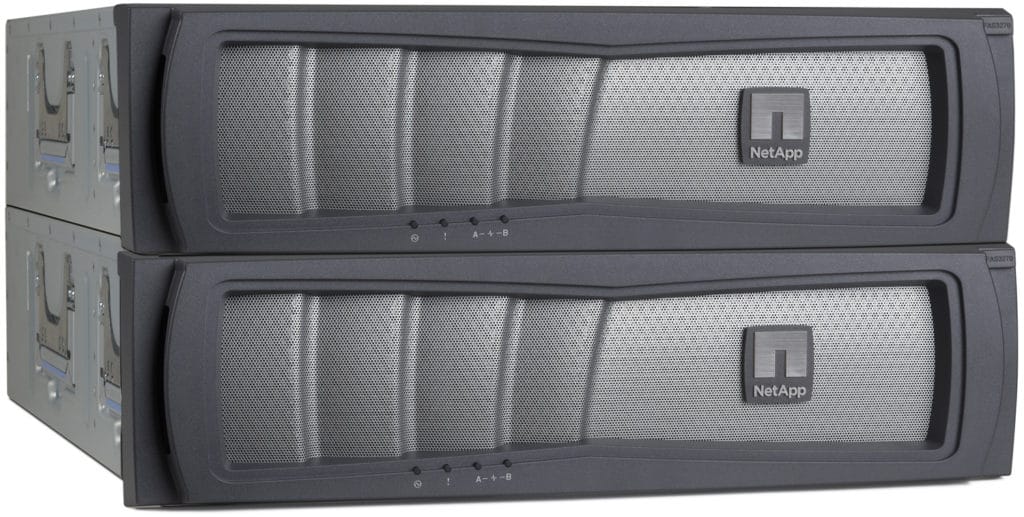

NetApp FAS3270, FAS3270, FAS3210 Series Specs & Configurations

REQUEST A PRICE QUOTE:

All data in this table applies to active-active dual controller configurations.
Use the quote form above for a pricing quotation.

	FAS3270 with Expanded I/O	FAS3270	FAS3240 with Expanded I/O	FAS3240	FAS3210
Maximum System Capacity	2,880TB	2,880TB	1,800TB	1,800TB	720TB
Maximum Drives	960	960	600	600	240
Controller Form Factor	Dual enclosure HA; 2 controllers in two 3U chassis, total of 6U	Single enclosure HA; 2 controllers in single 3U chassis	Dual enclosure HA; 2 controllers in two 3U chassis, total of 6U	Single enclosure HA; 2 controllers in single 3U chassis	Single enclosure HA; 2 controllers in single 3U chassis
Memory	40GB	40GB	16GB	16GB	8GB
Maximum Flash Cache	2TB	2TB	1TB	1TB	512GB
PCIe Expansion Slots	12	4	12	4	4
Onboard I/O: 4Gb FC	4	4	4	4	4
Onboard I/O: 6Gb SAS	4	4	4	4	4
Onboard I/O: GbE	4	4	4	4	4
Storage Networking Supported	FC; FCoE; IP SAN (iSCSI); NFS; CIFS; HTTP; FTP
OS Version	Data ONTAP® 7 and 8
High-Availability Features	Alternate Control Path (ACP); Ethernet-based service processor and Data ONTAP management interface; redundant hot-swappable controllers, cooling fans, power supplies, and optics
Supported Configurations	Highly available controller configurations Active-active controller with controller failover and multipath HA storage Active-active controller with stretch (nonswitch) and fabric-attached MetroCluster™ V-Series Storage Acceleration Appliance SA320
Software Features	Standard One SAN or NAS protocol (iSCSI, FC, NFS, or CIFS) RAID manager, including RAID-DP® Snapshot™ FlexVol® FlexShare® Deduplication Compression (check with sales representative for ordering instructions) Thin provisioning Disk sanitization Operations Manager Provisioning Manager Protection Manager Protection Manager DR DFM Management Server (optional) System Manager FilerView® MultiStore® FlexCache™ Cluster failover MetroCluster SyncMirror® Open Systems SnapVault DSM/MPIO		Optional Extended Value software: Additional SAN/NAS protocols (iSCSI, FC, NFS, CIFS) SnapRestore® SnapMirror® SnapVault® FlexClone® SnapManager® Suite, includes: SnapManager for Microsoft® Exchange, SnapManager for Microsoft SQL Server®, SnapManager for Oracle®, SnapManager for Microsoft SharePoint® Server, SnapManager for SAP®, SnapManager for Virtual Infrastructure, SnapManager for Hyper-V™, SnapDrive® for UNIX®, SnapDrive for Windows® NetApp Complete Bundle (includes all above Extended Value software) Other software: SnapLock® Compliance SnapLock Enterprise
Disk Shelves Supported	DS2246 (2U; 24 drives, 2.5” SAS SFF 10K RPM 450GB/600GB) DS4243 (4U; 24 drives, 3.5” SATA 7.2K RPM 1TB/2TB/3TB; 3.5″ SAS 15k RPM, 450GB/600GB; 3.5” SSD 100GB) (Note: 3TB drive requires Data ONTAP 8; SSDs not currently supported with FAS3210) DS14mk2 and DS14mk4 (3U; 14 drives, 3.5” FC 450GB/600GB, 3.5” SATA 1TB/2TB)
Maximum RAID Group Sizes	RAID 6 (RAID-DP) FC: 28 (26 data disks plus 2 parity disks) SATA: 20 (18 data disks plus 2 parity disks) RAID 4 FC: 14 (13 data disks plus 1 parity disk) SATA: 7 (6 data disks plus 1 parity disk)
Operating Systems Supported	Windows 2000, Windows Server 2003, Windows Server 2008, Windows XP, Linux®, Sun Solaris, AIX, HP-UX, Mac® OS, VMware®, ESX
Maximum Number of LUNs	4,096
Number of Supported SAN Hosts	Up to 512 hosts per HA pair Up to 24 directly connected servers per HA pair
FlexVol® Volumes	Up to 500 per controller
Snapshot Copies	Up to 127,000
Maximum Volume/Aggregate Size	70TB	70TB	50TB	50TB	50TB
Maximum port count includes integrated ports and PCIe expansion slots
FC Target (8Gb/4Gb) (max.)	24/52	8/20	24/52	8/20	8/20
10GbE/FCoE Target Ports (max)	24	8	24	8	8
GbE (max.)	52^[1]	20	52^[1]	20	20
6Gb SAS (max.)	52	20	52	20	20
FC Initiator (max.)	52	20	52	20	20
Maximum Adapters
Dual 10GbE (optical or copper)	12	4	12	4	4
Quad GbE (copper)	12^[1]	4	12^[1]	4	4
Dual 10GbE FCoE SAN Unified Target Adapter (optical or copper)	12	4	12	4	4
8Gb FC Target (optical)	12	4	12	4	4
Dual 8Gb VI for SnapMirror® over Fibre Channel (SMoFC)	2	2	2	2	2
Flash Cache Performance Acceleration Module (1TB)	2	2	N/A	N/A	N/A
Flash Cache Performance Acceleration Module (512GB)	4	4	2	2	N/A
Flash Cache Performance Acceleration Module (256GB)	N/A	N/A	4	4	2^[2]
Quad 6Gb SAS Storage HBA	12	4	12	4	4
Quad 4Gb FC Storage/Tape HBA	12	4	12	4	4
Dual SCSI Tape HBA	12	4	12	4	4

^[1]Maximum number of Ethernet ports on all network adapter cards depends on the Data ONTAP release in use
^[2]Flash Cache is not supported with Data ONTAP 8.1 running on the FAS/V3210 systems

System Environmental Specifications

Thermal Rating

1,884 BTU (typical) 2,485 BTU (worst case)

1,393 BTU (typical) 1,867 BTU (worst case)

1,591 BTU (typical) 2,168 BTU (worst case)

1,256 BTU (typical) 1,707 BTU (worst case)

1,577 BTU (typical) 2,137 BTU (worst case)

Weight

148 lb

80 lb

148 lb

80 lb

Height

10.2” (26 cm), fits into 6U space

5.1” (13 cm), fits into 3U space

10.2” (26 cm), fits into 6U space

5.1” (13 cm), fits into 3U space

Width

19″ IEC rack-compliant (17.6”, 44.7 cm)

Depth

24” (26.5” w/cable management)

Operating Temperature, Altitude, and Relative Humidity

10° C to 40° C (50° F to 104° F); at <= 3,000 m (at <= 10,000′ feet) elevation; 20% to 80% relative humidity, noncondensing (28° C wet bulb temperature)

Nonoperating Temperature and Relative Humidity

-40° C to 65° C (-40° F to 149° F); 5% to 95% relative humidity, noncondensing, in original container

Operating Acoustic Noise

? 61 dBA sound pressure (LpA) @ normal operating conditions (at 22°C and at sea level)

Compliance

RoHS-compliant

Safety/Emissions/Immunity

Safety:EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, GOST-R, BSMI, SONCAP, NRCS LOA (South Africa)Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI

NetApp Systems Cabinet
Rack Space	42U
Dimensions (height/width/depth)	78.75″ (200 cm)/23.6″ (60 cm)/44.3″ (112.5 cm)
Minimum Cabinet Clearances for Airflow	10″ (25.4 cm) front and 12” (30.5 cm) rear
Minimum Cabinet Clearances for Service	30” (76.3 cm) front and rear, 12” top
AC Power	200 to 240VAC
Current	30A Single Phase or 3-Phase
Weight (empty)	307 lbs (138 kg)
Features	Split rear door with cable egress opening Reversible front door (left- or right-handed)

Regulations	FAS3200 Series Storage System
Safety/Emissions/Immunity	Safety:EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, GOST-R, BSMI, SONCAP, NRCS LOA (South Africa)Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI
