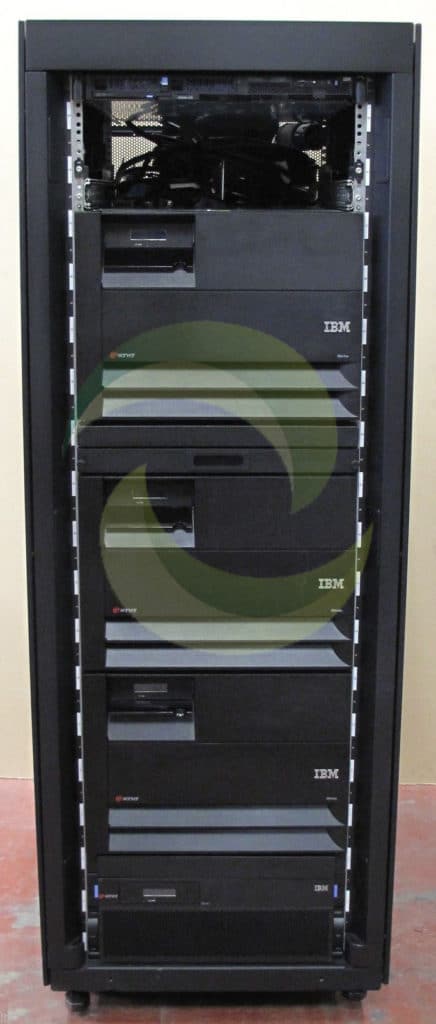

IBM eServer AS/400 Server System

Included:

IBM 36U Cabinet with:

• 1 x IBM X Series 336 1U hardware management console – Type 7310-CR3
• DVD RW
• 80Gb HDD
• 1Gb RAM
• 1 x 1U 17” Rack mount flat panel monitor (No keyboard) – P/N: 80P3750 (7316-TF8)
• 1 x Rack mount PCI expansion 0588

With:

• 2 x 595w Power supply unit – P/N: 97P5253
• 1 x 2Gbps 1-Port PCI-X LC fibre channel adapter – FC 5704 – P/N: 80P4381 (FRU: 80P4382)
• 4 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 1 x HSL 2 port bus adapter – FC 2887
• 1 x 4Gbps PCI-X single port fibre adapter – FC 280D – P/N: 03N5014
• 1 x Multitech PCI 2-line WAN W/V.92 internal modem  – FC 2793 – 21P5289 (CA P/N: 53P0708)
• 1 x 100Mbps Token Ring – FC 2744 – P/N: 23L4288 (CA P/N: 21P6348)
• 2 x PCI ENET IOA – FC 2849 – P/N: 53P0057 (CA P/N: 53P2950)
• 1 x 2-Line communications IOA – FC 2742 – 21P5267 (CA P/N: 53P0700)
• 1 x Rack mount PCI expansion 0588

With:

• 2 x 595w Power supply unit – P/N: 97P5253
• 1 x 2Gbps 1-Port PCI-X LC fibre channel adapter – FC 5704 – P/N: 80P4381 (FRU: 80P4382)
• 2 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 1 x HSL 2 port bus adapter – FC 2887
• 1 x PCI Twinax IOA – FC 2746 – P/N: 21H5497 (CA P/N: 97H7760)
• 2 x PCI ENET IOA – FC 2849 – P/N: 53P0057 (CA P/N: 53P2950)
• 1 x PCI Rack mount expansion unit 0588

With:

• 2 x 595w Power supply unit – P/N: 97P5253
• 1 x 2Gbps 1-Port PCI-X LC fibre channel adapter – FC 5704 – P/N: 80P4381 (FRU: 80P4382)
• 2 x PCI Twinax IOA – FC 2746 – P/N: 21H5497 (CA P/N: 97H7760)
• 3 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 1 x HSL 2 port bus adapter – FC 2887
• 2 x PCI ENET IOA – FC 2849 – P/N: 53P0057 (CA P/N: 53P2950)
• 1 x 100Mbps Token Ring – FC 2744 – P/N: 23L4288 (CA P/N: 21P6348)
• 1 x Rack mount PCI-X expansion unit 0595

With:

• 2 x 435w Power supply unit – P/N: 53P4832
• CI-X ULTRA4 RAID controller – FC 2780 – P/N: 39J5057
• 2 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 1 x 2-Line communications IOA – FC 2742 – 21P5267 (CA P/N: 53P0700)
• 1 x PCI ENET IOA – FC 2849 – P/N: 53P0057 (CA P/N: 53P2950)
• 1 x HSL-2/RIO-G Adapter Module – FC 28E7 – P/N: 97P2459
• 1 x 2Gbps 1-Port PCI-X LC fibre channel adapter – FC 5704 – P/N: 80P4381 (FRU: 80P4382)
• 1 x 100Mbps Token Ring – FC 2744 – P/N: 23L4288 (CA P/N: 21P6348)
• 10 x 35Gb 15k HDD – FC 4326 – P/N: 97P3030

IBM 36U Cabinet with:

• 2 x Tape Drive – Type 3590-B11
• 1 x xSeries 340 8656-6RY Server

With:

• 2 x Pentium 3 1GHz Processor – P/N: 38L3960 (FRU: 21P9566)
• 1 x 1Gb RAM – P/N: 38L3243 (FRU: 33L3130)
• 1 x 128Mb RAM – P/N: 38L3240 (FRU: 33L3124)
• CD Drive
• Floppy Drive
• DuraLAN Quarter64 4-Port 10/100 64-bit PCI RJ-45 – P/N: 1737100
• SERVERAID 4MX Dual Channel Ultra160 SCSI RAID Controller Card
• 2 x 270w Power Supply Unit – 19K0930 (FRU: 37L0311)
• 2 x 18.2Gb 10k SCSI HDD – P/N: 06P5754 (FRU: 06P5758)
• 1 x Rack mount PCI-X expansion unit 0595

With:

• 2 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 1 x HSL-2/RIO-G Adapter Module – FC 28E7 – P/N: 97P2477
• 7 x 70Gb 15k HDD – FC 4327 – P/N: 97P3000 (FRU: 39J3697)
• 1 x Rack mount PCI-X expansion unit 0595

With:

• 2 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 1 x HSL-2/RIO-G Adapter Module – FC 28E7 – P/N: 97P2459
• 7 x 70Gb 15k HDD – FC 4327 – P/N: 97P3000 (FRU: 39J3697)

IBM 36U Cabinet with:

• 1 x Rack mount expansion I/O Tower – FC 5294-2 (Top)

With:

• 3 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 3 x PCI-X ULTRA4 RAID controller – FC 2780 – P/N: 39J5057
• 1 x 2-Line communications IOA – FC 2742 – 21P5267 (CA P/N: 53P0700)
• 1 x PCI Twinax IOA – FC 2746 – P/N: 21H5497 (CA P/N: 97H7760)
• 1 x Multitech PCI 2-line WAN W/V.92 internal modem  – FC 2793 – 21P5289 (CA P/N: 53P0708)
• 1 x HSL-2/RIO-G Adapter Module – FC 28E7 – P/N: 97P2477
• 1 x 2Gbps 1-Port PCI-X LC fibre channel adapter – FC 5704 – P/N: 80P4381 (FRU: 80P4382)
• 30 x 35Gb 15k HDD – FC 4326 – P/N: 97P3030
• 1 x Rack mount expansion I/O Tower – FC 5295-1 (Bottom)

With:

• 3 x Combined function IOP – FC 2884 – PN: 97P2694 (CA P/N: 97P2880)
• 3 x PCI-X ULTRA4 RAID controller – FC 2780 – P/N: 39J5057
• 3 x PCI Twinax IOA – FC 2746 – P/N: 21H5497 (CA P/N: 97H7760)
• 2 x 100Mbps Token Ring – FC 2744 – P/N: 23L4288 (CA P/N: 21P6348)
• 1 x HSL-2/RIO-G Adapter Module – FC 28E7 – P/N: 97P2459
• 40 x 35Gb 15k HDD – FC 4326 – P/N: 97P3030
