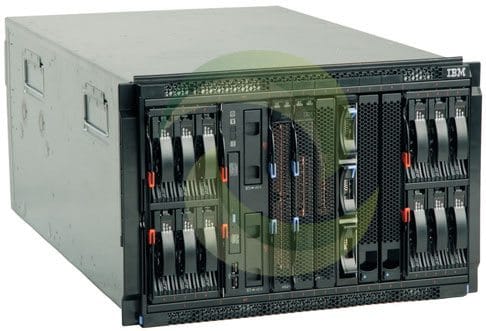

IBM BLADECENTER S
REQUEST A PRICE QUOTE:
The IBM BladeCenter S chassis incorporates applications, servers, SAN storage into a unified chassis.
- Form factor: Rack/7U, high-availability midplane
- Blade bays: Up to six 1- or 2-processor, and up to three 4-processor
- Disk bays: Up to 12 SAS, 12 Nearline SAS, or 12 SATA, or an intermix of the disks
- Media: Optional DVD multi-burner accessible from each blade server
- Switch modules: SAS, Gigabit Ethernet, Fibre Channel switch modules available
- Power supply module: Up to four (hot-swap, auto-sensing, and redundant 950 W/1450 W with load-balancing and failover capabilities)
- Cooling modules: 4 hot-swap and redundant blowers standard
- I/O ports: Keyboard, video, mouse, Ethernet, USB
- Predictive Failure Analysis: Hard disk drives, processors, blowers, memory
- Light path diagnostics: Blade server, processor, memory, power supplies, blowers, switch module, management module, hard disk drives and expansion card
- External storage: Support for IBM System Storage solutions (including DS and NAS family of products) and many widely adopted non-IBM storage offerings
| Ethernet Module Options | |
| 7779-3210 | Nortel 10 Gigabit Uplink Ethernet Switch |
| 7779-3212 | Nortel Networks Layer 2/3 Copper Gigabit Ethernet Switch |
| 7779-3212 | Nortel Networks Layer 2/3 Fiber Gigabit Ethernet Switch |
| 7779-3220 | Server Connectivity Module |
| 7779-3231 | IBM 10 Gb Ethernet 850nm fiber XFP Transceiver |
| 7779-3232 | IBM 10 Gb Ethernet 1310nm fiber XFP Transceiver |
| Fibre Channel Module Options | |
| 7779-3207 | Brocade 10-port 4 Gb SAN Switch |
| 7779-3218 | IBM BladeCenter Optical Passthru |
| 7779-3238 | IBM Short Wave SFP 4Gb |
| 7779-3241 | Cisco Systems 4 Gb 10 port Fibre Channel Switch |
| 7779-3243 | QLogic 10-port 4 Gb SAN Switch Module |
| 7779-3245 | QLogic 4 Gb Intelligent Pass-Thru |
| 7779-3261 | Cisco Systems 4 Gb Short-wave Length SFP |
| 7779-3262 | Cisco Systems 4 Gb Long-wave Length SFP |
| 7779-4542 | Pluggable Optical Transceivers |
| Pass Thru Module Options | |
| 7779-3219 | IBM BladeCenter Copper Pass-Thru |
| SAS Module Options | |
| 7779-3267 | IBM BladeCenter SAS Connectivity |
| SAS Disk Drive Options | |
| 7779-3747 | 300GB 15K RPM SAS Disk Drive |
| 7779-3748 | 73GB 15K RPM SAS Disk Drive |
| 7779-3749 | 146GB 15K RPM SAS Disk Drive |
| 7779-3762 | 450GB SAS Hot-Swap HDD |
| 7779-4545 | IBM BladeCenter S 6-Disk Storage |
| DVD Drive | |
| 7779-4156 | UltraSlim Enhanced CD-RW/DVD-ROM |
