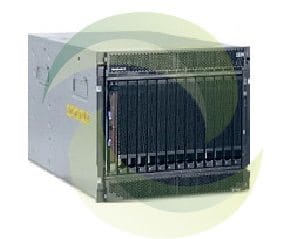

IBM BLADECENTER H
REQUEST A PRICE QUOTE:
This BCH chassis delivers a reliable infrastructure to maximize investment and performance. The BCH offers support for five blade families, so you are able to select blades according to application requirements.
- Form factor/height: Rack-mount chassis /9U
- Blade bays: Up to 14
- Switch modules: Up to four traditional, up to four high-speed, and up to four bridge module bays
- Power supply module: Up to 4 hot-swap and redundant 2900W AC with load-balancing and failover capabilities. Operating at 200-240V
- Cooling modules: Two hot-swap and redundant blowers standard, additional fanpacks on power supplies
- Systems management hardware: Advanced Management Module standard; add an optional Advanced Management Module for redundancy
- I/O ports: USB-based keyboard, video, mouse (KVM), Ethernet, USB
- Media: Two USB connections and an optional DVD multi-burner
- Predictive Failure Analysis: Internal storage, processors, blowers, memory
- Light path diagnostics: Blade server, processor, memory, power supplies, blowers, switch module, management module, internal storage and expansion card
- External storage: Support for IBM System Storage solutions (Including DS and NAS family of products) and many widely adopted non-IBM storage offerings
| Fibre Channel Module Options | |
| 7989-3202 | QLogic 4Gb 20-port Fibre Channel Switch |
| 7989-3203 | QLogic 4Gb 10-port Fibre Channel Switch |
| 7989-3206 | Brocade 20-port 4 Gb SAN Switch |
| 7989-3207 | Brocade 10-port 4 Gb SAN Switch |
| 7989-3218 | IBM BladeCenter Optical Passthru |
| 7989-3238 | IBM Short Wave SFP 4Gb |
| 7989-3241 | Cisco Systems 4 Gb 10 port Fibre Channel Switch |
| 7989-3242 | Cisco Systems 4 Gb 20 port Fibre Channel Switch |
| 7989-3243 | QLogic 10-port 4 Gb SAN Switch |
| 7989-3244 | QLogic 20-port 4 Gb SAN Switch |
| 7989-3245 | QLogic 4 Gb Intelligent Pass-Thru |
| 7989-3261 | Cisco Systems 4 Gb Short-wave Length SFP |
| 7989-3262 | Cisco Systems 4 Gb Long-wave Length SFP |
| InfiniBand Module Options | |
| 7989-3216 | 4X InfiniBand Pass-Thru Module |
| 7989-3217 | Cisco 4xIB Switch |
| Ethernet Module Options | |
| 7989-3210 | Nortel 10 Gigabit Uplink Ethernet Switch |
| 7989-3211 | Nortel Networks Layer 2-7 GbE Switch |
| 7989-3212 | Nortel Networks Layer 2/3 Copper Gigabit Ethernet Switch |
| 7989-3213 | Nortel Networks Layer 2/3 Fiber Gigabit Ethernet Switch |
| 7989-3214 | Cisco Systems Fiber Intelligent Gigabit Ethernet Switch |
| 7989-3215 | Cisco Systems Intelligent GbE Swith |
| 7989-3219 | IBM BladeCenter Copper Pass-Thru |
| 7989-3220 | Server Connectivity Module |
| 7989-3231 | IBM 10 Gb Ethernet 850nm Fiber XFP Transceiver |
| 7989-3232 | IBM 10 Gb Ethernet 1310nm Fiber XFP Transceiver |
| 7989-3236 | IBM Short Wave SFP Module |
| 7989-3237 | IBM Long Wave SFP Module |
| SAS Module Options | |
| 7989-3267 | IBM BladeCenter SAS |
