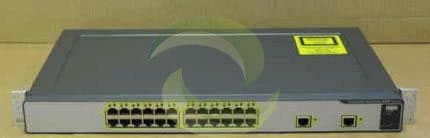

Cisco WS-CE500-24TT Catalyst Express 24 port Network Ethernet Switch
REQUEST A PRICE QUOTE:
Cisco Catalyst Express Switch 24 ports Network
Managed 500-24TT WS-CE500-24TT
| Feature | Product Features | ||
| Data transmission | |||
| Maximum data transfer rate | 0.1 Gbit/s | ||
| Full duplex | Yes | ||
| Supported data transfer rates | 10/100/1000 Mbps | ||
| Switching capacity | 8.8 Gbit/s | ||
| Packet transfer speed | 6.6 Mpps | ||
| Networking | |||
| MAC address table | 8000 entries | ||
| Store-and-forward | Yes | ||
| Number of VLANs | 32 | ||
| Spanning tree protocol | Yes | ||
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.1w, IEEE 802.1x | ||
| IGMP snooping | Yes | ||
| Management features | |||
| Switch type | Managed | ||
| Web-based management | Yes | ||
| Switch layer | L2 | ||
| Protocols | |||
| Management protocols | RMON, SNMP3 | ||
| Data link protocol | Ethernet, Fast Ethernet | ||
| Connectivity | |||
| Ports quantity | 24 | ||
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T | ||
| SFP slots quantity | 2 | ||
| Ethernet LAN (RJ-45) ports quantity | 24 | ||
| DC-in jack | Yes | ||
| Security | |||
| SSH/SSL support | Yes | ||
| Weight & dimensions | |||
| Dimensions (WxDxH) | 444.5 x 439 x 25.1 mm | ||
| Weight | 3700 g | ||
| Stackable | No | ||
| Dimensions (W x D x H) | 43.9 x 444.5 x 251.5 mm (1.73 x 17.5 x 9.9 “) | ||
| Sound emission | |||
| Acoustic pressure emissions | 40 dB | ||
| Energy management | |||
| Power consumption | 30 W | ||
| Power requirements | 100-240Vac, 1.3-0.8A, 50-60Hz | ||
| Endurance | |||
| Mean time between failures (MTBF) | 308482 h | ||
| Certificates | |||
| Safety | UL, CUL, TUV/GS, CB, NOM, CE | ||
| Electromagnetic emissions | FCC Part 15 A, EN 55022 Class A (CISPR22), EN 55024 (CISPR24),VCCI Class A, AS/NZS CISPR22 Class A, MIC, China EMC, GOST | ||
| Environmental conditions | |||
| Operating relative humidity range | 10 – 85 % | ||
| Storage temperature range (T-T) | -20 – 70 °C | ||
| Non-operating altitude | 4500 m | ||
| Operating temperature range (T-T) | 0 – 45 °C | ||
| Technical details | |||
| Connectivity technology | Wired | ||
|
| ||
