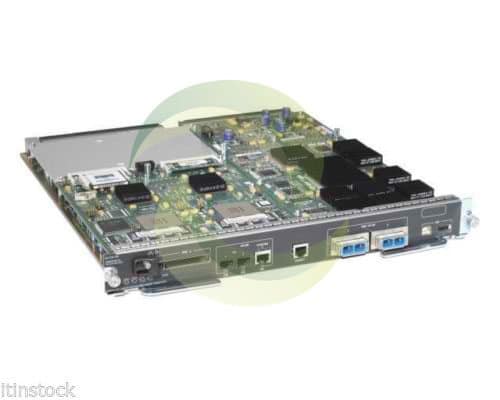

Cisco VS-S720-10G-3C Cisco Supervisor with 2 ports 10Gb with PFC3C + MSFC3
REQUEST A PRICE QUOTE:
DESCRIPTION
The Cisco Virtual Switching Supervisor Engine 720 with 10 Gigabit Ethernet uplinks and PFC 3C combines high-density uplinks, system virtualization, and increased throughput with scalable performance and a rich IP feature set. This supervisor engine is a key component of the Cisco VSS 1440 Virtual Switching System, enabling high availability, operational efficiency, and increased bandwidth with a greater ease of deployment.
| PRODUCT DETAILS | |
|---|---|
| Device Type | Control processor |
| Form Factor | Plug-in module |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Performance | IPv4 routing : 450 Mbps IPv6 routing : 225 Mbps |
| Capacity | MAC addresses : 96000 IPv4 routes : 256000 IPv6 routes : 128000 NetFlow entries : 128000 |
| Dimensions (WxDxH) | 37.9 cm x 40.3 cm x 4 cm |
| Weight | 5.2 kg |
| Designed For | Cisco 7603, 7603-S, 7606, 7606-S, 7609, 7609-S, 7613, OSR-7609; Catalyst 6503, 6503-E, 6504-E, 6506, 6506-E, 6506-E IDSM-2, 6509, 6509-E, 6509-E 10Gig, 6509-NEB, 6509-NEB-A, 6513, 6513 10Gig |
| GENERAL | |
|---|---|
| Device Type | Control processor |
| Width | 37.9 cm |
| Depth | 40.3 cm |
| Height | 4 cm |
| Weight | 5.2 kg |
| PROCESSOR / MEMORY / STORAGE | |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| NETWORKING | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Switching Protocol | Ethernet |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, EIGRP, HSRP, VRRP, PIM-SM, PIM-DM, GRE, Bidirectional PIM |
| Performance | IPv4 routing : 450 Mbps IPv6 routing : 225 Mbps |
| Capacity | MAC addresses : 96000 IPv4 routes : 256000 IPv6 routes : 128000 NetFlow entries : 128000 |
| Status Indicators | Port status, power, link OK, system, active |
| Features | NAT support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN |
| Compliant Standards | IEEE 802.1x |
| COMMUNICATIONS | |
| Supported Flash Memory Cards | CompactFlash Card |
| EXPANSION / CONNECTIVITY | |
| Expansion Slots | 2 (total) / 2 (free) x SFP (mini-GBIC) 2 (total) / 2 (free) x X2 |
| Interfaces | 1 x 1000Base-T – RJ-45 1 x management – RJ-45 1 x USB – Type A 1 x USB – Type B |
| Compatible Slots | 1 x Expansion Slot |
| MISCELLANEOUS | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386 |
| ENVIRONMENTAL PARAMETERS | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 90% |
| COMPATIBILITY INFORMATION | |
| Designed For | Cisco 7603, 7603-S, 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle, OSR-7609 Cisco Catalyst 6503, 6503 Firewall Security System, 6503 VPN System, 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 IPSec VPN SPA Security System |
