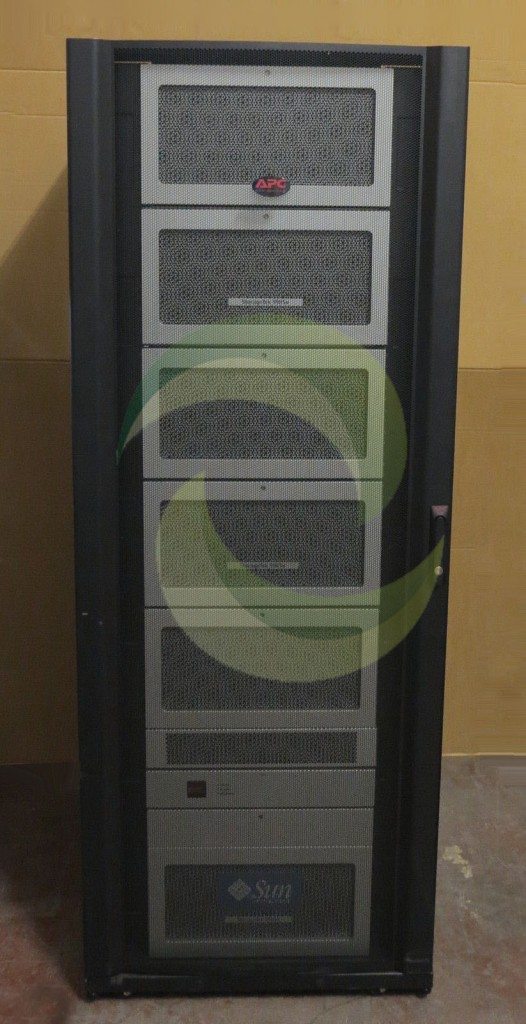

Sun StorageTek 9985V Storage And Virtualisation System

Includes:

• 1 x APC AR3150 42u Rack With Front And Rear Doors And Side Panels
• 8 x Drive Shelves

Populated with: 76 x 450Gb 15k Hard Drives S2F-K450FC

• 4 x  8-Port 4Gb Fibre Channel Adapters 5529267-A

Each with: 8 x Finisar FTLF8524P2BNV-HD

• 4 x 4-Port 4Gb Fibre Channel Adapters 5529266-A

Each with: 4 x Finisar FTLF8524P2BNV-HD

• 8 x 12v Battery Packs 5529214-A
• 2 x USP-VM SSVP Cards 5529218-A
• 2 x USP-VM Cards  5529243-A
• 2 x Cards 5522947-A
• 2 x Shared Memory Adapters  5529258-A
• 2 x Cache Memory Adapters  5529251-A
• 2 x Disk Adapters  5529248-A
• 2 x Cards 5529244-A
• 2 x Service Processor Units HJ-4220-7EWEA

Most comprehensive and fully integrated enterprise storage and services platform with embedded virtualization, thin provisioning, tiered storage management, and universal replication in an efficient modular package.

Highlights

• The same advanced cross-bar architecture, reliability, enterprise functionality, and storage services as the StorageTek 9990V, in a smaller modular package
• Embedded storage virtualization for consolidating, managing, and providing transparent data mobility for up to  96 PB of external heterogeneous disk
• Tiered storage management for optimizing the alignment of storage costs with business needs and creating a tiered storage infrastructure across all storage systems (internal and external)
• Thin Provisioning for improving storage utilization, providing non-disruptive capacity upgrades, and lowering TCO
• Virtual Partitioning of cache, disk, and I/O for helping organizations meet their security and service-level agreements
• Powerful suite of software for ease of storage management and data protection
• VMware ESX support for flexibility and further TCO reduction
• Open Systems and mainframe connectivity

Specifications

System Capacity

• Internal storage (with 300GB drives): 72TB
• Number of disks(with spares): 1 to 240
• Number of hot spares(min/max): 1to16
• RAID Levels: 1, 1+0, 6
• External storage support (total): 96PB

System Performance

• System IOPS: 800,000 IOPS
• Aggregate internal bandwidth (max.config.):  13.3GB/s (8.5GB/s data, 4.8GB/s control)

Maximum Internal Raw Capacity/Supported Drives

• 300GB, 15K-rpm drives: 69.2TB
• 146GB, 15K-rpm drives: 34.6TB
• 73GB,15K-rpm drives: 17.3TB

Usable Capacity for RAID 6 (max.) with 300GB drives

• Open Systems: 50.1TB
• Mainframe(z/OS): 46.8TB

Usable Capacity for RAID1+ (max.) with 300GB drives

• Open Systems: 34.0TB
• Mainframe(z/OS): 29.6GB

Data Cache

• Cards: 1 to 8
• Minimum memory: 4GB
• Maximum memory: 64GB

Control Memory

• Minimum control memory: 4GB
• Maximum control memory: 16GB

Logical Device (LUNs) Support

• Open systems: Up to 65,536
• z/OS: Up to 65,536

Virtual Partition Volumes

• Private Virtual Storage Machines: Up to 8

Front-end Directors

• Number offront-end directors:  1 to 3
• FC ports per director: 16 ports
• FICON/ESCON ports per director: 8 ports
• Virtual host ports: 1,024 per physical port
• Maximum Fibre Channel port performance: 4Gb/s

Physical Interfaces(Max)

• Fibre Channel: 48
• ESCON: 24
• FICON: 24

Back-end Directors

• Number of back-end directors: 1
