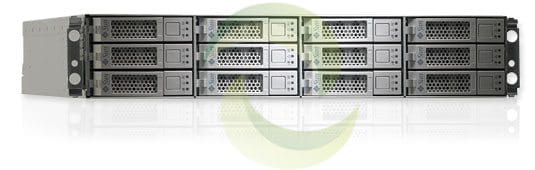

Oracle Sun Storage 2530

Oracle Sun Storage 2530 Oracle Sun Storage 2530 2530

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*




    Disks
    Disk Configuration
    Sun StorageTek 2530, RoHS:YL Array Up to twelve disk drives as follows:
    • 73GB 15000 RPM, 3 Gb/sec SAS
    • 146GB 15000 RPM, 3 Gb/sec SAS
    • 300GB 15000 RPM, 3 Gb/sec SAS
    • 400GB 10000 RPM, 3 Gb/sec SAS
    • 450GB 15000 RPM, 3 Gb/sec SAS
    • 500GB 7200 RPM SATA
    • 750GB 7500 RPM SATA
    • 1TB 7200 RPM SATA
    Capacity
    Supported drives/system per tray capacity:raw, unformatted
    73GB Disk drives 12 x 73GB = 876GB
    146Gb Disk drives 12 x 146GB = 1.75TB
    300GB Disk drives 12 x 300GB = 3.6TB
    400GB Disk drives 12 x 400GB = 4.8TB
    450GB Disk drives 12 x 450GB = 5.4TB
    500GB Disk drives 12 x 500GB = 6.0TB
    750GB Disk drives 12 × 750GB = 9TB
    1TB Disk Drives 12 x 1TB = 12.0TB
    Drive Specifications Form factor: 3.5 in., low-profile
    Interface: Dual-ported SAS
    Note 1: Dynamic capacity expansion of 5 to 36 drives – 365GB to 10.8TB.
    Note 2: Up to two expansion trays are supported.
    Note 3: Drive depopulation scales from 5 to 12 disk drives per tray.
    Interfaces
    Host interfaces/link speeds 3 Gb/s “x4 wide” SAS host interfaces, up to 1GB cache per controller
    Other interfaces Up to two 10/100 Base-T Ethernet
    Serial Up to two nine-pin RS-232 ports per dual controller tray
    Environment
    Heat Output 460 watts (1,571 BTU/hr.)
    AC Power 515 watts (+5V @ 19A/+12V @ 35A)
    Operating Temperature 10° C to 40° C (50° F to 104° F), without battery; 10° C to 35° C (50° F to 95° F), with battery
    Operating Relative Humidity 20% to 80% relative humidity, noncondensing
    Nonoperating Temperature -10° C to 50° C (-14° F to 122° F), without battery; -10° C to 45° C (-14° F to 113° F), with battery
    Nonoperating Relative Humidity 10% to 90% relative humidity, noncondensing, max dew point is 26° C (79° F), 10 percent per hour gradient.
    Operating Altitude 68.3 kPa (3,200 m), 40° C, four-hour dwell
    Nonoperating Altitude 18.8 kPa (12,200 m), 0° C, four-hour dwell
    Shock 33 Gs, 11msec, half-sine, three shocks per direction, all six directions
    Vibration All three axes:1.2 Gs, five to 500 Hz, swept-sine, five sweep cycles, one octave per minute
    Dimensions and Weights
    Height 86.1 mm (3.39 in)
    Width 448.6 mm (17.66 in)
    Depth 540 mm (21.26 in)
    Weight (maximum) 27.01 kg (59.55 lb) with 12 disks
    Array Controller
    Option # Manufacturing
    Part #
    Description
    XTA-2500-1GBMEM 371-4592 1GB Memory DIMM for STK 25xx Controller Cache Upgrade
    XTA-2501-IOM 375-3502 SAS Expansion Tray I/O Module (IOM), RoHS:Y
    XTA-2530-CTRL-1GB 540-7738 StorageTek 2530 SAS 1GB Controller Assembly, RoHS:Y
    • 371-2482
    • Battery, RoHS:Y
    • 375-3596
    • SAS RAID Controller with 1GB DIMM, RoHS:YL
    XTA-2530-CTRL-512M 540-7292 StorageTek 2530 SAS 512MB Controller Assembly, RoHS:Y
    • 371-2482
    • Battery, RoHS:Y
    • 375-3500
    • SAS RAID Controller with 512MB DIMM, RoHS:Y
    Backplane/Centerplane
    Option # Manufacturing
    Part #
    Description
    n/a 540-7198 Chassis/Midplane Assembly, RoHS:Y
    • 375-3505
    • Midplane, RoHS:Y
    • 540-7261
    • Chassis Assembly, RoHS:Y
    • 540-7262
    • Rear Cage Assembly, RoHS:Y
    Cables
    Option # Manufacturing
    Part #
    Description
    XTA-0.5M-SAS 530-3886 4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M, RoHS:YL
    XTA-1.0M-SAS 530-3882 4X Mini SAS Cable, SFF-8088 to SFF-8088, 1M, RoHS:YL
    XTA-2.0M-SAS 530-3883 4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M, RoHS:Y
    XTA-6.0M-SAS 530-3887 4X Mini SAS Cable, 6M, RoHS:YL
    XTA-3.0M-SAS 530-3884 4X Mini SAS Cable, 3M, RoHS:YL
    XTA25X0-0.5M-SAS-Z 530-3886 4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M, RoHS:YL
    XTA25X0-1.0M-SAS-Z 530-3882 4X Mini SAS Cable, SFF-8088 to SFF-8088, 1M, RoHS:YL
    XTA25X0-2.0M-SAS-Z 530-3883 4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M, RoHS:Y
    XTA25X0-3.0M-SAS-Z 530-3884 4X Mini SAS Cable, 3M, RoHS:YL
    XTA25X0-6.0M-SAS-Z 530-3887 4X Mini SAS Cable, 6M, RoHS:YL
    n/a 530-3100 RJ45F to DB9F Adapter, RoHS:Y
    n/a 530-3544 PS2 6-pin DIN to RJ-45 Cable (2M), RoHS:Y
    n/a 530-3880 RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M, RoHS:Y
    Disks
    Option # Manufacturing
    Part #
    Description
    XTA-SS1NG-300G15K 540-7219 300GB – 15000 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:YL
    • 390-0335
    • Seagate ST3300655SS [ST330055SSUN300G]
      (300GB – 15K RPM – SAS Disk), RoHS:Y
    • 390-0372
    • Hitachi HUS153030VLS300 [HUS1530SBSUN300G]
      (300GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0423
    • Seagate ST3300656SS [ST330056SSUN300G]
      (300GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0481
    • Hitachi HUS156030VLS600 [HUS1530SCSUN300G]
      (300GB – 15000 RPM – SAS Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-SS1NG-600GB15K 542-0143 600GB – 15000 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN300G]
      (600GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0483
    • Hitachi HUS156060VLS600 [HUS1560SCSUN600G]
      (600GB – 15000 RPM – SAS Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-ST1NG-1T7K 540-7624 1TB – 7200 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0381
    • Hitachi HUA721010KLA330 [HUA7210SASUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0414
    • Seagate ST31000340NS [ST31000NSSUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0473
    • Seagate ST31000524NS [ST31001NSSUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-ST1NG-2T7K 542-0183 2TB – 7200 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0467
    • Hitachi H7220AA30 [H7220AA30SUN2.0T]
      (2TB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0474
    • Seagate ST32000644NS [ST32000NSSUN2.0T]
      (2TB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-SS1NG-146G15K 540-7197 146GB – 15000 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0334
    • Seagate ST3146855SS [ST314655SSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0371
    • Hitachi HUS153014VLS300 [HUS1514SBSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:YL
    • 390-0422
    • Seagate ST3146356SS [ST314656SSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-SS1NG-400G10K 540-7380 400GB – 10000 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0397
    • Seagate ST3400755SS [ST340008SSUN0.4T]
      (400GB – 10000 RPM – SAS Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-SS1NG-450GB15K 540-7675 450GB – 15000 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0424
    • Seagate ST3450856SS [ST345056SSUN450G]
      (450GB – 15000 RPM – SAS Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-SS1NG-73G15K 540-7196 73GB – 15000 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:YL
    • 390-0333
    • Seagate ST373455SS [ST373455SSUN72G]
      (73.4GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0370
    • Hitachi HUS153073VLS300 [HUS1573SBSUN72G]
      (73GB – 15000 RPM – SAS Disk), RoHS:YL
    • 540-7216
    • Bracket, RoHS:Y
    XTA-ST1NG-500G7K 540-7195 500GB – 7200 RPM, Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0247
    • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0355
    • Seagate ST3500630NS [ST35000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0383
    • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    XTA-ST1NG-750G7K 540-7561 750GB – 7200 RPM Disk Assembly with 1 bracket and 1 disk:, RoHS:Y
    • 390-0356
    • Seagate ST3750640NS [ST37500NSSUN750G]
      (750GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0379
    • Hitachi HUA721075KLA330 [HUA7275SASUN750G]
      (750GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-7216
    • Bracket, RoHS:Y
    Power
    Option # Manufacturing
    Part #
    Description
    XTA-2500-2UAC-KIT 540-7295 AC Input Power Supply Assembly, RoHS:Y
    • 300-2051
    • 515 Watt AC Input Power Supply, RoHS:Y
    • 371-2737
    • Plastic Latch, RoHS:Y
    XTA-2500-2UDC-KIT 540-7302 DC Input Power Supply Assembly, RoHS:Y
    • 300-2073
    • 515 Watt DC Input Power Supply, RoHS:Y
    • 371-2737
    • Plastic Latch, RoHS:Y
    XTA-25X0-CTRL-BATT 371-2482 Battery, RoHS:Y
    n/a 180-2194 DC Power Cable, RoHS:Y
    Rack
    Option # Manufacturing
    Part #
    Description
    XTA-2500-2URK-19U 594-4405 StorageTek 2500 2U Universal Rack Mount Kit
    SCSI
    Option # Manufacturing
    Part #
    Description
    SG-XPCI8SAS-E-Z 375-3488 3Gb PCI-X SAS 8-Port Host Adapter, RoHS:Y
    SG-XPCIE8SAS-E-Z 375-3487 PCI Express 8-Port Host Adapter, RoHS:Y
    SG-XPCIE8SAS-EB-Z 375-3486 Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule, RoHS:Y
