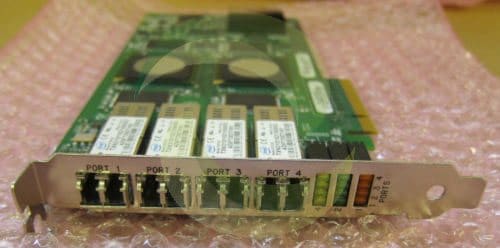

The QLE2464 HBA is the highest performing and most reliable HBA in the industry. It delivers unmatched performance, combining a unique hardware architecture to deliver over 150,000 IOPS per port, nearly 3.2 GBps throughput, and support for PCI Express x8 bus speeds. More importantly, the QLE2464 HBA provides new intelligent storage networking features that redefine the enterprise class HBA, providing increased data protection, advanced frame routing, and enterprise wide management capabilities.

Simplified Setup

Point-and-click installation and configuration wizards simply the HBA setup process. Storage administrators can quickly deploy HBAs across a SAN using standard HBA management tools and device utilities. The QLE2464 is also fully compatible with industry standard application programming interfaces (APIs), including SNIA HBA API and SMI-S, thereby allowing administrators to manage QLogic HBAs using third-party software applications.

Comprehensive Operating System (OS) Support

QLogic offers the broadest range of support for all major operating systems to ensure OS and hardware server compatibility. Drivers are fully tested and available for all major operating systems and hardware server platforms. A single driver strategy per OS allows storage administrators to easily deploy and manage HBAs in heterogeneous SAN configurations.

Guaranteed Interoperability

Storage partner certifications, combined with agency and regulatory testing, ensures all products meet world compliance hardware and software specifications. All HBAs are tested extensively with third-party hardware, along with multiple software applications, to ensure best-in-class SAN interoperability and compatibility. You can be confident purchasing QLogic HBAs to meet your FC storage networking needs.

Investment Protection

For over 15 years, QLogic has been a technological leader with products that address the current needs of customers, yet provide strong investment protection to support emerging technologies and standards. QLogic stands alone in the industry, its product portfolio depth and experience in successfully delivering technological solutions that address the needs of today and tomorrow.

High Performance

• 150,000 IOPS per port delivers high I/O transfer rates for storage applications
• Intelligent interleaved DMA (iiDMA) ensures maximum utilization of data links
• Out-of-order frame reassembly (OoOFR) reduces congestion and retransmissions

Superior Scalability

• Multi-ID and N_Port virtualization allows a single port to acquire multiple N_Port IDs
• Cisco VSAN ready. Allows physical ports to be part of multiple logical networks
• Comprehensive operating system (OS) driver support including Windows®, Linux™, Solaris™, and NetWare®
• Universal boot support manages multiple hardware platforms and boot options

Enhanced Reliability

• Overlapping protection domains for continuous protection of internal data paths
• T10 cyclic redundancy check (CRC) ensures end-to-end data integrity across Storage
  Area Networks (SANs)
• Supports hot plug and hot swap
• Three LEDs per port display real-time status and link activity information
