Oracle Sun ZFS Storage ZS4-4 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor

Number

4 15-Core

Architecture

Intel Xeon E7 Processor Series

CPUs

Intel 2.80GHz 15-Core Xeon E7-8895 v2, 155W

Cache memory

256KB unified (data and instruction) Level 2 cache
Up to 37.5 MB shared last Level 3 cache.

Main Memory

Capacities

DIMM slots: 96 DIMM slots, 24 DIMMs per CPU
DIMM type: Registered low-voltage DDR3L-1600 DIMMs, Registered low-voltage DDR3L-1600 Load Reduced DIMMs
DIMM size: 16GB and 32GB
Maximum capacity: 3TB

Standard Integrated Interfaces

Network

Four 10 GbE on-board Ethernet copper ports

Network Management

One dedicated 10/100/1000Base-T Ethernet copper management port

Serial Management

One TIA/EIA-232-F asynchronous RJ45 serial port

USB

Front: 2 USB 2.0 Ports
Rear: 2 USB 2.0 Ports
Internal: 1 USB 2.0 Port

PCI Express

11 PCI Express 3.0 Slots

9 slots ae x8 PCI-E slots
2 slots are x16 PCI-E slots

Video

One Rear and One Front HD15 VGA port

Graphics controller

VGA 2D graphics controller embedded.
Support remote console at a resolution up to 1600x1200x16bits@60Hz
(1024×678 when viewed remotely via ILOM RKVMS)

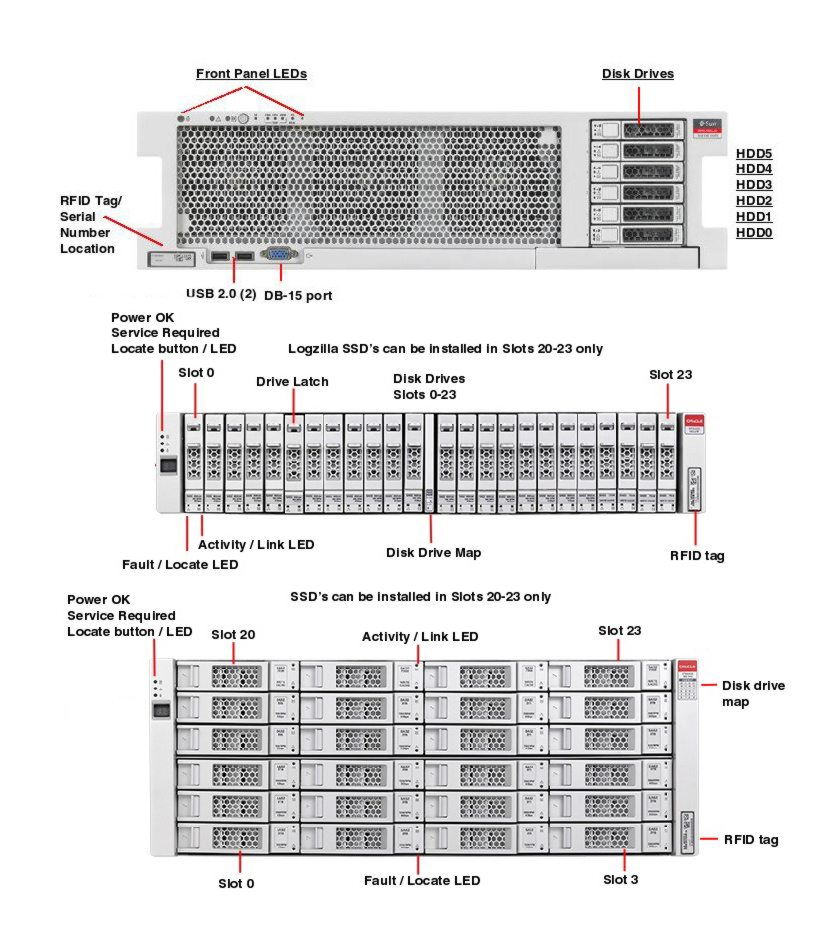

Internal Mass Storage

Disks

Six 2.5″ SAS front-accessible, hot-swappable disk bays.

Drive Type	Density	Speed	Form Factor
SAS	900GB	10,000 RPM	2.5″
SAS-2	1.6TB	Solid State	2.5″

Power Supplies

Dual redundant, hot swappable power supplies
2000W Capacity (From 200 Volts to 240 Volts)

Environment

Power Consumption

Online power calculator

AC power

100-127 VAC/200-240 VAC (50-60Hz)

Maximum Input Current

12A @ 100VAC / 12A @ 200VAC

Maximum Power Consumption

1800W

Maximum Heat Output

6143 BTU/hr

Temperature

Single, non-rack system:
Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 68° C (-40° F to 154° F)

Humidity

Single, non-rack system:
Operating: 10% to 90% relative humidity noncondensing
Nonoperating: up to 93% relative humidity noncondensing

Altitude

Single, non-rack system:
Operating: Up to 3048 m (10,000 ft.), maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
Nonoperating: Up to 12,000 m (39,370 ft.)

Acoustic Noise Emissions

LwAd (1B= 10dB) at max ambient: 8.9 B (idle and operating room temperature)
LpAm bystander at max ambient: 75 dBA

Regulations
Meets or exceeds the following requirements:

Safety

IEC 60950, UL/CSA60950, EN60950, CB scheme with all country differences

RFI/EMI

FCC CFR 47 Part 15 Class A, EN55022 Class A, EN300-386, EN 61000-3-2, EN 61000-3-3

Immunity

EN 55024 ,EN 300 386

Certifications

Safety: UL/cUL, UL DEMKO, CCC, CE, BSMI, GOST-R, S-Mark
EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, GOST-R, BSMI Class A
Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive (2002/96/EC) and RoHS Directive (2002/95/EC)

Dimensions and Weight (Sun Server X4-4)

Height

129.9 mm (5.1 in.)

Width

436.5 mm (17.2 in.)

Depth

732 mm (28.8 in.)

Weight

Maximum: 40 kg (88 lb.)

Rack Mounting

Oracle ZFS Storage ZS4-4 Racks

Racks are as follows:

Sun Rack II 1242
Sun Rack II 1042

Array Controller
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7043628 [C]	6Gbps SAS-2 I/O Controller Module	n/a

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C]	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7065502	Two CPU Air Diverter	n/a
n/a	7070792 [F]	CPU Heatsink (Brickland)	n/a
n/a	7080240	CPU Installation/Removal Tool	n/a
n/a	7083528 [F]	2.8GHz 15-Core Intel Xeon E7-8895 v2, 155W	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7104500	7056300 [C]	Mini SAS to HD Cable, SFF-8088 to SFF-8644, 6M	n/a
7105191	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
7105193	7063852 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M	n/a
7105199	7063849 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M	n/a
7106737	7023009 [C]	Mini SAS to HD Cable, SFF-8088 to SFF-8644, 3M	n/a
X2121A-1M-N	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-5M-N	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
n/a	530-3884 [C]	4X Mini SAS Cable, SFF-8088 to SFF-8088, 3M	n/a
n/a	530-3886 [C]	4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M	n/a
n/a	530-3887 [C]	4X Mini SAS Cable, SFF-8088 to SFF-8088, 6M	n/a
n/a	7075861 [C]	Ethernet Cable, CAT6A, RJ45 to RJ45, 20-foot, Black	n/a
n/a	7083458 [C]	Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Green	n/a
n/a	7083459 [C]	Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Yellow	n/a
n/a	7083460 [C]	Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Black	n/a
n/a	7085487 [F]	X4-4 Cable Kit	n/a
	530-4288	Fan Board to System Board Power Cable	n/a
	530-4289	System Board to PDB Cable	n/a
	530-4291	System Board to Disk Backplane Power Cable	n/a
	530-4349	LED Flex Circuit	n/a
	7044137	SFF-8087 to 90 SFF-8087 SAS Cable, 510mm	n/a
	7044138	SFF-8087 to 90 SFF-8087 DVD SAS Cable, 510mm/530mm	n/a
	530-4287	Fan Board to System Board Signal Cable	n/a
	530-4290	System Board to Disk Backplane Signal Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7043043	X4-4 Base Assembly	n/a
	7052037	Air Divider with Fault Remind Button	n/a
	7052517	X4-4 Nameplate	n/a
	7066597	X4-4 Building Block Chassis	n/a
	350-1585	Top Cover Air Baffle	n/a
n/a	7074704	Chassis Subassembly	n/a
	341-5805	Rack Mount Ear	n/a
	350-1383	Top Cover	n/a
	150-4065	Interlock Switch Magnet	n/a
	350-1392	Front Bezel	n/a
	530-4356	AC Input Line Filter with Cable	n/a
	7068043	Power Distribution Board Cover	n/a
	7075160	Chassis	n/a
	341-6188	Power Supply Chassis Cable Cover	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7104074	7092757 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a
n/a	7056175 [C]	Cluster Heartbeat Assembly	n/a
	511-1496	Cluster Heartbeat Card	n/a
	541-4350	EMI Gasket	n/a
n/a	7089470 [C]	Cluster Heartbeat Assembly	7056175 [C]
	541-4350	EMI Gasket	n/a
	7087050	Cluster Heartbeat Card	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7039459 [F]	6-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7104204 ⁴	7097377 [C]	1.6TB SAS-3 Solid State Drive Assembly	n/a
	7094629	HGST HUSMR1616ASS200 [HSCAC2DA2SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-3 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7105737	7044283 [C]	300GB 10000 RPM SAS Disk Drive Assembly	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	7044311	2.5″ Evo Disk Mounting Bracket	n/a
7105738	7044376 [C]	900GB 10000 RPM SAS Disk Drive Assembly	n/a
	7045230	Hitachi HUC109090CSS900 [H109090SESUN900G] (900GB 10000 RPM SAS Disk Drive)	n/a
	7044311	2.5″ Evo Disk Mounting Bracket	n/a
7110944	7094120 ⁵ [C]	200GB SAS Solid State Drive Assembly	n/a
	7093646	HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)	n/a
	7044392	3.5″ Heron Disk Mounting Bracket	n/a
	7096030	2.5″ to 3.5″ Cabrio Adapter Bracket	n/a
	7096032	3.5″ Heron Disk Mounting Bracket	n/a
7110947	7094126 ⁶ [C]	200GB SAS Solid State Drive Assembly	n/a
	7093646	HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)	n/a
	7044311	2.5″ Evo Disk Mounting Bracket	n/a
n/a	7044391 [C]	3TB 7200 RPM SAS Disk Drive Assembly	n/a
	7048503	Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB 7200 RPM SAS Disk Drive)	n/a
	7044392	3.5″ Heron Disk Mounting Bracket	n/a
	7096032	3.5″ Heron Disk Mounting Bracket	n/a
n/a	7046052 [C]	1.6TB SAS-2 Solid State Drive Assembly	n/a
	7045914	SanDisk LB1606R [LB1606R SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-2 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7046425	SSD Filler Panel	n/a
n/a	7046427	Disk Filler Panel	n/a
n/a	7046432	SSD Filler Panel	n/a
n/a	7046434	Disk Drive Filler Panel	n/a
n/a	7066831 [C]	4TB 7200 RPM SAS Disk Drive Assembly	n/a
	7065489	Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB – 7200 RPM – SAS Disk)	n/a
	7044392	3.5″ Heron Disk Mounting Bracket	n/a
	7096032	3.5″ Heron Disk Mounting Bracket	n/a
n/a	7066874 [C]	900GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;	n/a
	7045230	Hitachi HUC109090CSS900 [H109090SESUN900G] (900GB 10000 RPM SAS Disk Drive)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
n/a	7087183 ² [C]	1.6TB Common SAS-2 Solid State Drive Assembly	n/a
	7045914	SanDisk LB1606R [LB1606R SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-2 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
	7044311	2.5″ Evo Disk Mounting Bracket	n/a
	7087210	Bracket Assembly Instructions	n/a
n/a	7097385 ³ [C]	1.6TB Common SAS-3 Solid State Drive Assembly	n/a
	7094629	HGST HUSMR1616ASS200 [HSCAC2DA2SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-3 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
	7044311	2.5″ Evo Disk Mounting Bracket	n/a
	7087210	Bracket Assembly Instructions	n/a

² Assembly 7087183 is shipped when 7046052 or 7078599 are ordered. Bracket 541-2123 is installed.
³ Assembly 7097385 is shipped when 7097377 or 7097382 are ordered. Bracket 541-2123 is installed.
⁴ Assembly 7097377 replaced assembly 7046052 in option 7104204.
⁵ 200GB SAS Solid State Drive Assembly PN#7094120 requires a minimum firmware version of 2013.1.2.9
⁶ 200GB SAS Solid State Drive Assembly PN#7094126 requires a minimum firmware version of 2013.1.2.9

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100488	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
X1109A-Z	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2124A-N	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3539 [C]	92mm Fan Module	n/a
n/a	7057262 [F]	Fan Cage Assembly	n/a
	530-4349	LED Flex Circuit	n/a
	7057260	Fan Board with USB and VGA	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101676	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7106840	7076173 [C]	16GB 1.35V DDR3L-1600 DIMM	n/a
n/a	330-4839	Memory Slot Filler	n/a
n/a	7073781 [C]	32GB 1.35V DDR3L-1600 Load Reduced DIMM	n/a
n/a	7084609 [C]	Memory Riser Assembly	n/a
	7066592	Memory Riser Tray	n/a
	7084605	Memory Riser Board	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7043627 [C]	580 Watt AC Input Power Supply	n/a
n/a	7052431 [F]	Power Distribution Board / Power Supply Backplane	n/a
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
n/a	7081064 [C]	Type A239A 2000 Watt AC Input Power Supply	n/a
n/a	7300803 [F]	Power Supply Backplane Assembly	7052431 [F]
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-4791 [C]	Tool-less Slide Rail Rack Mount Kit	n/a
n/a	371-4812 [C]	Cable Management Arm	n/a
n/a	7044619 [C]	Mounting Rail Kit	n/a
n/a	7063682 [C]	Mounting Rail Kit	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7103791	7067091 [C]	4×4-Port PCIe-3, 6Gbps SAS-2 HBA	n/a
n/a	7047852 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7066596 [F]	System Board Assembly	n/a
	7051520	Rear I/O Board	n/a
	7079088	System Board	n/a
	150-3993 [C]	3V Lithium Coin Cell Battery	n/a
	7079794	System Board Tray	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7067268 [F]	Service Processor	n/a

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
