Oracle Sun ZFS Storage ZS3-4 Server

Oracle Sun ZFS Storage ZS3-4 Server Oracle Sun ZFS Storage ZS3-4 Server ZFS Storage ZS3 4 front callout

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

    Brand: Oracle / Sun Microsystems
    Condition: Refurbished and new (limited availability)
    Availability: Contact
    Shipping Area: Worldwide to most countries
    Shipping Method: Fedex (most orders), UPS, DHL, Freight Courier
    Price: Please use the quote form above for quick pricing
    Payment: Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
    Guarantee: All items are tested by Oracle trained technicians & backed by a 100% warranty
    Questions? Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements



    Specs and Information:



    Processor
    Number 4 10-Core
    Architecture Intel Xeon E7 Processor Series
    CPUs Intel 2.40GHz 10-Core Xeon E7-4870, 130W
    Cache memory 256KB unified (data and instruction) Level 2 cache
    18MB or 30MB shared inclusive Level 3 cache
    Main Memory
    Capacities DIMM slots: 64 DIMM slots, 16 DIMMs per CPU
    DIMM type: Registered DDR3-1333/PC3-10600 ECC DIMMs
    DIMM size: 16GB
    Maximum capacity: 1TB
    Standard Integrated Interfaces
    Network Four Integrated 10/100/1000 Base-T Gigabit Ethernet
    Network Management One 10/100 Base-T Ethernet management port
    Serial Management One TIA/EIA-232-F asynchronous RJ45 serial port
    USB Front: 2 USB 2.0 Ports
    Rear: 2 USB 2.0 Ports
    Internal: 1 USB 2.0 Port
    PCI Express 10 PCI Express 2.0 Slots
    • 2 slots (3 and 5) are either x8 or x16 electrical interface (x16 connector)
    • 6 slots are x8 PCI-E slots
    • 2 slots are x4 PCI-E slots

    Note: Slots 3 and 5 operate as x16 interfaces only when an x16 capable card is
    installed and the adjacent slot (4 or 6) is unpopulated.
    Video One Rear and One Front HD15 VGA port
    Internal Mass Storage

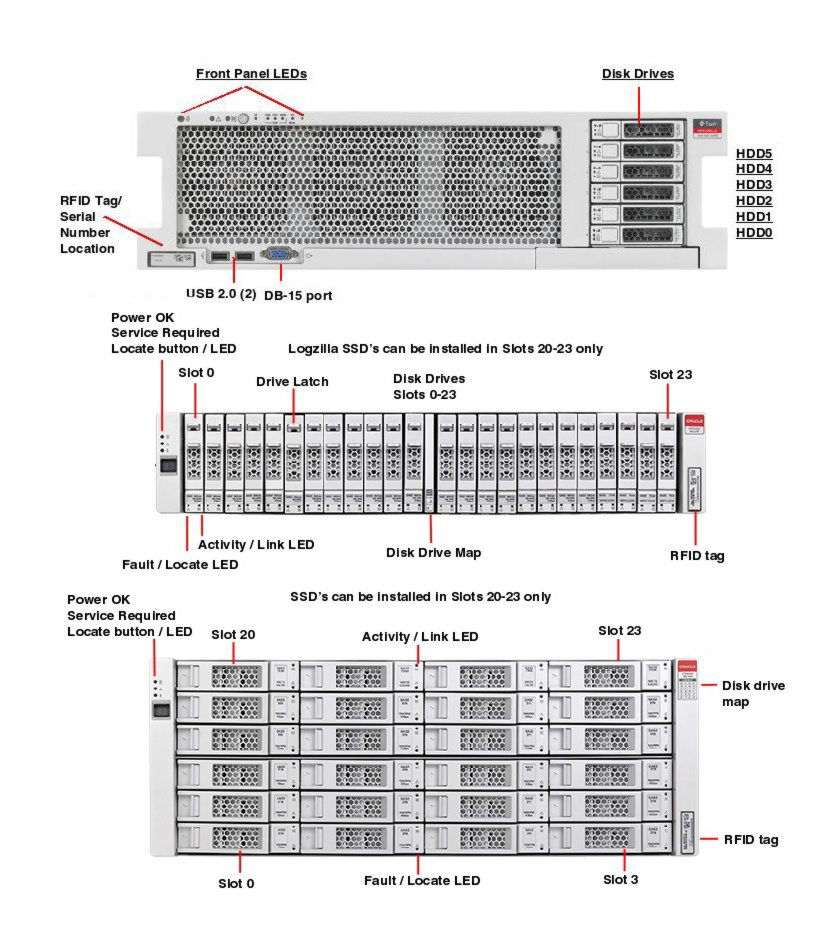

    Disks Up to 6 hot-swappable disks in the Sun Server X2-4 & 24 hot-swappable disks in the Sun Disk Shelf 24×3.5 SAS-2, Oracle Storage DE2-24P or Oracle DE2-24C
    Part Number Part Description Form Factor Supported In
    Disks – ZFS Storage ZS3-4 (X2-4 Server Head – Marlin bracket)
    7066874[C] 900GB – 10000 RPM SAS Disk Assembly 2.5″ ZFS Storage ZS3-4 (X2-4 Server Head)
    7046052[C] 1.6TB Solid State SAS-2 Drive Assembly 2.5″ ZFS Storage ZS3-4 (X2-4 Server Head)
    7097377[C] 1.6TB Solid State SAS-2 Drive Assembly 2.5″ ZFS Storage ZS3-4 (X2-4 Server Head)
    Disks – Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980 – Stingray bracket)
    542-0286 [C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7015704[C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7309527[C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048983[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048042[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7011094[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048042[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0191 [C] 300GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0179 [C] 600GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0274 [C] 2TB – 7200 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0340 [C] 1TB – 7200 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    Disks – Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264 – Stingray bracket)
    7011094[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7048042[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7048983[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0191 [C] 300GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7047155[C] 300GB – 15000 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0179 [C] 600GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7047035[C] 600GB – 15000 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0340 [C] 1TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0274 [C] 2TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7042964[C] 2TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7010135[C] 3TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    Disks – Storage DE2-24P – Evo bracket
    7044379[C] 73GB SAS Solid State Drive Assembly 2.5″ DE2-24P
    7094126[C] 200GB SAS Solid State Drive Assembly 2.5″ DE2-24P
    7044283[C] 300GB – 10000 RPM SAS Disk Drive Assembly 2.5″ DE2-24P
    7044376[C] 900GB – 10000 RPM SAS Disk Drive Assembly 2.5″ DE2-24P
    Disks – Storage DE2-24C – Heron bracket
    7044396[C] 73GB SAS Solid State Drive Assembly 3.5″ DE2-24C
    7094120[C] 200GB SAS Solid State Drive Assembly 3.5″ DE2-24C
    7044391[C] 3TB – 7200 RPM SAS Disk Drive Assembly 3.5″ DE2-24C
    7066831[C] 4TB – 7200 RPM SAS Disk Drive Assembly 3.5″ DE2-24C
    Power Supplies
    Dual redundant, hot swappable power supplies
    2000W Capacity (From 200 Volts to 240 Volts)
    Environment
    Power Consumption Online power calculator
    AC power 100-127 VAC/200-240 VAC (50-60Hz)
    Maximum Input Current 12A @ 100VAC / 12A @ 200VAC
    Maximum Power Consumption 1800W
    Maximum Heat Output 6143 BTU/hr
    Temperature Single, non-rack system:
    Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 68° C (-40° F to 154° F)
    Humidity Single, non-rack system:
    Operating: 10% to 90% relative humidity noncondensing
    Nonoperating: up to 93% relative humidity noncondensing
    Altitude Single, non-rack system:
    Operating: Up to 3048 m (10,000 ft.), maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
    Nonoperating: Up to 12,000 m (39,370 ft.)
    Acoustic Noise Emissions LwAd (1B= 10dB) at max ambient: 8.9 B (idle and operating room temperature)
    LpAm bystander at max ambient: 75 dBA
    Regulations
    Meets or exceeds the following requirements:
    Safety IEC 60950, UL/CSA60950, EN60950, CB scheme with all country differences
    RFI/EMI FCC CFR 47 Part 15 Class A, EN55022 Class A, EN300-386, EN 61000-3-2, EN 61000-3-3
    Immunity EN 55024 ,EN 300 386
    Certifications Safety: UL/cUL, UL DEMKO, CCC, CE, BSMI, GOST-R, S-Mark
    EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, GOST-R, BSMI Class A
    Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive (2002/96/EC) and RoHS Directive (2002/95/EC)
    Dimensions and Weight (Sun Server X2-4)
    Height 129.85 mm (5.1 in.)
    Width 436.5 mm (17.2 in.)
    Depth 732 mm (28.8 in.)
    Weight Maximum: 38.5 kg (85 lb.)
    Minimum: 29.5 kg (65 lb.)
    Rack Mounting
    Oracle ZFS Storage ZS3-4 Racks Racks are as follows:
    • Sun Rack II 1242
    • Sun Rack II 1042
    Array Controller
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7043628 [C] 6Gbps SAS-2 I/O Controller Module n/a
    n/a 542-0194 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3520 or 3524) n/a
    n/a 7014946 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3524 or 3527) 542-0194 [C] [A]
    n/a 7045305 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3527) 7014946 [C] [A]
    n/a 7053644 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3529) 7045305 [C] [A]
    NOTE: 6Gbps SAS-2 Interface Module (SIM) PN#7043628 is used in the Oracle Storage DE2-24C and DE2-24P as part of the Oracle ZFS Storage ZS3-4.
    Batteries
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 150-3993 [C] 3V Lithium Coin Cell Battery n/a
    CPU Module
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 371-5053 [F] 2.4GHz 10-Core Xeon E7-4870 CPU Module n/a
    n/a 371-5056 [F] 2.0GHz 8-Core Xeon E7-4820 CPU Module n/a
    n/a 7046121 [F] CPU Heatsink n/a
    Cables
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7104500 7056300 [C] Mini SAS to HD Cable, SFF-8088 to SFF-8644, 6M n/a
    7106737 7023009 [C] Mini SAS to HD Cable, SFF-8088 to SFF-8644, 3M n/a
    X2130A-1M-N 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
    X2130A-3M-N 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
    X2130A-5M-N 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
    XTA-2.0M-SAS-N 530-3883 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M n/a
    n/a 530-3771 [C] Ethernet Cable, Category 5/5E, RJ45 to RJ45, 1m, Grey n/a
    n/a 530-3886 4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M n/a
    n/a 530-3887 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 6M n/a
    n/a 530-4446 [F] 10Gbps QSFP to QSFP Cable, 5m n/a
    n/a 560-2951 [C] Cable Kit n/a
    • 530-4118
    • 4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm
    		 n/a
    • 530-4290
    • System Board to Disk Backplane Signal Cable
    		 n/a
    • 530-4352
    • SFF-8087 to SFF-8087/SATA Splitter Cable, 780mm
    		 n/a
    • 530-4287
    • Fan Board to System Board Signal Cable
    		 n/a
    • 530-4288
    • Fan Board to System Board Power Cable
    		 n/a
    • 530-4289
    • System Board to PDB Cable
    		 n/a
    • 530-4291
    • System Board to Disk Backplane Power Cable
    		 n/a
    n/a 7075861 [C] Ethernet Cable, CAT6A, RJ45 to RJ45, 20-foot, Black n/a
    n/a 7083458 [C] Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Green n/a
    n/a 7083459 [C] Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Yellow n/a
    n/a 7083460 [C] Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Black n/a
    Communication
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X4242A 375-3696 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    7092767 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    n/a 7056175 [C] Cluster Heartbeat Assembly n/a
    • 511-1496
    • Cluster Heartbeat Card
    		 n/a
    • 541-4350
    • EMI Gasket
    		 n/a
    n/a 7089470 [C] Cluster Heartbeat Assembly 7056175 [C]
    • 541-4350
    • EMI Gasket
    		 n/a
    • 7087050
    • Cluster Heartbeat Card
    		 n/a
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7039459 [F] 6-Slot Disk Backplane n/a
    Disks
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7110944 7094120 [C] 200GB SAS Solid State Drive Assembly n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096030
    • 2.5″ to 3.5″ Cabrio Adapter Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    n/a 350-1574 Disk Shelf SSD Filler Panel n/a
    n/a 541-4242 Disk Shelf HDD Filler Panel n/a
    n/a 7044283 [C] 300GB 10000 RPM SAS Disk Drive Assembly n/a
    • 7045226
    • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7044376 [C] 900GB 10000 RPM SAS Disk Drive Assembly n/a
    • 7045230
    • Hitachi HUC109090CSS900 [H109090SESUN900G] (900GB 10000 RPM SAS Disk Drive)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7044379 [C] 73GB SAS Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7044391 [C] 3TB 7200 RPM SAS Disk Drive Assembly n/a
    • 7048503
    • Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB 7200 RPM SAS Disk Drive)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    n/a 7044396 [C] 73GB SAS Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7063417
    • 2.5″ to 3.5″ Adapter Bracket
    		 n/a
    n/a 7046052 3 [C] 1.6TB SAS-2 Solid State Drive Assembly n/a
    • 7045914
    • SanDisk LB1606R [LB1606R  SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 7066831 [C] 4TB 7200 RPM SAS Disk Drive Assembly n/a
    • 7065489
    • Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    n/a 7066874 [C] 900GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; n/a
    • 7045230
    • Hitachi HUC109090CSS900 [H109090SESUN900G] (900GB 10000 RPM SAS Disk Drive)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 7087183 4 [C] 1.6TB Common SAS-2 Solid State Drive Assembly n/a
    • 7045914
    • SanDisk LB1606R [LB1606R  SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    • 7087210
    • Bracket Assembly Instructions
    		 n/a
    n/a 7094126 [C] 200GB SAS Solid State Drive Assembly n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7097377 5 [C] 1.6TB SAS-3 Solid State Drive Assembly n/a
    • 7094629
    • HGST HUSMR1616ASS200 [HSCAC2DA2SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-3 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 7097385 6 7 [C] 1.6TB Common SAS-3 Solid State Drive Assembly n/a
    • 7094629
    • HGST HUSMR1616ASS200 [HSCAC2DA2SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-3 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    • 7087210
    • Bracket Assembly Instructions
    		 n/a
    n/a 542-0179 [C] [A] 600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0191 [C] [A] 300GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0274 [C] [A] 2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0476
    • Seagate ST32000444SS [ST32000SSSUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7045281
    • Toshiba MK2001TRKB [MK2001RKBSUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0286 [A] 18GB SAS Solid State Drive Assembly n/a
    • 371-4820
    • Stec Z16IZD3C-18UC [Inquiry Unknown] (18GB – 3.5″ Solid State – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0340 [C] [A] 1TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0475
    • Seagate ST31000424SS [ST31001SSSUN1.0T] (1TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7045280
    • Toshiba MK1001TRKB [MK1001RKBSUN1.0T] (1TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7010135 [C] [A] 3TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7010033
    • Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7021037
    • Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7011094 [C] [A] 73GB SAS Solid State Drive Assembly with 1 bracket and 1 of the following disks: n/a
    • 371-5049
    • Stec Z16IZF2D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7015704 [C] [A] 18GB SAS Solid State Drive Assembly 542-0286 [A]
    • 371-4820
    • Stec Z16IZD3C-18UC [Inquiry Unknown] (18GB – 3.5″ Solid State – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7042964 [C] [A] 2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7025852
    • Hitachi HUS723020ALS640 [H7220AS60SUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7047035 [C] [A] 600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0483
    • Hitachi HUS156060VLS600 [HUS1560SCSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7047155 [C] [A] 300GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0481
    • Hitachi HUS156030VLS600 [HUS1530SCSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7048042 [C] [A] 73GB SAS-2 Solid State Drive Assembly 7011094 [C] [A]
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7048983 [C] [A] 73GB SAS-2 Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7042920
    • 2.5″ Adapter
    		 n/a
    • 7042923
    • Left Bracket
    		 n/a
    • 7042926
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7309527 [C] [A] 18GB SAS Solid State Drive Assembly n/a
    • 7309526
    • 18GB – 3.5″ Solid State – SAS Disk
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7309938 [C] [A] 200GB SAS-3 Solid State Drive Assembly with 1 bracket and 1 of the following disks: n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7042920
    • 2.5″ Adapter
    		 n/a
    • 7042923
    • Left Bracket
    		 n/a
    • 7042926
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    3 Assembly 7046052 or 7087183 is used to replace SSD Assembly 7046052.
    4 Assembly 7087183 is shipped when 7046052 or 7078599 are ordered. Bracket 541-2123 is installed.
    5 AK software update is required to support Hitachi SSDs.
    6 Assembly 7097385 is shipped when 7097377 or 7097382 are ordered. Bracket 541-2123 is installed.
    7 AK software update is required to support Hitachi SSDs.
    NOTE: See this table of supported disks per sub-system within the ZS3-4 for more accurate part replacement selection.
    Ethernet
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7100477 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
    7100488 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
    X1109A-Z 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
    X2129A-N 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
    X5562A-Z 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
    X4446A-Z-N [S] 7054739 [C] PCI Express Quad Gigabit Ethernet UTP n/a
    Fan
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 541-3539 [C] 92mm Fan Module n/a
    n/a 7057262 [F] Fan Cage Assembly n/a
    • 530-4349
    • LED Flex Circuit
    		 n/a
    • 7057260
    • Fan Board with USB and VGA
    		 n/a
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7101674 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
    7101676 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
    • 7023324
    • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
    		 n/a
    SG-XPCIE2FC-QF8-N 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    SG-XPCIE2FC-QF8-Z 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    Memory
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 371-5002 [C] 4GB USB 2.0 Flash Drive n/a
    n/a 7051516 [C] Memory Riser Assembly n/a
    • 350-1830
    • Memory Riser Tray Assembly
    		 n/a
      • 341-5773
      • Memory Riser Tray
    		 n/a
    • 7051515
    • Memory Riser Board
    		 n/a
    n/a 7059236 [C] 32GB Memory Assembly (2 × 16GB DDR3-1066 DIMMs) n/a
    • 7058861
    • 16GB 1.35V DDR3-1066 DIMM (2-rank)
    		 n/a
    n/a 7090170 [C] 8GB USB Stick n/a
    Power
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7043627 [C] 580 Watt AC Input Power Supply n/a
    n/a 7052431 [F] Power Distribution Board / Power Supply Backplane n/a
    • 7052430
    • Power Distribution Board / Power Supply Backplane
    		 n/a
    n/a 7060596 [C] Type A239E 2000 Watt AC Input Power Supply n/a
    n/a 7081064 [C] Type A239A 2000 Watt AC Input Power Supply 7060596 [C]
    n/a 300-2169 [C] [A] 764 Watt AC Input Power/Cooling Module n/a
    n/a 300-2276 [C] [A] 764 Watt AC Input Power/Cooling Module 300-2169 [C] [A]
    NOTE: 580W AC Input Power Supply PN#7043627 is used in the Oracle Storage DE2-24C and DE2-24P as part of the Oracle ZFS Storage ZS3-4.
    NOTE: Type A239E 2000 Watt AC Input Power Supply PN#7060596 is used in the Sun Server X2-4 as part of the Oracle ZFS Storage ZS3-4.
    Rack
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X2364A 371-4812 [C] Cable Management Arm n/a
    DS2X-4URK-19U [A] 350-1531 Rackmount Kit n/a
    • n/a
    • Left Mounting Rail
    		 n/a
    n/a 371-4791 [C] Tool-less Slide Rail Rack Mount Kit n/a
    n/a 7044619 [C] Mounting Rail Kit n/a
    n/a 7063682 [C] Mounting Rail Kit n/a
    SCSI
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7103791 7067091 [C] 4×4-Port PCIe-3, 6Gbps SAS-2 HBA n/a
    SGX-SAS6-INT-Z [S] 7047852 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
    NOTE: 8-Port 6Gbps SAS-2 PCI Express HBA SGX-SAS6-INT-Z (LSI) is used in the Oracle ZFS Storage ZS3-4 server head.
    System Board
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7071038 [F] System Board Assembly n/a
    • 150-3993 [C]
    • 3V Lithium Coin Cell Battery
    		 n/a
    • 341-5567
    • System Board Tray
    		 n/a
    • 530-3510
    • Interlock Switch Cable
    		 n/a
    • 530-4348
    • System Board to Rear I/O Board Signal Cable
    		 n/a
    • 7051520
    • Rear I/O Board
    		 n/a
    • 7071037
    • System Board
    		 n/a

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
