    Oracle Sun ZFS ZS3-2 Storage Appliance machines are high-performance unified storage systems that provide NAS, SAN, and object storage capabilities with the extreme performance and superior efficiency required by demanding enterprise applications and unpredictable cloud workloads. As Oracle engineered storage, Oracle ZFS Storage Appliance systems are deeply integrated with Oracle Database, Oracle engineered systems, and Oracle Public Cloud to maximize the return on your Oracle software investment in ways that competitive storage systems are unable to achieve. Oracle ZFS Storage Appliance systems provide material benefits when you need to accelerate mission-critical applications and increase business and IT productivity—providing you to save valuable resources, reduce risk, and lower your total cost of ownership (TCO). Extreme Enterprise Storage Performance Oracle ZFS Storage Appliance systems are based on an advanced hardware and software architecture, including a highly intelligent, multithreading SMP storage OS that makes the most of modern enterprise hardware, enabling you to run multiple workloads and advanced data services without performance degradation. This powerful OS is complemented by the unique Oracle Hybrid Storage Pool feature, which automatically caches data on dynamic random access memory (DRAM) or flash cache to provide optimal performance and exceptional efficiency while ensuring that data remains safely stored on reliable and high capacity solid-state disk (SSD) or hard disk drive (HDD) storage. With this architecture, heavily accessed data is served mostly from cache—up to 90 percent—for extremely high performance without spindle speed limitations, while cost-effectively securing and storing data on HDDs.

    High-availability (HA) features such as active-active controller clustering for failover, a self-healing file system architecture that ensures end-to-end data integrity, and a rich set of enterprise-class data services make Oracle ZFS Storage Appliance systems an ideal choice for enterprise storage.

    Brand: Oracle / Sun Microsystems
    Condition: Refurbished and new (limited availability)
    Availability: Contact
    Shipping Area: Worldwide to most countries
    Shipping Method: Fedex (most orders), UPS, DHL, Freight Courier
    Price: Please use the quote form above for quick pricing
    Payment: Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
    Guarantee: All items are tested by Oracle trained technicians & backed by a 100% warranty
    Questions? Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

    MAIN FEATURES • High-performance storage architecture optimized for enterprise applications and highly virtualized cloud workloads
    • Massive throughput for IO intensive backup and recovery workloads
    • Multi-petabyte scalability for all flash, disk drives, and hybrid configurations
    • Unique and unmatched automated storage tuning, I/O prioritization, and compression for Oracle Database
    • Dynamic caching with DRAM, flash cache, and both all flash and HDD storage
    • High-performance NAS, SAN and object protocol support unified on a single platform
    • Advanced, intuitive management an, fine-grained analytics tools
    • Data protection with highly secure AES granular encryption

    Oracle Sun ZFS ZS3-2 Specs and Information:



    Processor
    Number Two Intel 8-core
    Architecture Type: 8-Core Intel Xeon E5-2658 (20MB Cache, 8 GT/s QPI, 2.1 GHz, 95W)
    Cache memory 32KB instruction and 32KB data L1 cache per core
    256KB unified (data and instruction) L2 cache per core
    20MB shared inclusive L3 cache per processor
    Main Memory
    Capacities DIMM slots per CPU socket: 8
    Total DIMM slots: 16
    DIMM type: DDR3-1600 Registered DIMMs
    DIMM size: 16GB
    Maximum capacity: 256 GB (fully populated)
    Standard Integrated Interfaces
    Network Four 100 Mb/s, 1000 Mb/sec, 10000 Mb/sec Ethernet ports
    Network Management One 10/100Base-T Ethernet port
    Serial Management One TIA/EIA-232-F asynchronous RJ45 port
    SAS Four-channel SAS Interface (with SFF-8088 connector), internal access only
    USB (2.0) Front: 2
    Rear: 2
    Internal: 2
    Video One VGA Video port (HD-15)
    Alarms Four fail-safe  DB-15 dry contact  (critical, major, minor and user)
    Expansion Bus Six PCIe 3.0 LP slots – six (6) x8-lane slots
    Note: Slot 1, the lower slot of Riser 1 is reserved for the Sun Storage 6 Gb SAS PCIe RAID HBA, Internal card. This is a configuration requirement.
    Internal Storage

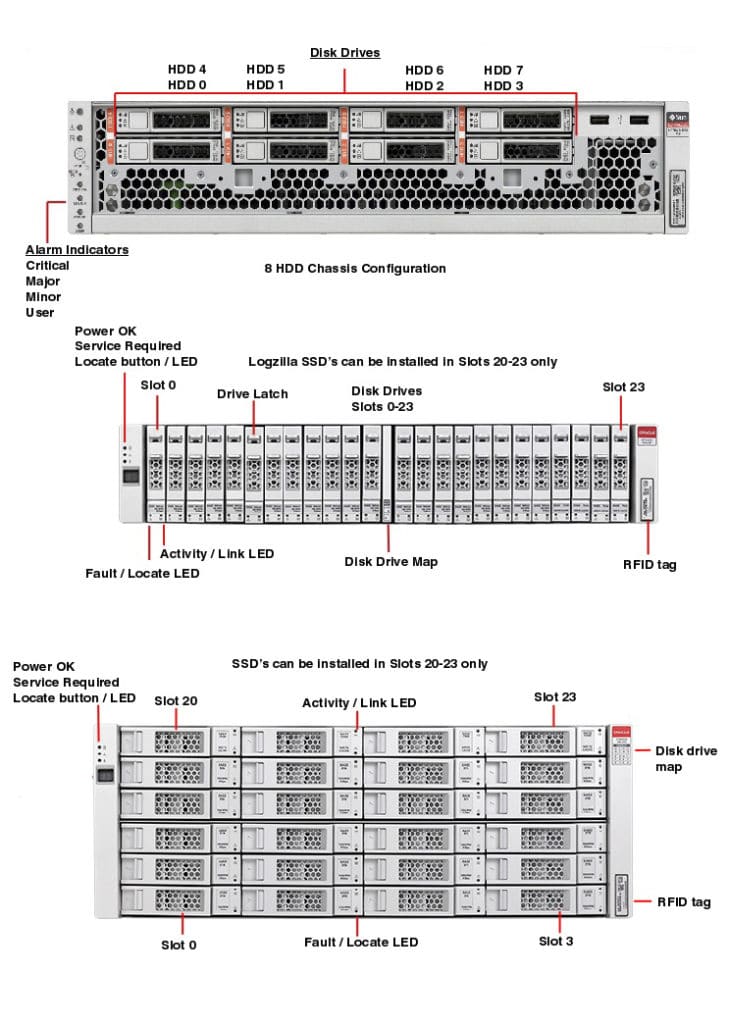

    Disk Drives Up to four SAS SSD’s (Readzilla’s) and two SAS HDD’s (Boot Drive’s).
    Attached Storage
    Options 1, 2 or 3 DE2-24C – Up to four SAS SSD’s (Logzilla’s) and up to twenty 3.5″ SAS HDD’s.
    DE2-24P – Up to four SAS SSD’s (Logzilla’s) and up to twenty 2.5″ SAS-2 HDD’s.
    Disk Shelf 24×3.5 – Up to four SAS SSD’s (Logzilla’s) and up to twenty 3.5″ SAS HDD’s.
    Part Number Part Description Form Factor Supported In
    Disks – ZFS Storage ZS3-2 (Netra X3-2 Server Head – Marlin bracket)
    7066874[C] 900GB – 10000 RPM SAS Disk Drive Assembly 2.5″ ZFS Storage ZS3-2 (Netra X3-2 Server Head)
    7097377[C] 1.6TB SAS-3 Solid State Drive Assembly 2.5″ ZFS Storage ZS3-2 (Netra X3-2 Server Head)
    7046052[C] 1.6TB SAS-2 Solid State Drive Assembly 2.5″ ZFS Storage ZS3-2 (Netra X3-2 Server Head)
    7087183[C] 1.6TB SAS-2 Solid State Drive Assembly 2.5″ ZFS Storage ZS3-2 (Netra X3-2 Server Head)
    7097385[C] 1.6TB SAS-3 Solid State Drive Assembly 2.5″ ZFS Storage ZS3-2 (Netra X3-2 Server Head)
    Disks – Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980 – Stingray bracket)
    542-0286 [C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7015704[C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7309527[C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048983[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048042[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7011094[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048042[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0191 [C] 300GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0179 [C] 600GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0274 [C] 2TB – 7200 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0340 [C] 1TB – 7200 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    Disks – Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264 – Stingray bracket)
    7011094[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7048042[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7048983[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0191 [C] 300GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7047155[C] 300GB – 15000 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0179 [C] 600GB – 15000 RPM SAS Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7047035[C] 600GB – 15000 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0340 [C] 1TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    542-0274 [C] 2TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7042964[C] 2TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7010135[C] 3TB – 7200 RPM SAS Disk Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    Disks – Storage DE2-24P – Evo bracket
    7044379[C] 73GB SAS Solid State Drive Assembly 2.5″ DE2-24P
    7094126[C] 200GB – SAS Solid State Disk Assembly 2.5″ DE2-24P
    7044283[C] 300GB – 10000 RPM SAS Disk Drive Assembly 2.5″ DE2-24P
    7044376[C] 900GB – 10000 RPM SAS Disk Drive Assembly 2.5″ DE2-24P
    Disks – Storage DE2-24C – Heron bracket
    7044396[C] 73GB SAS Solid State Drive Assembly 3.5″ DE2-24C
    7094120[C] 200GB – SAS Solid State Disk Assembly 3.5″ DE2-24C
    7044391[C] 3TB – 7200 RPM SAS Disk Drive Assembly 3.5″ DE2-24C
    7066831[C] 4TB – 7200 RPM SAS Disk Drive Assembly 3.5″ DE2-24C
    7301592[C] 8TB – 7200 RPM SAS-3 Disk Drive Assembly 3.5″ DE2-24C
    Power Supplies
    Two Type A247A 760W hot-swappable AC
    Note: To ensure redundant operation of the power supplies, the two power inputs should be connected to separate power sources.
    DC Power -48V DC or -60V DC
    AC Power 100-240V AC, 50-60 Hz
    Environment
    Power Consumption Online power calculator
    Temperature Operating: 5° C to 45° C (41° F to 113° F)/Short term: 5° C to 55° C (23° F to 131° F)
    Nonoperating: -40° C to 70° C (-40° F to 158° F)
    Humidity Operating: 5% to 85% relative humidity noncondensing, max wet bulb.  Short term: 5% to 90% relative humidity noncondensing, but not to exceed 0.024kg water/kg dry air (0.053 lbs. water 2.205 lb. dry air)
    Nonoperating: up to 93% relative humidity noncondensing, 40° C (104° F) max wet bulb
    Altitude Operating: Meets NEBS 4,000m (13,123 ft.)
    Nonoperating: up to 12,000m (39,370 ft.)
    Acoustic noise Operating/Idling Acoustic Noise less than 7.2B @ 25° C (LwAd, 1B=10dB)
    Regulations
    Meets or exceeds the following requirements:
    Safety UL 60950-1, EN60950-1, IEC60950-1 (Evaluated to all CB countries), CSA C22.2 No. 60950-1-07, IEC825-1, 2, and CFR21 part 1040
    NEBS NEBS Level 3 certified by Telcordia
    EMI EN55022 Class A, CISPR22 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, AS/NZ CISPR22 Class A, CNS 13438 Class A, EN300386 for Telecommunications Centers and for Other Than Telecommunications Centers
    EMC (immunity) EN55024, EN61000-3-2, EN61000-3-3, EN300386:2010 for Telecommunications Centers and for Other Than Telecommunications Centers.
    Regulatory Markings CE, FCC, ICES-003, C-tick, VCCI, GOST-R, BSMI, KCC, UL/cUL, S-mark, CCC
    Seismic GR-63-CORE requirements for earthquake zone 4
    Other Restriction of Hazardous Substances (RoHS) Directive and Waste Electrical and Electronics Equipment (WEEE) Directive
    Dimensions and Weight
    Height 87 mm (3.43 in.) 2 RU
    Width 445 mm (17.52 in.) including mounting ears
    Depth maximum to PSU handles: 527.8 mm (20.78 in.)
    maximum of rear I/O: 501.4 mm (19.74 in.)
    Weight Approximate (without PCI cards)
    18.5 kg (40.8 lb.)
    Rack Mounting
    Rack Units 4 or 6
    Rack Kits Available
    • 19-inch 2-post
    • 19-inch 2-post (slide rail)
    • 23-inch 2-post
    • 600mm x 600mm and
    • 19-inch 4-post slide adjustable1
    Array Controller
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7043628 [C] 6Gbps SAS-2 I/O Controller Module n/a
    n/a 542-0194 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3520 or 3524) n/a
    n/a 7014946 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3524 or 3527) 542-0194 [C] [A]
    n/a 7045305 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3527) 7014946 [C] [A]
    n/a 7053644 [C] [A] 6Gbps SAS-2 Interface Module (SIM FW 3529) 7045305 [C] [A]
    NOTE: The 6Gbps SAS-2 I/O Controller Module PN#7043628 is used in the Oracle Storage DE2-24C and DE2-24P.
    CPU Module
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7015351 [F] 2.1GHz Intel 8-Core Xeon E5-2658, 95W n/a
    n/a 7026486 [F] CPU Heatsink n/a
    Cables
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 530-3771 [C] Ethernet Cable, Category 5/5E, RJ45 to RJ45, 1m, Grey n/a
    n/a 530-3886 4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M n/a
    n/a 7023009 [C] Mini SAS to HD Cable, SFF-8088 to SFF-8644, 3M n/a
    n/a 7042256 [F] Cable Kit n/a
    • 7026751
    • System Board to PDB Cable
    		 n/a
    • 7026753
    • System Board to HDD Backplane Power Cable
    		 n/a
    • 7026754
    • System Board to HDD Backplane DVD Cable
    		 n/a
    n/a 7042258 [F] Disk Signal Cable – SAS Cable, Two 90° SFF-8087 to Two SFF-8087, Unshielded n/a
    n/a 7056300 [C] Mini SAS to HD Cable, SFF-8088 to SFF-8644, 6M n/a
    n/a 7075861 [C] Ethernet Cable, CAT6A, RJ45 to RJ45, 20-foot, Black n/a
    n/a 7076124 [F] Disk Signal Cable – SAS Cable, Two 90° SFF-8087 to Two SFF-8087, Shielded 7042258 [F]
    n/a 7083458 [C] Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Green n/a
    n/a 7083459 [C] Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Yellow n/a
    n/a 7083460 [C] Bootless Ethernet Cable, Category 5/5E, RJ45 to RJ45, 7-Foot, Black n/a
    Communication
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X4242A 375-3696 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    7092767 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7053748 8-Slot Disk Backplane Assembly n/a
    • 7019791 [F]
    • 8-Slot Disk Backplane
    		 n/a
    • 7039238 [F]
    • 8-Slot Backplane Air Filter Assembly
    		 n/a
      • 7017277
      • 8-Disk Backplane Air Filter
    		 n/a
      • 7017278
      • 8-Disk Backplane Air Filter Frame
    		 n/a
    Disks
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7104204 11 7097377 [C] 1.6TB SAS-3 Solid State Drive Assembly n/a
    • 7094629
    • HGST HUSMR1616ASS200 [HSCAC2DA2SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-3 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    7105737 7044283 [C] 300GB 10000 RPM SAS Disk Drive Assembly n/a
    • 7045226
    • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    7105738 7044376 [C] 900GB 10000 RPM SAS Disk Drive Assembly n/a
    • 7045230
    • Hitachi HUC109090CSS900 [H109090SESUN900G] (900GB 10000 RPM SAS Disk Drive)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    7111897 7301592 [C] 8TB 7200 RPM SAS-3 Disk Drive Assembly n/a
    • 7301585
    • Hitachi HUH728080AL5200 [H7280A520SUN8.0T] (8TB – 7200 RPM – SAS-3 Disk
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    7105736 [S] 7044391 [C] 3TB 7200 RPM SAS Disk Drive Assembly n/a
    • 7048503
    • Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB 7200 RPM SAS Disk Drive)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    7105739 [S] 7044396 [C] 73GB SAS Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7063417
    • 2.5″ to 3.5″ Adapter Bracket
    		 n/a
    7105740 [S] 7044379 [C] 73GB SAS Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    7106629 [S] 7066831 [C] 4TB 7200 RPM SAS Disk Drive Assembly n/a
    • 7065489
    • Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    n/a 350-1574 Disk Shelf SSD Filler Panel n/a
    n/a 541-4242 Disk Shelf HDD Filler Panel n/a
    n/a 7046052 3 4 [C] 1.6TB SAS-2 Solid State Drive Assembly n/a
    • 7045914
    • SanDisk LB1606R [LB1606R  SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 7066874 5 [C] 900GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; n/a
    • 7045230
    • Hitachi HUC109090CSS900 [H109090SESUN900G] (900GB 10000 RPM SAS Disk Drive)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 7087183 6 7 [C] 1.6TB Common SAS-2 Solid State Drive Assembly n/a
    • 7045914
    • SanDisk LB1606R [LB1606R  SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    • 7087210
    • Bracket Assembly Instructions
    		 n/a
    n/a 7094120 8 [C] 200GB SAS Solid State Drive Assembly n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096030
    • 2.5″ to 3.5″ Cabrio Adapter Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    n/a 7094126 9 [C] 200GB SAS Solid State Drive Assembly n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7097385 10 [C] 1.6TB Common SAS-3 Solid State Drive Assembly n/a
    • 7094629
    • HGST HUSMR1616ASS200 [HSCAC2DA2SUN1.6T] (1.6TB – 2.5″ Solid State – SAS-3 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    • 7087210
    • Bracket Assembly Instructions
    		 n/a
    n/a 542-0179 [C] [A] 600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0191 [C] [A] 300GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0274 [C] [A] 2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0476
    • Seagate ST32000444SS [ST32000SSSUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7045281
    • Toshiba MK2001TRKB [MK2001RKBSUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0286 [A] 18GB SAS Solid State Drive Assembly n/a
    • 371-4820
    • Stec Z16IZD3C-18UC [Inquiry Unknown] (18GB – 3.5″ Solid State – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0340 [C] [A] 1TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0475
    • Seagate ST31000424SS [ST31001SSSUN1.0T] (1TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7045280
    • Toshiba MK1001TRKB [MK1001RKBSUN1.0T] (1TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7010135 [C] [A] 3TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7010033
    • Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7021037
    • Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7011094 [C] [A] 73GB SAS Solid State Drive Assembly with 1 bracket and 1 of the following disks: n/a
    • 371-5049
    • Stec Z16IZF2D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7015704 [C] [A] 18GB SAS Solid State Drive Assembly 542-0286 [A]
    • 371-4820
    • Stec Z16IZD3C-18UC [Inquiry Unknown] (18GB – 3.5″ Solid State – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7042964 [C] [A] 2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7025852
    • Hitachi HUS723020ALS640 [H7220AS60SUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7047035 [C] [A] 600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0483
    • Hitachi HUS156060VLS600 [HUS1560SCSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7047155 [C] [A] 300GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0481
    • Hitachi HUS156030VLS600 [HUS1530SCSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7048042 [C] [A] 73GB SAS-2 Solid State Drive Assembly 7011094 [C] [A]
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7048983 [C] [A] 73GB SAS-2 Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7042920
    • 2.5″ Adapter
    		 n/a
    • 7042923
    • Left Bracket
    		 n/a
    • 7042926
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7309527 [C] [A] 18GB SAS Solid State Drive Assembly n/a
    • 7309526
    • 18GB – 3.5″ Solid State – SAS Disk
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7309938 [C] [A] 200GB SAS-3 Solid State Drive Assembly with 1 bracket and 1 of the following disks: n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7042920
    • 2.5″ Adapter
    		 n/a
    • 7042923
    • Left Bracket
    		 n/a
    • 7042926
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    3 1.6TB Common Assembly 7087183 is shipped when either 7046052, 7078599, or 7087183 are ordered.
    4 Assembly 7046052 or 7087183 is used to replace SSD Assembly 7046052.
    5 Requires PN#7076124 (SAS Cable, Two 90° SFF-8087 to Two SFF-8087, Shielded).
    6 Assembly 7087183 is shipped when 7046052 or 7078599 are ordered. Bracket 541-2123 is installed.
    7 1.6TB Common Assembly 7087183 is shipped when either 7046052, 7078599, or 7087183 are ordered.
    8 200GB SAS Solid State Drive Assembly PN#7094120 requires a minimum firmware version of 2013.1.2.9
    9 200GB SAS Solid State Drive Assembly PN#7094126 requires a minimum firmware version of 2013.1.2.9
    10 Assembly 7097385 is shipped when 7097377 or 7097382 are ordered. Bracket 541-2123 is installed.
    11 Assembly 7097377 replaced assembly 7046052 in option 7104204.
    NOTE: See this table of supported disks per sub-system within the ZS3-2 for more accurate part replacement selection.
    Ethernet
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7100477 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
    7100488 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
    X1109A-Z 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP 375-3617 [C]
    X2129A-N 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
    X5562A-Z 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
    n/a 375-3617 [C] Dual 10-Gigabit Ethernet SFP+ LP n/a
    Fan
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7014218 Five Fan Assembly n/a
    • 7019706 [C]
    • Single Fan Module
    		 n/a
    • n/a
    • Five Fan Tray
    		 n/a
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7101674 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
    7101676 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
    • 7023324
    • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
    		 n/a
    SG-XPCIE2FC-QF8-N 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    I/O
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7017384 Riser-1 Assembly n/a
    • 7017385 [C]
    • 2-Slot PCI Express Riser Board
    		 n/a
    • 7043906
    • Riser-1 Cage
    		 n/a
    n/a 7020312 Riser-2 Assembly n/a
    • 7017385 [C]
    • 2-Slot PCI Express Riser Board
    		 n/a
    • 7043907
    • Riser-2 Cage
    		 n/a
    n/a 7020313 Riser-3 Assembly n/a
    • 7017385 [C]
    • 2-Slot PCI Express Riser Board
    		 n/a
    • 7043908
    • Riser-3 Cage
    		 n/a
    Memory
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7100792 7053841 [C] 32GB DDR3-1066/DDR3-1333 DIMM, 1.35V n/a
    n/a 7038488 [C] 4GB USB 2.0 Flash Drive n/a
    n/a 7041588 [C] 16GB Registered DDR3-1600 DIMM, 1.35V n/a
    Power
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 300-2299 [C] Type A247A 760 Watt AC Input Power Supply n/a
    n/a 7014220 [F] Power Distribution Board n/a
    n/a 7043627 [C] 580 Watt AC Input Power Supply n/a
    n/a 7065505 [C] Type A247B 760 Watt AC Input Power Supply n/a
    n/a 300-2169 [C] [A] 764 Watt AC Input Power/Cooling Module n/a
    n/a 300-2276 [C] [A] 764 Watt AC Input Power/Cooling Module 300-2169 [C] [A]
    NOTE: The 580 Watt AC Input Power Supply PN#7043627 is used in the Oracle Storage DE2-24C and DE2-24P.
    Rack
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X8029A-Z-N [S] 370-7669 [C] Slide Rail Kit n/a
    DS2X-4URK-19U [A] 350-1531 Rackmount Kit n/a
    • n/a
    • Left Mounting Rail
    		 n/a
    n/a 7044619 [C] Mounting Rail Kit n/a
    n/a 7063682 [C] Mounting Rail Kit n/a
    n/a 7068658 [C] Cable Management Arm n/a
    Removable Media
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7014219 [F] USB Assembly n/a
    • 7026762
    • USB Cable
    		 n/a
    • n/a
    • USB Board
    		 n/a
    SCSI
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7047852 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
    n/a 7067091 [C] 4×4-Port PCIe-3, 6Gbps SAS-2 HBA n/a
    System Board
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7016786 [F] System Board Assembly n/a
    • 7017372
    • System Board Tray
    		 n/a
    • 7017375
    • System Board
    		 n/a
    n/a 7077974 [F] System Board Assembly 7016786 [F]
    • 7017375
    • System Board
    		 n/a
    • 7077975
    • System Board Tray
    		 n/a



    Code Manufacturing Part# Description
    NS 341-2610 PCI Filler Panel
    NS 350-1288 DIMM Slot Filler
    NS 370-6110 19″ 4-Post Rackmount Kit
    NS 541-2629 2.5″ Disk Drive Filler Panel
    NS 7014217 Chassis Assembly
    NS 7017279 [F] LED Alarm Assembly
    NS
    • 7026760
    • LED Alarm Cable
    NS
    • n/a
    • LED Alarm Board
    NS 7048062 DE2-24P 24×2.5″ Disk Shelf Assembly
    NS
    • 7043626
    • 2RU Chassis Assembly
      • 7043627 [C]
      • 580 Watt AC Input Power Supply
      • 7043628 [C]
      • 6Gbps SAS-2 I/O Controller Module
    NS
      • 7043630 [F]
      • 2RU Chassis Assembly/FRU with Midplane
    • 7044619 [C]
    • Mounting Rail Kit
    NS 7048064 DE2-24C 24×3.5″ Disk Shelf Assembly
    • 7063682 [C]
    • Mounting Rail Kit
    NS
    • 7043867
    • 4RU Chassis Manufacturing Assembly
      • 7043627 [C]
      • 580 Watt AC Input Power Supply
      • 7043628 [C]
      • 6Gbps SAS-2 I/O Controller Module
    NS
      • 7044319 [F]
      • 4RU Chassis Assembly/FRU with Midplane
    NS 7053737 System Air Duct
    NS 7078865 DE2-24P 24×2.5″ NEBS Disk Shelf Assembly
    • 7044619 [C]
    • Mounting Rail Kit
    NS
    • 7078864
    • 2RU NEBS Chassis Assembly
      • 7043627 [C]
      • 580 Watt AC Input Power Supply
      • 7043628 [C]
      • 6Gbps SAS-2 I/O Controller Module
    NS
      • 7078863 [F]
      • 2RU NEBS Chassis Assembly/FRU with Midplane
    NS 7096538 DE2-24P 24×2.5″ NEBS Disk Shelf Assembly
    NS
    • 7093665
    • 2RU NEBS Chassis Assembly
      • 7043627 [C]
      • 580 Watt AC Input Power Supply
      • 7043628 [C]
      • 6Gbps SAS-2 I/O Controller Module
    NS
      • 7093535 [F]
      • 2RU NEBS Chassis Assembly/FRU with Midplane
    NS 7096574 DE2-24C 24×3.5″ Disk Shelf Assembly
    NS
    • 7093757
    • DE2-24C Chassis Manufacturing Assembly
      • 7043627 [C]
      • 580 Watt AC Input Power Supply
      • 7043628 [C]
      • 6Gbps SAS-2 I/O Controller Module
    NS
      • 7093695 [F]
      • DE2-24C Chassis with Midplane Assembly/FRU
    NS 540-7980 [F] [A] Disk Shelf Chassis Assembly
    –
    • 330-5203
    • Front Left End Cap
    –
    • 330-5204
    • Front Right End Cap
    –
    • 375-3659
    • Centerplane Assembly
    NS 7041264 [F] [A] Disk Shelf Chassis Assembly
    –
    • 330-5203
    • Front Left End Cap
    –
    • 330-5204
    • Front Right End Cap
    –
    • 7041262
    • Centerplane Assembly



    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
