    Brand: Oracle / Sun Microsystems
    Condition: Refurbished and new (limited availability)
    Availability: Contact
    Shipping Area: Worldwide to most countries
    Shipping Method: Fedex (most orders), UPS, DHL, Freight Courier
    Price: Please use the quote form above for quick pricing
    Payment: Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
    Guarantee: All items are tested by Oracle trained technicians & backed by a 100% warranty
    Questions? Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements



    Specs and Information:



    Processor
    Number 1 to 2 Quad-Core
    Architecture Type: Intel Xeon Quad-Core Processor
    CPUs Intel 2.40GHz Quad-Core Xeon E5620 (12MB L3, 80W)
    Main Memory
    Capacities Total DIMM slots: 18
    DIMM type: DDR3 1333MHz Registered DIMMs
    DIMM size: 4-GB 1333MHz, 8-GB 1333MHz
    Maximum capacity: 144GB (when fully populated with 8-GB DIMMs)
    Standard Integrated Interfaces
    Network Four 10/100/1000 Base-T Ethernet Ports
    Network Management One dedicated 10/100Base-T Ethernet port
    Serial Management One dedicated TIA/EIA-232-F asynchronous RJ45 port
    USB Front: Two USB 2.0 ports
    Rear: Two USB 2.0 ports
    Internal: One USB 2.0 port (for a USB thumb drive)
    PCI Expansion Slots Three low profile PCI Express 2.0 slots (1 x16 electrical/mechanical, 2 x8 electrical/mechanical)
    Internal Mass Storage

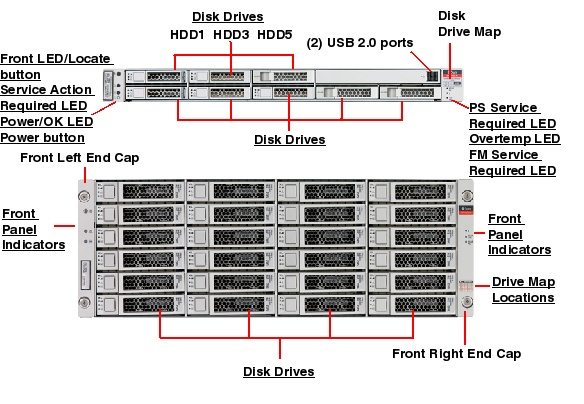

    Disks Up to 8 hot-swappable disks in the Sun Fire X4170 M2, and 24 hot-swappable disks in the Sun Disk Shelf 24×3.5″ SAS-2, Oracle Storage DE2-24C and Oracle Storage DE2-24P
    Part Number Part Description Form Factor Supported In
    Disks – ZFS Storage 7320 (X4170 M2 Server Head – Marlin bracket)
    542-0330 [C] 512GB Solid State SATA-2 Drive Assembly 2.5″ ZFS Storage 7320 (X4170 M2 Server Head)
    7010845[C] 512GB Solid State SATA-2 Drive Assembly 2.5″ ZFS Storage 7320 (X4170 M2 Server Head)
    542-0371 [C] 500GB – 7200 RPM SATA Disk Assembly 2.5″ ZFS Storage 7320 (X4170 M2 Server Head)
    7042768[C] 500GB -10000 RPM SATA Disk Drive Assembly 2.5″ ZFS Storage 7320 (X4170 M2 Server Head)
    Disks – Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980 – Stingray bracket)
    542-0286 [C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7015704[C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7309527[C] 18GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7011094[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048042[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    7048983[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0191 [C] 300B – 15000 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0179 [C] 600GB – 15000 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0340 [C] 1TB – 7200 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    542-0274 [C] 2TB – 7200 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#540-7980)
    Disks – Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264 – Stingray bracket)
    7011094[C] 73GB SAS Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7048042[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7048983[C] 73GB SAS-2 Solid State Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7047155[C] 300GB – 15000 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7047035[C] 600GB – 15000 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7042964[C] 2TB – 7200 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    7010135[C] 3TB – 7200 RPM SAS Disk Drive Assembly 3.5″ Disk Shelf 24×3.5′ SAS-2 (Chassis PN#7041264)
    Disks – Storage DE2-24P – Evo bracket
    7044379[C] 73GB SAS Solid State Drive Assembly 2.5″ DE2-24P
    7094126[C] 200GB – Solid State SAS Disk Assembly 2.5″ DE2-24P
    7044283[C] 300GB – 10000 RPM SAS Disk Drive Assembly 2.5″ DE2-24P
    7044376[C] 900GB – 10000 RPM SAS Disk Drive Assembly 2.5″ DE2-24P
    Disks – Storage DE2-24C – Heron bracket
    7044396[C] 73GB SAS Solid State Drive Assembly 3.5″ DE2-24C
    7094120[C] 200GB – Solid State SAS Disk Assembly 3.5″ DE2-24C
    7044391[C] 3TB – 7200 RPM SAS Disk Drive Assembly 3.5″ DE2-24C
    7066831[C] 4TB – 7200 RPM SAS Disk Drive Assembly 3.5″ DE2-24C
    7301592[C] 8TB – 7200 RPM SAS Disk Drive Assembly 3.5″ DE2-24C
    Power Supplies
    Dual redundant, hot swappable power supplies
    (Power supply rating output = 760W)
    (UL Maximum AC input = 760W x 1.33 efficiency = 1010W)
    (9.0 Amps RMS at 100 VAC)
    Environment
    Power Consumption Online power calculator
    AC power 100-120 / 200-240 VAC (50-60 Hz)
    Temperature Single, non-rack system:
    Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 70° C (-40° F to 158° F)
    Humidity Single, non-rack system:
    Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) max wet bulb
    Nonoperating: up to 93% relative humidity noncondensing, 38° C (100.4° F) max wet bulb
    Altitude Single, non-rack system:
    Operating: up to 3000 m (9,843 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m
    Nonoperating: up to 12,000 m (40,000 ft.)
    Regulations
    Meets or exceeds the following requirements:
    Safety UL 60950-1 2nd Ed, EN60950-1:2006 2nd Ed, CB Scheme with all country differences
    RFI/EMI FCC CFR 47 Part 15 Subpart B Class A, EN55022:2006+A1:2007 Class A, EN 61000-3-2, EN61000-3-3, EN 300-386
    Immunity EN55024, EN300-386
    Certifications Safety: UL/cUL, UL DEMKO, CE, BSMI, CCC, GOST-R, S-Mark
    EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, GOST-R, BSMI Class A
    Dimensions and Weight
    Height 43.43 mm (1.71 in.)
    Width 425.5 mm (16.75 in.)
    Depth 685.8 mm (27.0 in.)
    Weight 16.36 kg (36 lb.) maximum assuming PCI-Express card weighs 0.12 kg
    (0.25 lb) each, and without the rack mounting slide rail kit installed.
    Rack Mounting
    Sun ZFS Storage 7320 Racks Racks are as follows:
    • Sun Rack II 1042
    • Sun Rack II 1242
    Array Controller
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7043628 [C] 6Gbps SAS-2 I/O Controller Module n/a
    n/a 7045305 [C] 6Gbps SAS-2 Interface Module (SIM FW 3527) 7014946 [C] [S]
    n/a 7053644 [C] 6Gbps SAS-2 Interface Module (SIM FW 3529) 7045305 [C]
    n/a 542-0194 [C] [S] 6Gbps SAS-2 Interface Module (SIM FW 3520 or 3524) n/a
    n/a 7014946 [C] [S] 6Gbps SAS-2 Interface Module (SIM FW 3524 or 3527) 542-0194 [C] [S]
    NOTE: 6Gbps SAS-2 Interface Module (SIM) PN#542-0194, PN#7014946, PN#7045305 and PN#7053643 are used in the OPTIONAL Sun Disk Shelf 24×3.5″ SAS-2 as part of the Sun ZFS Storage 7320.
    NOTE: 6Gbps SAS-2 Interface Module (SIM) PN#7043628 is used in the Oracle Storage DE2-24C and DE2-24P as part of the Sun ZFS Storage 7320.
    Batteries
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 150-3993 [C] 3V Lithium Coin Cell Battery n/a
    CPU Module
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 371-4885 [F] 2.4GHz Intel Quad-Core Xeon E5620, 12MB, 80W n/a
    n/a 541-2545 [F] Xeon Heatsink n/a
    • 240-6751
    • Spring Screw
    		 n/a
    • 310-0161
    • Pre-greased Heatsink
    		 n/a
    Cables
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7107573 7079302 [C] Mini SAS Cable to HD Low Profile, SFF-8088 to SFF-8644, 3.0M n/a
    X2130A-1M-N 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
    X2130A-3M-N 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
    X2130A-5M-N 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
    XTA-2.0M-SAS 530-3883 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M n/a
    n/a 530-3771 [C] Ethernet Cable, Category 5/5E, RJ45 to RJ45, 1m, Grey n/a
    n/a 530-3880 [C] RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M n/a
    Communication
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    XTA7320-CUK 3 530-3771 [C] RJ-45 Ethernet Cable (1m) n/a
    542-0298 [C] Cluster Heartbeat Assembly n/a
    • 511-1496
    • Cluster Heartbeat Card
    		 n/a
    • 541-4350
    • EMI Gasket
    		 n/a
    X4237A-N [S] 375-3606 [C] Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express n/a
    X4242A [S] 375-3696 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    7092767 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    n/a 7056175 [C] Cluster Heartbeat Assembly 542-0298 [C]
    • 511-1496
    • Cluster Heartbeat Card
    		 n/a
    • 541-4350
    • EMI Gasket
    		 n/a
    n/a 7089470 [C] Cluster Heartbeat Assembly 7056175 [C]
    • 541-4350
    • EMI Gasket
    		 n/a
    • 7087050
    • Cluster Heartbeat Card
    		 n/a
    3 Cluster Upgrade Kit includes Qty #3 PN#530-3771 and Qty #2 PN#511-1496.
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 511-1283 [F] 8-Slot Disk Backplane, SATA DVD 511-1548 [F]
    n/a 511-1548 [F] 8-Slot Disk Backplane, SATA DVD n/a
    n/a 7051678 [F] 8-Slot Disk Backplane, SATA DVD 511-1283 [F]
    Disks
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7110944 7094120 5 [C] 200GB SAS Solid State Drive Assembly n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    7110947 7094126 6 [C] 200GB SAS Solid State Drive Assembly n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    7111897 7301592 [C] 8TB 7200 RPM SAS-3 Disk Drive Assembly n/a
    • 7301585
    • Hitachi HUH728080AL5200 [H7280A520SUN8.0T] (8TB – 7200 RPM – SAS-3 Disk
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    7101195 [S] 7048042 [C] 73GB SAS-2 Solid State Drive Assembly 7011094 [C]
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    7101234 [S] 7010845 [C] 512GB Solid State SATA-2 Drive Assembly n/a
    • 371-5052
    • Toshiba THNSNC512GBSJ [Inquiry Unknown] (512GB – 2.5″ Solid State – SATA-2 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    7105026 [S] 7048983 8 [C] 73GB SAS-2 Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7042920
    • 2.5″ Adapter
    		 n/a
    • 7042923
    • Left Bracket
    		 n/a
    • 7042926
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    7106629 [S] 7066831 [C] 4TB 7200 RPM SAS Disk Drive Assembly n/a
    • 7065489
    • Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    DS2X-LOGZ [S] 7015704 [C] 18GB SAS Solid State Drive Assembly 542-0286 [S]
    • 371-4820
    • Stec Z16IZD3C-18UC [Inquiry Unknown] (18GB – 3.5″ Solid State – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    XTA7000-READZ512 [S] 542-0330 [C] 512GB Solid State SATA-2 Drive Assembly n/a
    • 371-4769
    • Toshiba THNS512GG8BB [Inquiry Unknown] (512GB – 2.5″ Solid State – SATA-2 Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 350-1574 Disk Shelf SSD Filler Panel n/a
    n/a 541-4242 Disk Shelf HDD Filler Panel n/a
    n/a 542-0179 [C] 600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0191 [C] 300GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0274 [C] 2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0476
    • Seagate ST32000444SS [ST32000SSSUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7045281
    • Toshiba MK2001TRKB [MK2001RKBSUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0340 [C] 1TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0475
    • Seagate ST31000424SS [ST31001SSSUN1.0T] (1TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7045280
    • Toshiba MK1001TRKB [MK1001RKBSUN1.0T] (1TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0371 [C] 500GB – 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0468
    • Seagate ST9500530NS [ST95000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk)
    		 n/a
    • 390-0492
    • Seagate ST9500620NS [ST95001NSSUN500G] (500GB – 7200 RPM – SATA Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 7010135 [C] 3TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7010033
    • Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7021037
    • Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7011094 [C] 73GB SAS Solid State Drive Assembly with 1 bracket and 1 of the following disks: n/a
    • 371-5049
    • Stec Z16IZF2D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7047682
    • Stec Z16IZF3D-73UC [Inquiry Unknown] (73GB – 3.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7042768 4 [C] 500GB – 10000 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7042764
    • Western Digital WD5000BLHX [WD500BLHXSUN500G] (500GB – 10000 RPM – SATA Disk)
    		 n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    		 n/a
    n/a 7042964 [C] 2TB – 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7025852
    • Hitachi HUS723020ALS640 [H7220AS60SUN2.0T] (2TB – 7200 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7044283 [C] 300GB 10000 RPM SAS Disk Drive Assembly n/a
    • 7045226
    • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7044376 [C] 900GB 10000 RPM SAS Disk Drive Assembly n/a
    • 7045230
    • Hitachi HUC109090CSS900 [H109090SESUN900G] (900GB 10000 RPM SAS Disk Drive)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7044379 [C] 73GB SAS Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7044311
    • 2.5″ Evo Disk Mounting Bracket
    		 n/a
    n/a 7044391 [C] 3TB 7200 RPM SAS Disk Drive Assembly n/a
    • 7048503
    • Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB 7200 RPM SAS Disk Drive)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7096032
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    n/a 7044396 [C] 73GB SAS Solid State Drive Assembly n/a
    • 7045627
    • Stec Z16IZF2E-73UCU [Inquiry Unknown] (73GB – 2.5″ Solid State – SAS-2 Disk)
    		 n/a
    • 7044392
    • 3.5″ Heron Disk Mounting Bracket
    		 n/a
    • 7063417
    • 2.5″ to 3.5″ Adapter Bracket
    		 n/a
    n/a 7047035 [C] 600GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0483
    • Hitachi HUS156060VLS600 [HUS1560SCSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7047155 [C] 300GB – 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0481
    • Hitachi HUS156030VLS600 [HUS1530SCSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7309527 [C] 18GB SAS Solid State Drive Assembly n/a
    • 7309526
    • 18GB – 3.5″ Solid State – SAS Disk
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 542-0286 [S] 18GB SAS Solid State Drive Assembly n/a
    • 371-4820
    • Stec Z16IZD3C-18UC [Inquiry Unknown] (18GB – 3.5″ Solid State – SAS Disk)
    		 n/a
    • 350-1508
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    n/a 7309938 [C] [A] 200GB SAS-3 Solid State Drive Assembly with 1 bracket and 1 of the following disks: n/a
    • 7093646
    • HGST HUSMM1640ASS200 [HSCAC2DA6SUN200G] (200GB – 2.5″ Solid State – SAS Disk)
    		 n/a
    • 7042920
    • 2.5″ Adapter
    		 n/a
    • 7042923
    • Left Bracket
    		 n/a
    • 7042926
    • Stingray 3.5″ Mounting Bracket
    		 n/a
    4 The Western Digital 500GB 10000 RPM drive replaced the Seagate 500GB 7200 RPM drive due to shortages caused by flooding in Thailand in 2011. The bezel is labeled SATA 500GB 7200 RPM 3Gbps.
    5 200GB SAS Solid State Drive Assembly PN#7094120 requires a minimum firmware version of 2013.1.2.9
    6 200GB SAS Solid State Drive Assembly PN#7094126 requires a minimum firmware version of 2013.1.2.9
    8 73GB SAS-2 Solid State Drive Assembly PN#7048983 requires a minimum firmware version of 2011.1.4.
    NOTE: See this table of supported disks per sub-system within the 7320 for more accurate part replacement selection.
    Ethernet
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X1109A-Z 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP 375-3617 [C]
    X2129A-N 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
    X5562A-Z 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
    X4446A-Z-N [S] 7054739 [C] PCI Express Quad Gigabit Ethernet UTP 375-3481 [C]
    n/a 375-3481 [C] PCI Express Quad Gigabit Ethernet UTP n/a
    n/a 375-3617 [C] Dual 10-Gigabit Ethernet SFP+ LP n/a
    Fan
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 541-4274 [C] Fan Board Assembly n/a
    • 330-5274
    • Fan Deck
    		 n/a
    • 511-1490
    • Fan Board
    		 n/a
    n/a 541-4276 [C] Fan Module n/a
    • 371-4789
    • 40x56mm, 15300 RPM Fan
    		 n/a
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    SG-XPCIE2FC-QF8-N 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    I/O
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 541-2883 [C] 1-Slot x8 PCI Express Riser Assembly n/a
    • 501-7967
    • 1-Slot x8 PCI Express Riser
    		 n/a
    • 541-2924
    • Riser Mounting Bracket
    		 n/a
    n/a 541-2885 [C] 1-Slot x16 PCI Express Riser Assembly n/a
    • 501-7965
    • 1-Slot x16 PCI Express Riser
    		 n/a
    • 541-2924
    • Riser Mounting Bracket
    		 n/a
    n/a 541-4275 [C] Connector Board n/a
    n/a 7049275 [C] 1-Slot x8 PCI Express Riser Assembly 541-2883 [C]
    • 541-2924
    • Riser Mounting Bracket
    		 n/a
    n/a 7051681 [C] Connector Board Assembly, SATA DVD 541-4275 [C]
    n/a 7053384 [C] 1-Slot x16 PCI Express Riser Assembly 541-2885 [C]
    • 541-2924
    • Riser Mounting Bracket
    		 n/a
    • 7053383
    • 1-Slot x16 PCI Express Riser
    		 501-7965
    Memory
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X4911A 371-4966 [C] 8GB Registered DDR3L-1333/DDR3L-1600 DIMM, 1.35V n/a
    X4850A [S] 371-4898 [C] 4GB Registered DDR3-1333 DIMM, 1.5V n/a
    X4910A [S] 371-4965 [C] 4GB Registered DDR3-1333 DIMM, 1.35V n/a
    n/a 371-4743 [C] 4GB USB 2.0 Flash Drive n/a
    Power
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 300-2233 [C] Type A247 760 Watt AC Input Power Supply n/a
    n/a 300-2276 [C] 764 Watt AC Input Power/Cooling Module n/a
    n/a 300-2299 [C] Type A247A 760 Watt AC Input Power Supply 300-2233 [C]
    n/a 511-1489 [F] Power Distribution Board n/a
    n/a 7043627 [C] 580 Watt AC Input Power Supply n/a
    NOTE: 580W AC Input Power Supply PN#7043627 is used in the Oracle Storage DE2-24C and DE2-24P as part of the Sun ZFS Storage 7130.
    NOTE: 764W AC Input Power Supply and Fan Assembly PN#300-2276 is used in the OPTIONAL Sun Disk Shelf 24×3.5″ SAS-2 as part of the Sun ZFS Storage 7320.
    Rack
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    DS2X-4URK-19U [S] 350-1531 Rackmount Kit n/a
    • n/a
    • Left Mounting Rail
    		 n/a
    • n/a
    • Right Mounting Rail
    		 n/a
    X6324A-N [S] 371-2742 [C] 1U/2U Cable Management Arm n/a
    X6325A-N [S] 371-2740 [C] 1U/2U Snap-In Slide Rail Rackmount Kit, 730mm n/a
    X6326A-N [S] 371-2741 [C] 1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm n/a
    n/a 7044619 [C] Mounting Rail Kit n/a
    n/a 7063682 [C] Mounting Rail Kit n/a
    NOTE: Rackmount Kit DS2X-4URK-19U/350-1531 is used for rack mounting the OPTIONAL Sun Disk Shelf 24×3.5″ SAS-2 as part of the Sun ZFS Storage 7320.
    Removable Media
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 541-2732 [C] USB Assembly n/a
    • 330-4418
    • DVD Tray
    		 n/a
    • 341-4072
    • DVD Filler Panel
    		 n/a
    • 501-7698
    • USB Board
    		 n/a
    SCSI
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 375-3609 [C] 8-Port 6Gbps SAS-2 RAID HBA n/a
    n/a 7056272 [C] 8-Port 6Gbps SAS-2 RAID HBA 375-3609 [C]
    n/a 7067091 [C] 4×4-Port PCIe-3, 6Gbps SAS-2 HBA n/a
    System Board
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 541-4081 [F] System Board Assembly/FRU n/a
    • 511-1213
    • System Board
    		 n/a
      • 150-3993 [C]
      • 3V Lithium Coin Cell Battery
    		 n/a
    • 541-2543
    • System Board Tray
    		 n/a
    n/a 7049265 [F] System Board Assembly/FRU 541-4081 [F]
    • 7049264
    • System Board
    		 n/a
      • 150-3993 [C]
      • 3V Lithium Coin Cell Battery
    		 n/a

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
