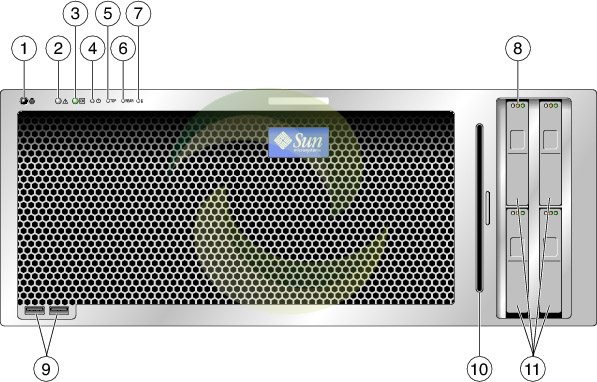

Oracle Sun X4640 Server

Oracle Sun X4640 Server Oracle Sun X4640 Server Sun Servers SUN FIRE X4640

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Processor
    Number 4 to 8 (6-Core)
    Architecture Type: AMD Opteron Processor 8400 Series
    Six Core: 8431 (2.4GHz) 75W D0 Stepping and 8435 (2.6GHz) 75W D0 Stepping
    Cache memory 128KB Level 1, 512KB Level 2, and 6MB Level 3
    Main Memory
    Capacities DIMM slots per CPU Socket: 8
    DIMM sizes:4-GB, or 8-GB
    Maximum capacity: 512GB (when configured with 8-GB DIMMs and 8 CPU Modules)
    Standard Integrated Interfaces
    Network Four 10/100/1000Base-T Ethernet ports, RJ45 connectors
    Network Management One dedicated 10/100Base-T Ethernet port, RJ45 connector
    Serial Management RS-232 Serial Interface, RJ45 connector
    SAS Four channel SAS interface
    USB Front: Two USB 2.0 ports
    Rear: Two USB 2.0 ports
    Expansion bus 8 Low Profile PCI Expansion slots
    • 6 PCIe slots (4 x 8-lane PCI slots, 2 x 4-lane PCI slots)
    • 2 64-bit/100 MHz PCI-X slots
    Internal Mass Storage
    Disks Internal: Up to four 146GB or 300GB HDD Disks (Hot Pluggable 2.5″ SAS) RPM 10K
    DVD-ROM One 8x SATA DVD-Writer/24x CD-Writer
    Power Supplies
    Four hot-swappable power supplies, redundant in 2+2 configuration (Power source 100-240 VAC – 50/60 Hz input)
    (UL Maximum (DC output) = 1133W)
    (Typical Power Consumption:)
    767 W configured with 4xCPU/2 HDD/8x4GB/7 PCI cards
    1169 W configured with 8xCPU/2 HDD/16x4GB/7 PCI cards
    Environment
    AC power 90-264 VAC (47-63 Hz)
    Temperature Single, non-rack system:
    Operating: 5° C to 32° C (41° F to 90° F)
    Nonoperating: -40° C to 65° C (-40° F to 149° F)
    Humidity Single, non-rack system:
    Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) max wet bulb
    Nonoperating: Up to 93% relative humidity noncondensing, 38° C max wet bulb
    Altitude Single, non-rack system:
    Operating:32° C up to 900 meters and a derated by 1°C for every 300 meters in altitude up to 3048 meters maximum
    Nonoperating: up to 12,000 m (40,000 ft.)
    Acoustic noise
    (Measure and Environment)    		 Declared noise emissions in accordance with ISO 9296, A-weighted, operating and idling:
    Less than 83 dB sound power in ambient temperature of up to 24° C
    LwAd (1B=10dB)
    at or below 25C
    at max ambient    		 8.1 B
    8.9 B
    LpAm bystander
    at or below 25C
    at max ambient    		 66 dB
    74 dB
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance Level RoHS:YL
    Safety IEC60950, UL/CSA60950-1, EN60950, (CB Scheme with all country differences)
    RFI/EMI FCC Class A, Part 15 47 CFR, EN55022, CISPR 22, EN300-386:v1.3.2, ICES-003
    Immunity EN55024, EN300-386:v1.3.2
    Certifications Safety: cULus Mark, CE Mark, CCC, GOST R, S-Mark
    EMC:VCCI, BSMI, C-Tick, MIC, CCC (Applicable at GA), GOST R
    Other: Labeled per WEEE (Waste Electrical and Electrical Equipment) Directive
    Dimensions and Weight
    Height 176 mm (6.9 in.)
    Width 445 mm (17.5 in.)
    Depth 629 mm (24.75 in.)
    Weight 40 kg (88 lb.) Maximum standalone server
    48 kg (106 lb.) Maximum with orderable rack-mount kit and cable management arm
    CPU Module
    Option # Manufacturing
    Part #    		 Description
    X8486A 541-4147 CPU/Memory Module (8 DIMM Slots/ 0MB, 1 Opteron 6-Core 8435, 2.6GHz, 75W CPU), RoHS:YL
    • 310-0130
    • Heat Sink, RoHS:Y
    • 371-4684
    • 2.6 GHz CPU, Opteron 8435 6-Core, D0 Stepping; 75W, RoHS:Y
    • 511-1461
    • CPU/Memory Board (8 DIMM Slots), RoHS:YL
    X8487A 541-4146 CPU/Memory Module (8 DIMM Slots/ 0MB, 1 Opteron 6-Core 8431, 2.4GHz, 75W CPU), RoHS:YL
    • 310-0130
    • Heat Sink, RoHS:Y
    • 371-4683
    • 2.4 GHz CPU, Opteron 8431 6-Core, D0 Stepping, 75W, RoHS:Y
    • 511-1461
    • CPU/Memory Board (8 DIMM Slots), RoHS:YL
    n/a 541-3883 CPU Filler Panel, RoHS:Y
    Cables
    Option # Manufacturing
    Part #    		 Description
    X311L Localized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097 IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312E Localized Power Code Kit – China, RoHS:Y
    180-1982 IEC 320 C13 to GB 2099/GB 1002 – 10A/250V 2.5M, RoHS:Y
    X312F Localized Power Cord Kit – Argentina, RoHS:Y
    180-1999 IEC 320 C13 to IRAM 2073 – 10A/250V 2.5M Black, RoHS:Y
    X312G Localized Power Cord Kit – Korea, RoHS:Y
    180-1662 IEC 320 C13 to KSC 8305 – 15A/250V 2.5M Black, RoHS:Y
    X312L Localized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993 IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314L Localized Power Cord Kit – Swiss, RoHS:Y
    180-1994 IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317L Localized Power Cord Kit – U.K., RoHS:Y
    180-1997 IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X332A Localized Power Cord Kit – Taiwan, RoHS:Y
    180-2121 IEC 320 C13 to NEMA 5-15P – 10A/125V 2.5M Black, RoHS:Y
    X383L Localized Power Cord Kit – Danish, RoHS:Y
    180-1995 IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384L Localized Power Cord Kit – Italian, RoHS:Y
    180-1996 IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    Communication
    Option # Manufacturing
    Part #    		 Description
    X4237A 375-3606 Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express, RoHS:Y
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description
    n/a 501-7049 4-Slot Disk Backplane, RoHS:YL
    Disks
    Option # Manufacturing
    Part #    		 Description
    XRA-SS2CD-300G10K 540-7865 300GB – 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0449
    • Seagate ST93000SSUNG [ST930003SSUN300G]
      (300GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0451
    • Hitachi HUC103030CSS600 [H103030SCSUN300G]
      (300GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    XRB-SS2CD-146G10K 540-7864 146GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0377
    • Hitachi HUC101414CSS300 [H101414SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0448
    • Seagate ST9146803SS [ST914603SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0450
    • Hitachi HUC103014CSS600 [H103014SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIEFCOE2-Q-SR 375-3681 Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR, RoHS:Y
    SG-XPCIEFCOE2-Q-TA 375-3682 Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach, RoHS:Y
    X1027A-Z 501-7283 PCI Express Dual 10-Gigabit Ethernet Fiber, RoHS:Y
    X1106A-Z 375-3585 Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
    X1107A-Z 375-3586 Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
    X4446A-Z 375-3481 PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    X4447A-Z 511-1422 PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    • 371-2207
    • Bracket Low-Profile, RoHS:Y
    560-2884 Ship Kit for Gigabit Ethernet options
    • 371-2348
    • Bracket Standard, RoHS:Y
    X5558A 375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    X5560A-Z 375-3495 10Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
    X7280A-2 371-0905 PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
    X7281A-2 371-0904 PCI Express Dual Gigabit Ethernet MMF, RoHS:Y
    X7285A 371-0911 Low Profile PCI-X Dual Gigabit Ethernet UTP, RoHS:Y
    X7286A 371-0912 Low Profile PCI-X Single Gigabit Ethernet MMF, RoHS:Y
    Fan
    Option # Manufacturing
    Part #    		 Description
    n/a 371-0094 Fan Assembly, RoHS:Y
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIE1FC-EM8-Z 371-4295 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF8-Z 371-4324 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM8-Z 371-4306 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF8-Z 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X8098A 8 GB (2 × 4GB DDR2-667 Registered ECC DIMMs) Option, RoHS:YL
    541-3367 8 GB (2 × 4GB DDR2-667 Registered ECC DIMMs), RoHS:YL
    • 371-4307
    • 4 GB DDR2-667 Memory DIMM, RoHS:Y
    X8356A 16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs) Option, RoHS:Y
    541-3419 16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs)
    • 371-4387
    • 8GB DDR2-667 dual-rank Memory DIMM, RoHS:Y
    Miscellaneous
    Option # Manufacturing
    Part #    		 Description
    n/a 501-7057 USB Board, RoHS:YL
    Power
    Option # Manufacturing
    Part #    		 Description
    n/a 300-2158 1133 Watt Power Supply (Type A238), RoHS:Y
    n/a 501-7052 Power Distribution Board, RoHS:YL
    Rack
    Option # Manufacturing
    Part #    		 Description
    X8495A 371-3838 Slide Rail Assembly, RoHS:Y
    371-3839 Cable Management Arm Assembly, RoHS:Y
    n/a 350-1455 Tool-less Slide Rackmount Kit, RoHS:Y
    • 371-3838
    • Slide Rail Assembly, RoHS:Y
    • 371-3839
    • Cable Management Arm Assembly, RoHS:Y
    Removable Media
    Option # Manufacturing
    Part #    		 Description
    n/a 390-0442 8x SATA DVD-Writer/24x CD-Writer, RoHS:Y
    n/a 390-0443 8x SATA DVD-Writer/24x CD-Writer, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIE2SCSIU320Z 375-3357 Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
    SG-XPCIE8SAS-E-Z 375-3487 PCI Express 8-Port Host Adapter, RoHS:Y
    SGXPCI1SCSILM320-Z 375-3366 PCI Single Ultra320 SCSI Adapter
    SGXPCIESAS-R-EXT-Z 371-3253 Lithium Ion Battery Module
    375-3537 8-Port SAS RAID External HBA, RoHS:Y
    System Board
    Option # Manufacturing
    Part #    		 Description
    n/a 511-1387 Motherboard, RoHS:YL
    • 150-3993
    • Panasonic BR2032 Battery, RoHS:Y
    System Service Processor
    Option # Manufacturing
    Part #    		 Description
    n/a 511-1497 Service Processor, RoHS:YL
