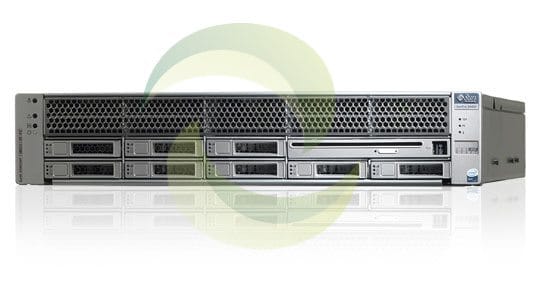

Oracle Sun X4450, RoHS Server

REQUEST A PRICE QUOTE:

Processor

Number

2 or 4, Dual-Core 7200 series
2 or 4, Quad-Core 7300 series
1, 2, 3 or 4, Quad-Core or 6-Core 7400 series

Architecture

Type: Intel Xenon

Dual-Core Intel Xeon E7220 (2x4MB L2, 2.93 GHz, 1066 MHz FSB, 80W)
Quad-Core Intel Xeon L7345 (2x4MB L2, 1.86 GHz, 1066 MHz FSB, 50W)
Quad-Core Intel Xeon E7320 (2x2MB L2, 2.13 GHz, 1066 MHz FSB, 80W)
Quad-Core Intel Xeon E7340 (2x4MB L2, 2.40 GHz, 1066 MHz FSB, 80W)
Quad-Core Intel Xeon X7350 (2x4MB L2, 2.93 GHz, 1066 MHz FSB, 130w)
Quad-Core Intel Xeon E7420 (8MB L3, 2.13 GHz, 1066 MHz FSB, 90w)
Quad-Core Intel Xeon E7440 (16MB L3, 2.40 GHz, 1066 MHz FSB, 90w)
6-Core Intel Xeon L7455 (12MB L3, 2.13 GHz, 1066 MHz FSB, 65w)
6-Core Intel Xeon E7450 (12MB L3, 2.40 GHz, 1066 MHz FSB, 90w)
6-Core Intel Xeon X7460 (16MB L3, 2.66 GHz, 1066 MHz FSB, 130w)

Cache memory

4MB to 8MB L2 cache for Intel Xeon processor 7200 and 7300 series
8MB to 16MB L3 cache for Intel Xeon processor 7400 series

Main Memory

Capacities

DIMM slots per System: 32
DIMM type: PC2-5300 667MHz ECC Fully Buffered DDR2 DIMMs
DIMM size: 1-GB, 2-GB or 4-GB
Maximum capacity: 128GB (when configured with 4-GB DIMMs)
NOTE: For optimal performance, install DIMMs in matched pairs. DIMM fillers should be installed in all unoccupied DIMM slots.

Standard Integrated Interfaces

Network

Four 10/100/1000 Base-T Ethernet Ports

Network Management

One dedicated 10/100Base-T Ethernet port

Serial Management

One dedicated TIA/EIA-232-F asynchronous RJ45 port

SAS

Eight channel SAS interface, internal or external with add-on SAS Host Bus Adapter

USB

Front: Two USB 2.0 ports
Rear: Two USB 2.0 ports
Internal: One USB 2.0 port

PCI Expansion Slots

Six internal MD2 low profile PCI Express slots
(two x8 electrical/x16 mechanical, one x4 electrical/x16 mechanical and three x4 electrical/x8 mechanical)

Internal Mass Storage

Disks

Up to eight 2.5″ SAS internal hot-swap Disks

Drive Type	Density	Speed	Form Factor
SAS	73 GB	10,000 RPM	2.5″
SAS	73 GB	15,000 RPM	2.5″
SAS	146 GB	10,000 RPM	2.5″
SAS	300 GB	10,000 RPM	2.5″

Solid State Drives

Up to six 32GB solid state drives

Removable Media

One EIDE DVD+/-RW drive (optional)

Power Supplies

Dual redundant, hot swappable power supplies
(Power supply rating DC output = 1050W)
(UL Maximum AC input = 12 Amps RMS at 100 VAC)

Environment

AC power

90-264 V AC (47-63 Hz)

Temperature

For Intel Xeon processor 7200 and 7300 series:
Single, non-rack system:
Operating: 5° C to 35° C (41° F to 95° F) with 50/80W CPU, 5° C to 31° C (41° F to 88° F) with 130W CPU
Nonoperating:-40° C to 65° C (-40° F to 149° F)For Intel Xeon processor 7400 series:
Single, non-rack system:
Operating: 5° C to 35° C (41° F to 95° F) at sea level, 5° C to 31° C (41° F to 88° F) at altitude
Nonoperating: -40° C to 65° C (-40° F to 149° F)

Humidity

Single, non-rack system:
Operating: 7% to 90% relative humidity noncondensing, 27° C (80.6° F) max wet bulb
Nonoperating: up to 93% relative humidity noncondensing, 38° C (100.4° F) max wet bulb

Altitude

Single, non-rack system:
Operating: up to 3048 m (10,000 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m
Nonoperating: up to 12,000 m (40,000 ft.)

Acoustic noise

For Intel Xeon processor 7200 and 7300 series:
Single, non-rack system:
LwAd (1B=10dB)
6.8 B (idle) and 7.3 B (operating) for 1GB and 2GB DIMMs
7.3 B (idle and operating) for 4GB DIMMs
LpAm bystander
65.8 dB at max ambientFor Intel Xeon processor 7400 series:
Single, non-rack system:
LwAd (1B=10dB)
7.3 B (idle and operating. room temp.), 7.7 B (max ambient)
LpAm bystander
65.8 dB at max ambient

Regulations
Meets or exceeds the following requirements:

RoHS Compliance Level

RoHS:YL

Safety

IEC 60950, UL/CSA 60950-1, EN 60950, CB Scheme with all country differences

RFI/EMI

FCC CFR 47 Part 15 Class A, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN300-386

Immunity

EN55024, EN300-386

Certifications

Safety: UL/cUL, UL DEMKO, CE, BSMI, CCC, GOST-R, S-Mark
EMC: CE, FCC, VCCI, ICES, C-Tick, MIC, CCC, Gost-R, BSMI Class A

Dimensions and Weight

Height

88 mm (3.49 in.)

Width

426 mm (16.75 in.)

Depth

714 mm (28.125 in.)

Weight

25.6 kg (56.3 lb.) maximum with rack kit

Batteries
Option #	Manufacturing Part #	Description
n/a	371-2210	CR2032 3V Battery, RoHS:Y

CPU Module
Option #	Manufacturing Part #	Description
X6370A	2× 2.93 GHz Dual-Core Xeon E7220, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-3455	2.93 GHz CPU, Xeon E7220, Dual Core, 80W, RoHS:Y
X6371A	2× 1.86 GHz Quad-Core Xeon L7345, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-3456	1.86 GHz CPU, Xeon L7345 Quad Core, 50W, RoHS:Y
X6372A	2× 2.13 GHz Quad-Core Xenon E7320, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-3457	2.13 GHz CPU, Xeon E7320 Quad Core, 80W, RoHS:Y
X6373A	2× 2.40 GHz Quad-Core Xenon E7340, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-3458	2.40 GHz CPU, Xeon E7340 Quad Core, 80W, RoHS:Y
X6374A	2× 2.93 GHz Quad-Core Xenon E7350, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-3459	2.93 GHz CPU, Xeon X7350 Quad Core, 130W, RoHS:Y
X6375A	2.13GHz Quad-Core Xeon E7420, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-4362	2.13GHz CPU, Xeon E7420, Quad-Core, 90W
X6376A	2.40GHz Quad-Core Xeon E7440, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-4363	2.40 GHz CPU, Xeon E7440 Quad Core, 90W, RoHS:Y
X6377A	2.13GHz 6-Core Xeon L7455, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-4364	2.13 GHz CPU, Xeon L7445 Quad Core, 50W, RoHS:Y
X6378A	2.40GHz 6-Core Xeon E7450, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-4365	2.40 GHz CPU, Xeon E7450 6-Core, 90W, RoHS:Y
X6379A	2.6GHz 6-Core Xeon X7460, RoHS:YL
	310-0160	Xeon Heatsink, RoHS:Y
	371-4367	2.6GHz CPU, Xeon X7460, 6-Core, 130W

Cables
Option #	Manufacturing Part #	Description
X311L	Localized Power Cord Kit – North America/Asia, RoHS:Y
X311L	180-1097	IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
X312E	Localized Power Code Kit – China, RoHS:Y
X312E	180-1982	IEC 320 C13 to GB 2099/GB 1002 – 10A/250V 2.5M, RoHS:Y
X312F	Localized Power Cord Kit – Argentina, RoHS:Y
X312F	180-1999	IEC 320 C13 to IRAM 2073 – 10A/250V 2.5M Black, RoHS:Y
X312G	Localized Power Cord Kit – Korea, RoHS:Y
X312G	180-1662	IEC 320 C13 to KSC 8305 – 15A/250V 2.5M Black, RoHS:Y
X312L	Localized Power Cord Kit – Continental Europe, RoHS:Y
X312L	180-1993	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
X314L	Localized Power Cord Kit – Swiss, RoHS:Y
X314L	180-1994	IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
X317L	Localized Power Cord Kit – U.K., RoHS:Y
X317L	180-1997	IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
X320A	Localized Power Cord Kit – North America/Asia, RoHS:Y
X320A	180-2164	IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black, RoHS:Y
X333A-25-10-IL	Localized Power Cord Kit Israel, RoHS:Y
X333A-25-10-IL	180-2130	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black, RoHS:Y
X333A-25-15-JP	Localized Power Cord Kit Japan, RoHS:Y
X333A-25-15-JP	180-2243	IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black, RoHS:Y
X333A-25-15-TW	Localized Power Cord Kit – Taiwan, RoHS:Y
X333A-25-15-TW	180-2333	IEC 320 C13 to CNS 690 – 15A/125V 2.5M Black, RoHS:Y
X333F-25-15-JP	Localized Power Cord Kit Japan, RoHS:Y
X333F-25-15-JP	180-2244	IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black, RoHS:Y
X340L	Power Kit for North America, L6-20 20A Twist Lock Plug, RoHS:Y
X340L	180-2070	NEMA L6-20P to IEC 320 C13 – 4.0M, RoHS:Y
X383L	Localized Power Cord Kit – Danish, RoHS:Y
X383L	180-1995	IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
X384L	Localized Power Cord Kit – Italian, RoHS:Y
X384L	180-1996	IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
X386L	Localized Power Cord Kit – Australian, RoHS:Y
X386L	180-1998	IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y

Communication
Option #	Manufacturing Part #	Description
X6000A	375-3424	PCI Express Sun Crypto Accelerator 6000, RoHS:Y
X1236A-Z	375-3382	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
X4217A-Z	375-3549	Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y

Disk Backplane
Option #	Manufacturing Part #	Description
n/a	501-7730	8-Slot Disk Backplane, PATA DVD, RoHS:Y
n/a	511-1256	8-Slot Disk Backplane, SATA DVD, RoHS:Y
n/a	542-0355	Backplane Retainer Clip Kit
n/a	330-5301	Grey 2U Backplane Retainer Clip

Disks
Option #	Manufacturing Part #	Description
XRA-SS2CF-300G10K	540-7869	300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0449	Seagate ST93000SSUNG [ST930003SSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRA-ST2CF-32G2SSD	540-7841	32GB Solid State Drive Assembly, SATA Interface, RoHS:Y
	371-4196	32GB Solid State Drive, SATA Interface, RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRB-SS2CF-146G10K	540-7868	146GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRA-SS2CF-146G10K	540-7355	146GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRA-SS2CF-73G10K	540-7354	73GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72] (73GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y
XRA-SS2CF-73G15K	540-7361	73GB – 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
	390-0382	Seagate ST973451SS [ST973451SSUN72G] (73GB – 15000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
SG-XPCIEFCOE2-Q-SR	375-3681	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR, RoHS:Y
SG-XPCIEFCOE2-Q-TA	375-3682	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach, RoHS:Y
X1027A-Z	501-7283	PCI Express Dual 10-Gigabit Ethernet Fiber, RoHS:Y
X1106A-Z	375-3585	Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
X1107A-Z	375-3586	Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
X4446A-Z	375-3481	PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
X5558A	375-3301	10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
X5560A-Z	375-3495	10Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
X7280A-2	371-0905	PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
X7281A-2	371-0904	PCI Express Dual Gigabit Ethernet MMF, RoHS:Y

Fan
Option #	Manufacturing Part #	Description
n/a	541-2068	CPU Dual Fan Assembly w/ Plastic Fingerguards, RoHS:Y
n/a	310-0119	Delta Fan, 60×38mm, 2U, RoHS:Y
n/a	541-2211	Fan Power Board, RoHS:Y
	330-4463	Top Bracket, RoHS:Y
	330-4464	Bottom Bracket, RoHS:Y
	501-7695	Fan Board, RoHS:Y
n/a	541-2940	CPU Dual Fan Assembly w/ Metal Fingerguards, RoHS:Y
n/a	310-0119	Delta Fan, 60×38mm, 2U, RoHS:Y
n/a	541-3290	CPU Dual Fan Assembly w/ Metal Fingerguards, RoHS:Y
n/a	310-0210	Fan, 60×38mm, 2U, RoHS:Y

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCIE1FC-EM4	375-3396	4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
SG-XPCIE1FC-EM8-Z	371-4295	8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
SG-XPCIE1FC-QF4	375-3355	4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
SG-XPCIE1FC-QF8-Z	371-4324	8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
SG-XPCIE2FC-EM4	375-3397	4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
SG-XPCIE2FC-EM8-Z	371-4306	8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
SG-XPCIE2FC-QF4	375-3356	4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
SG-XPCIE2FC-QF8-Z	371-4325	8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y

I/O
Option #	Manufacturing Part #	Description
n/a	541-2299	x16/x4 Riser, RoHS:Y

Memory
Option #	Manufacturing Part #	Description
X6381A	540-7347	4GB (2 × 2GB) Memory FRU, RoHS:Y
X6381A	371-3068	2GB Registered ECC DDR2-667/PC2-5300 DIMM, RoHS:Y
X6382A	540-7348	8GB (2 × 4GB) Memory FRU, RoHS:Y
X6382A	371-3069	4GB Registered ECC DDR2-667/PC2-5300 DIMM, RoHS:Y
X6380A	540-7346	2GB (2 × 1GB) Memory FRU, RoHS:Y
X6380A	371-3067	1GB Registered ECC DDR2-667/PC5300 DIMM, RoHS:Y
X6437A	540-7820	16GB (2 × 8GB PC2-5300 DDR2 1.5V DIMMs) Assembly, RoHS:Y
X6437A	371-4404	8GB PC2-5300 DDR2 1.5V DIMM, RoHS:Y
n/a	540-7382	Memory Mezzanine Assembly, RoHS:Y
n/a	540-7592	Memory Riser Pair, RoHS:Y
	n/a	Memory Riser 1, DAS93TH18D0 with Brackets
	n/a	Memory Riser 0, DA0S93TH8D0 with Brackets

Power
Option #	Manufacturing Part #	Description
X6328A	300-1897	1050 Watt Power Supply, Type A217, RoHS:Y
X6385A	300-2138	1100/1200 Watt AC Input Power Supply, Type A235, RoHS:Y
n/a	541-2073	Power Distribution Board/Bus Bar Assembly, RoHS:Y
	341-3166	Bus Bar Left, RoHS:Y
	341-3167	Bus Bar Right, RoHS:Y
	501-7697	Horizontal Power Distribution Board, RoHS:Y
	501-7951	Vertical Power Distribution Board, RoHS:Y

Rack
Option #	Manufacturing Part #	Description
X6324A	371-2742	Cable Management Arm, RoHS:Y
X6325A	371-2740	Snap-In Slide Rail Rackmount Kit, 730mm, RoHS:Y
X6326A	371-2741	Screw-Mount Slide Rail Rackmount Kit, 730mm, RoHS:Y

Removable Media
Option #	Manufacturing Part #	Description
X6323A	541-2110	PATA DVD-Writer/CD-Writer – USB Board Assembly, RoHS:Y
	330-4418	DVD Interconnect Holder, RoHS:Y
	390-0337	8x PATA DVD-Writer/24x CD-Writer, RoHS:Y
	501-7698	USB Board, RoHS:Y
	541-2111	DVD Bezel, RoHS:Y
X6386A	541-3493	SATA DVD-Writer/CD-Writer – USB Board Assembly, RoHS:Y
	330-5056	DVD Interconnect Holder, RoHS:Y
	390-0442	8x SATA DVD-Writer/24x CD-Writer, RoHS:Y
	390-0443	8x SATA DVD-Writer/24x CD-Writer, RoHS:Y
	501-7698	USB Board, RoHS:Y
	541-3686	DVD Bezel, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
SG-XPCIE2SCSIU320Z	375-3357	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
SG-XPCIE8SAS-E-Z	375-3487	PCI Express 8-Port Host Adapter, RoHS:Y
SG-XPCIE8SAS-I-Z	371-3255	PCI Express 8-Port SAS Controller, RoHS:Y
SGXPCIESAS-R-EXT-Z	371-3253	Lithium Ion Battery Module
SGXPCIESAS-R-EXT-Z	375-3537	8-Port SAS RAID External HBA, RoHS:Y
SGXPCIESAS-R-INT-Z	371-3253	Lithium Ion Battery Module
SGXPCIESAS-R-INT-Z	375-3536	8-Port SAS Adaptec RAID HBA, RoHS:Y

System Board
Option #	Manufacturing Part #	Description
n/a	341-4139	PCI Filler Panel, RoHS:Y
n/a	540-7381	System Board Assembly, RoHS:Y
	375-3510	System Board, RoHS:Y
	371-2210	CR2032 3V Battery, RoHS:Y

Industry Leading Quality, Support and Integrity

Quality Inspection Checklist
Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

Greentec Systems is a leading provider
For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

Have this equipment to sell?
Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

Questions?
For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.
