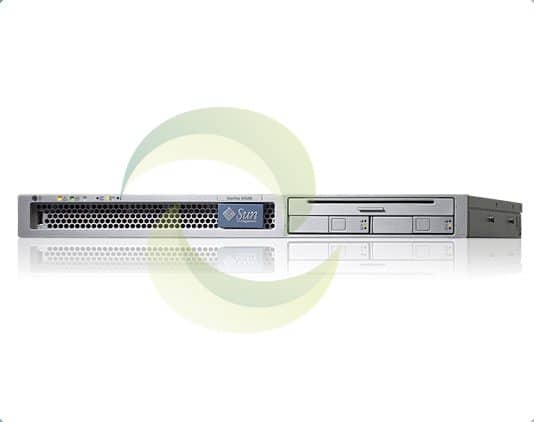

Oracle Sun X4100 M2 Server

Oracle Sun X4100 M2 Server Oracle Sun X4100 M2 Server Sun Servers SUN FIRE X4100 M2 copy1

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Processor
    Number 1 or 2 Dual-core only
    Architecture Type: AMD Opteron Processor 2000 Series
    • Model 2220, 2.8 GHz, Dual-Core, 95W, F3 Stepping
    • Model 2222SE, 3.0 GHz, Dual-Core, 120W, F3 Stepping
    • Model 2218HE, 2.6 GHz, Dual-Core, 68W, F3 Stepping
    • Model 2222, 3.0 GHz, Dual-Core, 95W, F3 Stepping
    • Model 2356, 2.3 GHz, Quad-Core, 75W, F3 Stepping
    • Model 2224SE, 3.2 GHz, Dual-Core, 120W, F3 Stepping
    • Model 2210, 1.8 GHz, Dual-Core, 95W, F2 Stepping
    • Model 2218, 2.6 GHz, Dual-Core, 95W, F2 Stepping
    • Model 2220SE, 2.8 GHz, Dual-Core, 120W, F2 Stepping
    • Model 2216, 2.4 GHz, Dual-Core, 95W, F2 Stepping
    Cache memory 1 MB Level 2 cache per processor core
    Main Memory
    Capacities DIMM slots per processor: 4
    DIMM slots per System Board: 8 (using 2 processors)
    DIMM type: DDR2 667MHz Registered DIMMs (128 bit plus ECC databus)
    DIMM size: 1-GB, 2-GB or 4-GB
    Maximum capacity: 32 (when configured with 4-GB DIMMs and 2 processors)
    NOTE: For optimal performance, install DIMMs in pairs. Pairs of DIMMs must be matched.
    Standard Integrated Interfaces
    Network Four 10/100/1000 Base-T Ethernet Ports
    Network Management One dedicated 10/100Base-T Ethernet port
    Serial Management One dedicated TIA/EIA-232-F asynchronous RJ45 port
    SAS Four channel SAS interface, internal access only.
    USB Front: One USB 2.0 port
    Rear: Two USB 2.0 ports
    PCI Expansion Slots Two internal low profile 8-lane PCI Express slots
    Internal Mass Storage
    Disks Up to four 2.5″ SAS internal hot-swap Disks:
    • 146GB – 10000 RPM SAS
    • 73GB – 10000 RPM SAS
    • 73GB – 15000 RPM SAS

    With DVD/CD-RW: 2 disks are supported.
    Without DVD/CD-RW: 4 disks are supported.
    DVD-ROM One EIDE DVD-ROM or CD-RW Writer (optional)
    Power Supplies
    Dual redundant, hot swappable power supplies
    (Power supply rating DC output = 550W)
    (UL Maximum AC input = 550W x 1.33 efficiency = 733W)
    (Typical power consumption: 450W)
    Environment
    AC power 90-264 V AC (47-63 Hz)
    DC Power -48 V DC or -60 V DC (10.4 A at -48 V DC, 8.3 A at -60 V DC)
    Temperature Single, non-rack system:
    Operating: 10° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 65° C (-40° F to 149° F)
    inconsistency between JTF and SVC manual
    Humidity Single, non-rack system:
    Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) max wet bulb
    Nonoperating: up to 93% relative humidity noncondensing, 38° C (100.4° F) max wet bulb
    Altitude Single, non-rack system:
    Operating: up to 3048 m (10,000 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m
    Nonoperating: up to 12,000 m (40,000 ft.)
    Acoustic noise Single, non-rack system:
    LwAd (1B=10dB)
    8.0 B at or below 25° C
    8.4 B at max ambient
    LpAm bystander
    64dB at or below 25° C
    69dB at max ambient
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance Level RoHS:YL
    Safety IEC60950, UL/CSA60950-1, EN60950, CB Scheme with all country differences
    RFI/EMI FCC Class A, Part 15 47 CFR, EN55022, CISPR 22, EN300-386:v1.32, ICES-003
    Immunity EN55024, EN300-386:v1.31
    Certifications Safety: cULus Mark, UL Demco GS Mark, CE Mark, CCC, GOST R, S-Mark
    EMC: CE Mark (93/68/EEC), Emissions and Immunity Class A Emissions Levels: FCC, VCCI, BSMI, C-tick, MIC, CCC, GOST R
    Dimensions and Weight
    Height 43.8 mm (1.72 in.)
    Width 445 mm (17.5 in.)
    Depth 632 mm (24.8 in.)
    Weight 18.6 kg (41.1 lb.) maximum with rack kit
    CPU Module
    Option # Manufacturing
    Part #    		 Description
    X4224A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-1914 2.8GHz AMD Dual Core Opteron 2220SE, F2 Stepping, 120W, RoHS:YL
    X4057A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-2501 2.8 GHz CPU, Opteron 2220 Dual Core, F3 Stepping, 95W, RoHS:YL
    X4081A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-2503 3.0GHz AMD Dual Core Opteron 2222SE, F3 Stepping, 120W, RoHS:Y
    X4082A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-2684 2.6GHz AMD Dual Core Opteron 2218HE, F3 Stepping, 68W, RoHS:YL
    X4085A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-2502 3.0 GHz CPU, Opteron 2222 Dual Core, F3 Stepping, 95W, RoHS:Y
    X4086A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-3487 3.2 GHz CPU, Opteron 2224SE Dual Core, F3 Stepping, 120W, RoHS:Y
    X4221A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-2495 1.8GHz AMD Dual Core Opteron 2210, F3 Stepping, 95W, RoHS:Y
    X4222A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-2499 2.4GHz AMD Dual Core Opteron 2216, F3 Stepping, 95W, RoHS:Y
    X4223A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-2500 2.6 GHz CPU, Opteron 2218 Dual Core, F3 Stepping, 95W, RoHS:Y
    X4629A-Z 240-4987 25mm Heatsink Shoulder Screw, RoHS:Y
    240-4988 10mm Heatsink Spring, RoHS:Y
    310-0049 G751 Thermal Grease Syringe, RoHS:Y
    310-0102 Heatsink, RoHS:Y
    371-4042 2.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W, RoHS:Y
    n/a 371-2481 HyperTransport Termination Adapter, RoHS:Y
    Cables
    Option # Manufacturing
    Part #    		 Description
    X311L Localized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097 IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312E Localized Power Code Kit – China, RoHS:Y
    180-1982 IEC 320 C13 to GB 2099/GB 1002 – 10A/250V 2.5M, RoHS:Y
    X312F Localized Power Cord Kit – Argentina, RoHS:Y
    180-1999 IEC 320 C13 to IRAM 2073 – 10A/250V 2.5M Black, RoHS:Y
    X312G Localized Power Cord Kit – Korea, RoHS:Y
    180-1662 IEC 320 C13 to KSC 8305 – 15A/250V 2.5M Black, RoHS:Y
    X312L Localized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993 IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314L Localized Power Cord Kit – Swiss, RoHS:Y
    180-1994 IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317L Localized Power Cord Kit – U.K., RoHS:Y
    180-1997 IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X332A Localized Power Cord Kit – Taiwan, RoHS:Y
    180-2121 IEC 320 C13 to NEMA 5-15P – 10A/125V 2.5M Black, RoHS:Y
    X383L Localized Power Cord Kit – Danish, RoHS:Y
    180-1995 IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384L Localized Power Cord Kit – Italian, RoHS:Y
    180-1996 IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    X386L Localized Power Cord Kit – Australian, RoHS:Y
    180-1998 IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
    n/a 530-1819 Localized Power Cord Kit – Danish
    n/a 530-3100 RJ45F to DB9F Adapter, RoHS:Y
    n/a 530-3338 Front I/O Board to System Board Cable, RoHS:Y
    n/a 541-0648 Flex Circuit Assembly, RoHS:YL
    565-1963 Xilinx CPLD Programming Cable Kit
    Communication
    Option # Manufacturing
    Part #    		 Description
    X6000A 375-3424 PCI Express Sun Crypto Accelerator 6000, RoHS:Y
    X1236A-Z 375-3382 Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
    X4217A-Z 375-3549 Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description
    n/a 501-6919 2-Slot Disk Backplane, RoHS:YL
    n/a 501-6976 4-Slot Disk Backplane, RoHS:YL
    Disks
    Option # Manufacturing
    Part #    		 Description
    XRA-SS2CD-146G10KZ 540-7151 146GB – 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets, RoHS:Y
    • 390-0324
    • Seagate ST9146802SS [ST914602SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0375
    • Fujitsu MBB2147RC [MBB2147RCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0377
    • Hitachi HUC101414CSS300 [H101414SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    XRA-SS2CD-73G10KZ 540-6611 73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets, RoHS:Y
    • 390-0213
    • Seagate ST973401SS [ST973401SSUN72G]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0285
    • Fujitsu MAY2073RC [MAY2073RCSUN72]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0323
    • Seagate ST973402SS [ST973402SSUN72G]
      (73GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0374
    • Fujitsu MBB2073RC [MBB2073RCSUN72G]
      (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0376
    • Hitachi HUC101473CSS300 [H101473SCSUN72G]
      (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    XRA-SS2CD-73G15K 540-7360 73GB – 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0382
    • Seagate ST973451SS [ST973451SSUN72G]
      (73GB – 15000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    n/a 540-7777 146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0324
    • Seagate ST9146802SS [ST914602SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0375
    • Fujitsu MBB2147RC [MBB2147RCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0448
    • Seagate ST9146803SS [ST914603SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-0239
    • Nemo Bracket, RoHS:Y
    • 541-3004
    • Nemo Bracket with Insulator, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    X4446A-Z 375-3481 PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    X7280A-2 371-0905 PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
    X7281A-2 371-0904 PCI Express Dual Gigabit Ethernet MMF, RoHS:Y
    Fan
    Option # Manufacturing
    Part #    		 Description
    n/a 501-6917 Fan Connector Board (A64/A86), RoHS:Y
    n/a 541-0266 Fan Module (Single Fan), RoHS:Y
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIE1FC-EM4 375-3396 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-EM8-Z 371-4295 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF4 375-3355 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF8-Z 371-4324 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM4 375-3397 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM8-Z 371-4306 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF4 375-3356 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF8-Z 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    I/O
    Option # Manufacturing
    Part #    		 Description
    n/a 501-6918 Front I/O Board w/Cover Interlock Switch, RoHS:YL
    n/a 501-7249 PCI Express Riser Board, RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X4226A-C 4GB (2 × 2GB DDR2-667 DIMM), Memory Kit, RoHS:YL
    371-4158 2GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM, RoHS:Y
    X4233A 8GB (2 × 4GB DDR2-667 DIMM) Option for Dual-Core and Quad-Core CPUs, RoHS:YL
    371-4322 4GB DDR2-667 DIMM, RoHS:Y
    X4225A-Z 2GB (2 × 1GB DDR2-667 DIMM) Option, RoHS:YL
    371-1919 1GB DDR2-667 DIMM, RoHS:Y
    X4226A-Z 4GB (2 × 2GB DDR2-667 DIMM) Option, RoHS:YL
    371-1920 2GB DDR2-667 DIMM, RoHS:Y
    X4227A-Z 8GB (2 × 4GB DDR2-667 DIMM) Option, RoHS:YL
    371-2205 4GB DDR2-667 DIMM, RoHS:Y
    n/a F540-7116 2GB (2 × 1GB DDR2-667 DIMM), RoHS:Y
    • 371-1919
    • 1GB DDR2-667 DIMM, RoHS:Y
    n/a F540-7117 4GB (2 × 2GB DDR2-667 DIMM), RoHS:Y
    • 371-1920
    • 2GB DDR2-667 DIMM, RoHS:Y
    n/a F540-7118 8GB (2 × 4GB DDR2-667 DIMM), RoHS:Y
    • 371-2205
    • 4GB DDR2-667 DIMM, RoHS:Y
    n/a F540-7795 8GB (2 × 4GB DDR2-667 DIMM) for Quad-Core CPUs, RoHS:Y
    • 371-4322
    • 4GB DDR2-667 DIMM, RoHS:Y
    n/a F540-7849 4GB (2 × 2GB DDR2-667 DIMM), RoHS:Y
    • 371-4158
    • 2GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM, RoHS:Y
    Miscellaneous
    Option # Manufacturing
    Part #    		 Description
    X949A-4 594-2682 Wago DC Connector Set (10 pack), RoHS:Y
    • 130-6352
    • Wago DC Connector, RoHS:Y
    • 230-4652
    • Wago DC Connector Strain Relief, RoHS:Y
    • 230-4653
    • Wago DC Connector Opening Lever, RoHS:Y
    n/a 501-6916 LED/Switch Board (A64/A86), RoHS:Y
    Power
    Option # Manufacturing
    Part #    		 Description
    X8026A-Z 300-1945 550 Watt, Type A203, AC Input Power Supply, RoHS:YL
    X8051A-Z 300-2006 DC -48VDC 550W Power Supply (Type D193), RoHS:YL
    X8052A-Z 300-1848 550 Watt, Type A214 Power Supply, RoHS:YL
    n/a 501-6920 Power Distribution Board, RoHS:YL
    Rack
    Option # Manufacturing
    Part #    		 Description
    X8028A-Z 370-7668 Cable Management Arm, RoHS:Y
    X8029A-EZ 371-2374 Quick Rails Kit, RoHS:Y
    X8029A-Z 370-7669 Slide Rail Kit, RoHS:Y
    Removable Media
    Option # Manufacturing
    Part #    		 Description
    X8030A-Z 390-0320 8x DVD-ROM / 24x CD-Writer Assembly, RoHS:YL
    X4352A-Z 8× Slimline DVD-RW Drive Assembly, RoHS:YL
    390-0337 8x PATA DVD-Writer/24x CD-Writer, RoHS:Y
    X8049A-Z 390-0320 8x DVD-ROM / 24x CD-Writer Assembly, RoHS:YL
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIE2SCSIU320Z 375-3357 Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
    SG-XPCIE8SAS-E-Z 375-3487 PCI Express 8-Port Host Adapter, RoHS:Y
    SGXPCIESAS-R-EXT-Z 371-3253 Lithium Ion Battery Module
    375-3537 8-Port SAS RAID External HBA, RoHS:Y
    System Board
    Option # Manufacturing
    Part #    		 Description
    n/a 501-7668 Motherboard, RoHS:YL
    • 150-3993
    • Panasonic BR2032 Battery, RoHS:Y
    n/a 501-7988 Motherboard, RoHS:YL
    • 150-3993
    • Panasonic BR2032 Battery, RoHS:Y
    System Service Processor
    Option # Manufacturing
    Part #    		 Description
    n/a 501-7499 Graphics Redirect and Service Processor (GRASP) Board, RoHS:YL

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
