    Oracle’s Sun Server X4-2 system is a versatile two-socket server for clustered computing and virtualization, including the optimal balance computing power, ram capacity, and I/O capability. It is an ideal server for a wide range of mission-critical business applications, such as middleware and enterprise workloads in virtualized environments. Oracle’s x86 systems are designed and engineered to achieve the highest reliability for optimizing up time.

    Brand: Oracle / Sun Microsystems
    Condition: Refurbished and new (limited availability)
    Availability: Contact
    Shipping Area: Worldwide to most countries
    Shipping Method: Fedex (most orders), UPS, DHL, Freight Courier
    Price: Please use the quote form above for quick pricing
    Payment: Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
    Guarantee: All items are tested by Oracle trained technicians & backed by a 100% warranty
    Questions? Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements



    Oracle Sun X4-2 Server Specs and Information:



    Processor
    Number One or Two: (See Single CPU Configuration Restrictions below)
    Architecture Type: Intel Xeon E5-2600 v2 family
    CPUs Intel 2.7 GHz 12-Core Xeon E5-2697 v2 (130W)
    Intel 3.0 GHz 10-Core Xeon E5-2690 v2 (130W)
    Intel 2.6 GHz 8-Core Xeon E5-2650 v2 (95W)
    Intel 2.6 GHz 6-Core Xeon E5-2630 v2 (80W)
    Intel 2.5 GHz 4-Core Xeon E5-2609 v2 (80W)
    Cache L1: 32KB Instruction and 32KB data L1 cache per core
    L2: 256KB shred data and instruction L2 cache per core
    L3: Up to 20MB shared inclusive L3 cache per processor
    Single CPU Configuration Restrictions
    • only two out of four onboard Ethernet ports are supported
    • up to 8 DIMMs are supported
    • up to 3 out of 4 PCIe slots are supported
    Main Memory
    Capacities Total DIMM slots: 16
    DIMM type: DDR3 1600MHz Registered DIMMs
    DIMM size: 8GB 1600MHz, 16GB 1600MHz, or 32GB 1066MHz
    Maximum capacity: 512GB (when configured with 32GB DIMMs)
    Standard Integrated Interfaces
    Network Supports Four 100/1000/10000 Base-T Ethernet Ports (100 at full-duplex only)
    Network Management One dedicated 10/100Base-T Ethernet port
    Serial Management One dedicated RJ45 port
    USB Front: Two USB 2.0 ports
    Rear: Two USB 2.0 ports
    Internal: Two USB 2.0 ports
    PCI Expansion Slots Four low profile PCI Express 3.0 slots;
    Slot 1: x16 mechanical / x16 electrical
    Slot 2: x16 mechanical / x8 electrical
    Slot 3: x8 mechanical / x8 electrical
    Slot 4: Internal only access, dedicated to SAS controller for internal storage.
    Internal Mass Storage

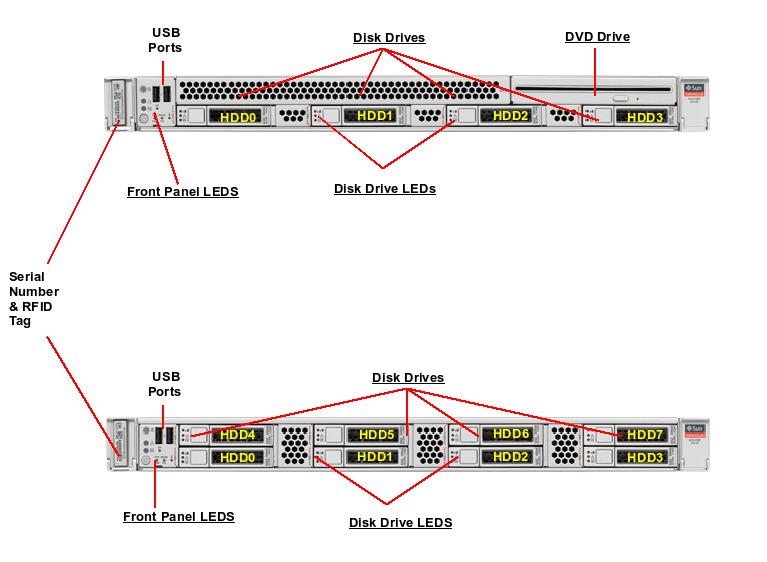

    Disks 4-Disk configuration with DVD: 2.5in 300GB / 600GB SAS-2 or 100GB / 300GB SSD
    8-Disk configuration:
    2.5in 300GB / 600GB SAS-2 or 100GB / 300GB SSD
    Uses one of two supported internal HBAs for internal storage. The HBA is to be installed in PCI Express Slot 4 (internal access only, under PCI Express Slot 3)
    Power Supplies
    Dual redundant, hot swappable power supplies
    (Power supply rating output = 600W)
    Environment
    Power Consumption Online power calculator
    Voltage 100 to 127 / 200 to 240 VAC (90 to 132/180 to 264 VAC ranges)
    Input Current 7.2 A @ 100 VAC (720 VA) Max
    AC power 50-60 Hz (47 to 63 Hz range)
    Temperature Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 70° C (-40° F to 158° F)
    Maximum ambient operating temperature is derated by 1 degree C per 300 meters of elevation beyond 900 meters, up to a maximum altitude of 3,000 meters of elevation.)
    Humidity Operating: 10% to 90% relative humidity noncondensing, short term -5 ° C to 55° C (25° F to 113° F) ;
    5% to 90% noncondensing, but not to exceed 0.024 kg of water per kg of dry air (0.053 lbs water / 2.205 lbs dry air)
    Nonoperating: up to 93% relative humidity noncondensing, 37.7° C (100.4° F) max wet bulb
    Altitude Operating: up to 3000 m (9,840 ft.) at 35° C (95° F)
    Nonoperating: Maximum 12,000 m (39,370 ft)
    Note – In China markets, regulations may limit installations to a maximum altitude of 6,562 feet (2,000 meters).
    Acoustic 7.91 Bels A weighted operating; 5.28 Bels A weighted idling
    Regulations
    Meets or exceeds the following requirements:
    Safety UL/CSA-60950-1, 2nd Edition, 2007-03-27 ; EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 ; IEC60950-1:2005 +A1:2009CB Scheme with all country deviations ; CNS14336-1 ; GB4943
    EMI EN55022:2006 +A1:2007/CISPR22:2008 Class A ; 47 CFR 15B Class A ; ICES-003 Class A ; VCCI Class A ; AS/NZ 3548 Class A ; CNS 13438 Class A ; GB9254 Class A ; EN61000-3-2 ; GB17625.1 ; EN61000-3-3
    Immunity EN55024:2010 ; IEC 61000-4-2 Electrostatic discharge ; IEC 61000-4-3 RF E-field immunity ; IEC 61000-4-4 Electrical Fast Transient/Burst ; IEC 61000-4-5 Surge ; IEC 61000-4-6 RF-Conducted immunity ; IEC 61000-4-8 Power frequency magnetic field immunity ; IEC 61000-4-11 Voltage dips, short interruptions
    Ergonomics EK1-1TB-2000
    Dimensions and Weight
    Height 42.6 mm (1.7 in)
    Width With Bezel: 482.4 mm (18.9 in)
    Server Chassis: 436.5 mm (17.185 in)
    Depth 737 mm (29 in) Max
    Weight 18.0 kg (40 lbs)
    Clearance and Service Access
    Front
    Rear
    123.2 cm (48.5 in)
    91 cm (36 in)
    Rack Mounting
    Sun Server X4-2 Server Racks Racks are as follows:
    • Sun Rack II 1042
    • Sun Rack II 1242
    Batteries
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 150-3993 [C] 3V Lithium Coin Cell Battery n/a
    CPU Module
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 7020774 [F] Pre-Greased CPU Heatsink n/a
    n/a 7069232 [F] 2.7GHz 12-Core Intel Xeon E5-2697 v2, 130W n/a
    n/a 7069239 [F] 3.0GHz 10-Core Intel Xeon E5-2690 v2, 130W n/a
    n/a 7069240 [F] 2.6GHz 8-Core Intel Xeon E5-2650 v2, 95W n/a
    n/a 7069242 [F] 2.6GHz 6-Core Intel Xeon E5-2630 v2, 80W n/a
    n/a 7069243 [F] 2.5GHz 4-Core Intel Xeon E5-2609 v2, 80W n/a
    n/a 7082521 CPU Installation/Removal Tool n/a
    Cables
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    7102869 7039990 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 10M n/a
    7102870 7039999 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 20M n/a
    7102871 7040001 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 50M n/a
    7105199 7063849 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M n/a
    7105206 7063852 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M n/a
    X2121A-1M-N 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
    X2121A-2M 530-4567 [C] 10Gbps QSFP to QSFP Cable, 2m n/a
    X2121A-3M-N 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
    X2121A-5M-N 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
    X2130A-1M-N 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
    X2130A-3M-N 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
    X2130A-5M-N 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
    X333V-20-15-C14-N 7040692 [C] IEC 320 C13 to IEC 320 Sheet E – 10A/250V 2.0M n/a
    X333V-30-15-C14-N 7040693 [C] IEC 320 C13 to IEC 320 Sheet E, 10A, 3M 180-2443 [C]
    X9237-1-A-N 180-2082 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M n/a
    X9238-1-A-N 180-2085 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M n/a
    n/a 180-2164 [C] IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black n/a
    n/a 180-2443 [C] IEC 320 C13 to IEC 320 Sheet E – 15A/250V 3.0M n/a
    n/a 7019614 [F] Cable Kit n/a
    • 530-4537
    • Disk Drive Flex Cable
    n/a
    • 7014918
    • Dual Backplane Power Cable
    n/a
    • 7014919
    • Single Backplane Power Cable
    n/a
    • 7019726
    • Interlock Switch Cable
    n/a
    • 7020903
    • Disk Data Cable, SFF-8087 to SFF-8643, 620mm
    n/a
    • 7027302
    • Front Indicator Module Cable
    n/a
    • 7041996
    • Disk Data Cable, SFF-8087 to SFF-8643, 650mm
    n/a
    • 7309766
    • Disk Drive Flex Cable
    n/a
    Communication
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    7104074 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
    n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
    Disk Backplane
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 597-1118 8-Slot 2.5″ Disk Cage n/a
    • 7039833
    • 8-Slot 2.5″ Disk Cage Assembly
    n/a
      • 350-1692
      • Disk Cage Cover
    n/a
      • 530-4537
      • Disk Drive Flex Cable
    n/a
      • 7014918
      • Dual Backplane Power Cable
    n/a
      • 7027302
      • Front Indicator Module Cable
    n/a
      • 7027478 [F]
      • 4-Slot 2.5″ Disk Backplane Assembly
    n/a
        • 7024658
        • 4-Slot 3.5″ Disk Backplane
    n/a
        • 7049472
        • 2.5″ Lightpipe Assembly
    n/a
      • 7051152
      • Disk Cage
    n/a
      • 7086632 [F]
      • 2.5″ Disk Cage Front Indicator Module
    7039841 [F]
    • 7041996
    • Disk Data Cable, SFF-8087 to SFF-8643, 650mm
    n/a
    n/a 7039834 4-Slot 2.5″ Disk Cage Assembly n/a
    • 350-1827
    • Disk Cage Cover
    n/a
    • 530-4537
    • Disk Drive Flex Cable
    n/a
    • 7014919
    • Single Backplane Power Cable
    n/a
    • 7027302
    • Front Indicator Module Cable
    n/a
    • 7027478 [F]
    • 4-Slot 2.5″ Disk Backplane Assembly
    n/a
      • 7024658
      • 4-Slot 3.5″ Disk Backplane
    n/a
      • 7049472
      • 2.5″ Lightpipe Assembly
    n/a
    • 7039841 [F]
    • 2.5″ Disk Cage Front Indicator Module
    n/a
    Disks
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    7107550 7077233 [C] 400GB Solid State SATA Drive Assembly n/a
    • 7076379
    • Intel SSDSC2BA400G3S [ITVSC2BA3SUN400] (400GB – 2.5″ Solid State – SATA-3 Disk)
    n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    n/a
    7111108 7093037 [C] 1.2TB – 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: n/a
    • 7093035
    • Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB – 10000 RPM – SAS DISK)
    n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    n/a
    XRA-SS2CF-600G10K2 542-0287 [C] 600GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; n/a
    • 7045228
    • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)
    n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    n/a
    XRB-SS2CF-300G10K2 542-0388 [C] 300GB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7045226
    • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)
    n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    n/a
    7106617 [S] 7045850 [C] 1.2TB – 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
    • 7045846
    • Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)
    n/a
    • 7082883
    • Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB – 10000 RPM – SAS Disk)
    n/a
    • 541-2123
    • Marlin 2.5″ Bracket
    n/a
    Ethernet
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    7100477 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
    7100481 7070202 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF 7014747 [C]
    7100488 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
    X1109A-Z 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
    X2124A 135-1204 [C] 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver n/a
    X2129A-N 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
    X5562A-Z 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
    n/a 7014747 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
    Fan
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 7013526 [C] Dual Counter Rotating Fan Module n/a
    • 371-4787
    • 40×56mm Dual Counter Rotating Fan
    n/a
    Fibre Channel
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    7101674 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
    7101676 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
    • 7023324
    • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
    n/a
    7101678 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
    • 7023316
    • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
    n/a
    7101680 7023066 [C] Pair of 16Gbps Long Wave SFP+ n/a
    • 7023064
    • 16Gb/Sec Long Wave SFP+ Transceiver, QLogic
    n/a
    7101684 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
    7101686 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
    • 7023053
    • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
    n/a
    7101688 7023057 [C] Pair of 10Gbps Short Wave SFP+ n/a
    • 7023046
    • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
    n/a
    SG-XPCIE2FC-EM8-N 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    SG-XPCIE2FC-QF8-N 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    I/O
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 7048707 [C] 2-Slot PCI Express Riser Assembly n/a
    • 541-4684
    • Mounting Bracket
    n/a
    • 7048293
    • 2-Slot PCI Express Riser
    n/a
    n/a 7048710 [C] 1-Slot PCI Express Riser Assembly n/a
    • 7016035
    • Mounting Bracket
    n/a
    • 7048292
    • 1-Slot PCI Express Riser
    n/a
    Memory
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    7100790 [S] 7020486 [C] 8GB DDR3-1600 DIMM, 1.35V n/a
    7100794 [S] 7018701 [C] 16GB DDR3-1600 DIMM, 1.35V n/a
    7106548 [S] 7071891 [C] 32GB DDR3L-1600 1.35V Load Reduced DIMM n/a
    n/a 7038488 [C] 4GB USB 2.0 Flash Drive n/a
    Power
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 7079395 [C] A256 600 Watt AC Input Power Supply 7060951 2 [C]
    1 No longer available. Purged from inventory by GSAP 6239 in March 2014.
    2 No longer available. Purged from inventory by GSAP 6239 in March 2014.
    Rack
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    XSR-JUMP-1MC13-N 7015399 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M 180-2379 [C]
    XSR-JUMP-2MC13-N 7015400 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M 180-2380 [C]
    n/a 180-2379 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M n/a
    n/a 180-2380 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M n/a
    n/a 350-1719 [C] 1U/2U Snap-In Slide Rail Rackmount Kit n/a
    n/a 7042273 [C] 1U/2U Cable Management Arm (Snap-in) n/a
    Removable Media
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 541-4688 3 [C] Slot-Load DVD Assembly n/a
    • 7020884
    • DVD Mounting Tray
    n/a
    • 7045772
    • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
    n/a
    n/a 7081551 [C] Tray-Load DVD Assembly n/a
    • 7071296
    • 8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer
    n/a
    • 7081553
    • DVD Tray
    n/a
    3 541-4688 is available in the 4-Slot 2.5″ Disk Cage Assembly
    SCSI
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    7105387 8-Port 6Gbps SAS-2 PCI Express HBA
    7047853 [F] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
    SGX-SAS6-R-INT-Z 7047503 [C] 8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC n/a
    7050794 [C] 6Gbps SAS-2 RAID PCI Battery Module, BBU08 n/a
    SGX-SAS6-EXT-Z [S] 7047853 [F] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
    SGX-SAS6-INT-Z [S] 7047852 [F] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
    System Board
    Option # Manufacturing
    Part #
    Description Previous
    Part #
    n/a 7058153 [F] X4-2 System Board Assembly n/a
    • 350-1832
    • System Board Tray
    n/a
    • 7046330
    • System Board
    n/a
      • 150-3993 [C]
      • 3V Lithium Coin Cell Battery
    n/a

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
