    Oracle Sun X2250 Server Specs Information

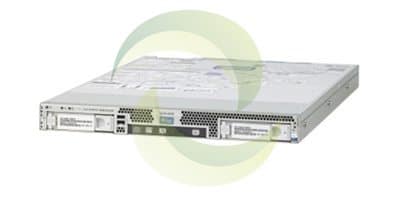

    The Oracle Sun Fire X2250 server shows Sun’s dedication to delivering one of the most compelling HPC systems.Whether you’re operating compute- or data- intensive applications, you can deploy with confidence using the Sun Fire X2250 server, because its outstanding performance can help you reduce development time and time to market. It is also compatible with all leading operating systems, is confirmed by many ISVs, and its service is backed by the global Sun SM Services team. Above all, this system meets or exceeds the buying criteria of the discerning server buyer, at a price/performance ratio not previously available from Sun. The Sun Fire X2250 server is inherently worthy of your most demanding outlines.



    [themify_button color=”#3a9931″ bgcolor=”green” size=”xlarge” link=”https://docs.oracle.com/cd/E19121-01/sf.x2250/820-4593-12/Chap1.html”]Sun Fire X2250 Server Service Manual [/themify_button]

    Processor
    Number 1 or 2 Dual-Core or Quad-Core
    Architecture Type: Intel Xeon Dual-Core or Quad-Core Processors
    CPUs Intel 2.8GHz Dual-Core Xeon E5260 (1600MHz FSB, 80W)
    Intel 3.4GHz Dual-Core Xeon X5270 (1600MHz FSB, 80W)
    Intel 2.0GHz Quad-Core Xeon E5405 (1333MHz FSB, 80W)
    Intel 2.5GHz Quad-Core Xeon L5420 (1333MHz FSB, 50W)
    Intel 3.0GHz Quad-Core Xeon X5472 (1600MHz FSB, 120W)
    Intel 3.0GHz Dual-Core Xeon E5472 (1600MHz FSB, 80W)
    Intel 3.2GHz Quad-Core Xeon X5482 (1600MHz FSB, 120W)
    Intel 3.16GHz Quad-Core Xeon X5460 (1333MHz FSB, 120W)
    Cache memory 12MB Level 2 cache
    Main Memory
    Capacities DIMM slots: 8 DIMM slots
    DIMM type: Fully Buffered DDR2-667/PC5300 ECC DIMMs or Fully Buffered DDR2-800/PC2-6400 ECC DIMMs
    DIMM size: 2GB, 4GB
    Maximum capacity: 32GB
    Standard Integrated Interfaces
    Network Two Integrated 10/100/1000 Base-T Gigabit Ethernet
    Network Management One 10/100/1000 port for remote management
    Serial Management One TIA/EIA-232-F asynchronous RJ45 Port (rear of chassis)
    USB Front: 2 USB 2.0 Ports
    Rear: 2 USB 2.0 Ports
    Internal: 1 USB 2.0 Port
    PCI Express Riser card assembly with one 16-lane, low-profile, half length slot (PCIe 1.0. 8GBps)
    Graphics controller ASPEED AST2000 – 2D graphics controller embedded in Service Processor
    Support remote console at a resolution up to 1600x1200x16bits@60Hz
    Internal Mass Storage
    Disks Up to 2 Hotplug – 250GB, 500GB or 1TB SATA 3.5″ (7,200RPM) disk drives
    DVD-ROM Tray-loading, slim DVD-ROM or DVD burner (optional)
    Power Supplies
    One 500 Watt (Non-redundant 80% efficiency) Power Supply
    Environment
    AC power 100-240 VAC (47-63Hz) Auto-sensed
    Maximum Input Current 6.3A @ 100V; 3.0A @ 240V, full load
    Temperature Single, non-rack system:
    Operating: 2° C to 35° C (36° F to 100° F)
    Nonoperating: -40° C to 68° C (-40° F to 154° F)
    Humidity Single, non-rack system:
    Operating: 7% to 93% relative humidity noncondensing, 38° C (80.6° F) max wet bulb
    Nonoperating: up to 93% relative humidity noncondensing, 43° C (100.4° F) max wet bulb
    Altitude Operating: Up to 3000 m (9843 ft.), maximum operating temperature is derated by 1? C for every 300 m (985 ft) in altitude.
    Vibration Operating: 0.12 G x-y, 0.17 G z; 5 500 Hz sine
    Nonoperating: 0.3 G x-y, 0.6 G z; 5 500 Hz sine
    Shock Operating: 4.5 G to 3.5 G; 11 msec. half-sine
    Regulations
    Meets or exceeds the following requirements:
    Safety IEC 60950, UL/CSA60950, EN60950, CB scheme with all country differences
    RFI/EMI FCC Class A, Part 15 47 CFR, EN55022, CISPR 22, EN300-386:v1.31, ICES-003
    Immunity EN55024 ,EN300-386:v1.3.2
    Certifications Safety: CE Mark, GOST, GS Mark, cULus Mark, CB scheme, CCC, S Mark
    EMC: CE Mark, Emissions and Immunity Class A Emissions Levels: FCC, C-Tick, MIC, CCC, GOST, BSMI, ESTI, DOC, S Mark
    Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive
    RoHS Compliance Level RoHS:YL
    Dimensions and Weight
    Height 44 mm (1.75 in.)
    Width 425.5 mm (16.75 in.)
    Depth 661 mm (26 in.)
    Weight 9.84 kg (21.7 lb.) minimum configuration with options
    12.34 kg (27.2 lb.) maximum configuration with options



    Batteries
    Option # Manufacturing
    Part #    		 Description
    n/a 371-2210 CR2032 3V Battery, RoHS:Y
    CPU Module
    Option # Manufacturing
    Part #    		 Description
    X5109A 310-0206 Heatsink, RoHS:Y
    371-4182 2.0GHz Intel Quad Core Xeon E5405, 1333MHz FSB, 80W, RoHS:Y
    X5106A 310-0206 Heatsink, RoHS:Y
    371-4183 3.0GHz Intel Quad Core Xeon X5472, 1600MHz FSB, 120W, RoHS:Y
    X5107A 310-0206 Heatsink, RoHS:Y
    371-4181 3.4GHz Intel Dual Core Xeon X5272, 1600MHz FSB, 80W, RoHS:YL
    X5108A 310-0206 Heatsink, RoHS:Y
    371-4184 2.80GHz Intel Dual Core Xeon E5462, 1600MHz FSB, 80W, RoHS:Y
    X5112A 310-0206 Heatsink, RoHS:Y
    371-3952 3.16GHz CPU, Xeon X5460 Quad Core, 1333MHz FSB, 120W, RoHS:Y
    X5113A 310-0206 Heatsink, RoHS:Y
    371-3951 2.5GHz CPU, Xeon L5420 Quad Core, 1333MHz FSB, 50W, RoHS:Y
    X5116A 310-0206 Heatsink, RoHS:Y
    371-4456 3.0GHz CPU, Xeon E5472 Quad Core, 1600MHz FSB, 80W, RoHS:Y
    X5117A 310-0206 Heatsink, RoHS:Y
    371-4457 3.2GHz CPU, Xeon X5482 Quad Core, 1600MHz FSB, 120W, RoHS:Y
    Cables
    Option # Manufacturing
    Part #    		 Description
    n/a 371-4189 Cable Kit, RoHS:Y
    • n/a
    • System Board to I/O Board Cable
    • n/a
    • DVD Data/Power Cable
    • n/a
    • HDD0 Data Cable, 355mm
    • n/a
    • HDD1 Data Cable, 655mm
    • n/a
    • Disk Power Cable, Quanta DD0S39TH407
    Communication
    Option # Manufacturing
    Part #    		 Description
    X4237A 375-3606 Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express, RoHS:Y
    X1236A-Z 375-3382 Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
    X4217A-Z 375-3549 Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter – Low Profile, RoHS:Y
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description
    n/a 371-2098 SATA/SAS Disk Backplane, RoHS:Y
    Disks
    Option # Manufacturing
    Part #    		 Description
    XRB-ST1CE-500G7K 540-6645 500GB – 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0247
    • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0355
    • Seagate ST3500630NS [ST35000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0383
    • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-ST1CE-1T7K 540-7506 1TB – 7200RPM SATA, Disk Assembly with 1 of the following disks:, RoHS:Y
    • 390-0381
    • Hitachi HUA721010KLA330 [HUA7210SASUN1.0T]
      (1TB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRC-ST1CE-250G7K 540-7511 250GB – 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:YL
    • 390-0354
    • Seagate ST3250820NS [ST32500NSSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0411
    • Seagate ST3250310NS [ST32502NSSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIEFCOE2-Q-SR 375-3681 Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR, RoHS:Y
    SG-XPCIEFCOE2-Q-TA 375-3682 Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach, RoHS:Y
    X1027A-Z 501-7283 PCI Express Dual 10-Gigabit Ethernet Fiber, RoHS:Y
    X1106A-Z 375-3585 Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
    X1107A-Z 375-3586 Intel PRO/10GbE-SR x8 PCI Express Low Profile Bracket, RoHS:Y
    X4446A-Z 375-3481 PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
    Fan
    Option # Manufacturing
    Part #    		 Description
    n/a 371-2095 Fan, RoHS:Y
    n/a 371-2096 Dual Blower Module, RoHS:Y
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIE1FC-QF4 375-3355 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF4 375-3356 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    I/O
    Option # Manufacturing
    Part #    		 Description
    n/a 371-2097 Front I/O Board, RoHS:Y
    n/a 371-2100 1-Slot ×16 PCI Express Riser, RoHS:Y
    n/a 371-4188 1-Slot ×16 PCI Express Riser, RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X5110A 540-7714 8GB (2 × 4GB) Memory FRU, RoHS:Y
    • 371-4186
    • 4GB Registered ECC DDR2-800/PC2-6400 DIMM, RoHS:Y
    X6381A 540-7347 4GB (2 × 2GB) Memory FRU, RoHS:Y
    • 371-3068
    • 2GB Registered ECC DDR2-667/PC2-5300 DIMM, RoHS:Y
    X6382A 540-7348 8GB (2 × 4GB) Memory FRU, RoHS:Y
    • 371-3069
    • 4GB Registered ECC DDR2-667/PC2-5300 DIMM, RoHS:Y
    X5111A 540-7713 4GB (2 × 2GB) Memory FRU, RoHS:Y
    • 371-4185
    • 2GB Registered ECC DDR2-800/PC2-6400 DIMM, RoHS:Y
    Power
    Option # Manufacturing
    Part #    		 Description
    n/a 300-2178 500 Watt Power Supply, RoHS:Y
    Rack
    Option # Manufacturing
    Part #    		 Description
    X8028A-Z 370-7668 Cable Management Arm, RoHS:Y
    X8029A-EZ 371-2374 Quick Rails Kit, RoHS:Y
    X8029A-Z 370-7669 Slide Rail Kit, RoHS:Y
    Removable Media
    Option # Manufacturing
    Part #    		 Description
    X5286A-Z 542-0190 DVD-Writer Drive, RoHS:Y
    • 371-2005
    • DVD-Writer Drive, RoHS:Y
    • 373-0078
    • DVD Paddleboard, RoHS:Y
    • 390-0401
    • Slimline 8X DVD-Writer / 24X CD-Writer, RoHS:Y
    X5294A-Z 371-2283 DVD-ROM Drive, RoHS:Y
    • 373-0078
    • DVD Paddleboard, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIE2SCSIU320Z 375-3357 Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
    System Board
    Option # Manufacturing
    Part #    		 Description
    n/a 375-3587 System Board, RoHS:Y
    • 371-2210
    • CR2032 3V Battery, RoHS:Y
