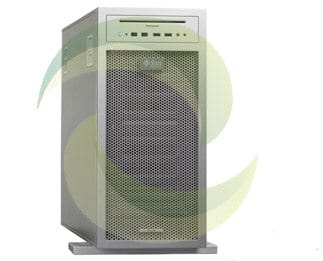

Oracle Sun Workstation Ultra 40 M2

Oracle Sun Workstation Ultra 40 M2 Oracle Sun Workstation Ultra 40 M2 SUN ULTRA 40 M2 SERVER

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Processor
    Number Up to two
    Architecture AMD Opteron 2000 Series, Socket F/1207 Dual Core CPUs
    Cache memory 1MB per CPU (Level 2)
    Main Memory
    Capacities
    • Maximum system memory – 32GB (DDR2-667)
    • Maximum memory per CPU – 16GB
    • Maximum DIMMS per CPU – 4
    • DIMM sizes offered – 1GB, 2GB, 4GB
    Standard Interfaces
    Audio High Definition Audio (HDA), 10 ports (2 front, 8 rear)
    Ethernet 2 – onboard 10/100/1000BASE-T Gigabit Ethernet ports
    Expansion Slots
    • 2 – PCI-Express x16 graphics slots
    • 2 – PCI-Express x8 expansion slots (mechanically x16)
    • 1 – PCI 33MHz, 32-bit slot
    Fire Wire 2 – IEEE 1394a (FireWire) ports
    USB Eight USB 2.0 ports as follows:
    • Two in front
    • Six in rear
    Internal Storage
    Disks Up to 8 SATA disk drives (160GB, 250GB, 500GB, or 750GB), or 8 SAS disk drives (146GB or 300GB) with optional PCI-Express SAS HBA
    Removable Media DVD-ROM and DVD-RW
    Graphics
    Cards Supported cards.
    Environment
    AC Power Voltage: 100 / 110-127 / 200-240 VAC
    Frequency: 50-60Hz
    Input Current 12A @ 100 VAC
    10A @ 110-127 VAC
    6A @ 200-240 VAC
    Power consumption Power Supply – 1000 Watts (maximum)
    Temperature Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 65° C (-40° F to 149° F)
    Humidity Operating: 7% to 93% relative humidity, non-condensing
    Nonoperating: 93% relative humidity, non-condensing
    Sound Power Operating: 4.9 bels (approximate)
    Idling: 4.7 bels (approximate)
    Acoustic noise Operating: 34 dba
    Idling: 33 dba
    Shock Operating: 4.5G, 11 msec, half sine
    Nonoperating: 33G, 11msec, sine
    Vibration Operating: 0.25G2/Hz random, 5 to 500Hz *0.70 Grms)
    Nonoperating: 1.2G2/Hz random, 5 to 500Hz (1.11 Grms)
    Drop Operating: n/a
    Nonoperating: 50 mm (1.97 in)
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance Level RoHS:Y
    Safety UL/CSA-60950-1, EN 60950-1, IEC 60950-1 CB
    RFI/EMI EN 55022/CISPR22 Class B, FCC CFR47 Part 15 Class B, EN 61000-3-2, EN 61000-3-3
    Immunity EN 55024
    Regulatory Markings UL/cUL, TUV-GS, CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, CCC, S-Mark, Korean (MIC) Mark, WEEE
    Ergonomics EK1-1TB-2000
    Power Management PowerNow, Standard ACPI Power states (S0,S3, S4, S5)
    Dimensions and Weights
    Height 445 mm (17.5 in)
    Width 205 mm (8.1 in)
    Depth 569 mm (22.4 in)
    Weight (fully configured) 26.31 kg (58 lbs)
    Batteries
    Option # Manufacturing
    Part #    		 Description
    n/a 371-2210 CR2032 3V Battery, RoHS:Y
    CPU Module
    Option # Manufacturing
    Part #    		 Description
    X4066A-Z 594-4949 3.0GHz, Dual Core, Socket 1207, 95W AMD Opteron 2222, RoHS:Y
    • 310-0108
    • CPU Fan/Heatsink Kit, RoHS:Y
    • 371-2502
    • 3.0 GHz CPU, Opteron 2222 Dual Core, F3 Stepping, 95W, RoHS:Y
    X4093A-Z 310-0108 CPU Fan/Heatsink Kit, RoHS:Y
    371-2503 3.0GHz AMD Dual Core Opteron 2222SE, F3 Stepping, 120W, RoHS:Y
    X4189A-Z 594-4950 3.2GHz, Dual Core, Socket 1207, 120W AMD Opteron 2224 SE Option, RoHS:Y
    • 310-0108
    • CPU Fan/Heatsink Kit, RoHS:Y
    • 371-3487
    • 3.2 GHz CPU, Opteron 2224SE Dual Core, F3 Stepping, 120W, RoHS:Y
    X4190A-Z 594-4041 2.8GHz Dual Core Opteron 2220, RoHS:Y
    • 310-0108
    • CPU Fan/Heatsink Kit, RoHS:Y
    • 371-1914
    • 2.8GHz AMD Dual Core Opteron 2220SE, F2 Stepping, 120W, RoHS:YL
    X4191A-Z 594-3931 1.8GHz Dual Core Opteron 2210, RoHS:Y
    • 310-0108
    • CPU Fan/Heatsink Kit, RoHS:Y
    • 371-2495
    • 1.8GHz AMD Dual Core Opteron 2210, F3 Stepping, 95W, RoHS:Y
    X4192A-Z 594-3932 2.2GHz Dual Core Opteron 2214, RoHS:Y
    • 310-0108
    • CPU Fan/Heatsink Kit, RoHS:Y
    • 371-2497
    • 2.2GHz AMD Dual Core Opteron 2214, F3 Stepping, 95W, RoHS:Y
    X4193A-Z 594-3933 2.6GHz Dual Core Opteron 2218, RoHS:Y
    • 310-0108
    • CPU Fan/Heatsink Kit, RoHS:Y
    • 371-2500
    • 2.6 GHz CPU, Opteron 2218 Dual Core, F3 Stepping, 95W, RoHS:Y
    X4194A-Z 594-3934 2.8GHz, Dual Core, Socket 1207, 95W AMD Opteron 2220 F3 Option, RoHS:Y
    • 310-0108
    • CPU Fan/Heatsink Kit, RoHS:Y
    • 371-2501
    • 2.8 GHz CPU, Opteron 2220 Dual Core, F3 Stepping, 95W, RoHS:YL
    Cables
    Option # Manufacturing
    Part #    		 Description
    n/a 371-1588 SLI Flexible Cable for nVIDIA Graphics Accelerator Cards, RoHS:Y
    n/a 371-2349 Ultra 40 M2 SAS Cable Kit, RoHS:Y
    • n/a
    • HDD0-3 SAS Cable, Red, 215mm, 422755900005
    • n/a
    • HDD4-7 SAS Cable, Orange, 400mm, 422755900006
    • n/a
    • Remote LED Cable, 212mm, 422755900007
    n/a n/a Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description
    X4213A 373-0020 Disk Backplane, RoHS:Y
    n/a F373-0020 Disk Backplane, RoHS:Y
    • 373-0020
    • Disk Backplane, RoHS:Y
    • n/a
    • Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)
    • n/a
    • Ultra 40 Disk Backplane SATA Data Cable 422740700002 (230 mm)
    • n/a
    • Ultra 25/45 Disk Backplane SAS/SATA Data Cable 422739300001 (75mm)
    Disks
    Option # Manufacturing
    Part #    		 Description
    XRB-ST1CE-500G7K 540-6645 500GB – 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0247
    • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0355
    • Seagate ST3500630NS [ST35000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0383
    • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-SS1CE-146G15KZ 540-7088 146GB – 15000RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:YL
    • 390-0334
    • Seagate ST3146855SS [ST314655SSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0338
    • Seagate ST3146854SS [ST314654SSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:YL
    • 390-0371
    • Hitachi HUS153014VLS300 [HUS1514SBSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:YL
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-SS1CE-300G15K 540-7155 300GB – 15K RPM SAS, Disk Assembly with 1 bracket, and 1 of the following disks, RoHS:YL
    • 390-0335
    • Seagate ST3300655SS [ST330055SSUN300G]
      (300GB – 15K RPM – SAS Disk), RoHS:Y
    • 390-0372
    • Hitachi HUS153030VLS300 [HUS1530SBSUN300G]
      (300GB – 15000 RPM – SAS Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-ST1CE-160G7KZ 540-7112 160GB – 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0317
    • Hitachi HDT722516DLA380 [HDS7216SASUN160G]
      (160GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0318
    • Seagate ST3160812AS [STA7216SASUN160G]
      (160GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0351
    • Hitachi HDT721616PLA380 [HDS7216SBSUN160G]
      (160GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-ST1CE-250G7K 540-6485 250GB – 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0243
    • Seagate ST3250824AS [STN7225SASUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0246
    • Hitachi HDT722525DLA380 [HDS7225SBSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0352
    • Hitachi HDT725025VLA380 [HDS7225SCSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0354
    • Seagate ST3250820NS [ST32500NSSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-ST1CE-750G7K 540-7238 750GB – 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0356
    • Seagate ST3750640NS [ST37500NSSUN750G]
      (750GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0379
    • Hitachi HUA721075KLA330 [HUA7275SASUN750G]
      (750GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    X7280A-2 371-0905 PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
    X7281A-2 371-0904 PCI Express Dual Gigabit Ethernet MMF, RoHS:Y
    X7285A 371-0911 Low Profile PCI-X Dual Gigabit Ethernet UTP, RoHS:Y
    X7286A 371-0912 Low Profile PCI-X Single Gigabit Ethernet MMF, RoHS:Y
    Fan
    Option # Manufacturing
    Part #    		 Description
    n/a 310-0108 CPU Fan/Heatsink Kit, RoHS:Y
    n/a 371-0703 3-Fan Tray, RoHS:Y
    n/a 371-2329 Memory Cooler Kit, RoHS:Y
    n/a 373-0019 Fan Board, RoHS:Y
    • n/a
    • Motherboard J16 to Fan Board Cable 422739300002
    Graphics
    Option # Manufacturing
    Part #    		 Description
    X4083A-Z 371-2963 NVIDIA Quadro FX4600 High-end 3D Graphics Accelerator, RoHS:Y
    X4084A-Z 371-2964 NVIDIA Quadro FX5600 Ultra High-end 3D Graphics Accelerator, RoHS:Y
    X4100A-Z 371-3990 NVIDIA Quadro FX370 Graphics Accelerator
    X4128A-Z 371-3624 NVIDIA Quadro FX3700 Graphics Accelerator, RoHS:Y
    X4129A-Z 371-3625 NVIDIA Quadro FX1700 Graphics Accelerator
    X4130A-Z 371-3626 NVIDIA Quadro FX570 Graphics Accelerator
    X4172A 371-1777 Quadro FX5500 High-end 3D Graphics Accelerator, RoHS:Y
    X4173A 371-1778 NVIDIA Quadro G-Sync, RoHS:Y
    X4183A-Z 371-1803 NVIDIA Quadro NVS285 DDR2 Professional 2D Graphics Accelerator, RoHS:Y
    X4184A-Z 371-1802 NVIDIA Quadro FX560 Entry 3D Graphics Accelerator, RoHS:Y
    X4185A-Z 371-1801 NVIDIA Quadro FX1500 Midrange 3D Graphics Accelerator, RoHS:Y
    X4186A-Z 371-1800 NVIDIA Quadro FX3500 Ultra High-end 3D Graphics Accelerator, RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X5288A-Z 4GB (2 × 2GB) Memory Option, RoHS:YL
    540-7062 4GB (2 × 2GB) Memory FRU, RoHS:Y
    • 371-2002
    • 2GB Registered ECC DDR2-667/PC5300 DIMM, RoHS:Y
    X5287A-Z 2GB (2 × 1GB) Memory Option, RoHS:Y
    540-7061 2GB (2 × 1GB) Memory FRU, RoHS:Y
    • 371-2001
    • 1GB Registered ECC DDR2-667/PC5300 DIMM, RoHS:Y
    X5289A-Z 8GB (2 × 4GB) Memory Option, RoHS:YL
    540-7063 8GB (2 × 4GB) Memory FRU, RoHS:Y
    • 371-2003
    • 4GB Registered ECC DDR2-667/PC5300 DIMM, RoHS:Y
    Power
    Option # Manufacturing
    Part #    		 Description
    n/a 300-1800 1000W Power Supply, RoHS:Y
    n/a 300-2127 1000W Power Supply, 80% Efficiency, RoHS:Y
    Removable Media
    Option # Manufacturing
    Part #    		 Description
    X8117A 371-2304 8x DVD-Writer / 24x CD-Writer, RoHS:Y
    • 330-4448
    • DVD Front Panel, RoHS:Y
    • 341-3130
    • DVD Housing, RoHS:Y
    • 373-0018
    • DVD Paddleboard, RoHS:Y
    • 373-0073
    • Front I/O Board, RoHS:Y
    X8119A 371-2305 8x DVD-ROM / 24x CD-ROM, RoHS:Y
    • 330-4448
    • DVD Front Panel, RoHS:Y
    • 341-3130
    • DVD Housing, RoHS:Y
    • 373-0018
    • DVD Paddleboard, RoHS:Y
    • 373-0073
    • Front I/O Board, RoHS:Y
    n/a 371-1355 DVD Filler Panel, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SG-PCIE8SAS-Z 371-3255 PCI Express 8-Port SAS Controller, RoHS:Y
    SG-XPCIE2SCSIU320Z 375-3357 Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
    SGXPCI1SCSILM320-Z 375-3366 PCI Single Ultra320 SCSI Adapter
    SGXPCI2SCSILM320-Z 375-3365 PCI Dual Ultra320 SCSI Adapter, RoHS:YL
    System Board
    Option # Manufacturing
    Part #    		 Description
    n/a 375-3476 Motherboard
    • 371-2210
    • CR2032 3V Battery, RoHS:Y
