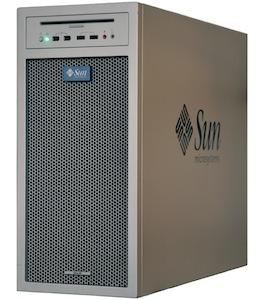

Oracle Sun Workstation Ultra 40

Oracle Sun Workstation Ultra 40 Oracle Sun Workstation Ultra 40 delete2

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Processor
    Number Up to two (maximum)
    Architecture AMD Opteron Processor (940-pin, 200-series):
    • Model 285 – 2.6GHz, Dual Core
    • Model 280 – 2.4GHz, Dual Core
    • Model 275 – 2.2GHz, Dual Core
    • Model 256 – 3.0GHz, Single Core
    • Model 254 – 2.8GHz, Single Core
    • Model 250 – 2.4GHz, Single Core
    • Model 248 – 2.2GHz, Single Core
    • Model 246 – 2.0GHz, Single Core
    Cache memory 1MB Level 2
    Main Memory
    Capacities Characteristics of the ECC-protected memory include:
    • Maximum system memory – 32GB (DDR1-400/PC3200)
    • Maximum memory per CPU – 16GB (using 4GB DIMMS)
    • Maximum DIMMS per CPU – 4
    • Maximum DIMM slots – 8 (4 slots per CPU)
    • DIMM sizes offered – 512MB, 1GB, 2GB, 4GB
    • DDR1-400/PC3200 memory – must be installed in pairs
    Chipkill Memory Support This type of architecture allows:
    • A single DRAM chip to fail (not the DIMM, just a chip on the DIMM) and the system will continue to operate.
    • DIMM replacement to occur at regularly-scheduled service intervals.
    Standard Interfaces
    Audio Ten AC97 ports as follows:
    • Two in front
    • Eight in rear
    Ethernet Two 10/100/1000 Base-T Gigabit ethernet ports (rear of workstation)
    Expansion Slots Six slots as follows:
    • Two PCI-Express x16 slots (reserved for graphics)
    • Two PCI-Express x4 expansion slots
    • Two PCI slots (32-bit, 33MHz)
    Fire Wire Two IEEE 1394a ports (front of workstation)
    USB Eight Serial Bus 2.0 ports as follows:
    • Two in front
    • Six in rear
    Internal Storage
    Disks Allows up to 4 SATA-2 disk drives (7200 RPM, 3.5 inch) in the following sizes:
    • 80GB – 4 x 80GB drives = 320GB of total storage
    • 250GB – 4 x 250GB drives = 1TB of total storage
    • 500GB – 4 x 500GB drives = 2TB of total storage

    Supports the following RAID levels:

    • RAID 0
    • RAID 1
    • RAID 0+1
    • RAID 5
    DVD Dual Drive Combo Optical disk drive as follows:
    • One DVD-ROM/CD-RW – Slot-loading
    • ATAPI – Interface

    Note: Systems that ship without an optical disk drive require an optical disk drive blank bezel to cover the slot opening.
    Graphics
    Cards
    • Supported cards.
    Environment
    AC Power Voltage: 90-264 VAC
    Frequency: 47-63 Hz
    Input Current 12A @ 100 VAC
    10A @ 110-127 VAC
    6A @ 200-240 VAC
    Power consumption Power Supply – 1000 Watts (maximum)
    Temperature Operating: 2° C to 35° C (41° F to 95° F)
    Nonoperating: -40° C to 68° C (-40° F to 158° F)
    Humidity Operating: 7% to 93% relative humidity, non-condensing
    Nonoperating: 93% relative humidity, non-condensing
    Acoustic noise Operating: 4.9 bels
    Idling: 4.7 bels
    Shock Operating: 4.5G, 11 msec
    Nonoperating: 20G, 11 msec
    Regulations
    Meets or exceeds the following requirements:
    RoHS Compliance Level RoHS:Y
    Safety UL/CSA-60950, EN 60950, IEC 60950 CB
    RFI/EMI EN 55022/CISPR22 Class B, FCC CFR47 Part 15 Class B, EN 61000-3-2, EN 61000-3-3
    Immunity EN 55024
    Regulatory Markings UL/cUL, TUV-GS, CE FCC, ICES-003, C-Tiek, VCCI, GOST-R, BSMI, CCC, S-Mark
    Ergonomics EK1-1TB-2000
    Power Management Supports PowerNow standard ACPI power states
    Dimensions and Weights
    Height 445 mm (17.5 in)
    Width 205 mm (8.1 in)
    Depth 569 mm (22.4 in)
    Weight (fully configured) 26.31 kg (58 lbs)
    CPU Module
    Option # Manufacturing
    Part #    		 Description
    X4171A 594-3285 3.0GHz Single Core Opteron 256 Option, RoHS:Y
    • 371-1776
    • 3.0GHz Single Core CPU AMD Opteron 256, E4 Stepping, 95W, RoHS:Y
    X7253A 594-2656 2.4GHz Dual Core Opteron 280 Option, RoHS:Y
    • 371-0839
    • 2.4GHz Dual Core CPU AMD Opteron 280, E6 Stepping, 95W, RoHS:Y
    X7254A 594-2657 2.2GHZ Dual Core Opteron 275 Option, RoHS:Y
    • 370-7800
    • 2.2GHz Dual Core CPU, AMD Opteron 275, E6 Stepping, 95W, RoHS:Y
    X7255A 594-2658 2.8GHz Opteron 254 Option, RoHS:Y
    • 370-7962
    • 2.8GHz CPU, AMD Opteron 254, E4 Stepping, RoHS:Y
    X7256A 594-2659 2.4GHz Opteron 250 Option, RoHS:Y
    • 370-7712
    • 2.4GHz CPU, AMD Opteron 250, E4 Stepping, RoHS:Y
    X7258A 594-3820 2.2GHZ Single Core Opteron 248 Option, RoHS:Y
    • 370-7711
    • 2.2GHz CPU, AMD Opteron 248, E4 Stepping, RoHS:Y
    X7290A 594-2655 2.6GHz Dual Core Opteron 285 Option, RoHS:Y
    • 371-0856
    • 2.6GHz Dual Core CPU, AMD Opteron 285, E6 Stepping, 95W
    X7257A 594-2660 2.0GHz Opteron 246 Option, RoHS:Y
    • 370-6466
    • 2.0GHz CPU, AMD Opteron 246, E4 Stepping, RoHS:Y
    n/a 371-0824 Hypertransport Jumper Module, RoHS:Y
    Cables
    Option # Manufacturing
    Part #    		 Description
    n/a 371-1588 SLI Flexible Cable for nVIDIA Graphics Accelerator Cards, RoHS:Y
    n/a 371-2271 SAS Cable Kit, RoHS:Y
    n/a n/a Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)
    Communication
    Option # Manufacturing
    Part #    		 Description
    X6000A 375-3424 PCI Express Sun Crypto Accelerator 6000, RoHS:Y
    Disk Backplane
    Option # Manufacturing
    Part #    		 Description
    n/a F373-0020 Disk Backplane, RoHS:Y
    • 373-0020
    • Disk Backplane, RoHS:Y
    • n/a
    • Ultra 40 Disk Backplane SATA Data Cable 422740700002 (230 mm)
    • n/a
    • Ultra 25/45 Disk Backplane SAS/SATA Data Cable 422739300001 (75mm)
    • n/a
    • Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)
    Disks
    Option # Manufacturing
    Part #    		 Description
    XRB-ST1CE-500G7K 540-6645 500GB – 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0247
    • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0355
    • Seagate ST3500630NS [ST35000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0383
    • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-ST1CE-80G7K 540-6644 80GB – 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0245
    • Hitachi HDS728080PLA380 [HDS7280SASUN82G]
      (80GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0302
    • Hitachi HDS728080PLA380 [HDS7280SASUN80G]
      (80GB – 7200 RPM – SATA Drive), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-SS1CE-146G15KZ 540-7088 146GB – 15000RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:YL
    • 390-0334
    • Seagate ST3146855SS [ST314655SSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:Y
    • 390-0338
    • Seagate ST3146854SS [ST314654SSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:YL
    • 390-0371
    • Hitachi HUS153014VLS300 [HUS1514SBSUN146G]
      (146GB – 15000 RPM – SAS Disk), RoHS:YL
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    XRB-ST1CE-250G7K 540-6485 250GB – 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0243
    • Seagate ST3250824AS [STN7225SASUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0246
    • Hitachi HDT722525DLA380 [HDS7225SBSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0352
    • Hitachi HDT725025VLA380 [HDS7225SCSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 390-0354
    • Seagate ST3250820NS [ST32500NSSUN250G]
      (250GB – 7200 RPM – SATA Disk), RoHS:Y
    • 540-6562
    • 1″ SPUD Bracket, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    X7280A-2 371-0905 PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
    X7281A-2 371-0904 PCI Express Dual Gigabit Ethernet MMF, RoHS:Y
    X7285A 371-0911 Low Profile PCI-X Dual Gigabit Ethernet UTP, RoHS:Y
    X7286A 371-0912 Low Profile PCI-X Single Gigabit Ethernet MMF, RoHS:Y
    Fan
    Option # Manufacturing
    Part #    		 Description
    n/a 310-0063 CPU Fan/Heatsink, RoHS:Y
    n/a 371-0703 3-Fan Tray, RoHS:Y
    n/a F373-0019 Fan Board, RoHS:Y
    • 373-0019
    • Fan Board, RoHS:Y
    • n/a
    • Motherboard J16 to Fan Board Cable 422739300002
    Graphics
    Option # Manufacturing
    Part #    		 Description
    X4173A 371-1778 NVIDIA Quadro G-Sync, RoHS:Y
    X7266A 371-0750 NVIDIA Quadro NVS285 2D Graphics Accelerator, RoHS:Y
    X4172A 371-1777 Quadro FX5500 High-end 3D Graphics Accelerator, RoHS:Y
    X4183A-Z 371-1803 NVIDIA Quadro NVS285 DDR2 Professional 2D Graphics Accelerator, RoHS:Y
    X4184A-Z 371-1802 NVIDIA Quadro FX560 Entry 3D Graphics Accelerator, RoHS:Y
    X4185A-Z 371-1801 NVIDIA Quadro FX1500 Midrange 3D Graphics Accelerator, RoHS:Y
    X4186A-Z 371-1800 NVIDIA Quadro FX3500 Ultra High-end 3D Graphics Accelerator, RoHS:Y
    X7263A 371-0752 NVIDIA Quadro FX4500 3D Graphics Accelerator, RoHS:Y
    X7264A 370-7988 NVIDIA Quadro FX3450 3D Graphics Accelerator, RoHS:Y
    X7265A 371-0751 NVIDIA Quadro FX1400 3D Graphics Accelerator, RoHS:Y
    X7298A 371-0854 NVIDIA Quadro FX540 3D Graphics Accelerator, RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X7260A 540-6617 4GB of Memory (2×2GB DIMM), ECC, RoHS:Y
    • 371-0865
    • 2GB DIMM, RoHS:Y
    X7261A 540-6618 2GB of Memory (2×1GB DIMM), ECC, RoHS:Y
    • 371-0866
    • 1GB DIMM, RoHS:Y
    X7262A 540-6619 1GB of Memory (2×512MB DIMM), ECC, RoHS:Y
    • 371-0867
    • 512MB DIMM, RoHS:Y
    X7267A 540-7070 8GB of Memory (2×4GB DIMM), ECC, RoHS:Y
    • 371-2088
    • 4GB DIMM, RoHS:Y
    Power
    Option # Manufacturing
    Part #    		 Description
    n/a 300-1800 1000W Power Supply, RoHS:Y
    Removable Media
    Option # Manufacturing
    Part #    		 Description
    X8019A F370-7970 8x DVD-Writer/24x CD-Writer
    • 370-7970
    • 8x DVD-Writer/24x CD-Writer, RoHS:Y
    • 373-0026
    • DVD Paddleboard, RoHS:Y
    • n/a
    • Motherboard J29 to DVD Cable, 422740700003
    F373-0024 Front I/O Board, RoHS:Y
    • 373-0024
    • Front I/O Board, RoHS:Y
    • n/a
    • Motherboard J27/GFX1 Power Cable, 422740700006
    • n/a
    • Motherboard J47/FP3 to I/O J3 USB Cable, 6-Pin, 422740700004
    • n/a
    • Motherboard J34/FP2 to I/O J1 1394 Cable, 14-Pin, 422740700005
    • n/a
    • Motherboard J12/GFX2 to PSU P4 Y Power Cable, 422740700007
    • n/a
    • Motherboard J7/FP1 to I/O J2 Audio/Power Cable, 26-Pin, 422739300005
    X8060A 330-4269 DVD Front Bezel, RoHS:Y
    371-2213 24x DVD-ROM Drive, RoHS:Y
    X7276A F370-7970 8x DVD-Writer/24x CD-Writer
    • 370-7970
    • 8x DVD-Writer/24x CD-Writer, RoHS:Y
    • 373-0026
    • DVD Paddleboard, RoHS:Y
    • n/a
    • Motherboard J29 to DVD Cable, 422740700003
    n/a 371-1355 DVD Filler Panel, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SGXPCI1SCSILM320-Z 375-3366 PCI Single Ultra320 SCSI Adapter
    SGXPCI2SCSILM320-Z 375-3365 PCI Dual Ultra320 SCSI Adapter, RoHS:YL
    SG-XPCIE4SAS-Z 371-2094 4 Port SAS PCI Express Internal HBA, RoHS:Y
    System Board
    Option # Manufacturing
    Part #    		 Description
    n/a 375-3343 Motherboard, RoHS:Y
