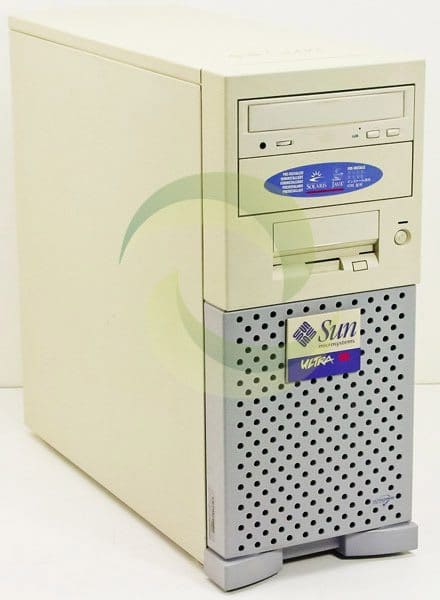

Oracle Sun Workstation Ultra 10
REQUEST A PRICE QUOTE:
|
Processor
|
|
| Architecture | 300, 333, 360, or 440-MHz UltraSPARC[tm]-IIi |
| Cache Memory | 16-KB instruction cache, 16-KB data cache
512-KB external cache for 300-MHz processor; 2 MB external cache for other processors |
|
Main Memory
|
|
| Capacities | Four DIMM slots
Install DIMMs in pairs (16 MB, 32 MB, 64 MB, 128 MB, and 256 MB DIMMs); quad provides best performance 1 GB maximum |
| Memory type | 50ns or 60ns 168-pin JEDEC DIMMs, ECC error-correction |
|
Standard Interfaces
|
|
| Audio | Four audio ports: headphone(out), line-in, line-out and microphone(in) using EIA standard 0.125-inch (3.5-mm) jacks |
| Ethernet | One ethernet/fast ethernet (10BASE-T/100BASE-T) twisted-pair standard connector (RJ-45), self-sensing |
| Graphics | One graphics port (HD15), onboard 24-bit frame buffer |
| Keyboard and mouse | One standard keyboard/mouse port (mini DIN-8) |
| Parallel | One IEEE 1284 (bidirectional) parallel port (DB25) |
| PCI | Four 32-bit PCI slots, full-size, 33 MHz, 5 volt |
| Serial | One synchronous/asynchronous serial port (DB25); one asynchronous serial port (DB9) |
| UPA graphics slot | One 100-MHz UPA graphics slot; supports Creator, Creator3D,and Elite3D high-performance graphics options |
|
Internal Mass Storage
|
|
| Disks | Up to two 4.3 GB (4500 rpm) or 9.1/20.4 GB (7200 rpm), 3.5-in. Enhanced IDE HDD |
| Floppy | One 3.5-in. 1.44-MB floppy |
| CD-ROM | 24X-, 32X, or 48X-speed CD-ROM |
| Tape | No tape supported |
|
Environment
|
|
| AC input | 90 – 132 VAC or 180 – 264 VAC (switch selectable), 47 – 63 Hz, 4 A (max), 0.4 KVA |
| Input power | 380 W |
| Heat output | 1287 BTU/hr |
| Temperature |
Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -20° C to 60° C (?4° F to 140° F) |
| Humidity |
Operating: 40% to 80% relative humidity, noncondensing Nonoperating: 30% to 90% relative humidity, noncondensing |
| Altitude |
Operating: 3000 m (10,000 ft) Nonoperating: 12,000 m (40,000 ft) |
| Acoustic noise |
Operating: 5.2 bels Idling: 5.2 bels |
| Number of cords | 1 |
|
Regulations
Meets or exceeds the following requirements:
|
|
| Safety | UL 1950, CSA C22.2 No.950, TUV EN 60950, CB Scheme with Nordic deviations, EMKO-TSE (74-SEC)203, ZH1/618 |
| RFI/EMI | FCC Class B, DOC Class B, VCCI Class 2, EN 55022 Class B, EN 61000-3-2 |
| Immunity | EN 50082-1 |
| X-ray | DHHS 21 Subchapter J; PTB German X-ray Decree |
| Power management | Energy Star compliant |
|
Dimensions and Weights
|
|
| Height | 40.2 cm (15.8 in.) |
| Width | 17.6 cm (6.9 in.) |
| Depth | 43.5 cm (17.1 in.) |
| Weight | 20.0 kg (44 lb.) |
| Boot PROM | ||
|---|---|---|
| Socket | Manufacturing Part # |
Patch |
| U2703 | 370-3886 | 106121 |
| CPU Module | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 501-5149 | 440MHz UltraSPARC IIi Module | ||
| n/a | 501-4379 | 300MHz UltraSPARC IIi Module | ||
| n/a | 501-5040 | 300MHz UltraSPARC IIi Module | ||
| n/a | 501-5090 | 333MHz UltraSPARC IIi Module | ||
| n/a | 501-5222 | 360MHz UltraSPARC IIi Module | ||
| n/a | 501-5568 | 333MHz UltraSPARC IIi Module | ||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X3856A | 180-1179 | Power Cord, RoHS:Y | ||
| 530-2383 | External SCSI Cable, HD68 to HD68, 0.8M | |||
| X470A | 530-2357 | Video Connector Adapter, 13W3F to HD15M | ||
| X901A | 530-1884 | External SCSI Cable, HD68 to HD68, 80cm | ||
| X902A | 530-1885 | External SCSI Cable, HD68 to HD68, 2M | ||
| X903A | 530-2115 | External SCSI Cable, HD50 to HD68, 1.2M | ||
| X904A | 530-2228 | External SCSI Cable, HD50 to HD68, 2M | ||
| n/a | 530-2961 | RJ45 Cat5 Ethernet Cable, RoHS:Y | ||
| Communication | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X1035A | 370-2811 | FDDI/P SAS 1.0 | ||
| X1036A | 370-2812 | FDDI/P DAS 1.0 | ||
| X1039A | 375-0001 | Token Ring Interface PCI (TRI/P) 1.0 | ||
| X1040A | 370-2728 | High Speed Serial Interface PCI (HSI/P) 1.0 | ||
| X1041A | 370-2810 | Serial Asynchronous Interface PCI (SAI/P) 1.0 | ||
| X1066A | 501-3028 | SunATM-155/MFiber PCI 3.0 | ||
| X1067A | 501-3027 | SunATM-155/UTP PCI 3.0 | ||
| X1068A | 501-3029 | SunATM-622/MFiber PCI 3.0 | ||
| X1152A | 370-2811 | FDDI/P SAS 2.0 | ||
| X1153A | 370-2812 | FDDI/P DAS 2.0 | ||
| X1154A | 375-0001 | Token Ring Interface PCI (TRI/P) 4.0 | ||
| X1155A | 370-2728 | High Speed Serial Interface PCI (HSI/P) 2.0 | ||
| X1156A | 370-2810 | Serial Asynchronous Interface PCI (SAI/P) 2.0 | ||
| X1157A | 501-3028 | SunATM-155/MFiber PCI 4.0 | ||
| X1158A | 501-3027 | SunATM-155/UTP PCI 4.0 | ||
| X1159A | 501-3029 | SunATM-622/MFiber PCI 4.0 | ||
| X2154A | 375-0073 | Token Ring Interface (TRI/P) 5.0 | ||
| X2156A | 375-0100 | Serial Asynchronous Interface PCI (SAI/P) 3.0 | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X5227A | 370-3176 | Seagate ST34342A (4.3GB – 4500 RPM – IDE Disk) |
||
| X5236A | 370-3693 | Seagate ST39120A (9.1GB – 7200 RPM – IDE Disk) |
||
| 370-3693 | Seagate ST39111A (9.1GB – 7200 RPM – IDE Disk) |
|||
| 370-3693 | IBM DJNA-370910 (9.1GB – 7200 RPM – IDE Disk) |
|||
| 370-3693 | Seagate ST39140A (9.1GB – 7200 RPM – IDE Disk) |
|||
| X6174A | 20GB 7200RPM Ultra ATA Disk Drive | |||
| 370-4327 | Seagate ST320011A (20.1GB – 7200 RPM – IDE Disk) |
|||
| 370-4327 | Seagate ST320414A (20.1GB – 7200 RPM – IDE Disk) |
|||
| 370-4327 | Seagate ST320420A (20.4GB – 7200 RPM – IDE Disk) |
|||
| n/a | 370-5560 | Seagate ST320011A (20.4GB – 7200 RPM – IDE Disk) |
||
| Ethernet | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X1033A | 501-5019 | Sun FastEthernet PCI Adapter (FE/P) 2.0 | ||
| X1034A | 501-5406 | Quad FastEthernet PCI (QFE/P) | ||
| X1044A | 375-0002 | Gigabit Ethernet PCI (GBE/P) 1.0 | ||
| X1141A | 501-4373 | Gigabit Ethernet PCI (GBE/P) 2.0 | ||
| X1150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X1151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X2069A | 501-5426 | Gigabit Ethernet FC-AL/P | ||
| X3150A | 501-5902 | Sun GigaSwift Ethernet UTP (Copper) | ||
| X3151A | 501-5524 | Sun GigaSwift Ethernet MMF (Fiber) | ||
| X467A | 595-3780 | MII to AUI Converter | ||
| Graphics | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X1089A | 370-4072 | SunVideo Plus | ||
| X3660A | 370-2256 | PGX 8-Bit Color Frame Buffer | ||
| X3662A | 501-4789 | Creator Series 3 (FFB2+) | ||
| X3663A | 501-5690 | Creator3D Series 3 (FFB2+) | ||
| X3664A | 501-5484 | Elite3D-m3 | ||
| X3665A | 540-3902 | Elite3D-m6 | ||
| X3668A | 370-3753 | PGX32 8/24-Bit Color Frame Buffer | ||
| X3670A | 501-5690 | Creator3D Series 3 (FFB2+) | ||
| X3672A | 501-4789 | Creator Series 3 (FFB2+) | ||
| X3677A | 501-5574 | Elite3D-m3 Series 2 Accelerator | ||
| X3679A | 540-4313 | Elite3D-m6 Series 2 Accelerator | ||
| X3768A | 370-4362 | PGX64 8/24-Bit Color Frame Buffer | ||
| IDPROM | |||
|---|---|---|---|
| Socket | Manufacturing Part # |
Component Type | Host ID |
| U13 | 100-6889 | 48T59 NVRAM | 8xxxxxxx |
| U13 | 525-1430 | 48T59 NVRAM | 80xxxxxx |
| U13 | 525-1817 | 48T59 NVRAM | 80xxxxxx |
| Input Device | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X180A | 595-1865 | SunButtons 32-key function I/O device | ||
| X190A | 595-1737 | SunDials 8-dial interactive graphics I/O for 3-D | ||
| X499A | 595-5343 | PCI Multimedia Kit | ||
|
|
|||
|
|
|||
| Memory | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X7030A | 370-3198 | 32MB DIMM, 60ns | ||
| X7031A | 370-3199 | 64MB DIMM, 60ns | ||
| X7032A | 370-3200 | 128MB DIMM, 60ns | ||
| X7033A | 370-3201 | 256MB DIMM, 60ns | ||
| X7036A | 370-3796 | 32MB DIMM, 50ns | ||
| X7037A | 370-3797 | 64MB DIMM, 50ns | ||
| X7038A | 370-3798 | 128MB DIMM, 50ns | ||
| X7039A | 370-3799 | 256MB DIMM, 50ns | ||
| n/a | 370-3211 | 16MB DIMM, 60ns | ||
| Miscellaneous | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X1131A-64.1 | 375-0075 | SunPCi 300MHz | ||
| X1131A-64.2 | 375-0095 | SunPCi 400MHz | ||
| X2131A | 375-0131 | SunPCi II 600MHz, 64MB memory | ||
| X2132A | 375-3051 | SunPCi IIpro 733MHz coprocessor card | ||
| X7035A | 370-3801 | SunPCi 128MB memory expansion | ||
| X7041A | 370-3800 | SunPCi 64MB memory expansion | ||
| X7042A | 370-4294 | SunPCi II 128MB memory expansion | ||
| X7044A | 370-4295 | SunPCi II 256MB memory expansion | ||
| X7045A | 370-4430 | SunPCi IIpro 512MB memory expansion | ||
| n/a | 370-3197 | PCI Riser Board (no stiffener or bracket) | ||
| n/a | 370-3982 | PCI Riser Board (stiffener, no bracket) | ||
| n/a | 540-4228 | PCI Riser Board (stiffener and bracket) | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 370-3171 | Mitac MPU-250REF 243 Watt Power Supply | ||
| n/a | 370-4325 | 243 Watt Power Supply with Power Factor Correction | ||
| Removable Media | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X5246A | 370-4353 | 48X EIDE CD-ROM [standard] | ||
| X6170A | 370-3319 | 24X CD-ROM | ||
| X6171A | 370-3694 | 32X EIDE CD-ROM [standard] | ||
| n/a | 370-3159 | Dual Density Floppy Drive | ||
| SCSI | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X1032A | 501-5656 | Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI) | ||
| X5010A | 375-0097 | Single-Channel Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6540A | 375-0005 | Dual Single-Ended Ultra/Wide SCSI (PCI) | ||
| X6541A | 375-0006 | Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD) | ||
