Oracle Sun V440 Server EOL – Specs Pricing Weights Dimensions

oracle sun v440 server Oracle Sun V440 Server EOL – Specs Pricing Weights Dimensions Sun Servers SUN FIRE V440 RoHS copy1

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

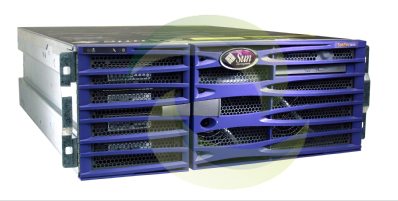

    The Sun Fire V440 server

    Greentec Systems is proud to offer the EOL v440 server, a data center-class, entry-level server that is powered by up to four 1.593-GHz UltraSPARC IIIi processors. Features such as six PCI slots, two 10/100/1000 Mb/s Ethernet ports, up to four disk drives, and 32 GB of memory prove the rack-optimized Sun Fire V440 server has the capacity to meet the needs of compute-intensive appli- cations. The Sun Fire V440 server also contains high-availability and manageability features in a compact, 4U package. Hot-plug, front-accessible disk drives; redundant hot-plug power supplies (with independent cords); and a System Configuration Card that permits easy and quick identity transfer enhance the Sun Fire V440 server’s uptime. Easily visible system and component LEDs provide serviceability features that enable quick diagnosis and repairs, while the system’s Advanced Lights Out Manager (ALOM) provides remote management and diagnostic capability.

    Reducing Complexity

    Advanced Lights Out Manager (ALOM)
    provides remote management functionality, lowering the requirement for onsite staff. The System Configuration Card increases availability by allowing quick and easy system ID transfer. Support for the SunSM Install Check tool enables customers to confirm proper initial system configuration and installation.

    Improve TCO

    Low acquisition and support costs, low
    power and cooling requirements, and binary compatibility provide greater flexibility in high-density, horizontal- scaling environments.

    Key Feature Highlights

    • Up to four 1.593-GHz UltraSPARC® Illi CPUs, each with 1 MB L2 cache

    • 32 GB memory capacity

    • Integrated dual-channel SCSI disk controller

    • Two 10/100/1000 Mb/sec. Ethernetports
    • SolarisTM 8, Solaris 9, and Solaris 10Operating System
    • 1+1 hot-plug power supplies/hot- pluggable disks
    • Six full-length, industry-standard PCI bus slots
    • Rack-optimized, 4U enclosure
    • Hardware disk mirroring
    • Front and rear power and faultLED indicators
    • Expanded front-access capabilities:Up to four hot-plug disk drives, powerswitch, media bay, and power supplies
    • Advanced Lights Out Manager
    • System Configuration Card (SCC)allows system identity to be transferred to standby systems

    Greentec Systems offers full V440 server systems and V440 parts

    Sun V440 Server Processor
    Number One to four
    Architecture UltraSPARC® IIIi (1.062, 1.28, or 1.593 GHz)
    Cache memory 64 KB data, 32 KB instruction and 1 MB integrated L2
    Sun V440 Server Main Memory
    Capacities 4 DIMM slots per processor
    Registered DDR-1 SDRAM
    System configurations from 2 GB to 32 GB
    Sun V440 Server Standard Interfaces
    Ethernet Two 10/100/1000 BaseT Ethernet
    One 10 BaseT Ethernet (network management)
    PCI Six internal PCI 2.2 compliant expansion slots:
    • Three 64 bit 33/66 MHz 3.3V full-length (slots 2, 4, 5)
    • Three 64 bit 33 MHz 5V full-length (slots 0, 1, 3)
    SCSI One Ultra320 SCSI (LVD)
    System Configuration Card Front accessible for transfer of system configuration information, including host ID
    Serial One TIA/EIA-232-F asynchronous (DB9) Port
    One TIA/EIA-232-F (RJ45) Port (management)
    USB Four OHCI-1.1 Compliant Interfaces, supporting dual speeds of 12 and 1.5 Mbits/sec each
    Internal Mass Storage
    Disks Up to four hot plug Ultra320SCSI 36GB, 73GB, or 146GB Disks
    DVD-ROM One Slim-line ATAPI DVD-ROM
    Environment
    AC input 90 – 264 V AC (47- 63 Hz)
    Input power 650 W (Max)
    570 W (Typical)
    Heat output 2218 Btu/hr for operation @ 100 VAC to 240 VAC
    Temperature Operating: 5°C to 40°C (41°F to 104°)
    Nonoperating: -40°C to 60°C (-40°F to 140°)
    Humidity Operating: 20% to 80% relative humidity, noncondensing, 27°C max wet bulb
    Nonoperating: Up to 93% relative humidity, noncondensing, 38°C max wet bulb
    Altitude Operating: Up to 3000m, maximum ambient temperature is derated by 1°C per 500m above 500m
    Nonoperating: Up to 12000m
    Acoustic noise Operating: 6.7 Bels
    Idling: 6.7 Bels
    Vibration Operating: 0.0001 g2/Hz, 5 to 150 Hz, -12db/octave slope 150 to 500 Hz
    Nonoperating: 0.001 g2/Hz, 5 to 150 Hz, -12db/octave slope 150 to 500 Hz
    Shock Operating: 3.0 g peak, 11 milliseconds half-sine pulse —IEC 60068-2-27
    Nonoperating: 15.0 g peak, 11 milliseconds half-sine pulse; 1.0 inch roll-off front to back, 0.5 inch roll-off side to side —IEC 60068-2-27
    Handling Drops 60 mm, 1 drop per corner, 4 corners—IEC 60068-2-31
    Threshold Impact 0.85m/s, 3 impacts per caster, all 4 casters, 25 mm step-up—ETE
    1010-01
    Number of cords 2 (max)
    Regulations
    Meets or exceeds the following requirements:
    Safety UL approval to UL 60950, EN60950, C22.2 No.60950, and CB Report for IEC 950; all including Amendments 1, 2, 3, 4 and 11 and full worldwide deviations. TUV approval to EN60950/IEC 950. GOST languages Certification for Eastern Block countries. Korean MIC Certification. China CCC mark using UL as agent. CE Declaration of Conformance (SMI self-declaration) to The Electromagnetic Compatibility Directive and Low Voltage Directive with accompanying “Technical Data File”. Approval to Argentinian standards using UL as agent.
    RFI/EMI 47 CFR 15B (Code of Federal Regulations, Part 15, Subpart B) Class A; EN55022 Class A per EMC Directive 89/336/EEC (CE Mark); VCCI Class A; Industry Canada ICES-003; AS/NZ 3548 (Australia/New Zealand); CNS 13438 (Taiwan); KSC 5858 (MIC Mark/Korea)
    Immunity IEC 1000
    EN55024 per EMC Directive 89/336/EEC, including
    IEC 61000-4-2 Electrostatic discharge immunity test
    IEC 61000-4-3 Radiated, radio-frequency, electromagnetic field immunity test
    IEC 61000-4-4 Electrical fast transient/burst immunity test
    IEC 61000-4-5 Surge immunity test
    IEC 61000-4-6 Immunity to conducted disturbances, induced by radio frequency fields
    IEC 61000-4-8 Power frequency magnetic field immunity test
    IEC 61000-4-11 Voltage dips, short interruptions and voltage variations immunity tests
    Line Distortion EN 61000-3-2 per EMC Directive 89/336/EEC
    Voltage Fluctuations and Flicker EN 61000-3-3 per EMC Directive 89/336/EEC
    Clearance and Service Access
    Front 36 in.(91.4 cm)
    Rear 36 in.(91.4 cm)
    Sun V440 Server Dimensions and Weights
    Height 174 mm (6.85 in.)
    Width 440 mm (17.3 in.)
    Depth 635 mm (25 in.)
    Weight 37 kg (82 lb.) fully configured
    Batteries
    Option # Manufacturing
    Part #    		 Description
    n/a 150-2850 3V Lithium Battery BR1632 / CR1632, RoHS:Y
    Boot PROM
    Socket Manufacturing
    Part #    		 Patch
    n/a 525-1970 118319
    Cables
    Option # Manufacturing
    Part #    		 Description
    X311L Localized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097 IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312G Localized Power Cord Kit – Korea, RoHS:Y
    180-1662 IEC 320 C13 to KSC 8305 – 15A/250V 2.5M Black, RoHS:Y
    X312L Localized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993 IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314L Localized Power Cord Kit – Swiss, RoHS:Y
    180-1994 IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317L Localized Power Cord Kit – U.K., RoHS:Y
    180-1997 IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X332A Localized Power Cord Kit – Taiwan, RoHS:Y
    180-2121 IEC 320 C13 to NEMA 5-15P – 10A/125V 2.5M Black, RoHS:Y
    X383L Localized Power Cord Kit – Danish, RoHS:Y
    180-1995 IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384L Localized Power Cord Kit – Italian, RoHS:Y
    180-1996 IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    X386L Localized Power Cord Kit – Australian, RoHS:Y
    180-1998 IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
    X9280A 530-3387 4X SFF8470 to 12X SFF8470 InfiniBand Cable, 2 Meter
    X9281A 530-3386 4X SFF8470 to 12X SFF8470 InfiniBand Cable, 5 Meter
    n/a 530-1819 Localized Power Cord Kit – Danish
    n/a 530-3100 RJ45F to DB9F Adapter, RoHS:Y
    Card/Reader
    Option # Manufacturing
    Part #    		 Description
    n/a 370-5127 System Configuration Card Reader
    n/a 370-5155 System Configuration Card, RoHS:Y
    n/a 371-0795 System Configuration Card with 10 MAC Addresses, RoHS:Y
    n/a 371-0838 System Configuration Card Reader, RoHS:YL
    n/a 371-3551 System Configuration Card with 10 MAC Addresses, Polycarbonate, RoHS:Y
    Communication
    Option # Manufacturing
    Part #    		 Description
    X1355A-2 371-0982 2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable,RoHS:Y
    375-3296 Quad Port High Speed Serial Interface PCI-X (HSI/U), RoHS:Y
    X2156A-2 375-3420 Serial Asynchronous Interface PCI (SAI/P) 3.0, RoHS:Y
    X1074A 370-3868 SCI Adapter (SCI/P)
    X1155A 370-2728 High Speed Serial Interface PCI (HSI/P) 2.0
    X1157A 501-3028 SunATM-155/MFiber PCI 4.0
    X1158A 501-3027 SunATM-155/UTP PCI 4.0
    X1159A 501-3029 SunATM-622/MFiber PCI 4.0
    X1233A 375-3259 Dual Port 4x InfiniBand Host Channel Adapter
    X1333A-4 375-3418 Infiniband PCI-X Card, RoHS:YL
    X2156A 375-0100 Serial Asynchronous Interface PCI (SAI/P) 3.0
    X4011A 501-6039 Crypto Accelerator 4000 UTP (copper)
    X4012A 501-6040 Crypto Accelerator 4000 MMF (fiber)
    X4111A 501-6039 Crypto Accelerator 4000 UTP (copper)
    X4112A 501-6040 Crypto Accelerator 4000 MMF (fiber)
    X6762A 375-3089 Crypto Accelerator 1000
    n/a 501-6346 Advanced Lights Out Manager (ALOM) Card or Remote Management Card (RMC)
    n/a 501-7337 Advanced Lights Out Manager (ALOM) Card or Remote Management Card (RMC), RoHS:YL
    Disks
    Option # Manufacturing
    Part #    		 Description
    X5261A 540-5462 36.4GB – 10000 RPM, Disk Assembly with 1 SPUD bracket, and 1 of the following disks:
    • 390-0109
    • Seagate ST336607LC [ST336607LSUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0111
    • Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 390-0156
    • Fujitsu MAP3367NC [MAP3367N SUN36G]
      (36.4GB – 10000 RPM – SCSI Disk)
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    X5264A 540-6599 73.4GB – 10000 RPM, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0252
    • Fujitsu MAW3073NC [MAW3073NCSUN73G]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0265
    • Hitachi HUS103073FL3800 [HUS10733ASUN72]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0275
    • Seagate ST373207LC [ST373207LSUN72G]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    XRA-SC1CA-146G10K 540-6601 146.8GB – 10000 RPM, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
    • 390-0253
    • Fujitsu MAW3147NC [MAW3147NCSUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0266
    • Hitachi HUS103014FL3800 [HUS10143ASUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0276
    • Seagate ST3146707LC [ST314670LSUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    n/a 540-5456 73.4GB – 10000 RPM, Disk Assembly with 1 SPUD bracket, and 1 of the following disks:
    • 390-0106
    • Seagate ST373307LC [ST373307LSUN72G]
      (73.4GB – 10000 RPM – SCSI Disk)
    • 390-0108
    • Hitachi DK32EJ-72NC [DK32EJ72NSUN72G]
      (73.4GB – 10000 RPM – SCSI Disk)
    • 390-0157
    • Fujitsu MAP3735NC [MAP3735N SUN72G]
      (73.4GB – 10000 RPM – SCSI Disk)
    • 390-0174
    • Seagate ST373207LC [ST373207LSUN72G]
      (73.4GB – 10000 RPM – SCSI Disk)
    • 390-0175
    • Fujitsu MAT3073NC [MAT3073N SUN72G]
      (73.4GB – 10000 RPM – SCSI Disk)
    • 390-0176
    • Hitachi HUS103073FL3800 [HUS10733ASUN72G]
      (73.4GB – 10000 RPM – SCSI Disk)
    • 390-0252
    • Fujitsu MAW3073NC [MAW3073NCSUN73G]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0265
    • Hitachi HUS103073FL3800 [HUS10733ASUN72]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0275
    • Seagate ST373207LC [ST373207LSUN72G]
      (73.4GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    n/a 540-6065 Spud Bracket FRU with 1 bracket, and 1 of the following disks:
    • 390-0154
    • Fujitsu MAP3147NC [MAP3147N SUN146G]
      (146.8GB – 10000 RPM – SCSI Disk)
    • 390-0155
    • Hitachi DK32EJ-14NC [DK32EJ14NSUN146G]
      (146.8GB – 10000 RPM – SCSI Disk)
    • 390-0177
    • Seagate ST3146707LC [STST314670LSUN146G]
      (146GB – 10000 RPM – SCSI Disk)
    • 390-0178
    • Fujitsu MAT3147NC [MAT3147N SUN146G]
      (146GB – 10000 RPM – SCSI Disk)
    • 390-0179
    • Hitachi HUS103014FL3800 [HUS10143ASUN146G]
      (146GB – 10000 RPM – SCSI Disk)
    • 390-0253
    • Fujitsu MAW3147NC [MAW3147NCSUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0266
    • Hitachi HUS103014FL3800 [HUS10143ASUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 390-0276
    • Seagate ST3146707LC [ST314670LSUN146G]
      (146GB – 10000 RPM – SCSI Disk), RoHS:Y
    • 540-3024
    • 1″ SPUD Bracket, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    X4150A-2 501-7415 GigaSwift Ethernet UTP (GCS), RoHS:Y
    X4151A-2 501-7430 GigaSwift Ethernet MMF (GFS), RoHS:Y
    X4445A 501-6738 Quad GigaSwift PCI-X Ethernet (QGE-X), RoHS:Y
    X5544A-4 10Gb PCI-X Ethernet Adapter, no transceiver, RoHS:Y
    501-7413 10Gb PCI-X Ethernet Adapter, RoHS:Y
    • 370-7665
    • Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    X5558A 375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    X5560A-Z 375-3495 10Gb/sec XFP Optical Transceiver Long Range (LR), RoHS:Y
    4455A 10Gb PCI-X Ethernet Adapter w/ Transceiver (low-profile brackets)
    375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    501-7163 10Gb/sec PCI-X Ethernet Adapter
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    4455A-4 375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    501-7414 10Gb/sec PCI-X Ethernet Adapter, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    4466A 375-3361 XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL
    501-7414 10Gb/sec PCI-X Ethernet Adapter, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    5544A 10Gb PCI-X Ethernet Adapter w/ Transceiver (standard brackets)
    375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    501-7036 10Gb/sec PCI-X Ethernet Adapter
    • 370-7665
    • Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
    5544A-4 375-3301 10Gb/sec XFP Optical Transceiver Short Range (SR), RoHS:YL
    501-7413 10Gb PCI-X Ethernet Adapter, RoHS:Y
    • 370-7665
    • Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    6644A 375-3361 XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL
    501-7413 10Gb PCI-X Ethernet Adapter, RoHS:Y
    • 370-7665
    • Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
    • 370-7792
    • Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    X1033A 501-5019 Sun FastEthernet PCI Adapter (FE/P) 2.0
    X1034A 501-5406 Quad FastEthernet PCI (QFE/P)
    X1141A 501-4373 Gigabit Ethernet PCI (GBE/P) 2.0
    X1150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
    X1151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
    X3150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
    X3151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
    X4150A 501-6719 GigaSwift Ethernet UTP (GCS)
    X4151A 501-6762 GigaSwift Ethernet MMF (GFS)
    X4444A 501-6522 Quad GigaSwift Ethernet UTP (QGE)
    X5544A 10Gb PCI-X Ethernet Adapter, no transceiver
    370-7792 Bracket Low-Profile 10Gb PCI-X Ethernet, RoHS:Y
    501-7036 10Gb/sec PCI-X Ethernet Adapter
    • 370-7665
    • Bracket Standard 10Gb PCI-X Ethernet, RoHS:Y
    X5559A 375-3361 XFP Optical PCI-X Transceiver Single Mode Fibre, RoHS:YL
    Fan
    Option # Manufacturing
    Part #    		 Description
    n/a 540-5258 PCI Fan Tray Assembly
    • 370-4998
    • PCI Fan
    n/a 540-6674 CPU Fan Tray Assembly, RoHS:YL
    • 371-0986
    • CPU Fan, RoHS:Y
    n/a 540-6862 PCI Fan Tray Assembly, RoHS:YL
    • 371-0987
    • PCI Fan, RoHS:Y
    n/a 540-5383 CPU Fan Tray Assembly
    • 370-4997
    • CPU Fan
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description
    SG-XPCI1FC-EM4-Z 375-3398 4Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QF4 375-3354 4Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM4-Z 375-3399 4Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF4 375-3294 4Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI1FC-EM2 375-3304 2Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-JF2 375-3156 JNI 2Gb PCI Single FC Host Adapter
    SG-XPCI1FC-QF2 375-3102 2Gb PCI Single FC Host Adapter
    SG-XPCI1FC-QL2 375-3383 2Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM2 375-3305 2Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-JF2 375-3157 JNI 2Gb PCI Dual FC Host Adapter
    SG-XPCI2FC-QF2 375-3108 2Gb PCI Dual FC Host Adapter
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    SG-XPCI2FC-QF2-Z 375-3363 2Gb PCI Dual FC Host Adapter, RoHS:Y
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    X6727A 375-3030 PCI Dual FC Host Adapter+, RoHS:YL
    X6767A 375-3102 2Gb PCI Single FC Host Adapter
    X6768A 375-3108 2Gb PCI Dual FC Host Adapter
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    X6799A 375-3019 PCI Single FC Host Adapter
    Graphics
    Option # Manufacturing
    Part #    		 Description
    X3685A 375-3069 XVR-500 Graphics Accelerator
    X3689A 375-3101 XVR-1200 Graphics Accelerator
    X3768A 370-4362 PGX64 8/24-Bit Color Frame Buffer
    X3769A 375-3126 XVR-100 Graphics Accelerator (32MB)
    X3770A 375-3181 XVR-100 Graphics Accelerator (64MB)
    X3780A 375-3153 XVR-600 Graphics Accelerator
    X7296A 375-3290 XVR-100 Graphics Accelerator (64MB), RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X7403A 1GB DDR Memory Option (2 × 512MB DIMMs)
    370-4939 512MB Registered DDR DIMM (SPD 0.0)
    X7404A 2GB DDR Memory Option (2 × 1GB DIMMs)
    370-4940 1GB Registered DDR DIMM (SPD 0.0)
    X7603A 1GB DDR Memory Option, SPD 1.0 (2 × 512MB DIMMs)
    370-6202 512MB Registered DDR DIMM (SPD 1.0)
    X7604A 2GB DDR Memory Option, SPD 1.0 (2 × 1GB DIMMs)
    370-6203 1GB Registered DDR DIMM (SPD 1.0)
    X7703A 1GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 512MB DIMMs)
    370-7670 512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
    X7703A-4 1GB DDR Memory Option, (2 × 512MB DIMMs), RoHS:YL
    370-7972 512MB PC2700 DIMM, RoHS:Y
    371-1116 512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    X7704A 2GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 1GB DIMMs)
    370-7671 1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
    X7704A-4 2GB DDR1 Memory Option, (2 × 1GB DIMMs), RoHS:YL
    370-7973 1GB PC2700 DIMM, RoHS:Y
    371-1117 1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    X7711A 4GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 2GB DIMMs)
    370-7672 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    X7711A-4 4GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 2GB DIMMs), RoHS:YL
    370-7672 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    370-7974 2GB PC2700 DIMM, RoHS:Y
    n/a 540-6229 1GB DDR FRU, SPD 1.0 (2 × 512MB DIMMs)
    • 370-6202
    • 512MB Registered DDR DIMM (SPD 1.0)
    n/a 540-6230 2GB DDR FRU, SPD 1.0 (2 × 1GB DIMMs)
    • 370-6203
    • 1GB Registered DDR DIMM (SPD 1.0)
    n/a 540-6400 1GB DDR FRU, SPD 0.0/1.0 (2 × 512MB DIMMs)
    • 370-7670
    • 512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
    n/a 540-6401 2GB DDR FRU, SPD 0.0/1.0 (2 × 1GB DIMMs)
    • 370-7671
    • 1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
    n/a 540-6402 4GB Memory FRU (2 × 2GB DIMMs), RoHS:YL
    • 370-7672
    • 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    • 370-7974
    • 2GB PC2700 DIMM, RoHS:Y
    n/a 540-6776 1GB Memory FRU (2 × 512MB DIMMS), RoHS:YL
    • 370-7972
    • 512MB PC2700 DIMM, RoHS:Y
    • 371-1116
    • 512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    n/a 540-6777 2GB Memory FRU (2 × 1GB DIMMS), RoHS:YL
    • 370-7973
    • 1GB PC2700 DIMM, RoHS:Y
    • 371-1117
    • 1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    Miscellaneous
    Option # Manufacturing
    Part #    		 Description
    X2132A 375-3051 SunPCi IIpro 733MHz coprocessor card
    X2134A 370-6200 Rear Guide Kit
    375-3116 SunPCi III 1.4GHz Co-Processor Card, 256MB memory
    n/a 501-6384 Connector Board
    n/a 501-7339 Connector Board,RoHS:YL
    Power
    Option # Manufacturing
    Part #    		 Description
    n/a 300-1501 Delta 680 Watt Power Supply
    n/a 300-1851 680 Watt Power Supply, RoHS:YL
    Rack
    Option # Manufacturing
    Part #    		 Description
    X7417A 595-7118 Two-Post Rackmount Kit, RoHS:Y
    • 541-0035
    • Right Bracket, RoHS:Y
    • 541-0036
    • Left Bracket, RoHS:Y
    n/a 370-4427 4-Post Rack Kit
    (370-4427-02 = 27″) – discontinued June 2002
    (370-4427-03 = 25″) – obsolete
    (370-4427-04 = 25″) – add slide kit, RoHS:YL
    n/a 370-6155 Four-Post Rackmount Kit
    Removable Media
    Option # Manufacturing
    Part #    		 Description
    n/a 371-1789 Slimline 8X DVD-ROM / 24X CD-ROM, RoHS:Y
    n/a 390-0349 Slimline 8X DVD-ROM / 24X CD-ROM, RoHS:Y
    n/a 540-5596 8X DVD-ROM Drive Assembly, RoHS:YL
    • 340-7679
    • Mounting Bracket (secured with double sided tape), RoHS:Y
    • 370-4412
    • Slimline 8X DVD-ROM / 24X CD-ROM
    n/a 540-7027 8X DVD-ROM / 24X CD-ROM Drive Assembly, RoHS:Y
    • 340-7679
    • Mounting Bracket (secured with double sided tape), RoHS:Y
    • 390-0336
    • Slimline 8X DVD-ROM / 24X CD-ROM, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SGXPCI1SCSILM320-Z 375-3366 PCI Single Ultra320 SCSI Adapter
    SGXPCI2SCSILM320-Z 375-3365 PCI Dual Ultra320 SCSI Adapter, RoHS:YL
    X4422A-2 501-7490 Dual GigabitEthernet / Dual SCSI PCI Adapter, RoHS:Y
    SG-XPCI2SCSI-LM320 375-3191 PCI/PCI-X Dual Ultra320 SCSI Adapter
    X1032A 501-5656 Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
    X2222A 501-5727 Dual FastEthernet / Dual SCSI PCI Adapter
    X4422A 501-6635 Dual GigabitEthernet / Dual SCSI PCI Adapter
    X6540A 375-0005 Dual Single-Ended Ultra/Wide SCSI (PCI)
    X6541A 375-0006 Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)
    X6758A 375-3057 PCI Dual Ultra3 SCSI Host Adapter (LVD)
    n/a 501-6335 4-Slot SCSI Disk Backplane
    n/a 501-7338 4-Slot SCSI Disk Backplane, RoHS:YL
    System Board
    Option # Manufacturing
    Part #    		 Description
    X7444A-4 501-7462 1.593GHz CPU/Memory Module Assembly with 2GB Memory (4× 512MB DIMMs), RoHS:YL
    • 371-1116
    • 512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    • 501-7461
    • 1.593GHz CPU Board Assembly, RoHS:YL
    • 370-7684
    • UltraSPARC IIIi Heatsink, RoHS:Y
    • 501-7342
    • 0MB System Board, w/o UltraSPARC IIIi, RoHS:Y
    X7445A-4 501-7463 1.593GHz CPU/Memory Module Assembly with 4GB Memory (4× 1GB DIMMs), RoHS:YL
    • 371-1117
    • 1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    • 501-7461
    • 1.593GHz CPU Board Assembly, RoHS:YL
    • 370-7684
    • UltraSPARC IIIi Heatsink, RoHS:Y
    • 501-7342
    • 0MB System Board, w/o UltraSPARC IIIi, RoHS:Y
    X7446A-4 501-7464 1.593GHz CPU/Memory Module Assembly with 8GB Memory (4× 2GB DIMMs), RoHS:YL
    • 370-7672
    • 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    • 501-7461
    • 1.593GHz CPU Board Assembly, RoHS:YL
    • 370-7684
    • UltraSPARC IIIi Heatsink, RoHS:Y
    • 501-7342
    • 0MB System Board, w/o UltraSPARC IIIi, RoHS:Y
    X7415A 501-6461 1.062GHz CPU/Memory Module Assembly with 2GB Memory (4× 512MB DIMMs)
    • 370-4939
    • 512MB Registered DDR DIMM (SPD 0.0)
    • 501-6369
    • 1.062GHz CPU Board Assembly
    • 501-6345
    • CPU Board, 0MB
    X7416A 501-6533 1.28GHz CPU/Memory Module Assembly with 4GB Memory (4× 1GB DIMMs)
    • 370-4940
    • 1GB Registered DDR DIMM (SPD 0.0)
    • 501-7029
    • 1.28GHz CPU Board Assembly
    • 501-6778
    • CPU Board, 0MB
    X7443A 501-7202 1.28GHz CPU/Memory Module Assembly with 8GB Memory (4× 2GB DIMMs)
    • 370-7672
    • 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    • 501-7029
    • 1.28GHz CPU Board Assembly
    • 501-6778
    • CPU Board, 0MB
    X7444A 501-6789 1.593GHz CPU/Memory Module Assembly with 2GB Memory (4× 512MB DIMMs)
    • 370-7670
    • 512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
    • 501-6788
    • 1.593GHz CPU Board Assembly
    • 501-6778
    • CPU Board, 0MB
    X7445A 501-6786 1.593GHz CPU/Memory Module Assembly with 4GB Memory (4× 1GB DIMMs)
    • 370-7671
    • 1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
    • 501-6788
    • 1.593GHz CPU Board Assembly
    • 501-6778
    • CPU Board, 0MB
    X7446A 501-7093 1.593GHz CPU/Memory Module Assembly with 8GB Memory (4× 2GB DIMMs)
    • 370-7672
    • 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster, RoHS:YL
    • 501-6788
    • 1.593GHz CPU Board Assembly
    • 501-6778
    • CPU Board, 0MB
    n/a 330-3746 CPU Filler Panel, RoHS:Y
    n/a 501-6370 1.28GHz CPU Board Assembly
    (<=501-6533-02)
    • 501-6345
    • CPU Board, 0MB
    n/a 530-3146 AC Input Power Cable
    n/a 540-5418 Motherboard Assembly
    • 340-7503
    • CPU Heatsink, Tomatillo, RoHS:Y
    • 501-6344
    • Motherboard
    • 530-3147
    • Rear Panel LED Cable
    • 540-5285
    • CPU/Memory Board Cage Assembly
    n/a 540-6336 Motherboard Assembly
    • 340-7503
    • CPU Heatsink, Tomatillo, RoHS:Y
    • 501-6910
    • Motherboard
      FAB 270-6344-07
    • 530-3147
    • Rear Panel LED Cable
    • 540-5285
    • CPU/Memory Board Cage Assembly
    n/a 540-6682 Motherboard Assembly, RoHS:YL
    • 340-7503
    • CPU Heatsink, Tomatillo, RoHS:Y
    • 501-7343
    • Motherboard w/o Tomatillo Heatsink, RoHS:YL
    n/a 540-6276 Motherboard Assembly
    • 340-7503
    • CPU Heatsink, Tomatillo, RoHS:Y
    • 501-6900
    • Motherboard
      FAB 270-6344-06
    • 530-3147
    • Rear Panel LED Cable
    • 540-5285
    • CPU/Memory Board Cage Assembly

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
