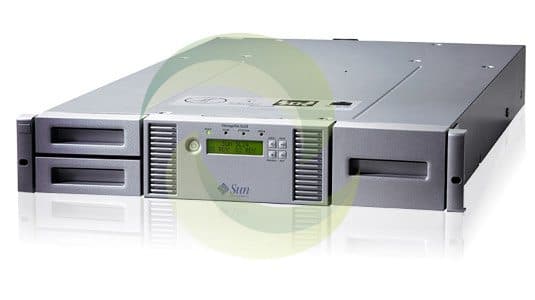

Oracle Sun StorageTek SL24 Tape Library
REQUEST A PRICE QUOTE:
|
Tape Drives
|
|||||
| LTO2 | LTO2 SCSI Tape Drive, Half Height, RoHS:Y | ||||
| LTO3 | LTO3 SCSI Tape Drive, RoHS:Y | ||||
| LTO3 FC | LTO3 FC Tape Drive, RoHS:Y | ||||
| LTO4 | LTO4 SAS Tape Drive, Half Height, RoHS:Y | ||||
| LTO4 | LTO4 SCSI Tape Drive, RoHS:Y | ||||
| LTO4 FC | LTO4 FC Tape Drive, RoHS:Y | ||||
The Sun StorageTek SL24 Tape Autoloader, RoHS:YL:
|
|||||
|
Environment
|
|||||
| AC Voltage Range | 88 to 264 VAC, single phase | ||||
| Frequency | 47 to 63 Hz | ||||
| Input Power, Maximum | 80 watts maximum (max drive load) | ||||
| Maximum AC Inrush (per psu) | 100 to 240 VAC, 50 to 60 Hz, 1.0 Amperes | ||||
| Temperature & Humidity |
Operating: 5° C to 35° C (41° F to 95° F), 20% to 80% noncondensing Nonoperating: -30° C to 60° C (-22° F to 140° F), 10% to 90% noncondensing |
||||
| Temperature Shock Immunity | Maximum rate of change 10° C per hour | ||||
| Altitude |
Operating: 3048 m (10,000 ft.) Nonoperating: 10,675 m (35,023 ft.) |
||||
| Dust Concentration | Less than 200 microgram/cubic meter | ||||
| Shock |
Operating: 4g 11ms pulse (+/-) half sine Nonoperating: 160 cm/sec (63 inches/sec) |
||||
| Vibration |
Operating: 0.25 gRMS, 15 minutes per axis (random) 0.25 gRMS, 1.0 octave per minute, 0-300-0Hz, 5 cycles, 3 axis (swept sine) Nonoperating: Ten sweeps, 5 to 300Hz, at 0.5G peak-to-peak. |
||||
|
Dimensions and Weights
|
|||||
| Height | 87.5 mm (3.44 in.) 250 mm (9.84 in.) shipping |
||||
| Width | 445 mm (17.5 in.) 580 mm (22.83 in.) shipping |
||||
| Depth | 775.5 mm (30.53 in.) 990 mm (38.97 in.) shipping |
||||
| Weight | 15 kg (33.07 lb.) 25.5 kg (56.22 lb.) shipping |
||||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X-SL24-48-SAS-CBLZ | 530-4045 | 2M SAS Cable, RoHS:Y | ||
| X3830A-Z | 530-3626 | External SCSI Cable, HD68 to VHDC, 4M, RoHS:Y | ||
| X3832A-Z | 530-3625 | External SCSI Cable, HD68 to VHDCI, 2M, RoHS:Y | ||
| n/a | n/a | SCSI Terminator 252000226830 | ||
| Fibre Channel | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| SG-XPCI1FC-EM4-Z | 375-3398 | 4Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QF4 | 375-3354 | 4Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-EM4-Z | 375-3399 | 4Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF4 | 375-3294 | 4Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y | ||
| SG-XPCIE1FC-EM8-Z | 371-4295 | 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y | ||
| SG-XPCIE1FC-QF4 | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y | ||
| SG-XPCIE1FC-QF8-Z | 371-4324 | 8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y | ||
| SG-XPCIE2FC-EB4-Z | 375-3386 | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex, RoHS:Y | ||
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCIE2FC-EM8-Z | 371-4306 | 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCIE2FC-QB4-Z | 375-3384 | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic, RoHS:Y | ||
| SG-XPCIE2FC-QF4 | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCIE2FC-QF8-Z | 371-4325 | 8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCIEFCGBE-E8-Z | 371-4666 | 8Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex, RoHS:Y | ||
| SG-XPCIEFCGBE-Q8-Z | 371-4522 | 8Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic, RoHS:Y | ||
| SG-XPCI1FC-EM2 | 375-3304 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QF2 | 375-3102 | 2Gb PCI Single FC Host Adapter | ||
| SG-XPCI1FC-QL2 | 375-3383 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QLC-Z | 375-3364 | Entry-Level 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-EM2 | 375-3305 | 2Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF2-Z | 375-3363 | 2Gb PCI Dual FC Host Adapter, RoHS:Y | ||
|
|
|||
| Miscellaneous | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| XSL24-TBLKIT-Z | 380-1563 | Tabletop Conversion Kit | ||
| XSLX-LHMAG-1MS-Z | 380-1562 | Left Side 1-Mail Slot Magazine, RoHS:Y | ||
| XSLX-RH-MAG-Z | 380-1561 | Right Side 12-Slot Magazine, RoHS:Y | ||
| n/a | 380-1560 | Sun SL24 Chassis FRU w/o Tape Drive, RoHS:Y | ||
| n/a | 380-1573 | OEM SL24 Chassis FRU w/o Tape Drive | ||
| Removable Media | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| LTO4-HP4FC-SL2-4Z | 380-1590 | LTO4 FC Tape Drive, RoHS:Y | ||
| LTO4-HPSC-SL24-48Z | 380-1589 | LTO4 SCSI Tape Drive, RoHS:Y | ||
| LTO4H-HPSAS-SLXX-Z | 380-1601 | LTO4 HH SAS Tape Drive, RoHS:Y | ||
| LTO4H-HPSC-SLXX-Z | 380-1592 | LTO4 HH SCSI Tape Drive, RoHS:Y | ||
| LTO5-HP8FC-SLXX-Z | 380-1643 | LTO5 FC Tape Drive, RoHS:Y | ||
| LTO5H-HPSAS-SLXX-Z | 380-1644 | LTO5 HH SAS Tape Drive, RoHS:Y | ||
| LTO2HH-HPSC-SL2-4Z | 380-1566 | LTO2 SCSI Tape Drive, Half Height, RoHS:Y | ||
| LTO3-HP4FC-SL2-4Z | 380-1565 | LTO3 FC Tape Drive, RoHS:Y | ||
| LTO3-HPSC-SL24-48Z | 380-1564 | LTO3 SCSI Tape Drive, RoHS:Y | ||
| LTO3HH-HPSA-SL2-4Z | 380-1593 | LTO3 SAS Tape Drive, Half Height, RoHS:Y | ||
| LTO3HH-HPSC-SL2-4Z | 380-1587 | LTO3 SCSI Tape Drive, Half Height, RoHS:Y | ||
