Oracle Sun StorageTek SL24 Server
REQUEST A PRICE QUOTE:
| Brand: | Oracle / Sun Microsystems |
| Condition: | Refurbished and new (limited availability) |
| Availability: | Contact |
| Shipping Area: | Worldwide to most countries |
| Shipping Method: | Fedex (most orders), UPS, DHL, Freight Courier |
| Price: | Please use the quote form above for quick pricing |
| Payment: | Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders) |
| Guarantee: | All items are tested by Oracle trained technicians & backed by a 100% warranty |
| Questions? | Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements |
Specs and Information:
|
Tape Drives
|
|||||
| LTO2 | LTO2 SCSI Tape Drive, Half Height | ||||
| LTO3 | LTO3 SCSI Tape Drive | ||||
| LTO3 FC | LTO3 FC Tape Drive | ||||
| LTO4 | LTO4 SAS Tape Drive, Half Height | ||||
| LTO4 | LTO4 SCSI Tape Drive | ||||
| LTO4 FC | LTO4 FC Tape Drive | ||||

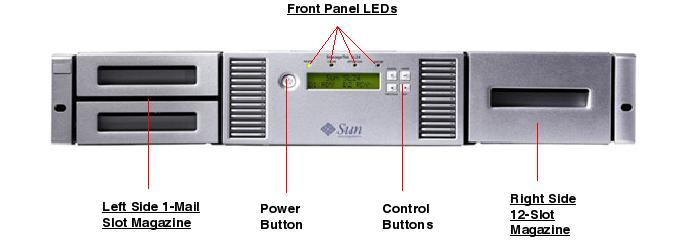

The Sun StorageTek SL24 Tape Autoloader
|
|||||
|
Environment
|
|||||
| AC Voltage Range | 88 to 264 VAC, single phase | ||||
| Frequency | 47 to 63 Hz | ||||
| Input Power, Maximum | 80 watts maximum (max drive load) | ||||
| Maximum AC Inrush (per psu) | 100 to 240 VAC, 50 to 60 Hz, 1.0 Amperes | ||||
| Temperature & Humidity |
Operating: 5° C to 35° C (41° F to 95° F), 20% to 80% noncondensing Nonoperating: -30° C to 60° C (-22° F to 140° F), 10% to 90% noncondensing |
||||
| Temperature Shock Immunity | Maximum rate of change 10° C per hour | ||||
| Altitude |
Operating: 3048 m (10,000 ft.) Nonoperating: 10,675 m (35,023 ft.) |
||||
| Dust Concentration | Less than 200 microgram/cubic meter | ||||
| Shock |
Operating: 4g 11ms pulse (+/-) half sine Nonoperating: 160 cm/sec (63 inches/sec) |
||||
| Vibration |
Operating: 0.25 gRMS, 15 minutes per axis (random) 0.25 gRMS, 1.0 octave per minute, 0-300-0Hz, 5 cycles, 3 axis (swept sine) Nonoperating: Ten sweeps, 5 to 300Hz, at 0.5G peak-to-peak. |
||||
|
Dimensions and Weights
|
|||||
| Height | 87.5 mm (3.44 in.) 250 mm (9.84 in.) shipping |
||||
| Width | 445 mm (17.5 in.) 580 mm (22.83 in.) shipping |
||||
| Depth | 775.5 mm (30.53 in.) 990 mm (38.97 in.) shipping |
||||
| Weight | 15 kg (33.07 lb.) 25.5 kg (56.22 lb.) shipping |
||||
|
Regulations
|
|||||
| Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN60950-1 | ||||
| RFI/EMI | FCC (47 CFR 15, Subpart B) Class A; CE (EN55022 Class A, EN 55024, EN61000-3-2, EN61000-3-3; VCCI (CISPR 22) Class A; Canada (ICES-003) Class A; Australia/New Zealand (AS/NZS CISPR22); Taiwan BSMI (CNS13438 Class A and CNS14336) | ||||
|
Capacity and Performance
|
|||||
| Item | LTO2 HH | LTO3 FC / SCSI | LTO4 FC / SCSI | LTO4 HH | |
| Number of Tape Drives | 1-2 | 1 | 1 | 1-2 | |
| Number of Cartridges | 24 | 24 | 24 | 24 | |
| Cartridge Capacity (native)1 | 200 GB | 400 GB | 800 GB | 800 GB | |
| Cartridge Capacity (compressed)2 | 400 GB | 800 GB | 1.6 TB | 1.6 TB | |
| Maximum Autoloader Capacity (native)1 | 4.8 TB | 9.6 TB | 19.2 TB | 19.2 TB | |
| Maximum Library Capacity (compressed)2 | 9.6 TB | 19.2 TB | 38.4 TB | 38.4 TB | |
| Maximum Transfer Rate (1 drive, native) | 24 MB/sec (86 GB/hour) | 80 MB/sec (288 GB/hour) | 120 MB/sec (432 GB/hour) | 80 MB/sec (288 GB/hour) | |
| Maximum Transfer Rate (1 drive, compressed) | 48 MB/sec (172 GB/hour) | 160 MB/sec (576 GB/hour) | 240 MB/sec (864 GB/hour) | 160 MB/sec (576 GB/hour) | |
|
1Native represents the capacity without compression. 2Compressed identifies a capacity compression ratio of 2:1. |
|||||
|
Clearance
|
|||||
| Back: Minimum of 15.4 cm (6 in.) Front: Minimum of 30.8 cm (12 in.) Sides: Minimum of 5.08 cm (2 in.) |
|||||
The Sun StorageTek SL24 Tape Autoloader rack requirements:
|
|||||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| X-SL24-48-SAS-CBLZ [S] | 530-4045 | 2M SAS Cable | n/a | |
| X3830A-Z [S] | 530-3626 [C] | External SCSI Cable, HD68 to VHDC, 4M | n/a | |
| X3832A-Z [S] | 530-3625 [C] | External SCSI Cable, HD68 to VHDCI, 2M | n/a | |
| n/a | n/a | SCSI Terminator 252000226830 | n/a | |
| Fibre Channel | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| 7105393 | 7053435 [F] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex | n/a | |
| SG-XPCIE1FC-EM8-Z | 371-4295 | 8Gigabit/Sec PCI Express Single FC Host Adapter | n/a | |
| 7053433 | 8Gigabit/Sec PCI Express Single FC Host Adapter | n/a | ||
| SG-XPCIE1FC-QF8-Z | 371-4324 | 8Gigabit/Sec PCI Express Single FC Host Adapter | n/a | |
| SG-XPCIE2FC-EM8-Z | 7053434 | 8Gigabit/Sec PCI Express Dual FC Host Adapter | 371-4306 | |
| SG-XPCIE2FC-QF8-Z | 371-4325 | 8Gigabit/Sec PCI Express Dual FC Host Adapter | n/a | |
| SG-XPCIEFCGBE-Q8-Z | 371-4522 1 [F] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic | n/a | |
| 7105389 [S] | Gigabit/Sec PCI Express Dual FC Host Adapter for EU Countries | |||
| 7053427 | 4Gigabit/Sec PCI Express Dual FC Host Adapter | n/a | ||
| 7105390 [S] | 4Gigabit/Sec PCI Express Single FC Host Adapter for EU Countries | |||
| 7053428 | 4Gigabit/Sec PCI Express Single FC Host Adapter | n/a | ||
| 7105391 [S] | 8Gigabit/Sec PCI Express Single FC Host Adapter | |||
| 7053433 | 8Gigabit/Sec PCI Express Single FC Host Adapter | n/a | ||
| SG-XPCI1FC-EM2 [S] | 375-3304 | 2Gb PCI-X Single FC Host Adapter | n/a | |
| SG-XPCI1FC-EM4-Z [S] | 375-3398 | 4Gb PCI-X Single FC Host Adapter | n/a | |
| SG-XPCI1FC-QF2 [S] | 375-3102 | 2Gb PCI Single FC Host Adapter | n/a | |
| SG-XPCI1FC-QF4 [S] | 375-3354 | 4Gb PCI-X Single FC Host Adapter | n/a | |
| SG-XPCI1FC-QL2 [S] | 375-3383 | 2Gb PCI-X Single FC Host Adapter | n/a | |
| SG-XPCI1FC-QLC-Z [S] | 375-3364 | Entry-Level 2Gb PCI-X Single FC Host Adapter | n/a | |
| SG-XPCI2FC-EM2 [S] | 375-3305 | 2Gb PCI-X Dual FC Host Adapter | n/a | |
| SG-XPCI2FC-EM4-Z [S] | 7058528 | 4Gb PCI-X Dual FC Host Adapter | 375-3399 | |
| SG-XPCI2FC-QF2-Z [S] | 375-3363 | 2Gb PCI/PCI-X Dual FC Host Adapter | n/a | |
|
|
n/a | ||
| SG-XPCI2FC-QF4 [S] | 7060890 | 4Gb PCI-X Dual FC Host Adapter | 375-3294 | |
| SG-XPCIE1FC-EM4 [S] | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter | n/a | |
| 7053428 | 4Gigabit/Sec PCI Express Single FC Host Adapter | n/a | ||
| SG-XPCIE1FC-QF4 [S] | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter | n/a | |
| SG-XPCIE2FC-EB4-Z [S] | 375-3386 | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex | n/a | |
| SG-XPCIE2FC-EM4 [S] | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter | n/a | |
| 7053427 | 4Gigabit/Sec PCI Express Dual FC Host Adapter | n/a | ||
| SG-XPCIE2FC-QB4-Z [S] | 375-3384 | 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic | n/a | |
| SG-XPCIE2FC-QF4 [S] | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter | n/a | |
| SG-XPCIEFCGBE-E8-Z [S] | 371-4666 2 [F] | 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex | n/a | |
| n/a | 371-4306 | 8Gigabit/Sec PCI Express Dual FC Host Adapter | n/a | |
| n/a | 375-3294 | 4Gb PCI-X Dual FC Host Adapter | n/a | |
| n/a | 375-3399 | 4Gb PCI-X Dual FC Host Adapter | n/a | |
|
1 Two SFPs are included, see component page for more information. 2 Two SFPs are included, see component page for more information. NOTE: For FRU/CRU status, see host system’s Full Components List. |
| Miscellaneous | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| XSL24-TBLKIT-Z [S] | 380-1563 | Tabletop Conversion Kit | n/a | |
| XSLX-LHMAG-1MS-Z [S] | 380-1562 | Left Side 1-Mail Slot Magazine | n/a | |
| XSLX-RH-MAG-Z [S] | 380-1561 | Right Side 12-Slot Magazine | n/a | |
| n/a | 380-1560 [C] | Sun SL24 Chassis FRU w/o Tape Drive | n/a | |
| n/a | 380-1650 [C] | SL24 Chassis FRU w/o Tape Drive | 380-1560 [C] | |
| Removable Media | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| LTO2HH-HPSC-SL2-4Z [S] | 380-1566 [C] | LTO2 SCSI Tape Drive, Half Height | n/a | |
| LTO3-HP4FC-SL2-4Z [S] | 380-1565 [C] | LTO3 FC Tape Drive | n/a | |
| LTO3-HPSC-SL24-48Z [S] | 380-1564 [C] | LTO3 SCSI Tape Drive | n/a | |
| LTO3HH-HPSA-SL2-4Z [S] | 380-1593 [C] | LTO3 SAS Tape Drive, Half Height | n/a | |
| LTO3HH-HPSC-SL2-4Z [S] | 380-1587 [C] | LTO3 SCSI Tape Drive, Half Height | n/a | |
| LTO4-HP4FC-SL2-4Z [S] | 7050417 [C] | LTO4 FC Tape Drive | 380-1590 [C] | |
| LTO4-HPSC-SL24-48Z [S] | 7050416 [C] | LTO4 SCSI Tape Drive | 380-1589 [C] | |
| LTO4H-HPSAS-SLXX-Z [S] | 7050418 [C] | LTO4 HH SAS Tape Drive | 380-1601 [C] | |
| LTO4H-HPSC-SLXX-Z [S] | 7050419 [C] | LTO4 SCSI Tape Drive, Half Height | 380-1592 [C] | |
| LTO5-HP8FC-SLXX-Z [S] | 7050420 [C] | LTO5 FC Tape Drive | 380-1643 [C] | |
| LTO5H-HPSAS-SLXX-Z [S] | 7050421 [C] | LTO5 SAS Tape Drive,Half Height | 380-1644 [C] | |
| n/a | 380-1589 [C] | LTO4 SCSI Tape Drive | n/a | |
| n/a | 380-1590 [C] | LTO4 FC Tape Drive | n/a | |
| n/a | 380-1592 [C] | LTO4 HH SCSI Tape Drive | n/a | |
| n/a | 380-1601 [C] | LTO4 HH SAS Tape Drive | n/a | |
| n/a | 380-1643 [C] | HP LTO5 FC Tape Drive | n/a | |
| n/a | 380-1644 [C] | HP LTO5 HH SAS Tape Drive | n/a | |
| SCSI | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | Previous Part # |
|
| SG-XPCI8SAS-E-Z [S] | 7050791 | 3Gb PCI-X SAS 8-Port Host Adapter | 375-3488 | |
| SG-XPCIE2SCSIU320Z [S] | 7050790 | Dual-Channel Ultra320 LVD SCSI PCI Express Adapter | 375-3357 | |
| SG-XPCIE8SAS-E-Z [S] | 7050793 | PCI Express 8-Port Host Adapter | 375-3487 | |
| SG-XPCIE8SAS-EB-Z [S] | 375-3486 | Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule | n/a | |
| SGXPCI1SCSILM320-Z [S] | 375-3366 | PCI/PCI-X Single Ultra320 SCSI Adapter | n/a | |
| SGXPCI2SCSILM320-Z [S] | 7050788 | PCI/PCI-X Dual Ultra320 SCSI Adapter | 375-3365 | |
| X6758A [S] | 375-3057 5 | PCI Dual Ultra3 SCSI Host Adapter (LVD) | n/a | |
| n/a | 375-3357 | Dual-Channel Ultra320 LVD SCSI PCI Express Adapter | n/a | |
| n/a | 375-3365 | PCI/PCI-X Dual Ultra320 SCSI Adapter | n/a | |
| n/a | 375-3487 | PCI Express 8-Port Host Adapter | n/a | |
| n/a | 375-3488 | 3Gb PCI-X SAS 8-Port Host Adapter | n/a | |
